Refrigerant Pressure Sensor / Switch: Testing and Inspection

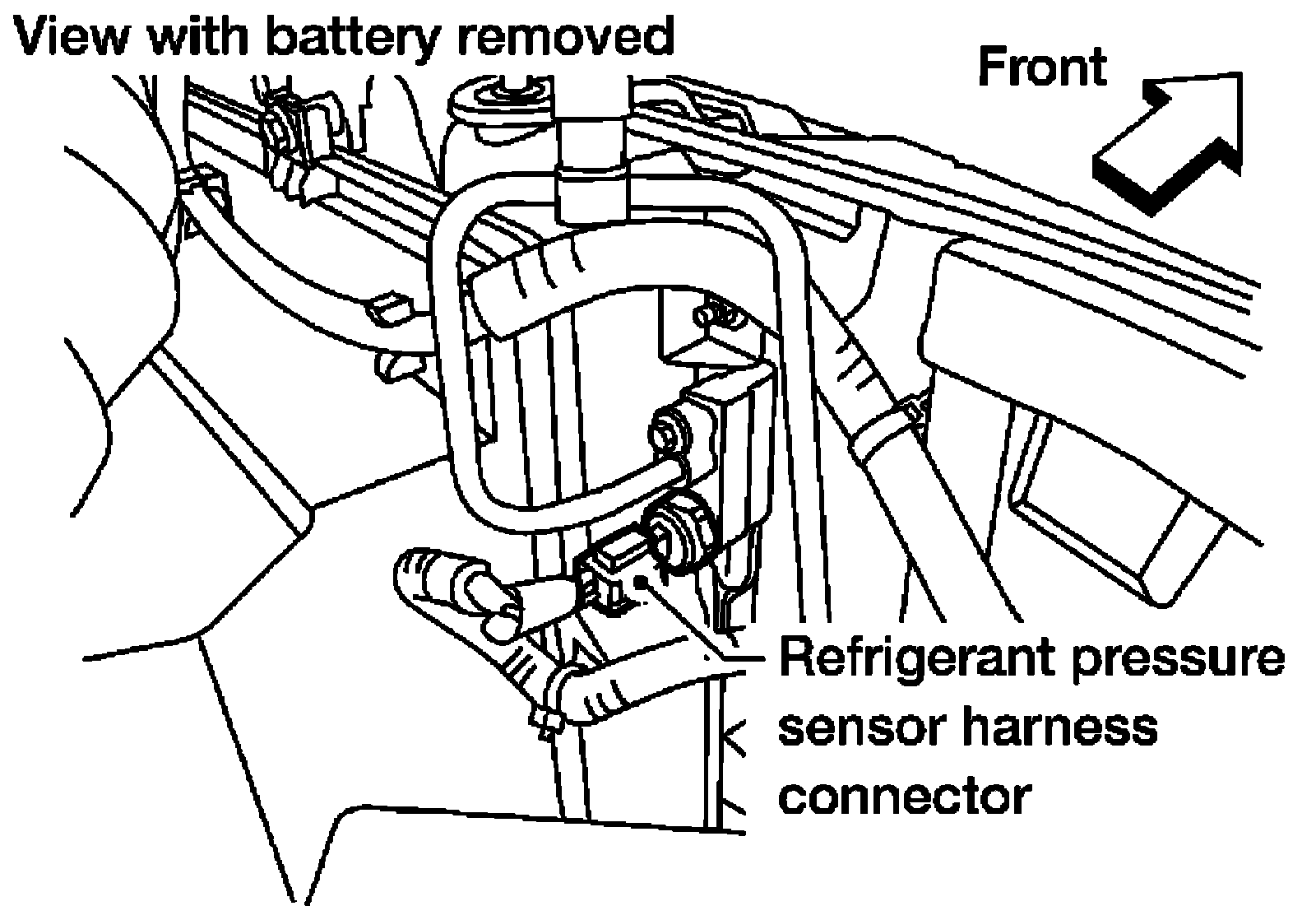

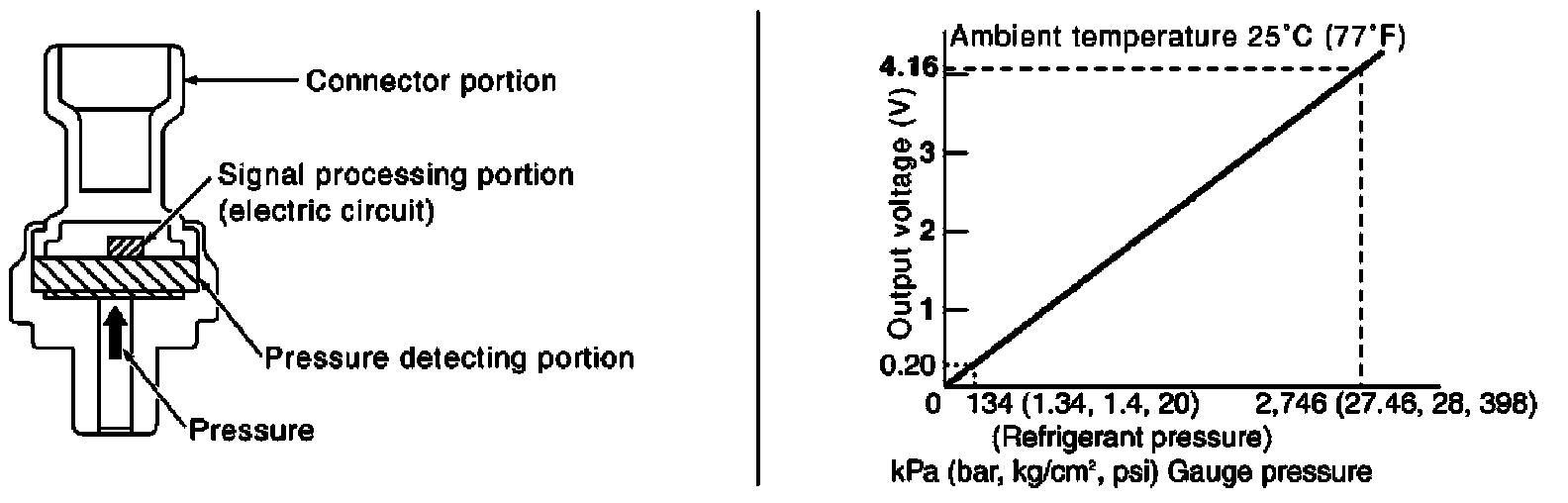

Refrigerant Pressure Sensor Circuit CheckComponent DescriptionThe refrigerant pressure sensor is installed at the condenser of the air conditioner system. The sensor uses an electrostatic volume pressure transducer to convert refrigerant pressure to voltage.The voltage signal is sent to ECM, and ECM controls cooling fan system.

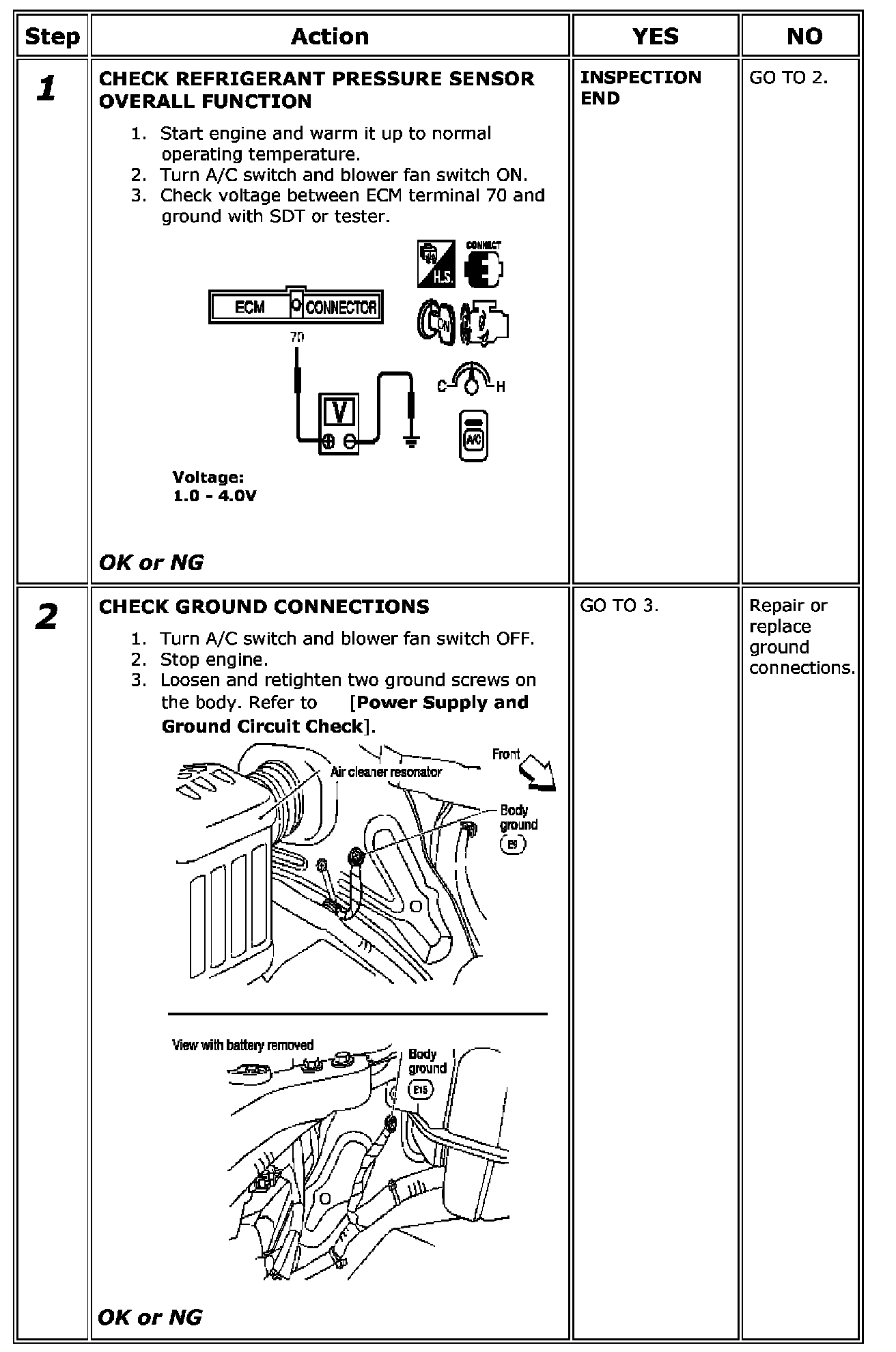

Diagnosis ProcedureStep 1-2:

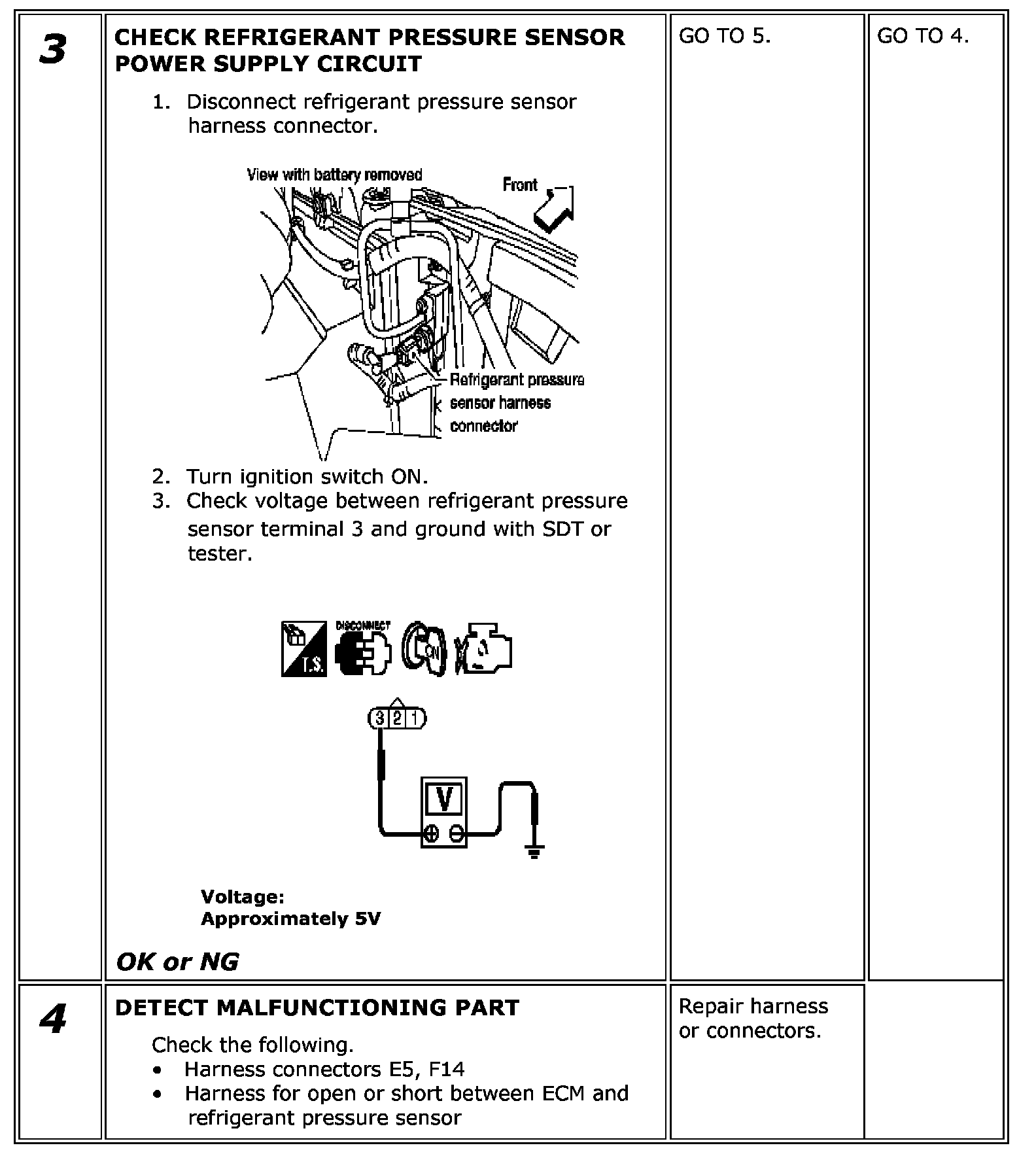

Step 3-4:

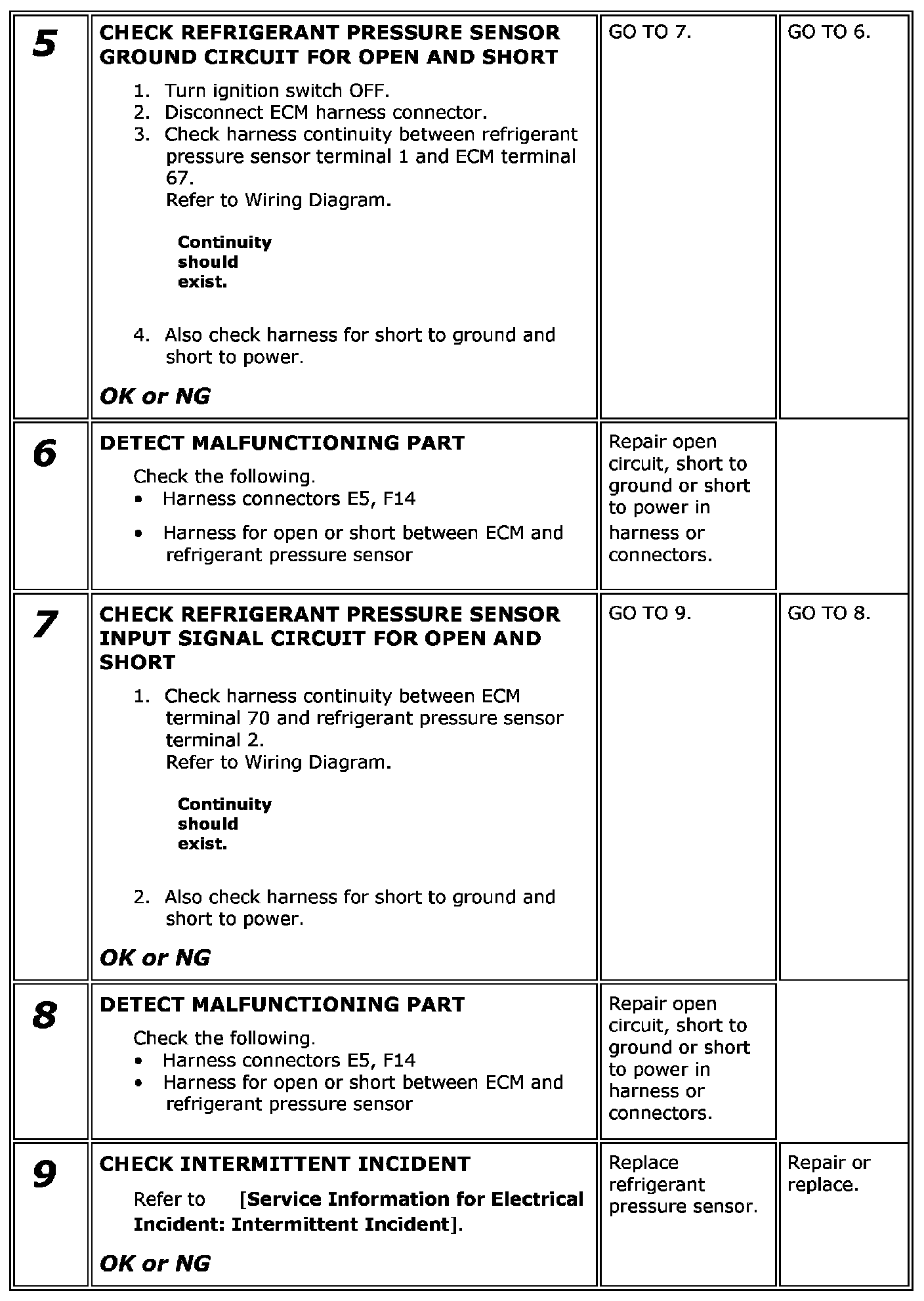

Step 5-9:
