SDT Function (Meter / M&A)

SDT Function (Meter / M&A)

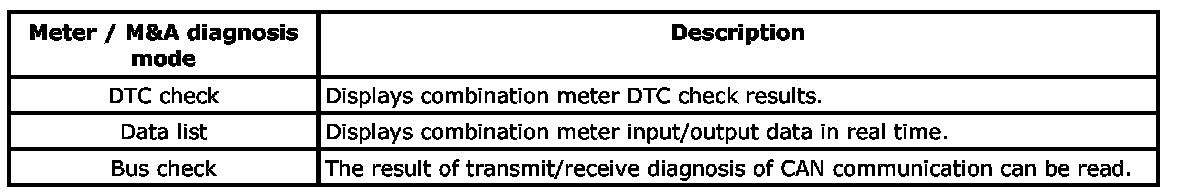

SDT can display each diagnostic item using the diagnostic test modes shown following.







DTC Check

Display Item List

Refer to [DTC Index: Combination Meter]. Combination Meter

Data List

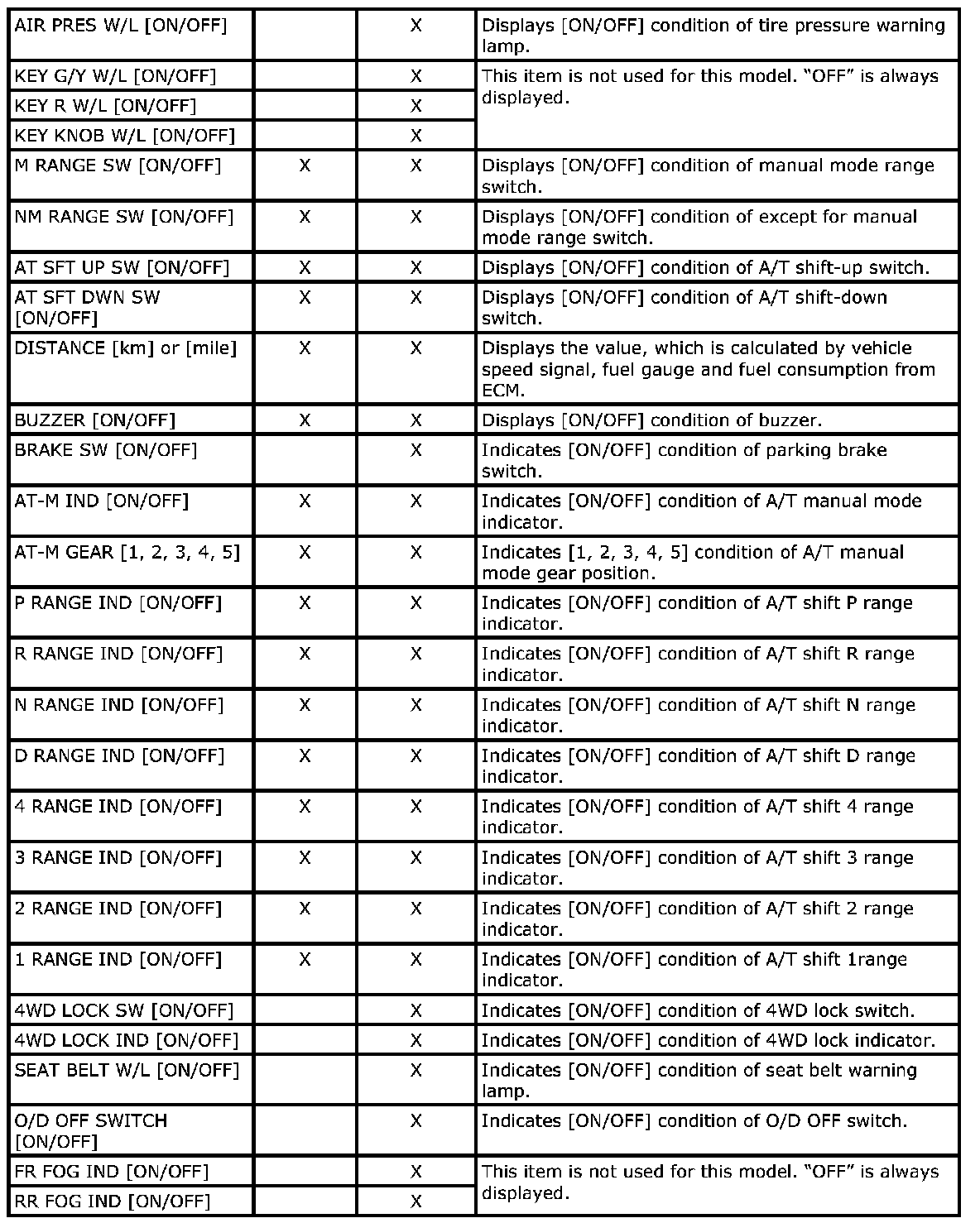

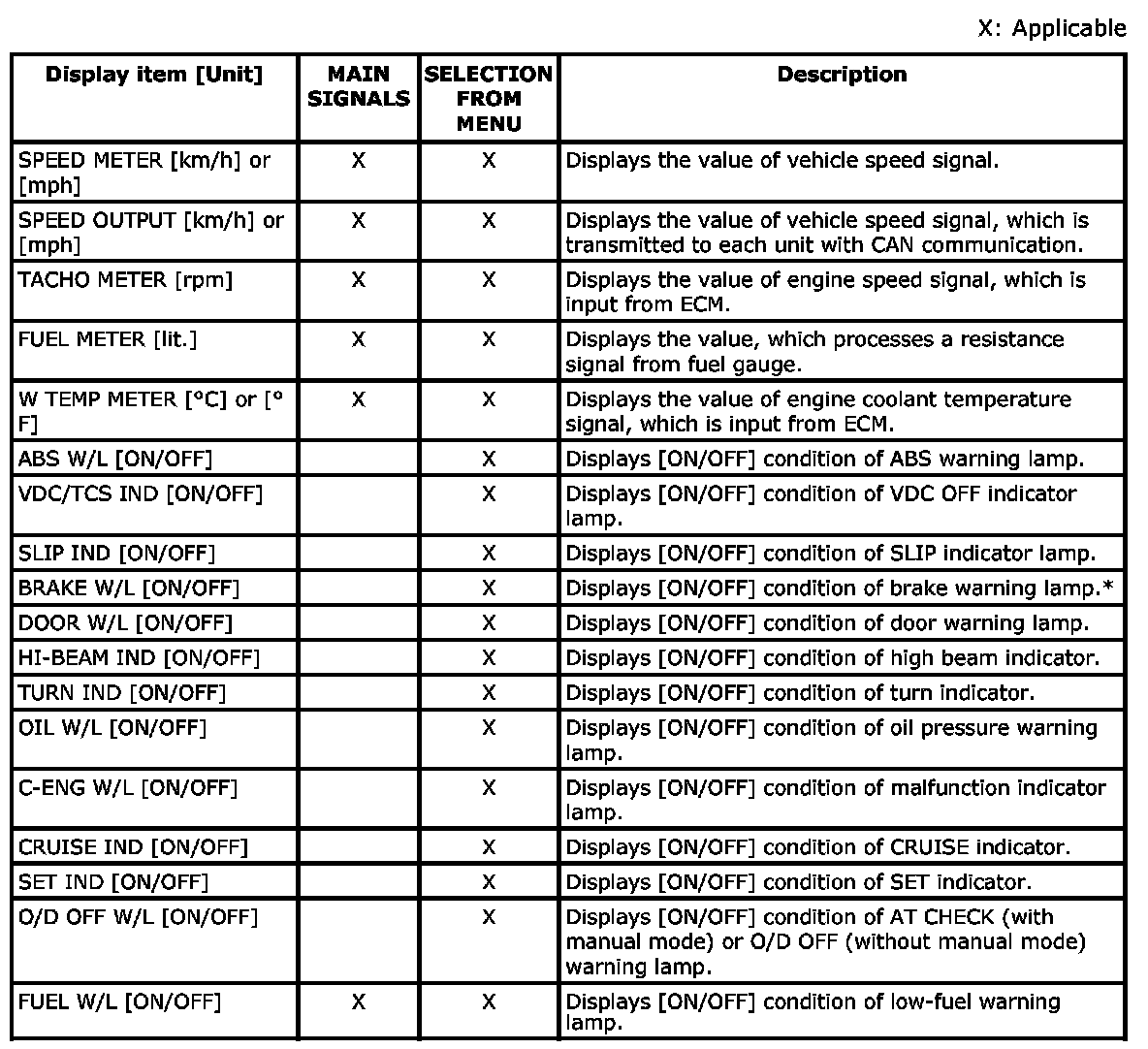

Display Item List










NOTE:
- Some items are not available due to vehicle specification.
- *: The monitor will indicate "OFF"even though the brake warning lamp is on if either of the following conditions exist.
- The parking brake is engaged
- The brake fluid level is low
