Idle Speed and Ignition Timing Check
Idle Speed and Ignition Timing CheckIDLE SPEEDWith SDTCheck
idle speed in "Data list" mode with SDT.
With GSTCheck
idle speed in Service $01 with GST.
IGNITION TIMINGAny of following two methods may be used.
1.

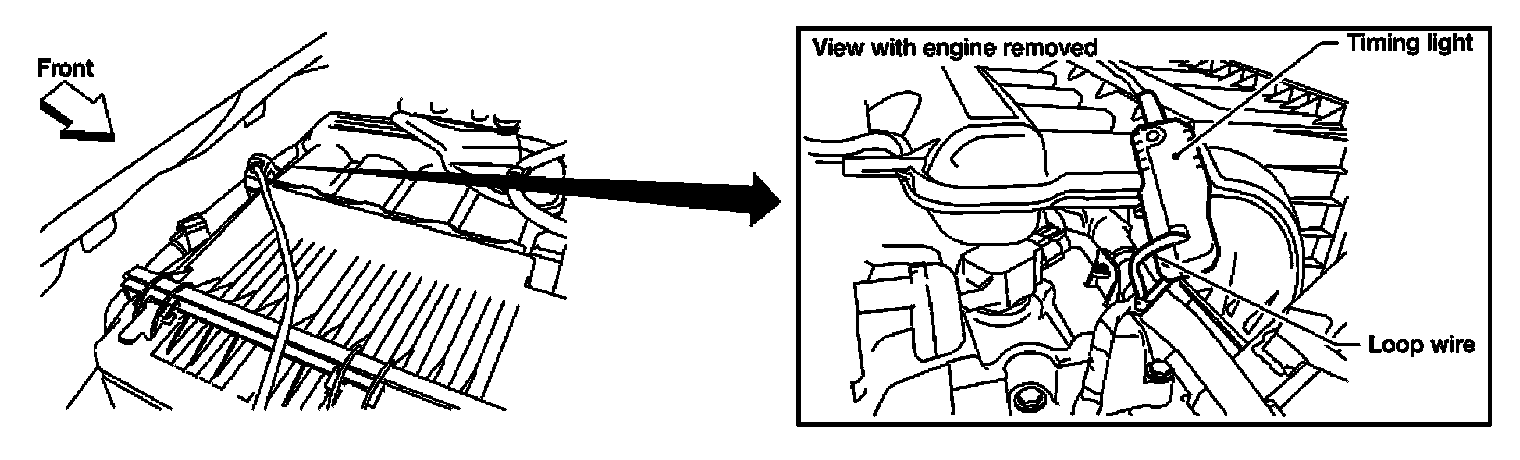

Attach timing light to loop wire as shown.
2.
Check
ignition timing.
