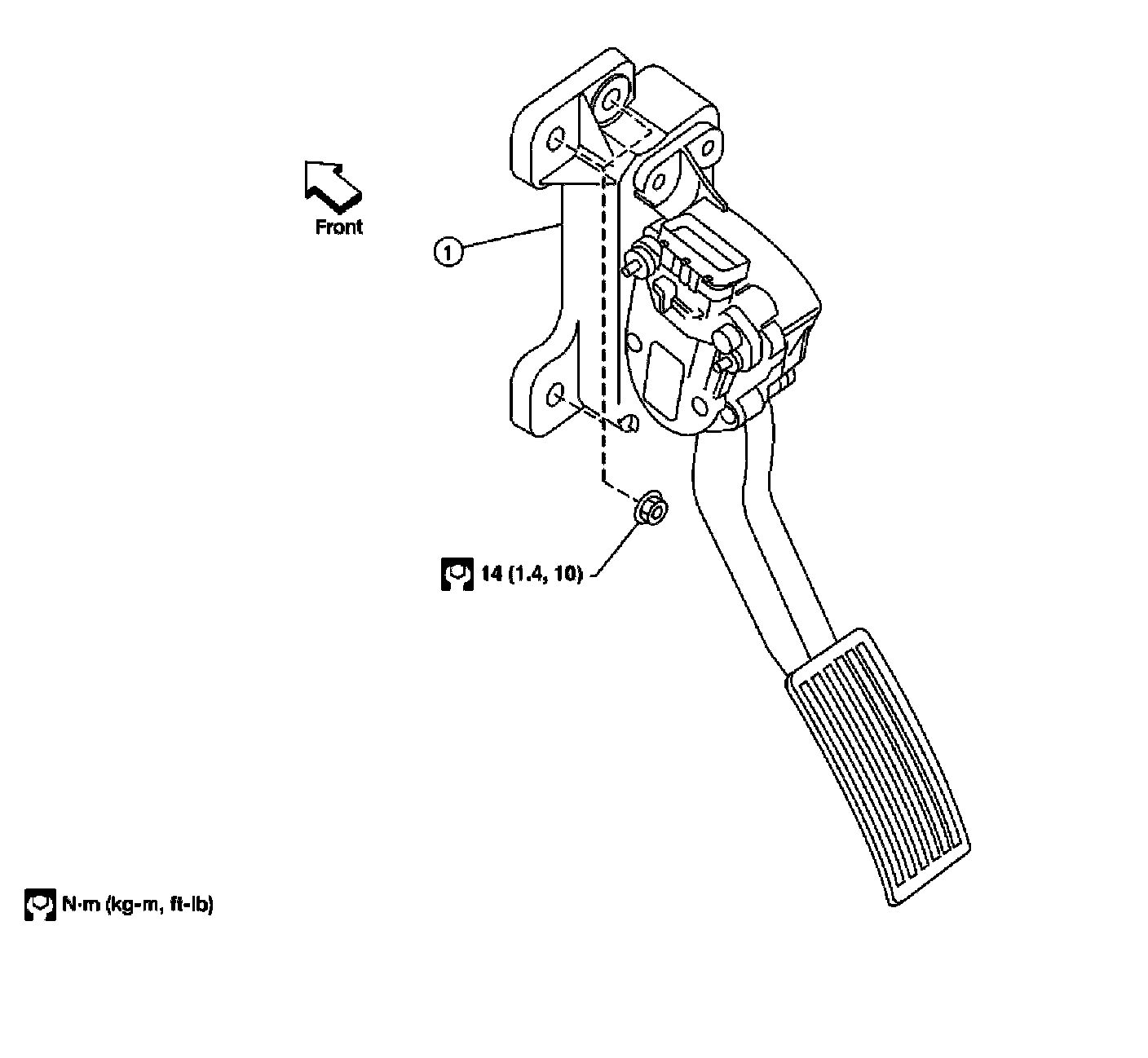

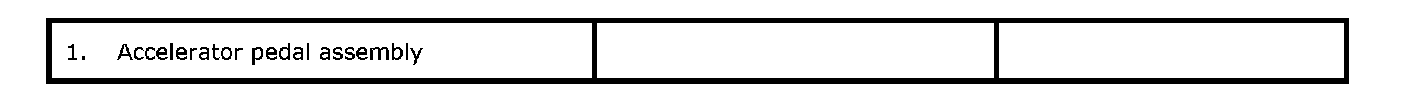

Accelerator Control System: Component

Accelerator Control System: Component

CAUTION:
^ Do not disassemble the accelerator pedal assembly.
^ Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
^ Avoid damage from dropping the accelerator pedal assembly during handling.
^ Keep the accelerator pedal assembly away from water.
