Direct-Connect SRS Component Connectors Description

Direct-connect SRS Component Connectors Description

The following SRS components use direct-connect style harness connectors.
- Driver air bag module
- Front passenger air bag module
- LH side front curtain air bag module
- LH side rear curtain air bag module
- RH side front curtain air bag module
- RH side rear curtain air bag module
- Front LH seat belt pre-tensioner
- Front RH seat belt pre-tensioner

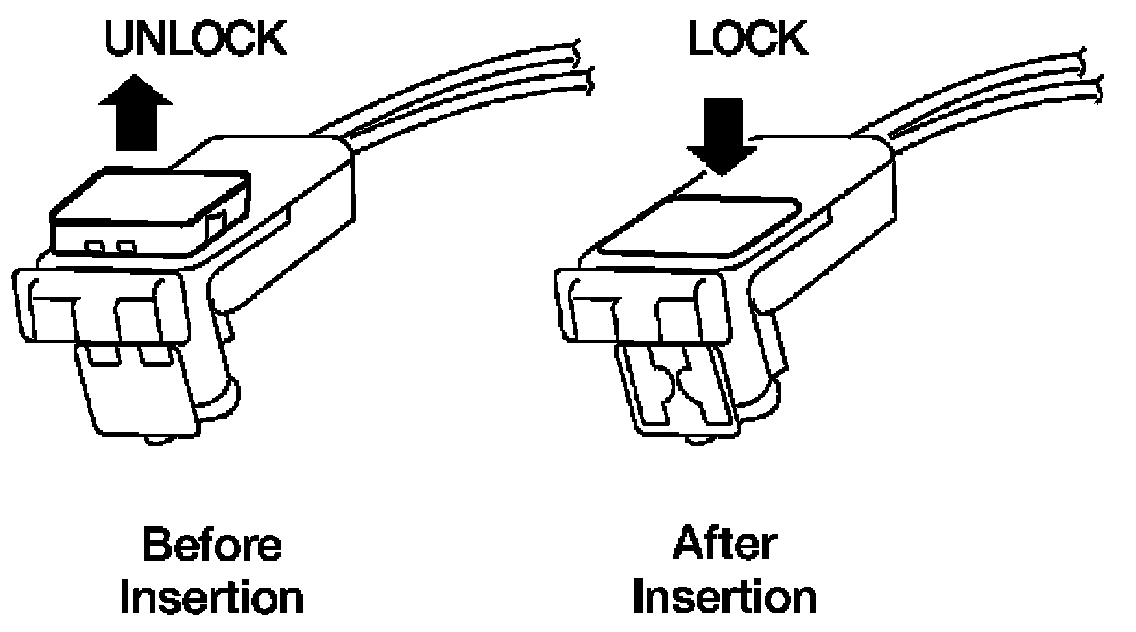

Always pull up to release locking tab prior to removing connector from SRS component. Always push down to lock locking tab after installing connector to SRS component. When locked, the locking tab is level with the connector housing.
