Intake Manifold
Intake manifold bolts:
9.4 Nm (0.96 kg-m, 83 in-lb)
Tighten in numerical order as shown.

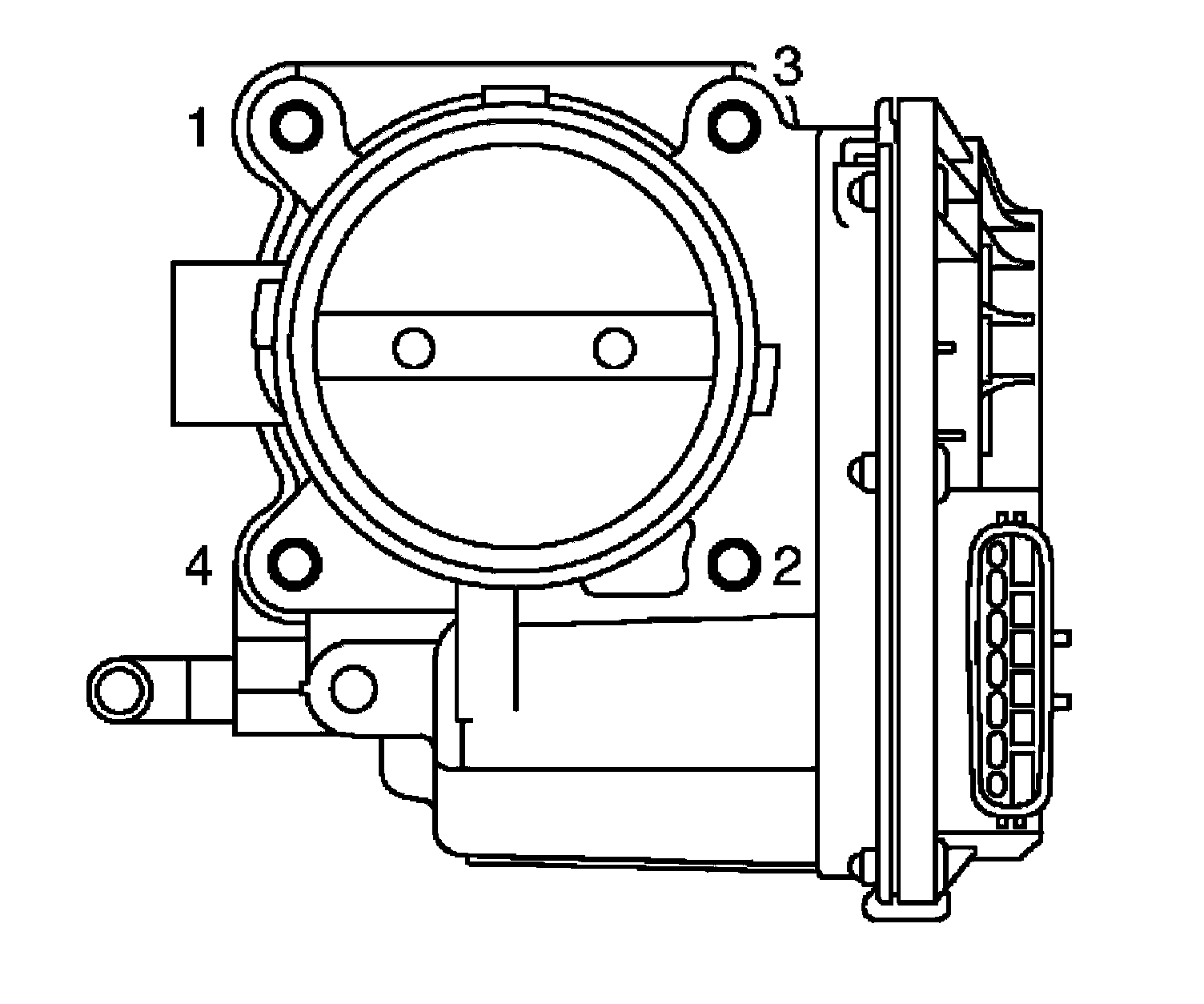

Electric Throttle Control Actuator bolts
10.0 Nm (1.0 kg-m, 7 ft-lb)
Tighten bolts equally and diagonally in several steps and in numerical order as shown.
