Starter Motor: Service and Repair

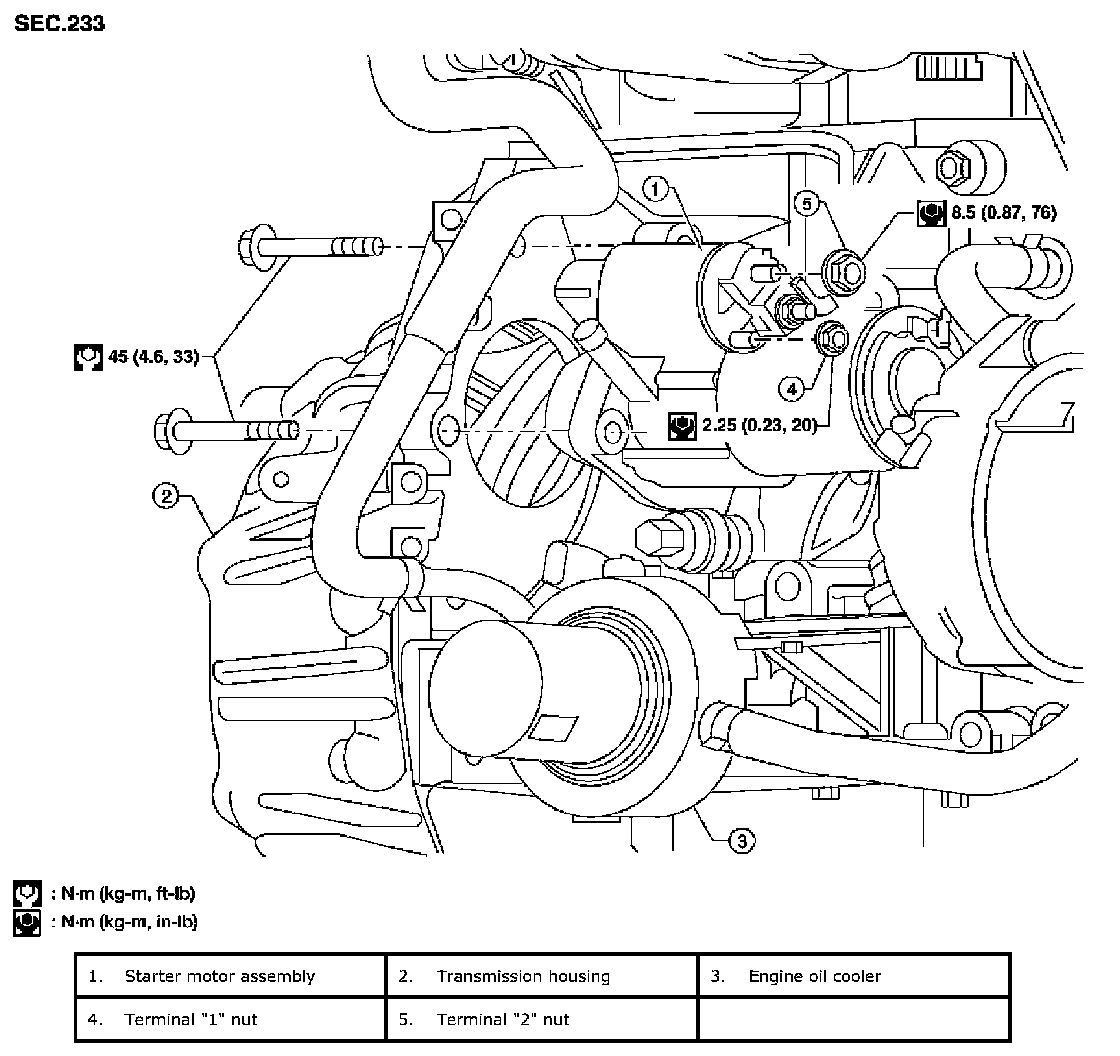

Starter Motor: Removal and Installation (QR25DE)






REMOVAL
1. Disconnect the negative battery terminal.
2. Remove the air cleaner cover and the air cleaner to intake manifold collector duct. Refer to [Air Cleaner and Air Duct: Exploded View].
3. Remove the harness protector from the starter motor engine room harness.
4. Remove terminal "1"and "2" nuts.
5. Remove the two starter motor bolts, using power tools.
6. Remove the starter motor.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: Be sure to tighten terminal nuts carefully.
