Premium Audio - Crew Cab

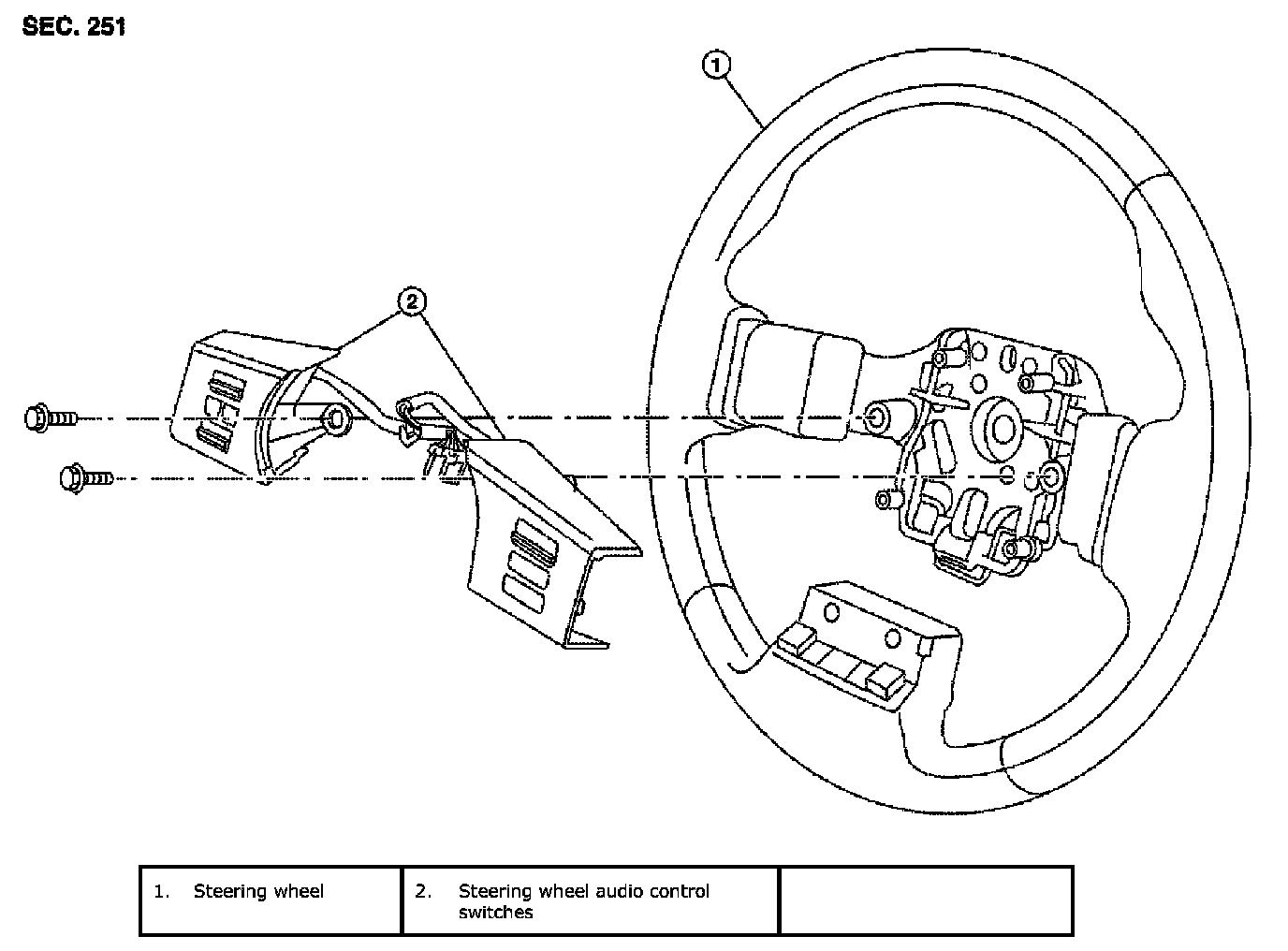

Steering Switch: Removal And Installation







REMOVAL

1. Remove the driver air bag module. Refer to [Driver Air Bag Module: Removal and Installation].
2. Remove the steering wheel. Refer to [Steering Wheel: On-Vehicle Inspection and Service].
3. Remove the steering wheel rear cover.
4. Remove the steering wheel audio control switch assembly screws.
5. Disconnect the steering wheel audio control switches connector and remove the steering wheel audio control switches.

INSTALLATION

Installation is in the reverse order of removal.
