Direct Clutch: Disassembly and Assembly

Direct Clutch: Disassembly and Assembly

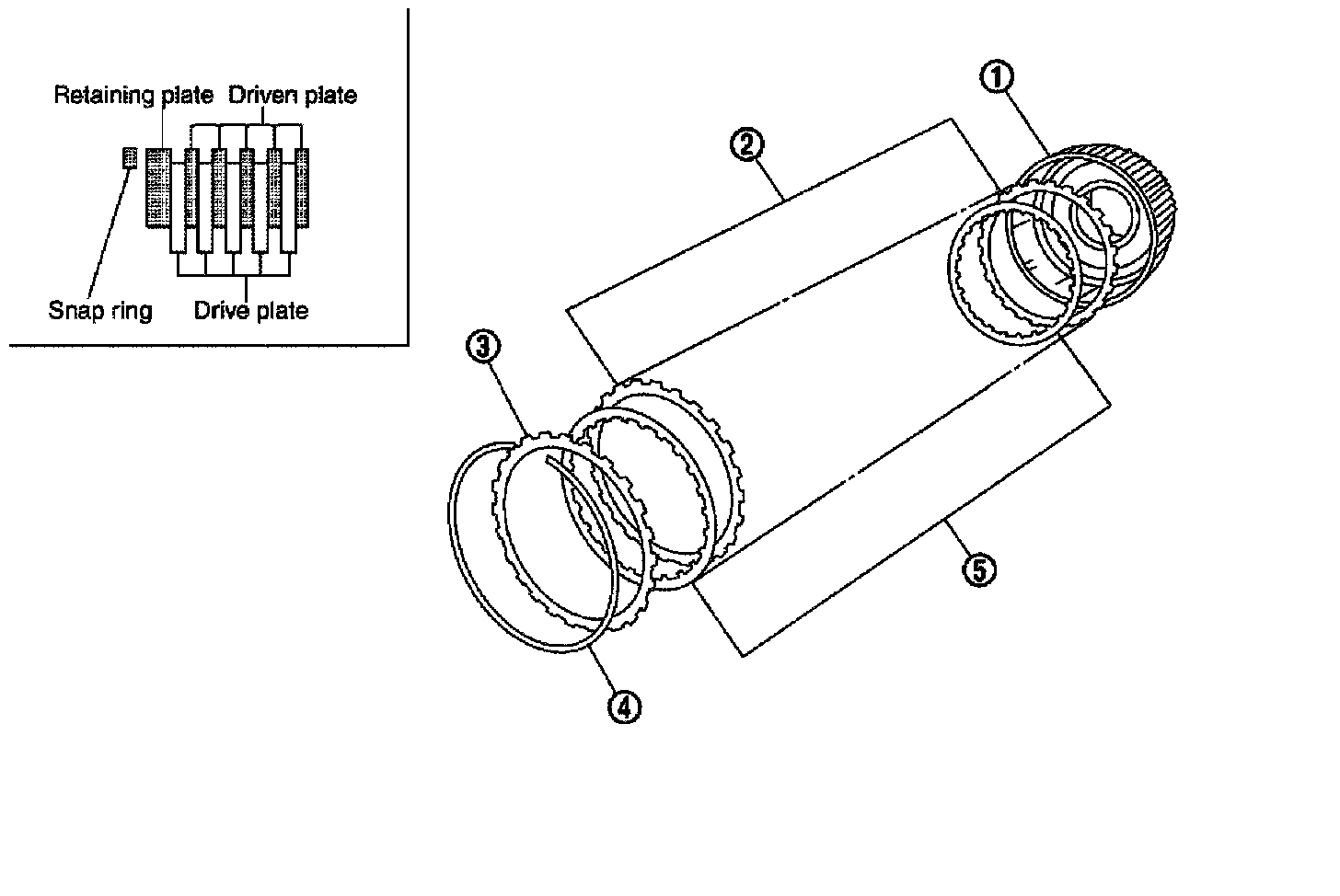

COMPONENTS








DISASSEMBLY

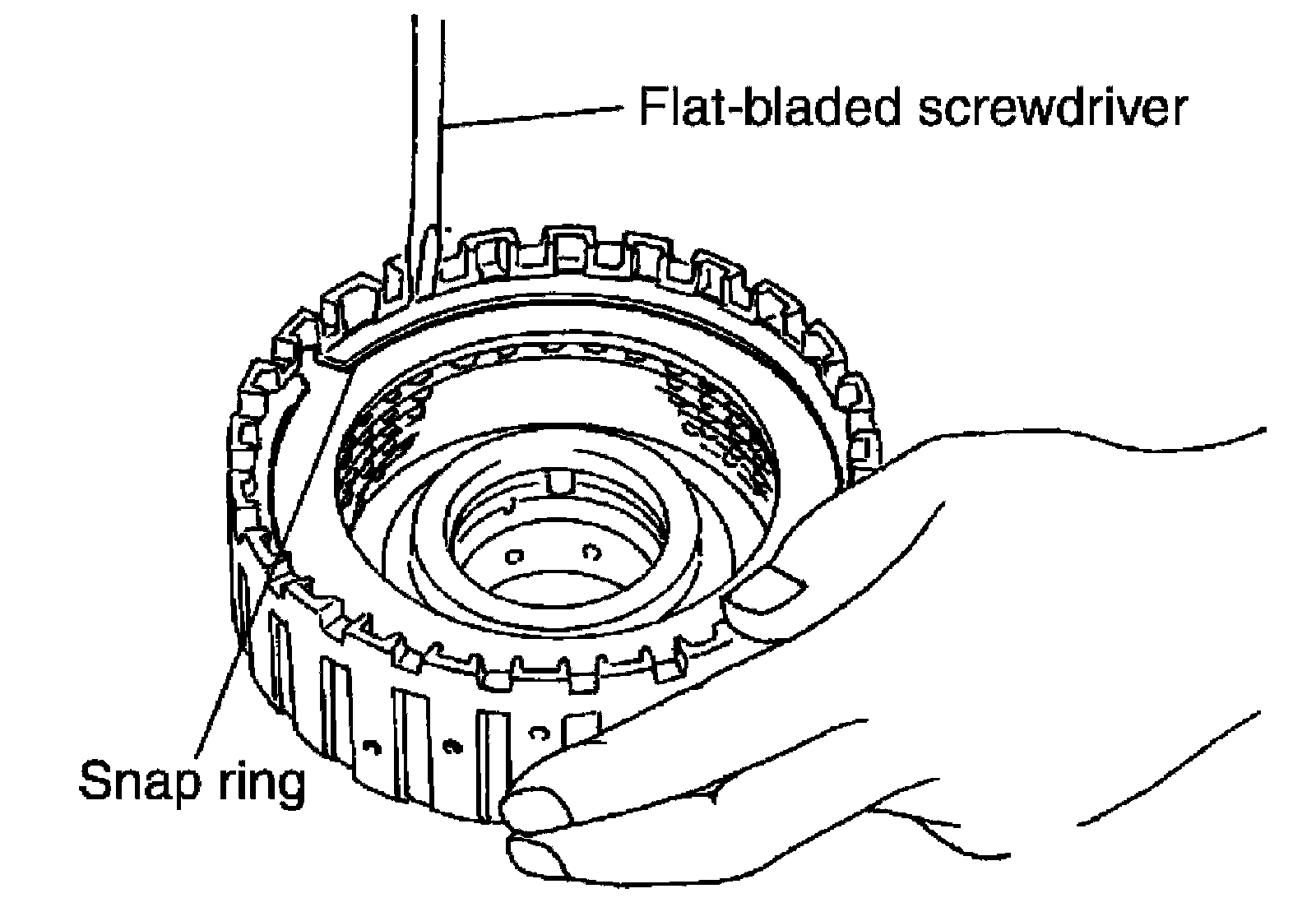

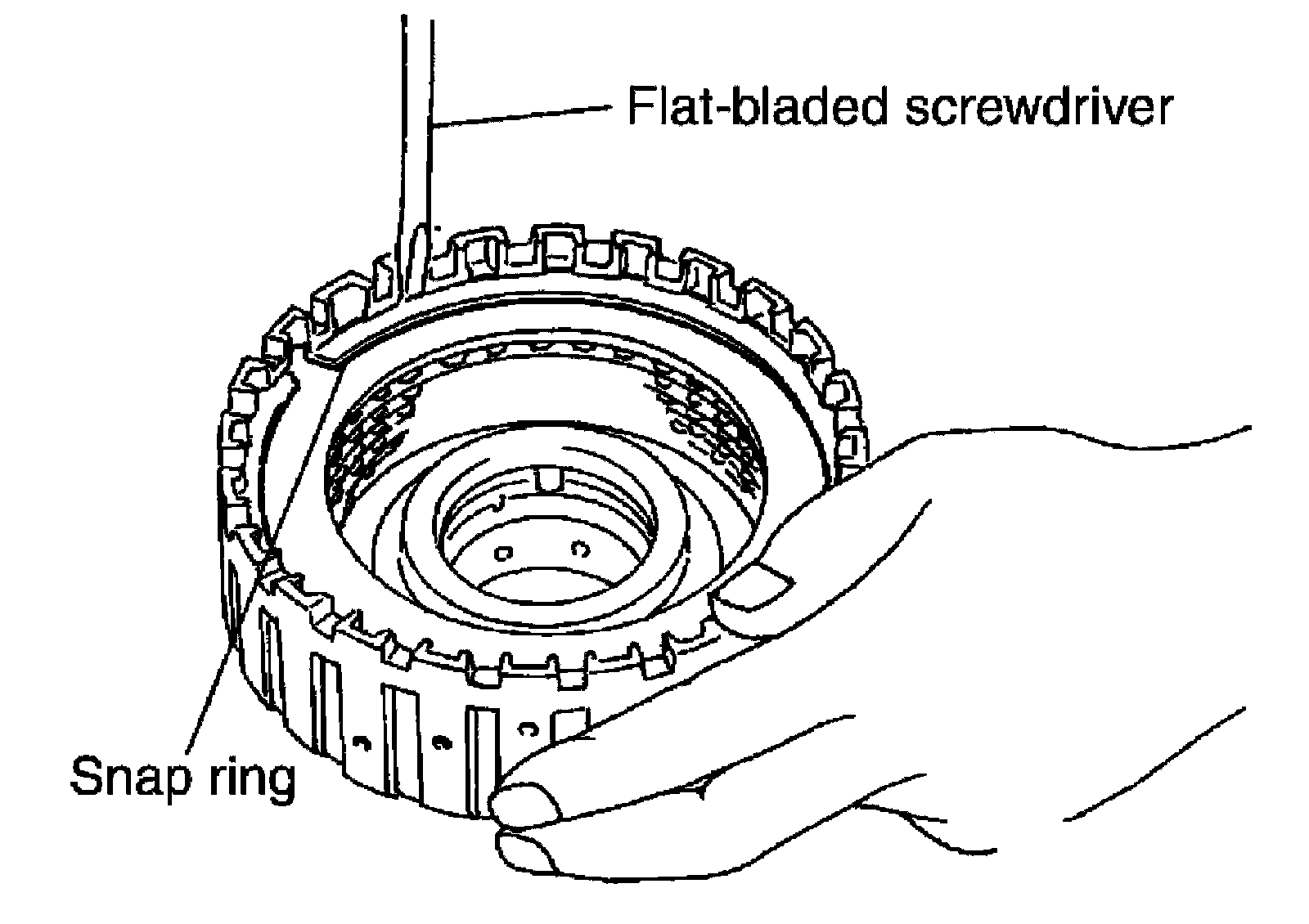

1) Remove snap ring from direct clutch drum using suitable tool.





2) Remove drive plates, driven plates and retaining plate from direct clutch drum.

INSPECTION
^ Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring
^ Check for deformation, fatigue or damage.

Direct Clutch Drive Plates
^ Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Driven Plates
^ Check facing for burns, cracks or damage.

ASSEMBLY
1) Install drive plates, driven plates and retaining plate in direct clutch drum.

CAUTION:
Take care with order of plates.

2) Install snap ring in direct clutch drum using suitable tool.
