Stall Test

Stall Test

STALL TEST

Stall Test Procedure
1) Inspect the amount of engine oil. Replenish the engine oil if necessary.
2) Drive for about 10 minutes to warm up the vehicle so that the A/T fluid temperature is 50 to 80 degrees C (122 to 176 degrees F). Inspect the amount of ATF. Replenish if necessary.

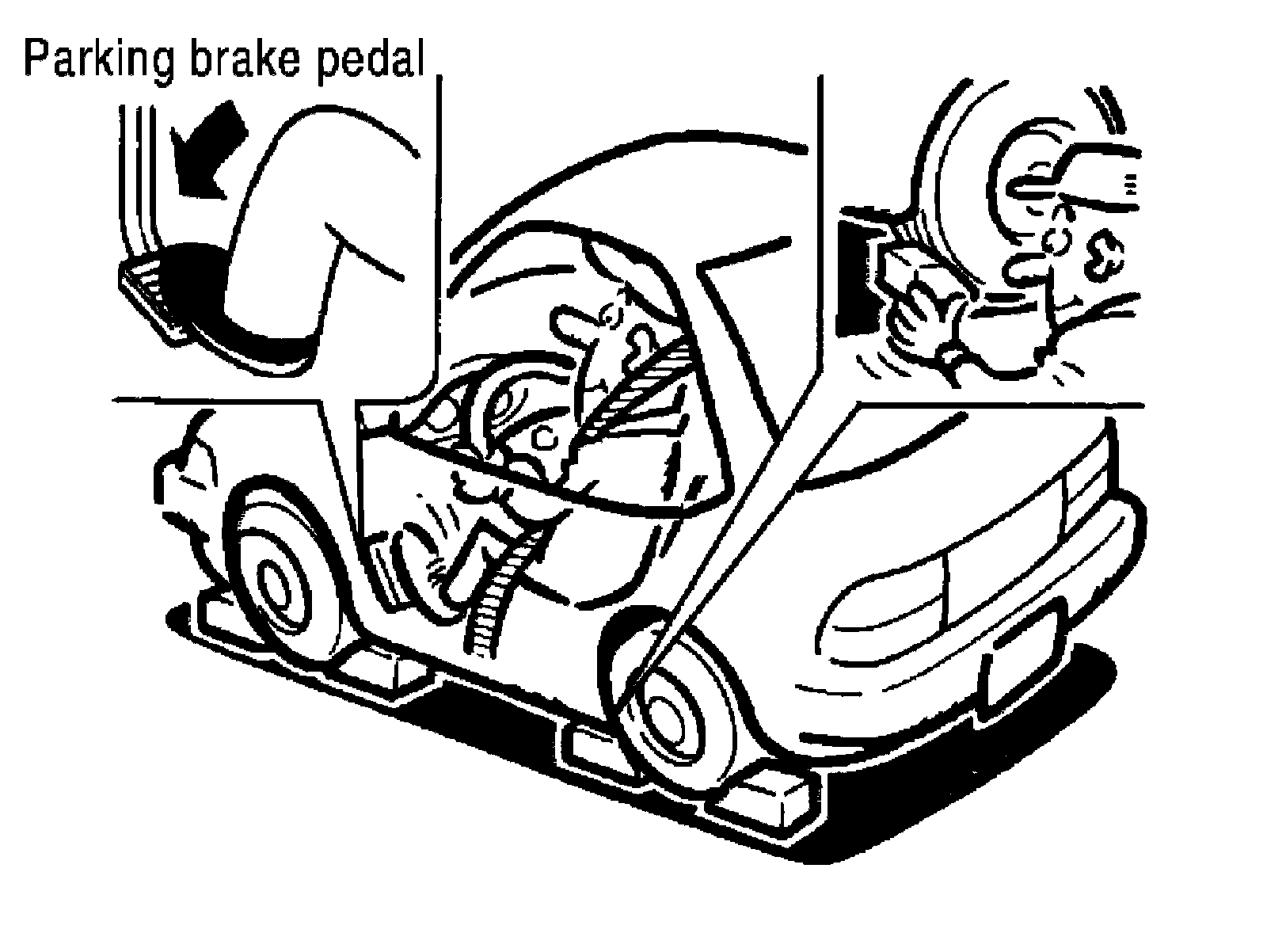

3) Securely engage the parking brake so that the tires do not turn.





4) Engine start, apply foot brake, and place selector lever in "D" position.





5) While holding down the foot brake, gradually press down the accelerator pedal.

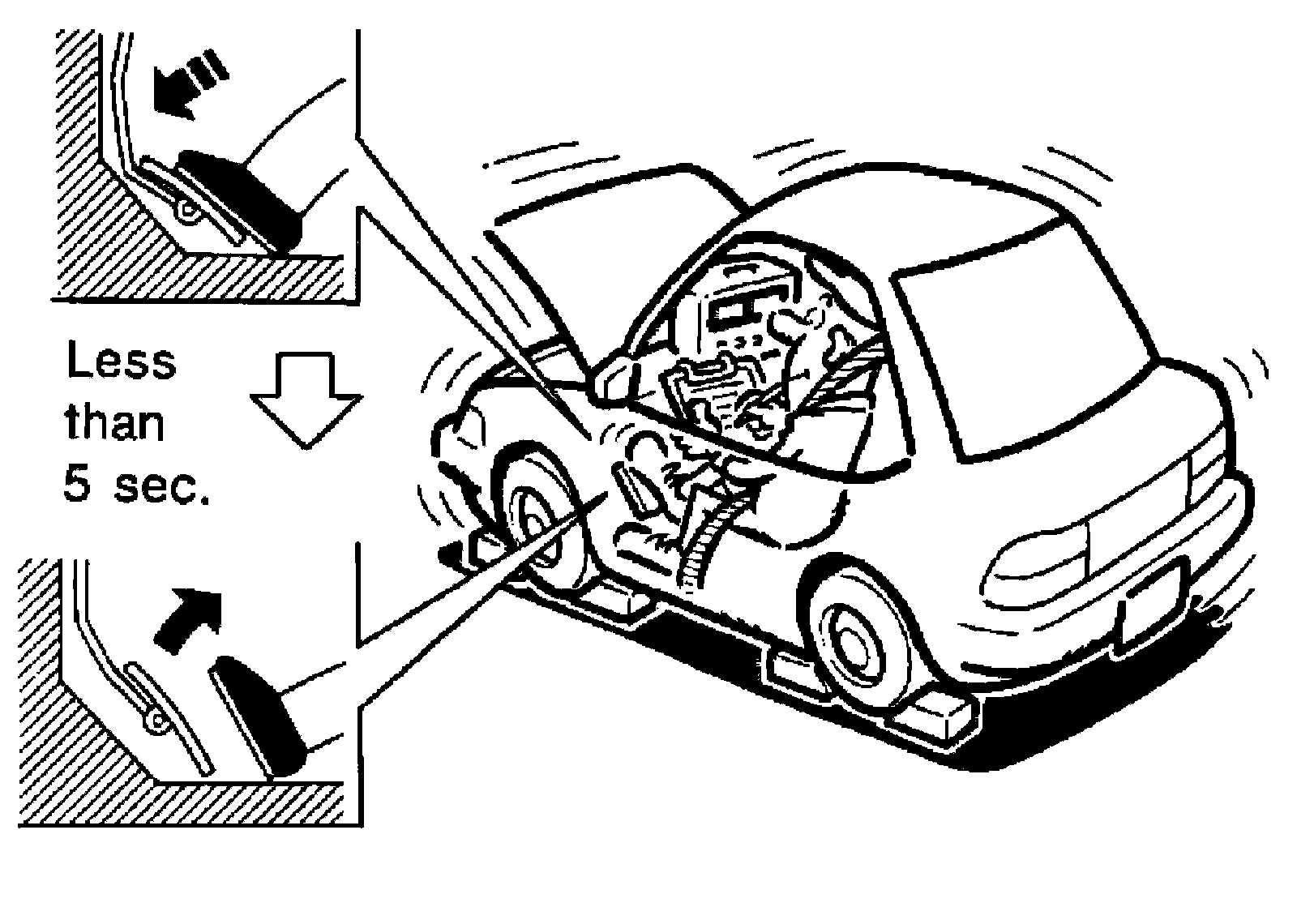

6) Quickly read off the stall speed, then quickly remove your foot from the accelerator pedal.

CAUTION:
Do not hold down the accelerator pedal for more than 5 seconds during this test.

Stall speed: [Service Data and Specifications]
7) Move the selector lever to the "N" position.
8) Cool down the ATF.

CAUTION:
Run the engine at idle for at least one minute.

9) Repeat steps 5 through 8 with selector lever in position.

Judgement of Stall Test





Stall test standard value position
