Symptom Chart
Symptom Chart^ The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
^ Overhaul and inspect inside the A/T only if A/T fluid condition is NG.

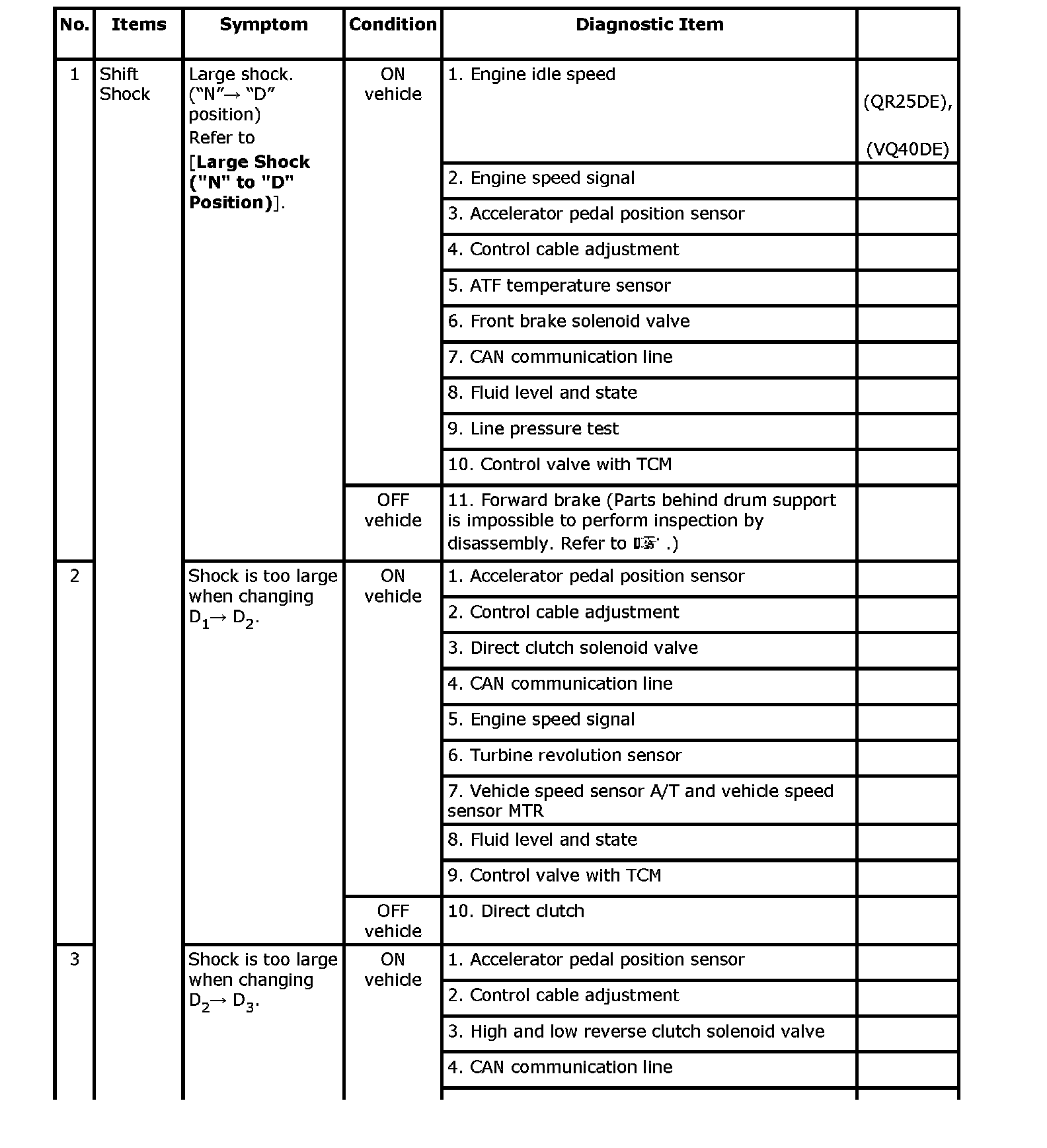

Symptom Chart (Part 1):
Symptom Chart (Part 2):
Symptom Chart (Part 3):
Symptom Chart (Part 4):
Symptom Chart (Part 5):
Symptom Chart (Part 6):
Symptom Chart (Part 7):
Symptom Chart (Part 8):
Symptom Chart (Part 9):
Symptom Chart (Part 10):
Symptom Chart (Part 11):
Symptom Chart (Part 12):
Symptom Chart (Part 13):
Symptom Chart (Part 14):
Symptom Chart (Part 15):
Symptom Chart (Part 16):
Symptom Chart (Part 17):
