Pinout Values and Diagnostic Parameters

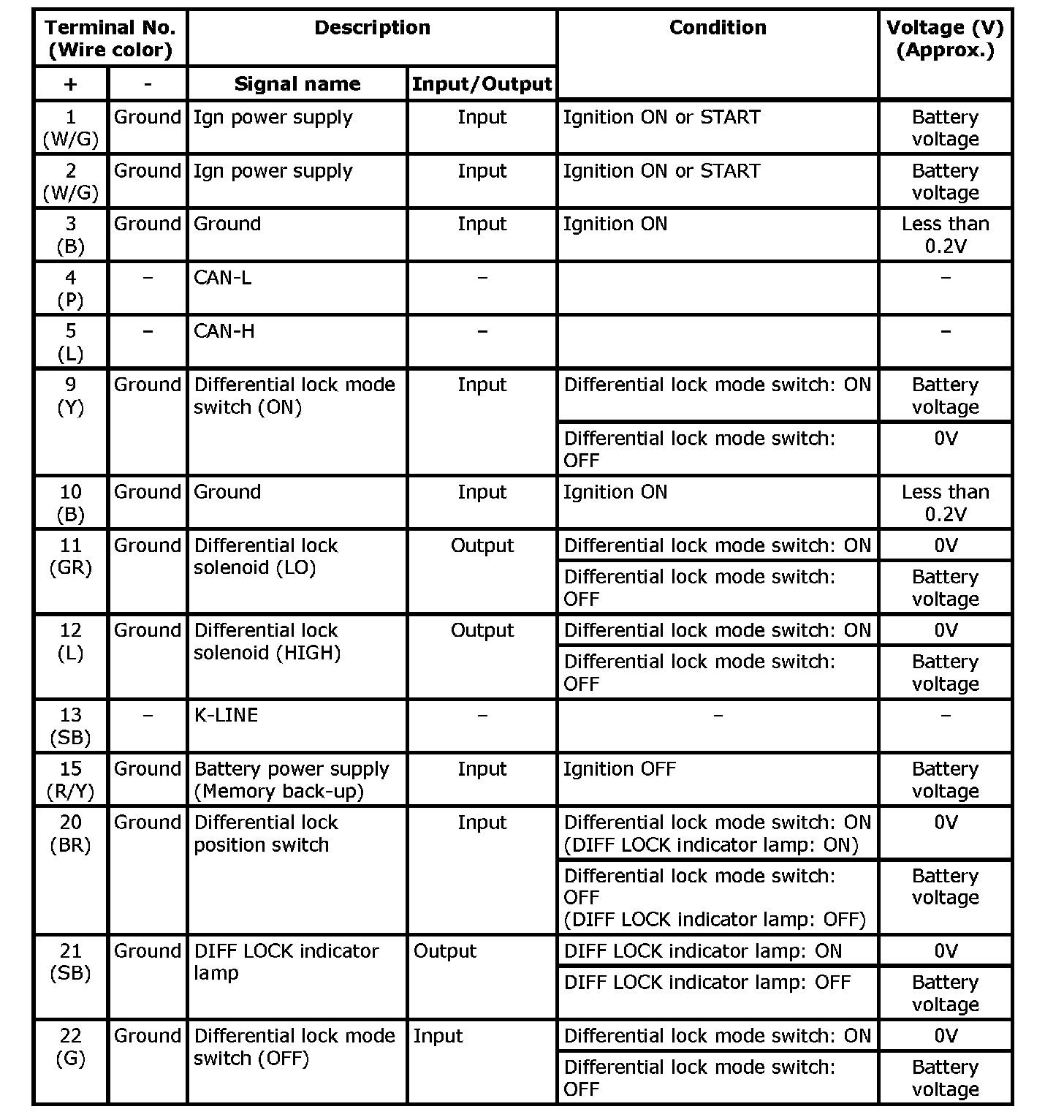

Differential Lock Control Unit: Reference ValueDIFFERENTIAL LOCK CONTROL UNIT TERMINAL CONNECTOR LAYOUT Data are reference value and are measured between each terminal and ground.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
