Starting System [Without Clutch Interlock Cancel Switch]

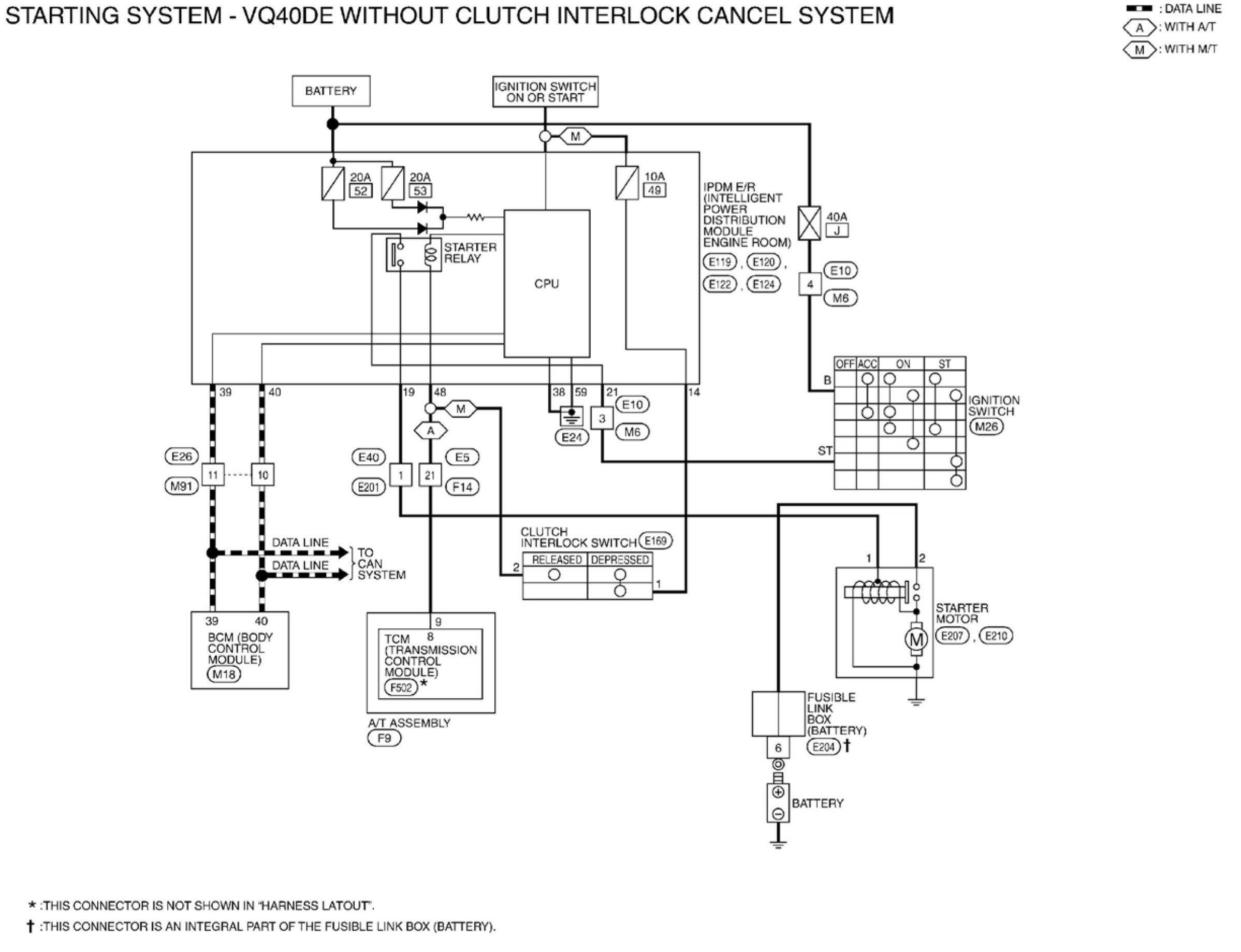

Starting System: Wiring Diagram [VQ40DE without Clutch Interlock Cancel Switch]

Starting System - Without Clutch Interlock Cancel System:

Starting System Connectors - VQ40DE without Clutch Interlock Cancel Switch

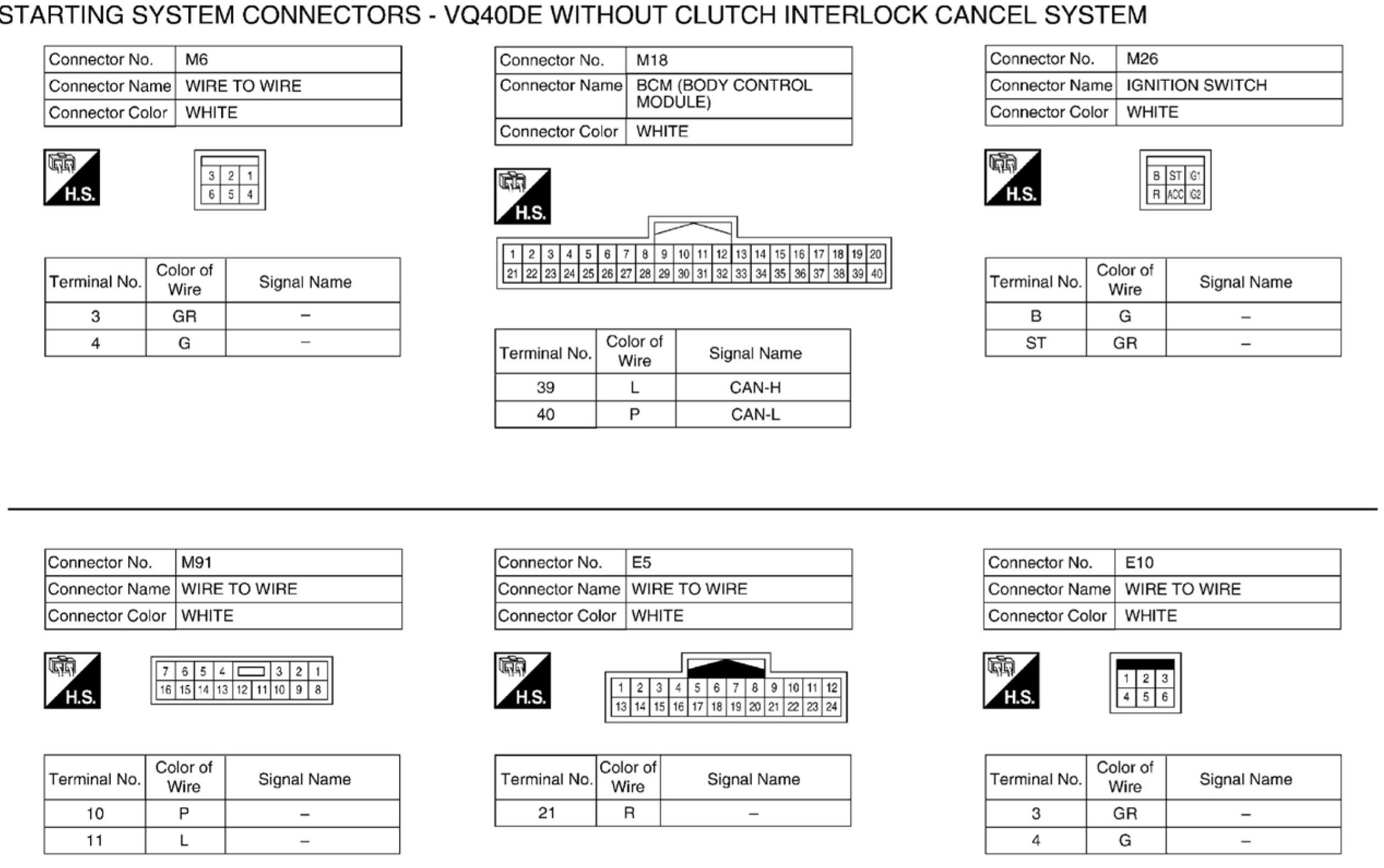

Starting System Connectors - Without Clutch Interlock Cancel System (Part 1):

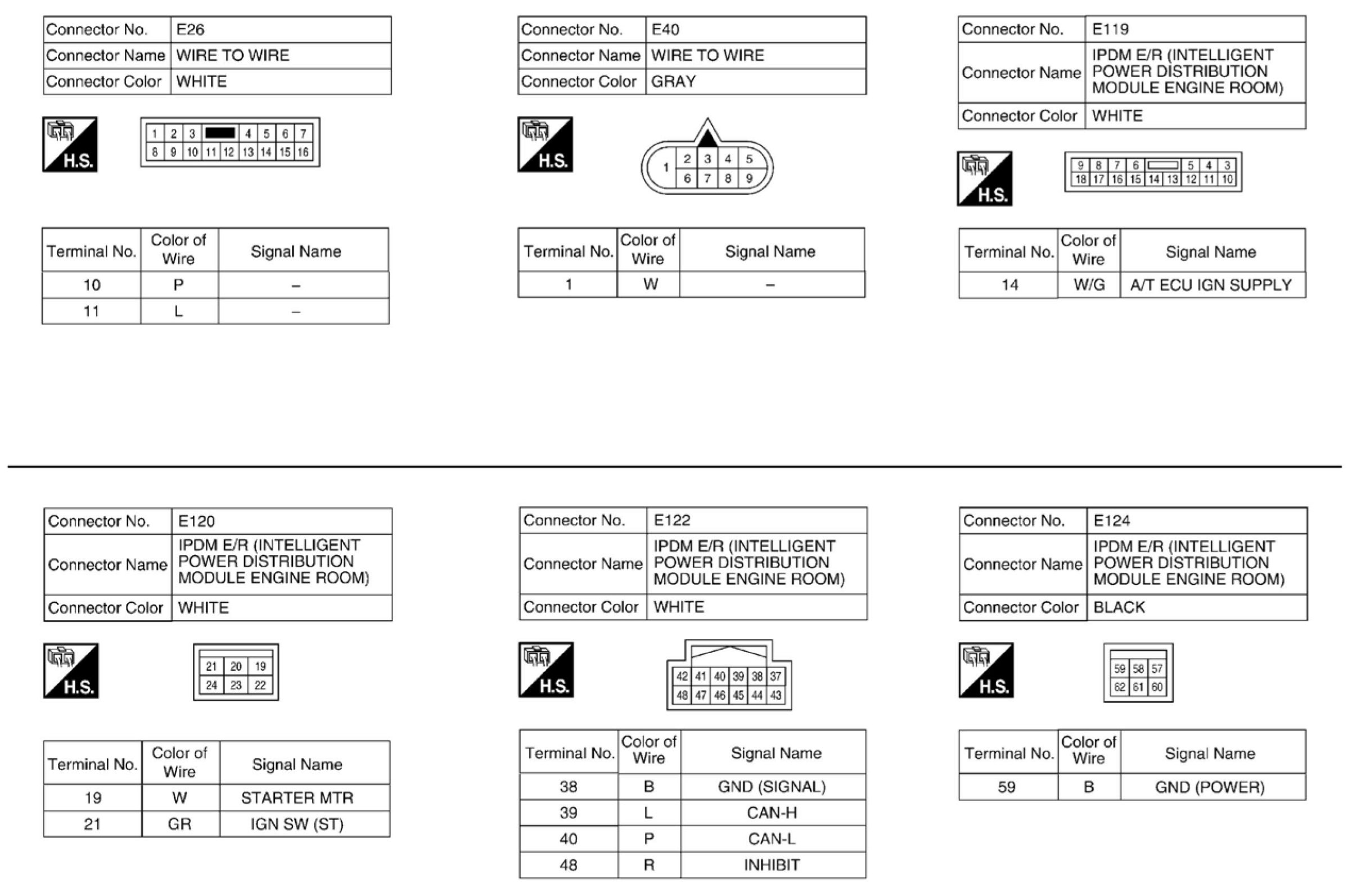

Starting System Connectors - Without Clutch Interlock Cancel System (Part 2):

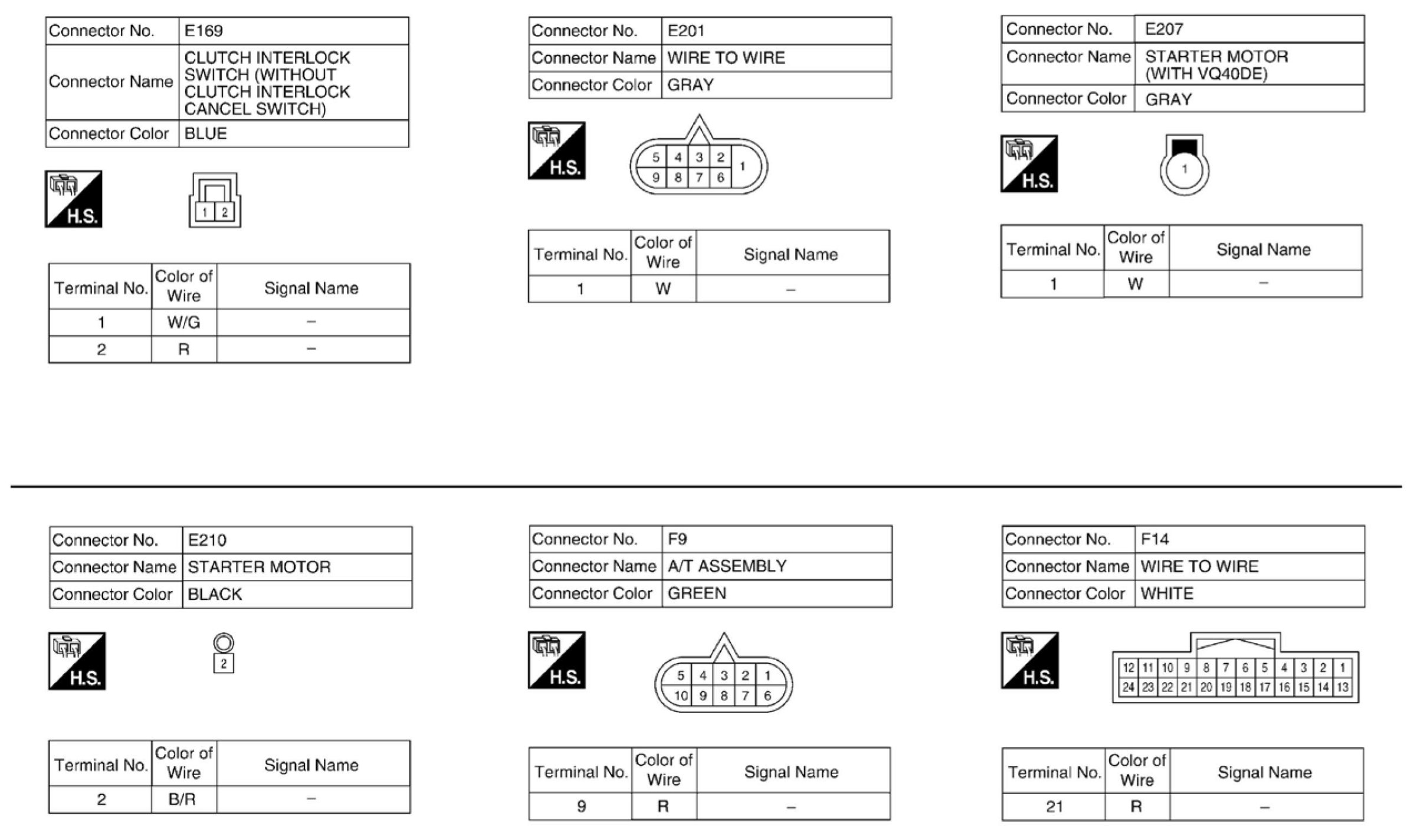

Starting System Connectors - Without Clutch Interlock Cancel System (Part 3):

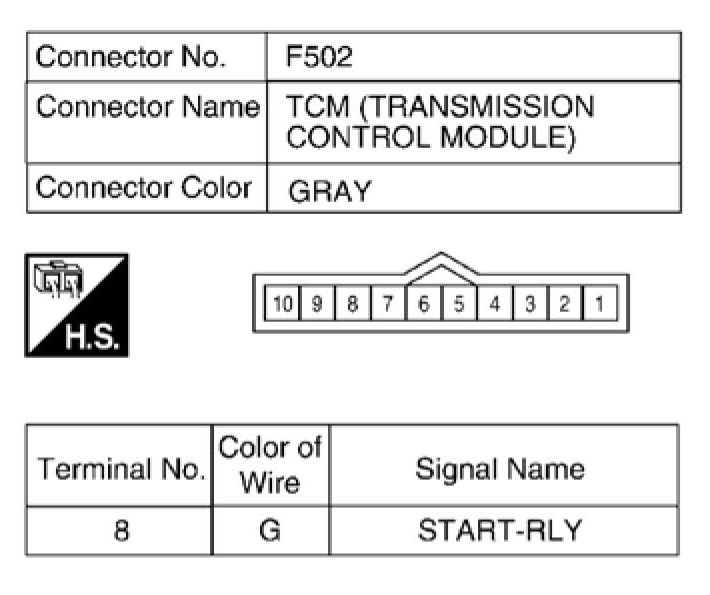

Starting System Connectors - Without Clutch Interlock Cancel System (Part 4):
