Engine and A/C Control System Circuit Diagram

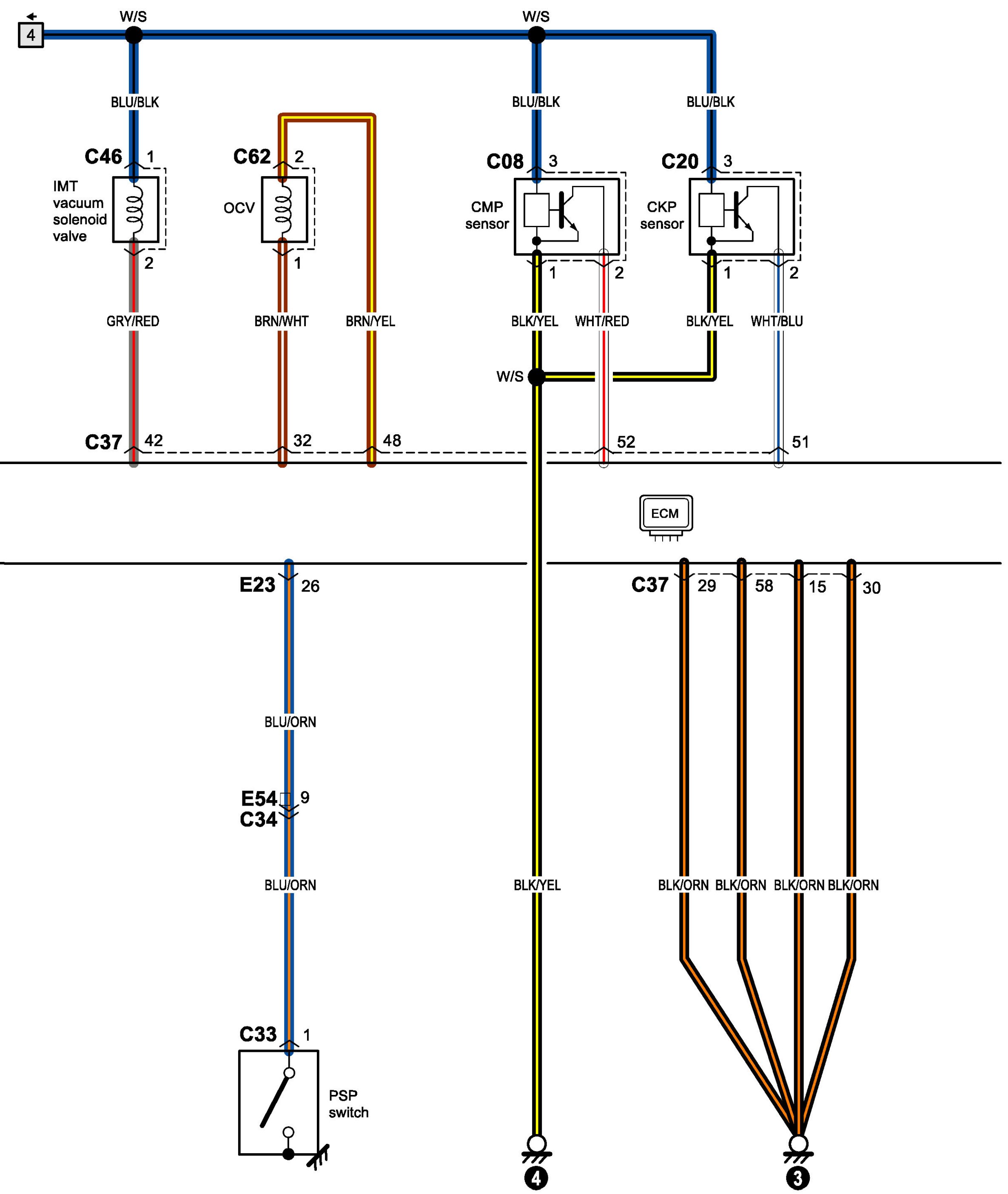

Engine And A/C Control System Circuit Diagram 1 (J24B):

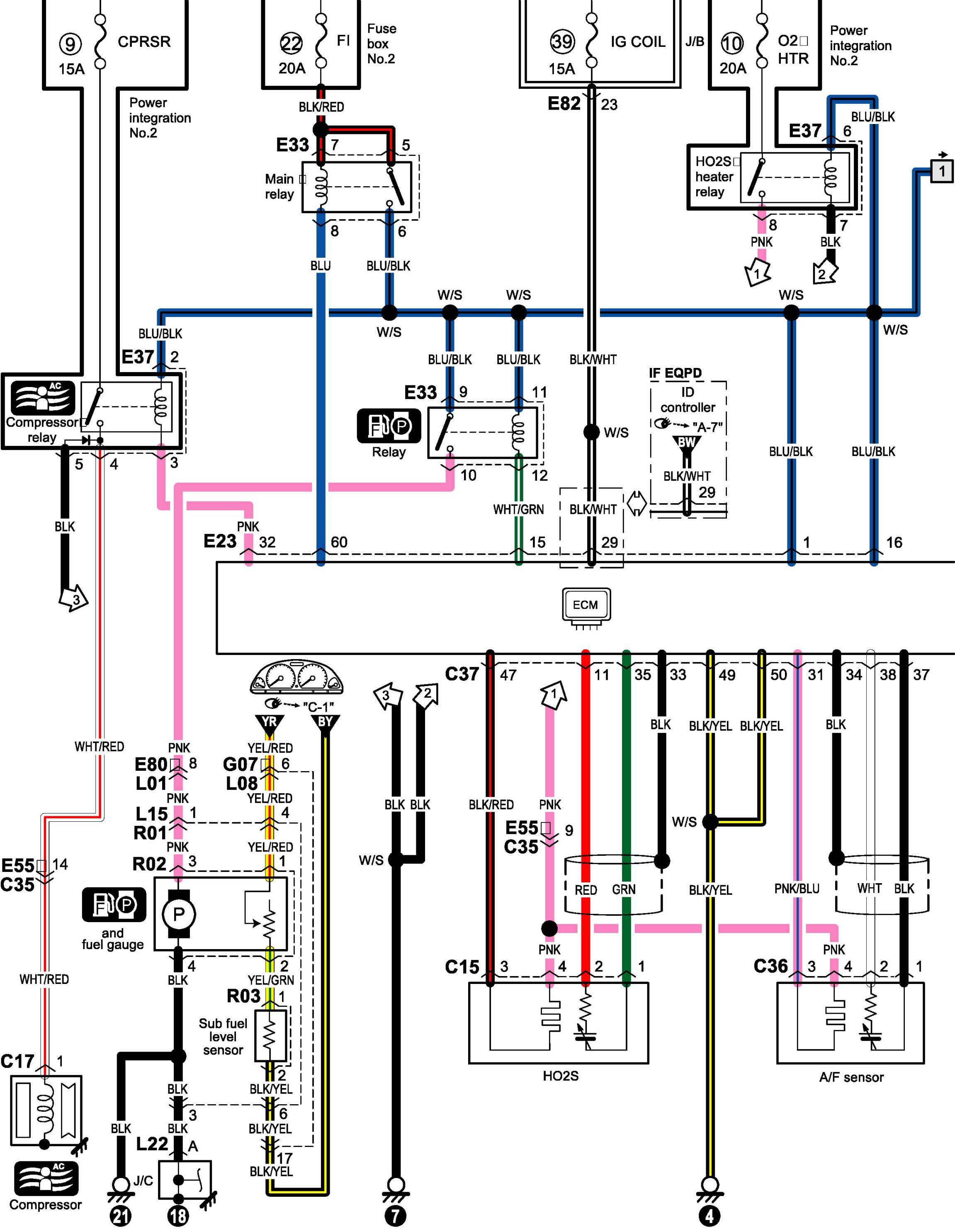

Engine And A/C Control System Circuit Diagram 2 (J24B):

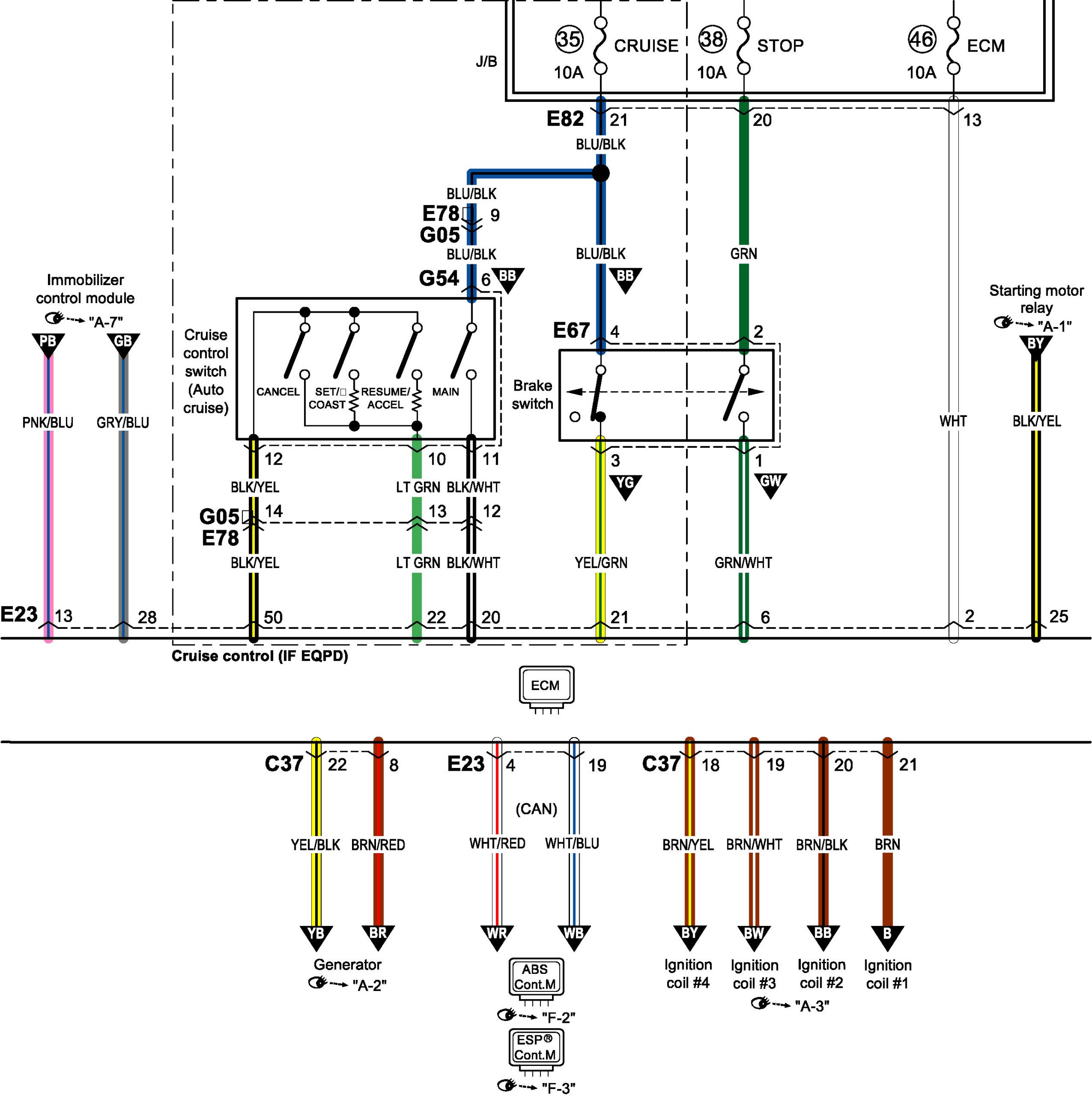

Engine And A/C Control System Circuit Diagram 3 (J24B):

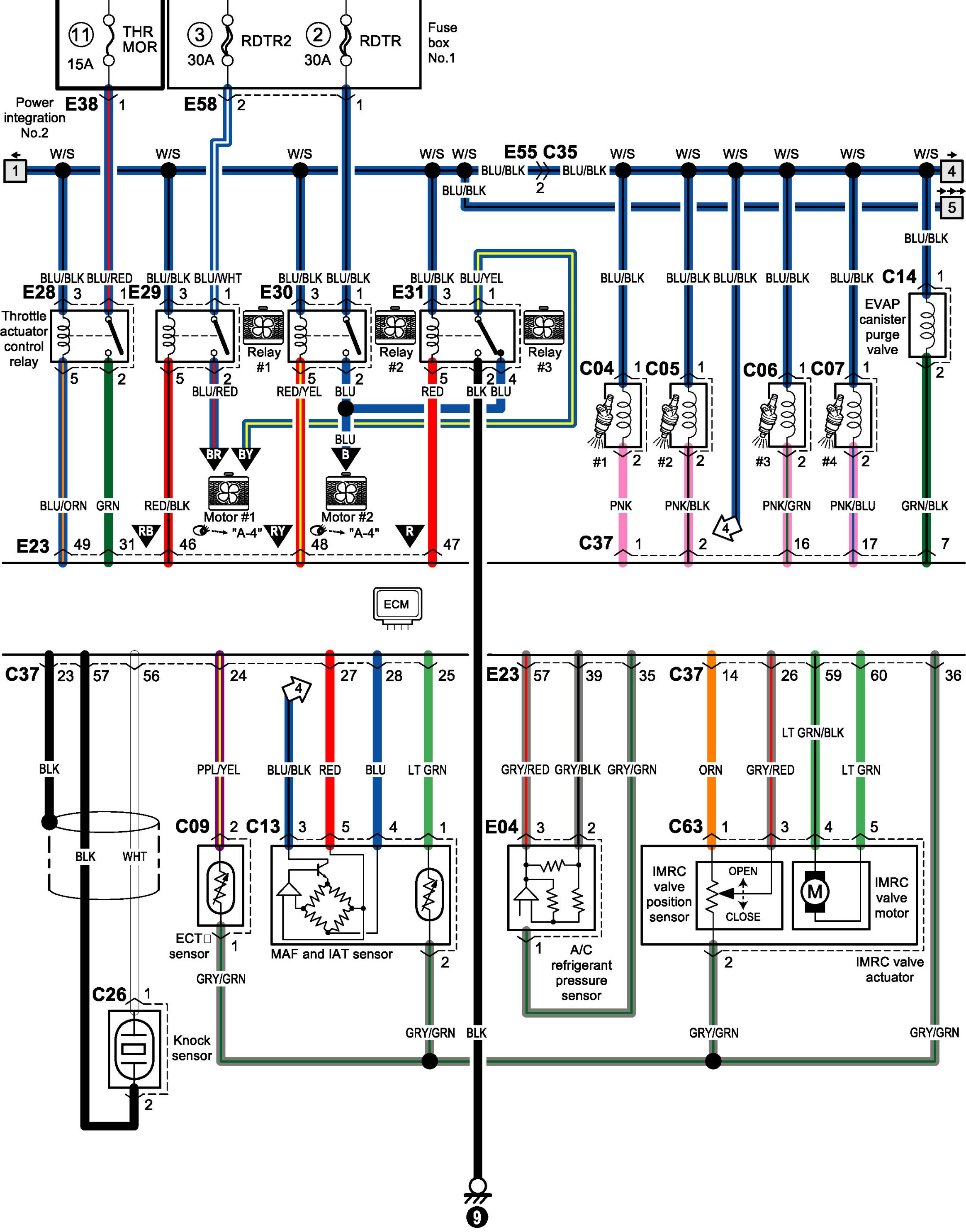

Engine And A/C Control System Circuit Diagram 4 (J24B):

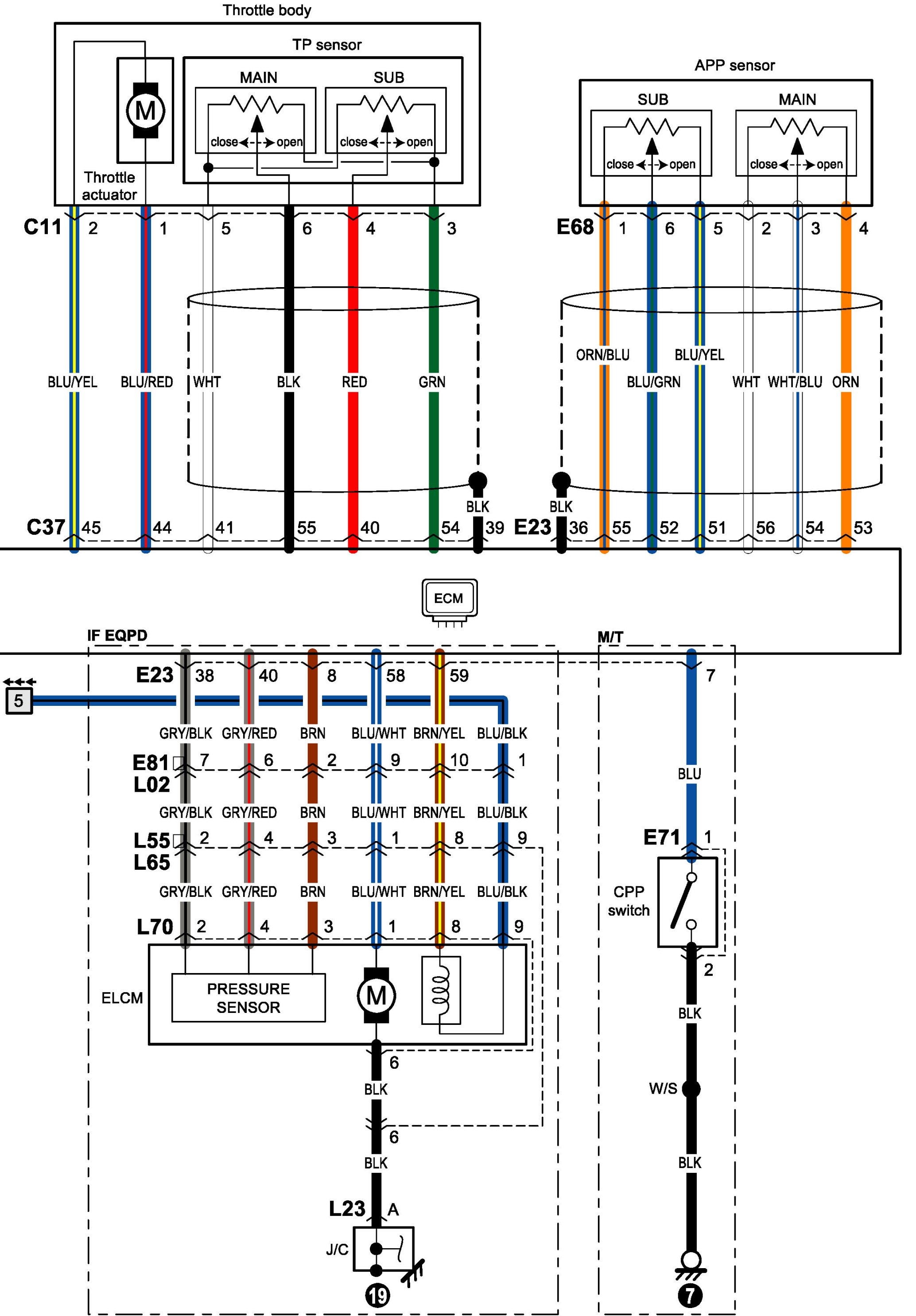

Engine And A/C Control System Circuit Diagram 5 (J24B):






Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
