Ignition Coil (Plug Cap) Inspection
Ignition Coil (Plug Cap) Inspection 1.
Remove
ignition coil assemblies.
-
J24B model:
-
N32A model:
2.

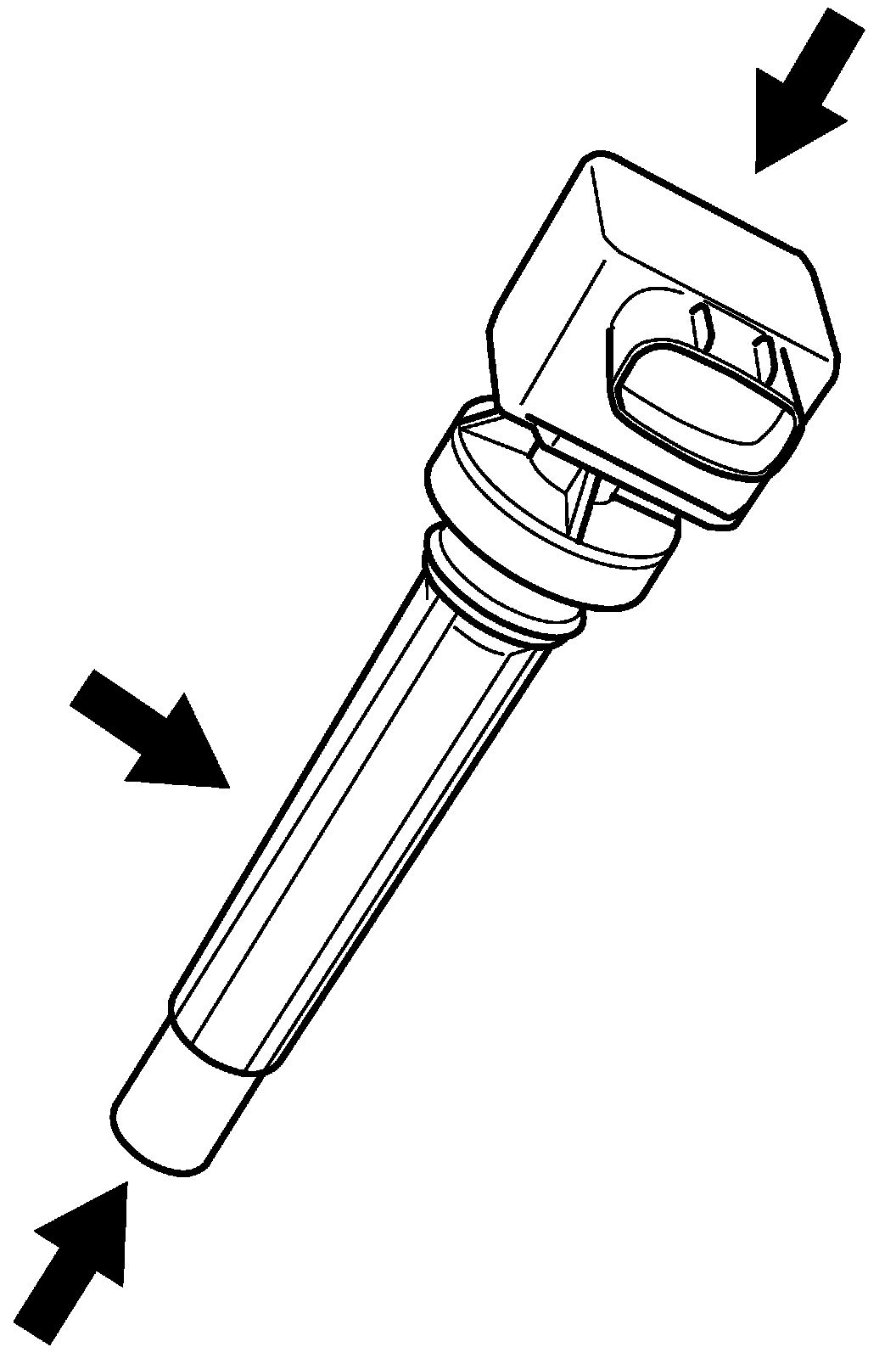

Check
ignition coil assembly for damage, deterioration and terminal corrosion.
If defective condition is found, replace.
3.
Install
ignition coil assemblies.
-
J24B model:
-
N32A model:
