Rear Door Window Glass: Service and Repair

Rear Door Glass Removal And Installation







Removal

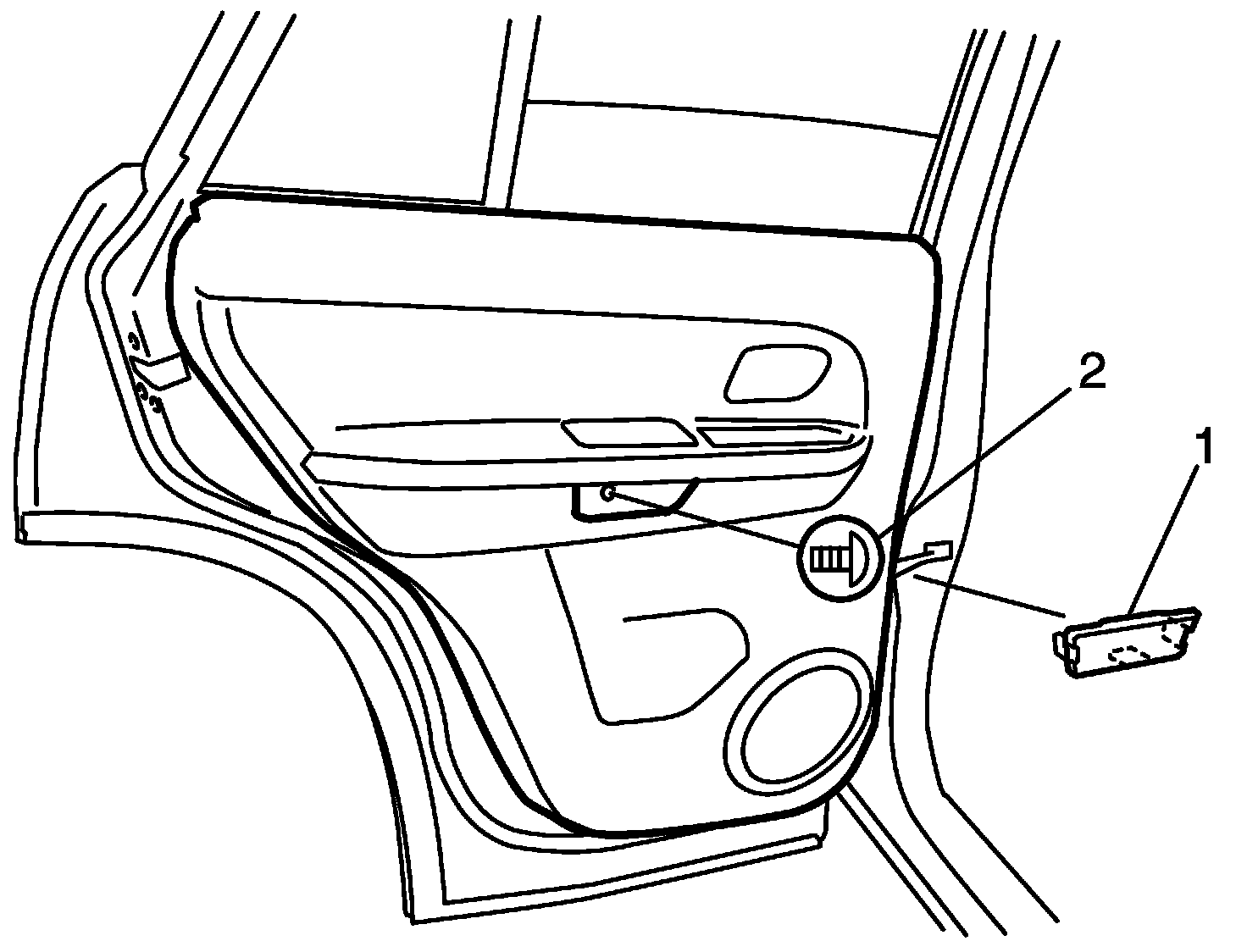

1. Remove door trim screw cover (1).
2. Remove door trim screw (2).

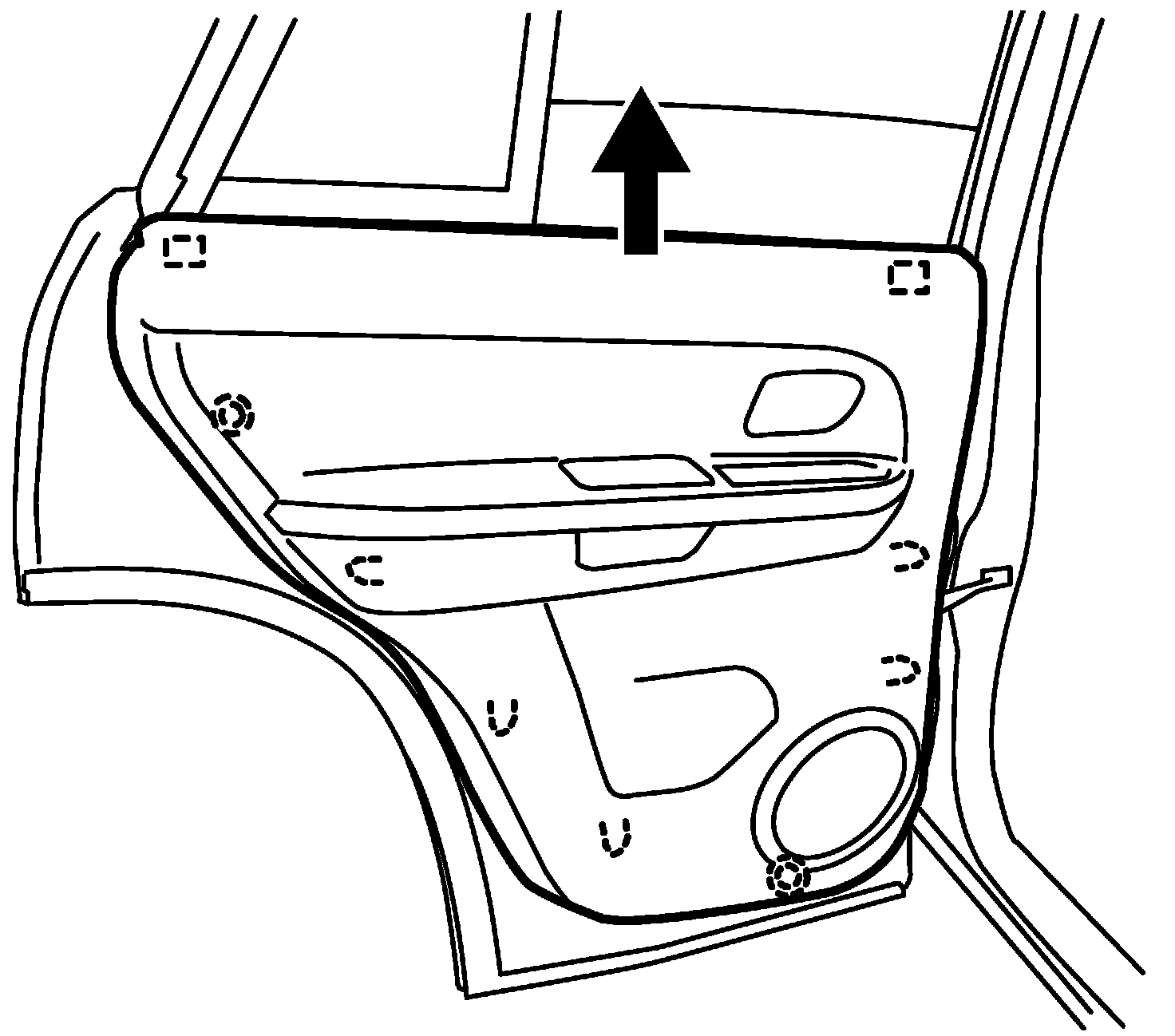

3. Remove door trim (1) as shown.







4. Remove door sealing cover (1).

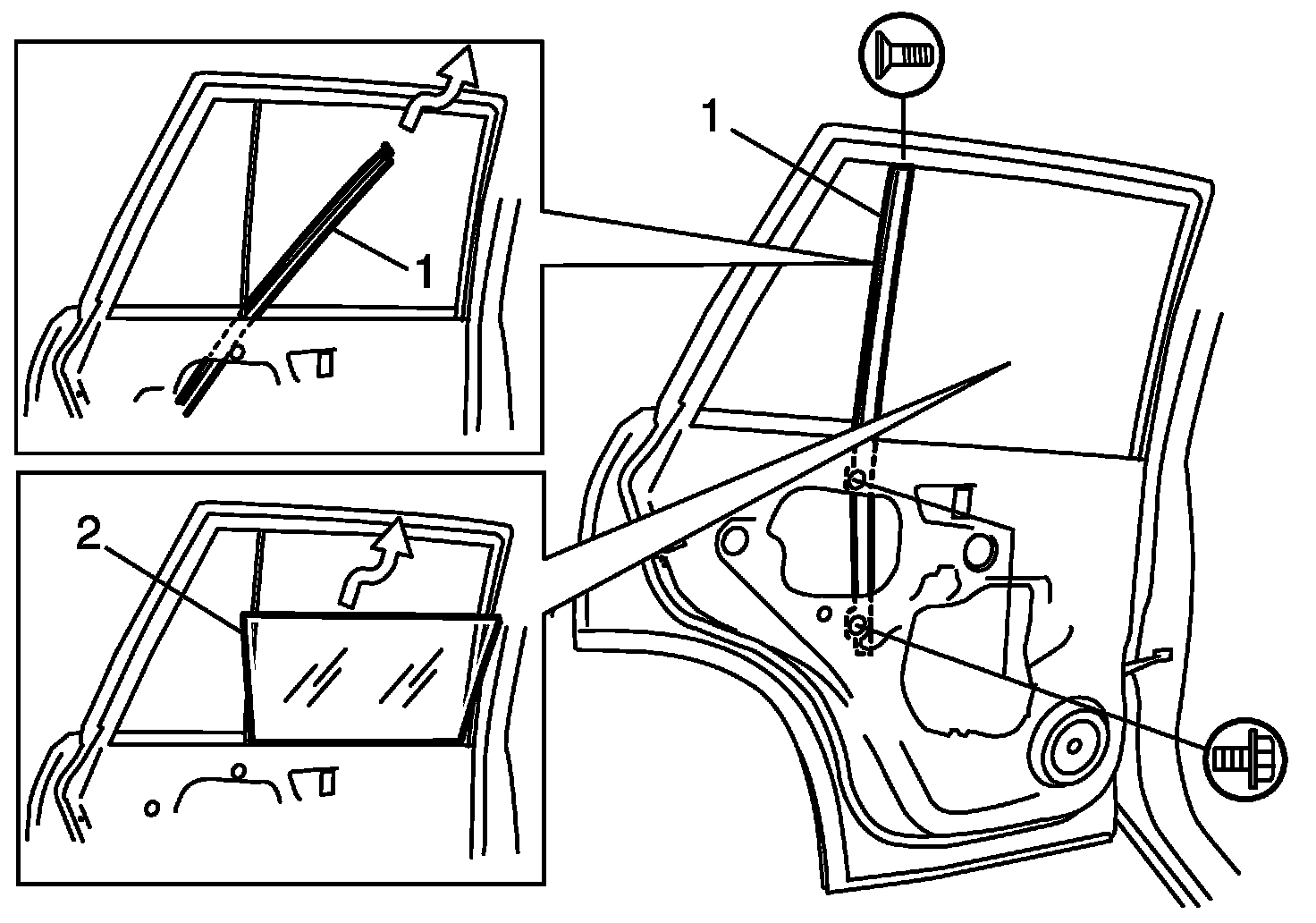

5. Detach rear part of glass run from door sash (1), and remove door sash (1).
6. Remove door glass (2) as shown.







Installation

Reverse removal procedure noting the following instructions.
- If there is deformity for glass run, replace it with a new one.

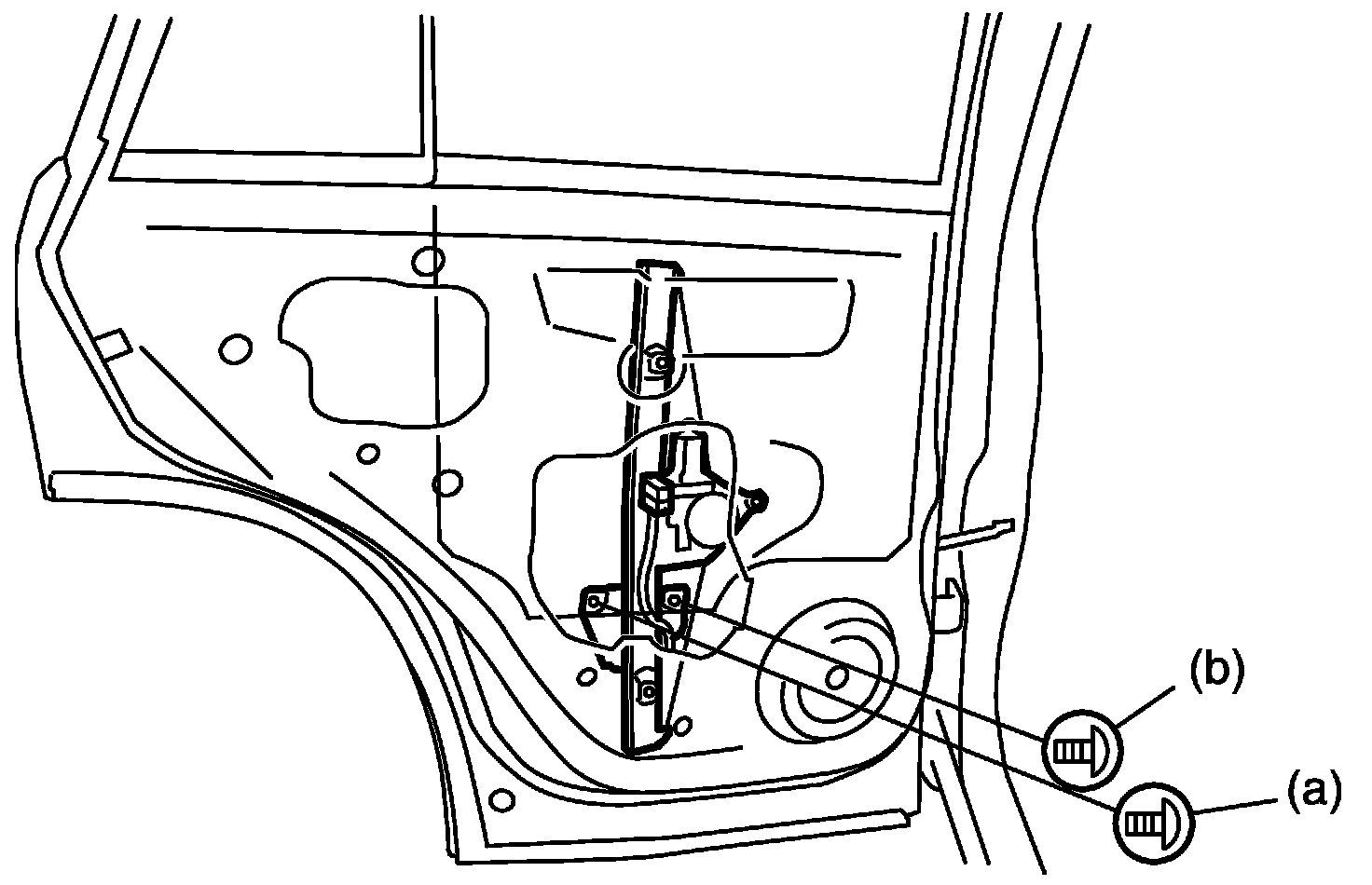

- Tighten rear door window mounting screw (a) first and then (b).

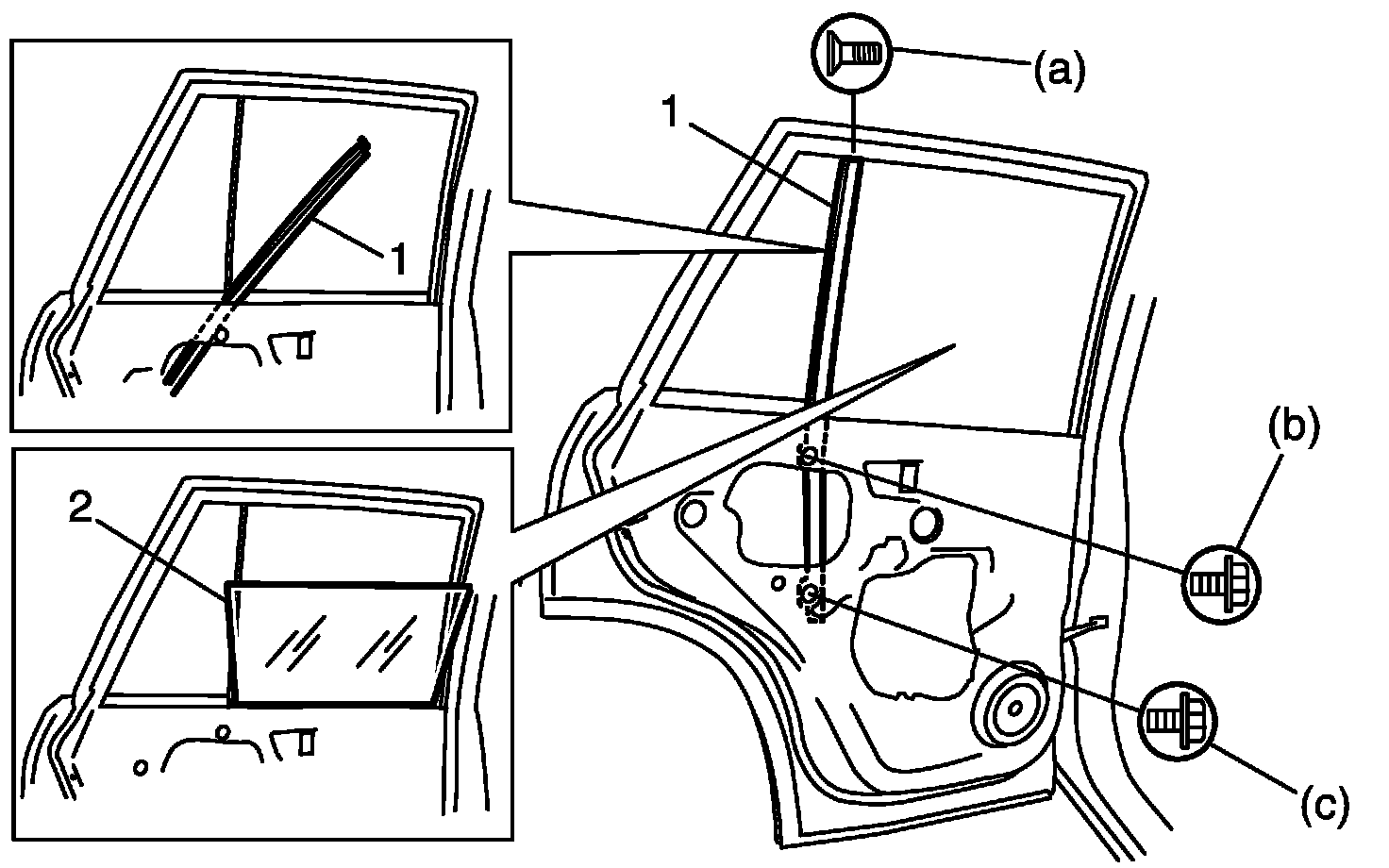

- Tighten door sash mounting screw and bolts in order of (a), (b) and (c).

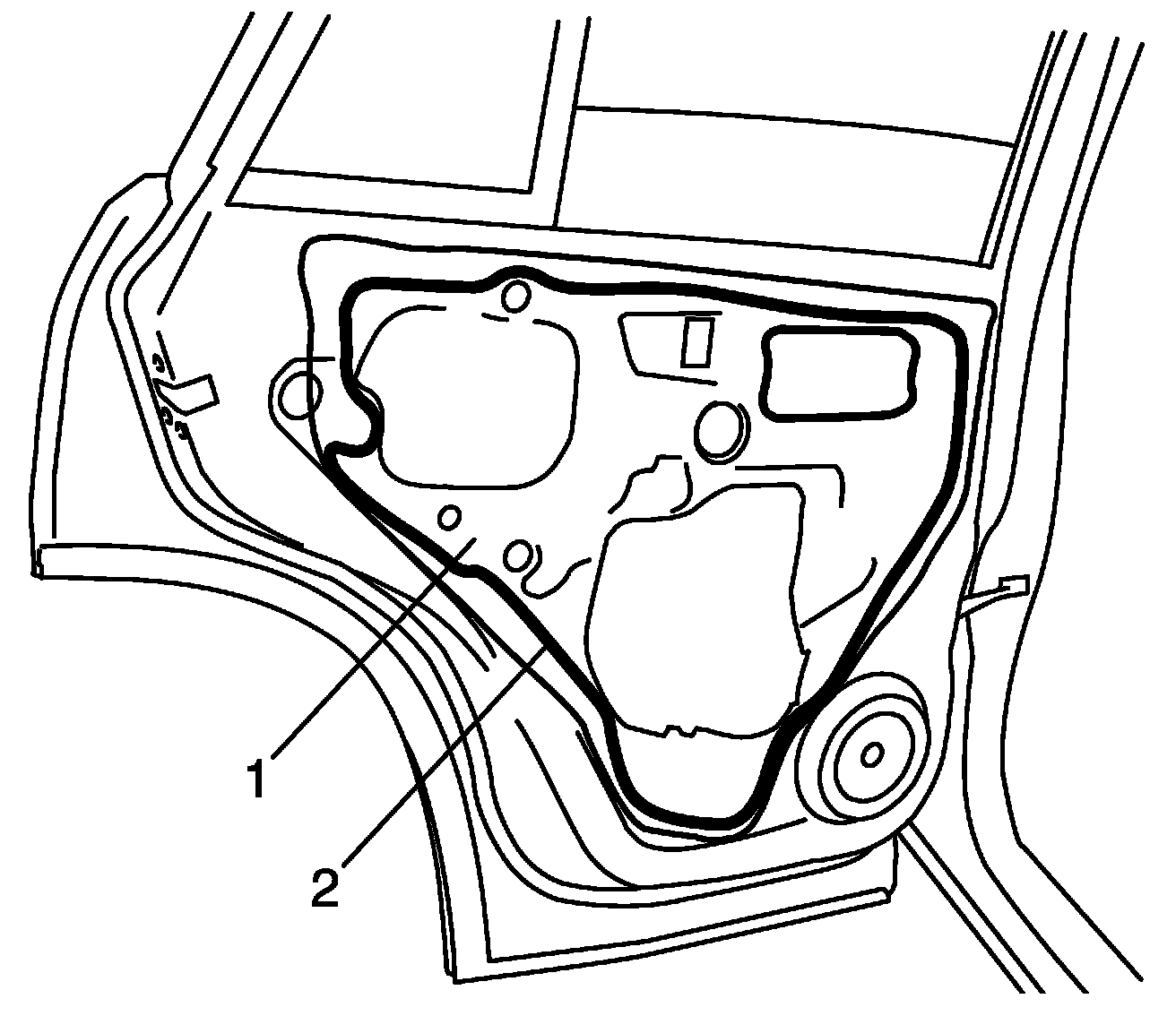

- Secure door sealing cover (1) with adhesive (2).







- Install rear door trim.

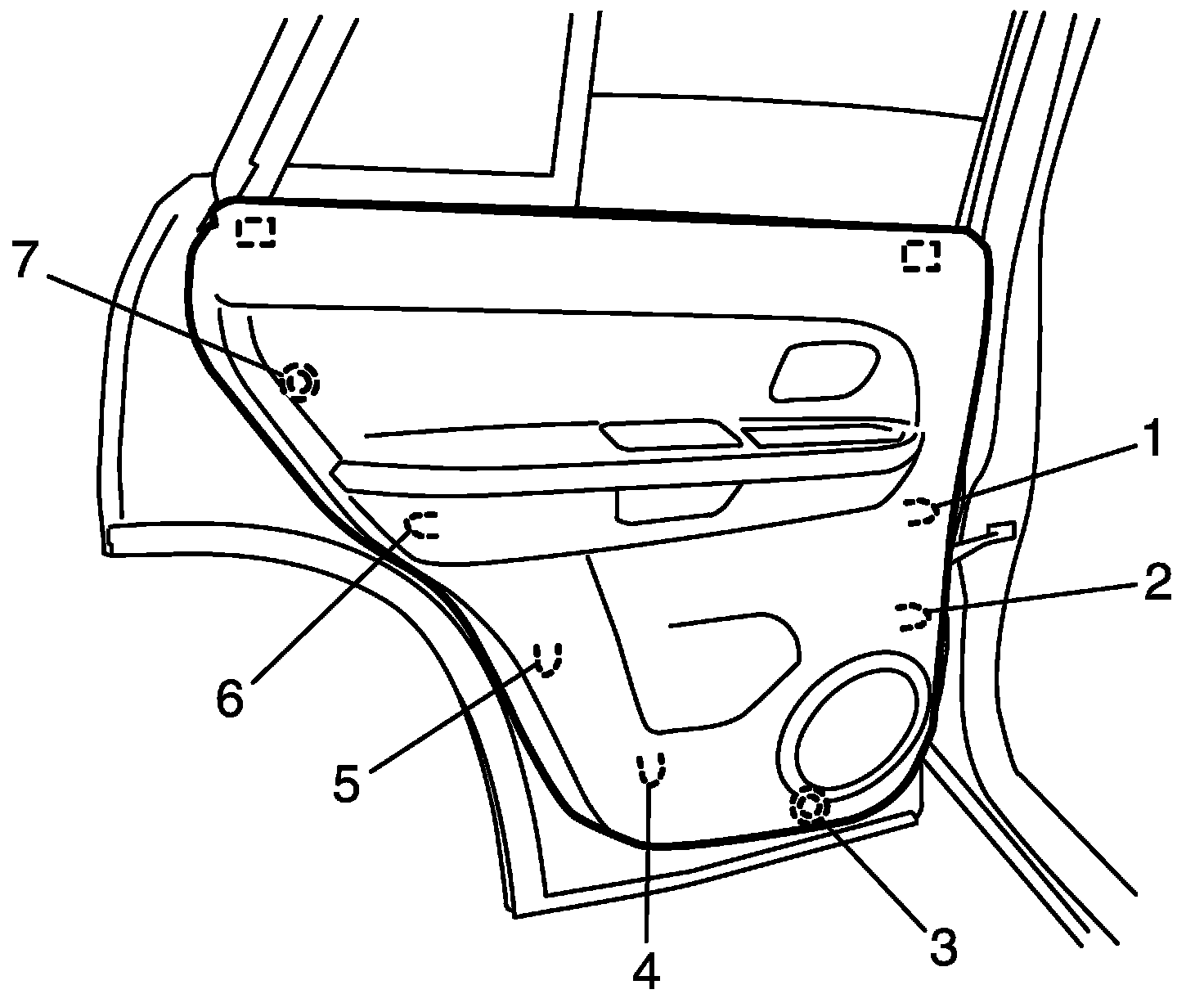

Rear door trim attaching order
(1) -> (2) -> (3) -> (4) -> (5) -> (6) -> (7)
