Power Brake Assist: Adjustments

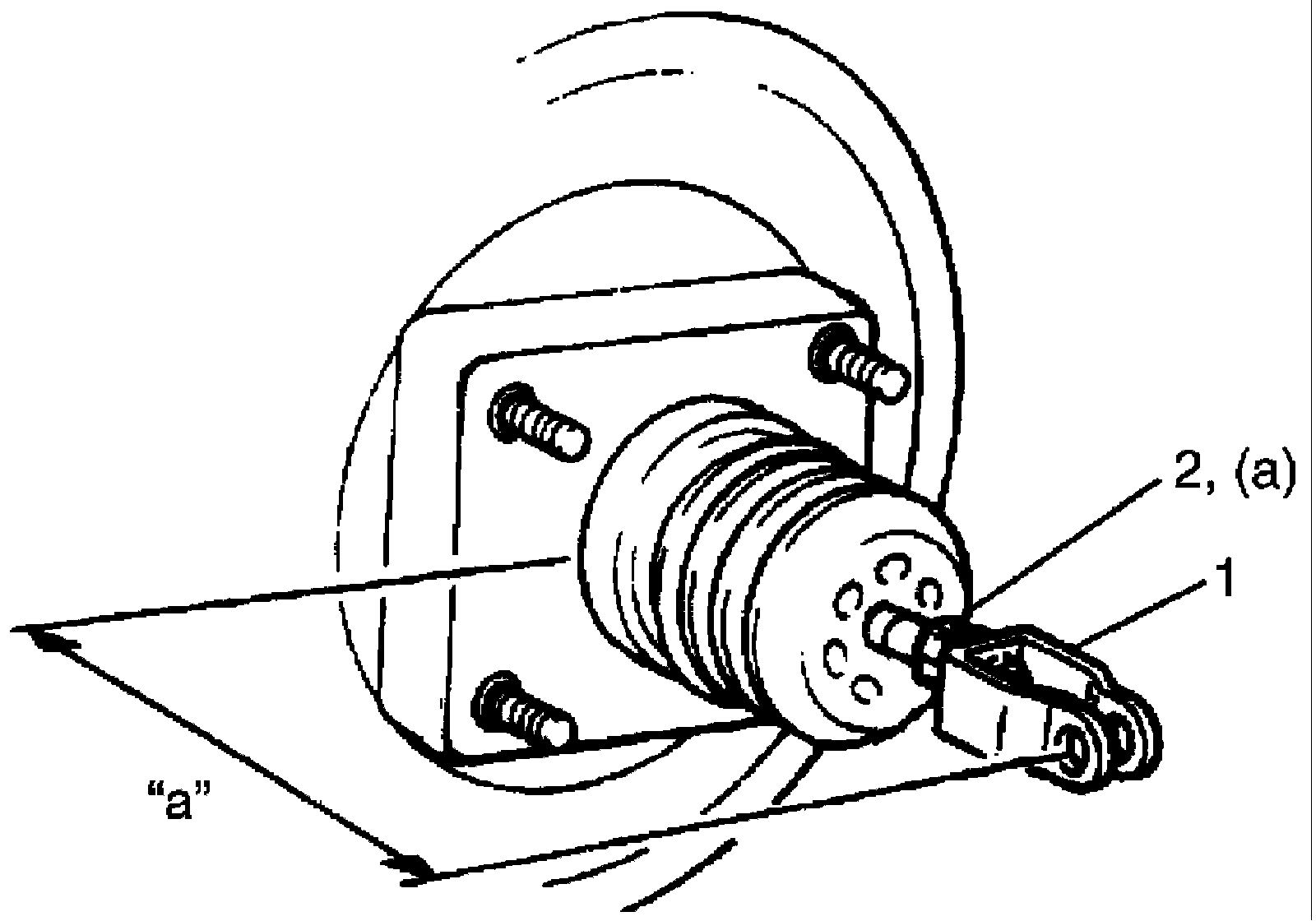

Booster Push Rod Clevis Adjustment Install push rod clevis (1) so that measurement "a" is obtained and torque nut (2) to specification.
Tightening torque
Clevis pin lock nut (a): 26 Nm (2.6 kg-m, 19.0 ft. lbs.)
Clevis installing position (length "a")
"a": 133.5 - 134.5 mm (5.26 - 5.29 in.)
