DTC Table
DTC Table NOTE: ^
1 driving cycle: MIL lights up when DTC is detected during 1 driving cycle.
^
2 driving cycles: MIL lights up when the same DTC is detected also in the next driving cycle after DTC is detected and stored temporarily in the first driving cycle.
^
Driving cycle with (*): MIL does not light up but TCM detects and stores DTC.

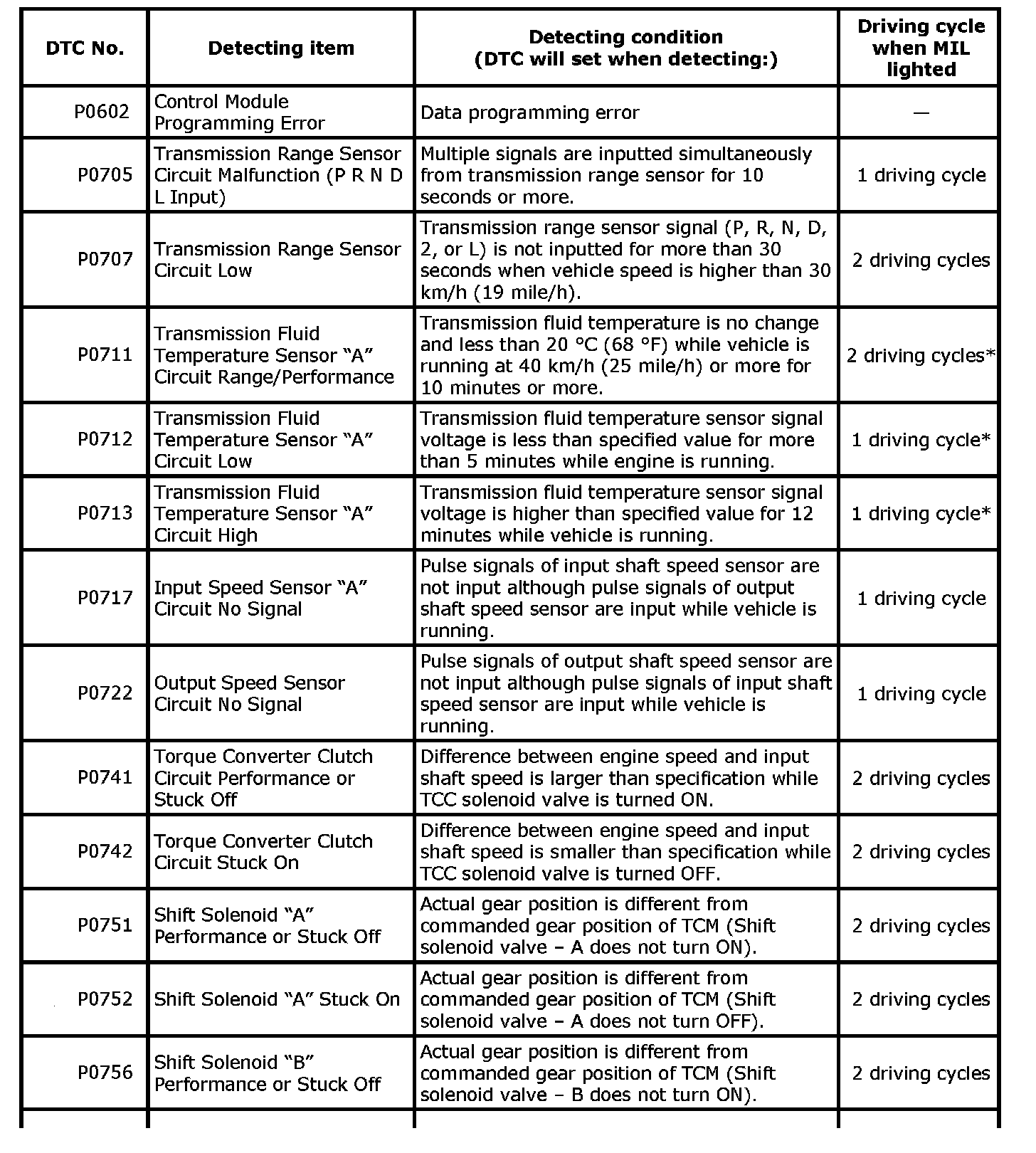

P0602-P0756:

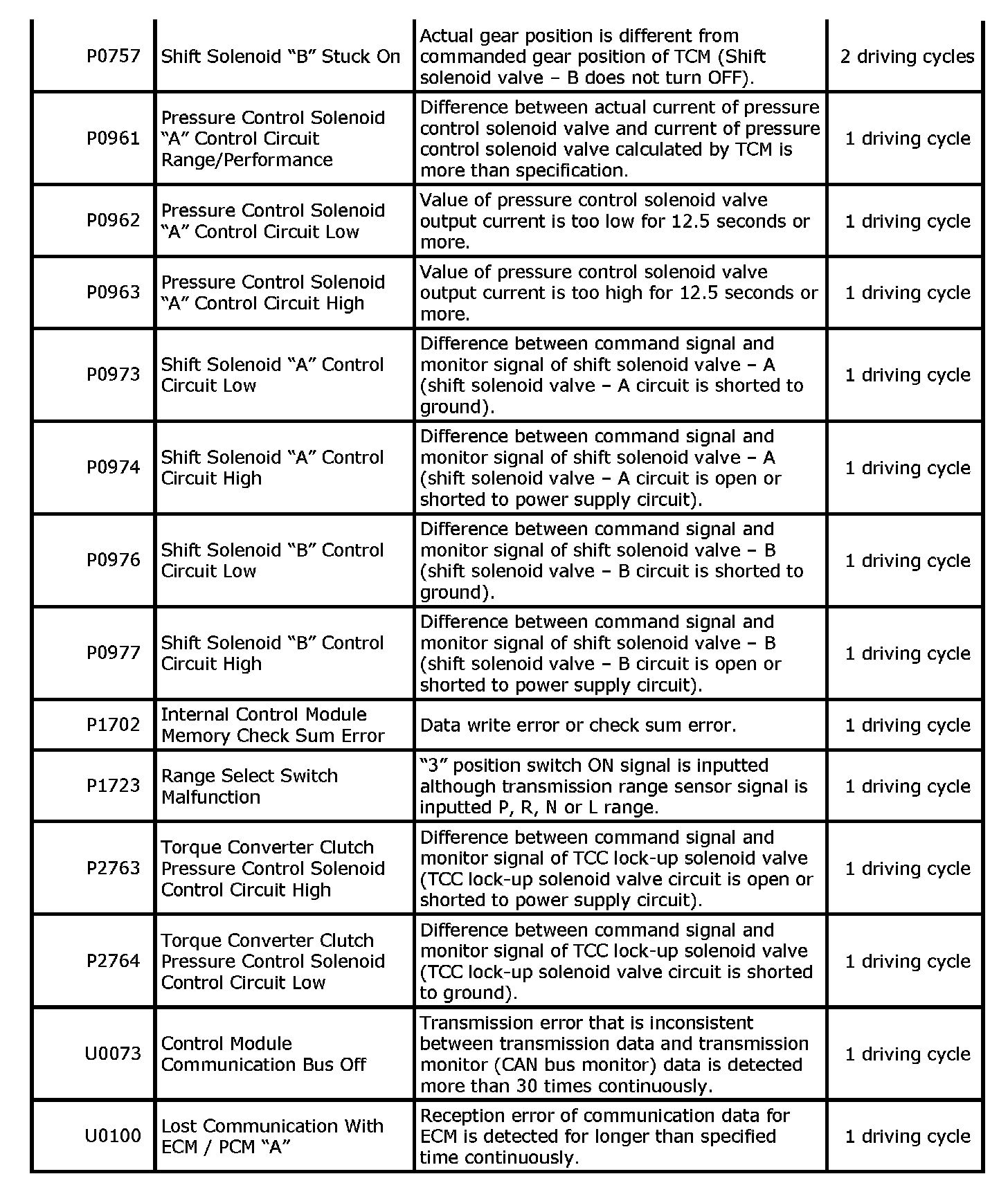

P0757-P2764/U0073-U0100:
