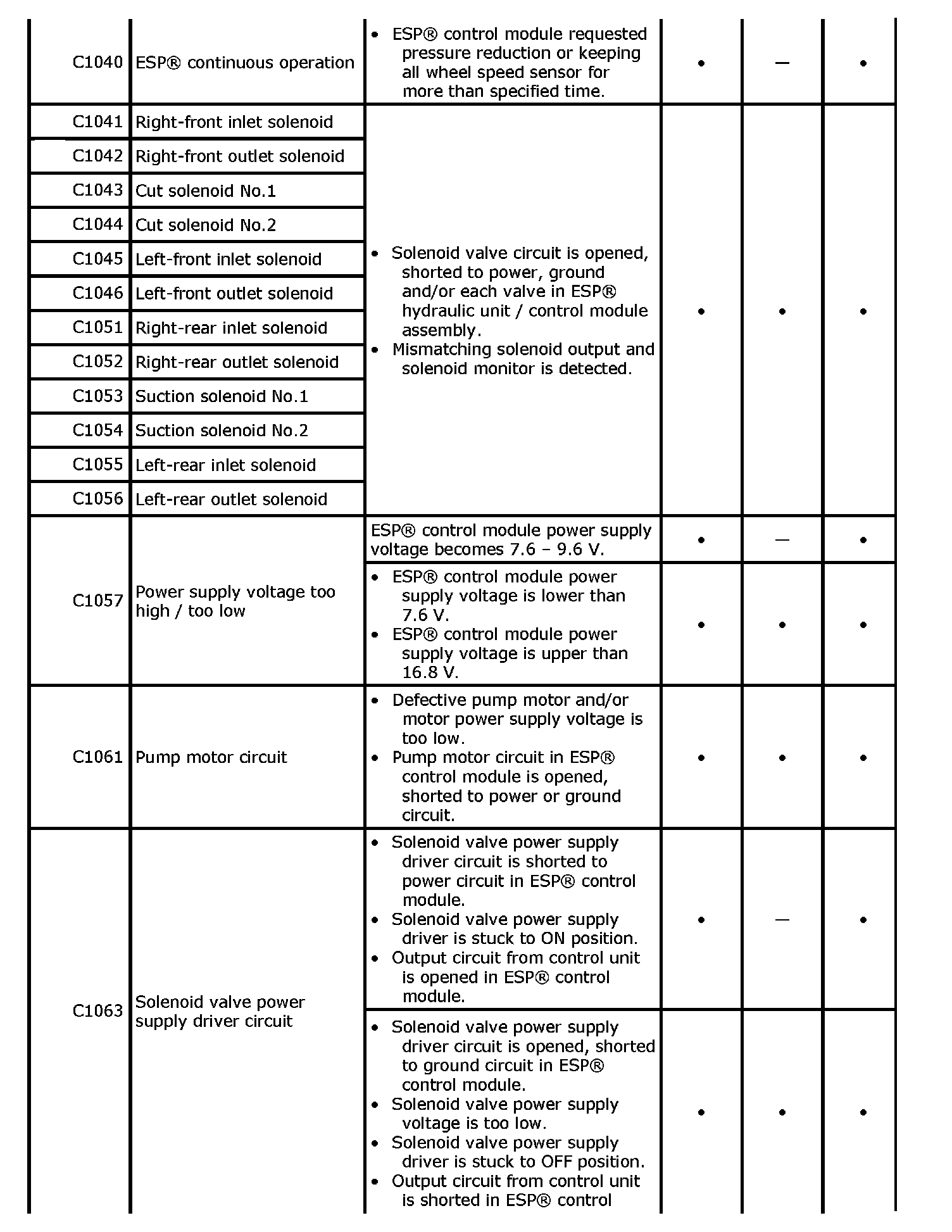

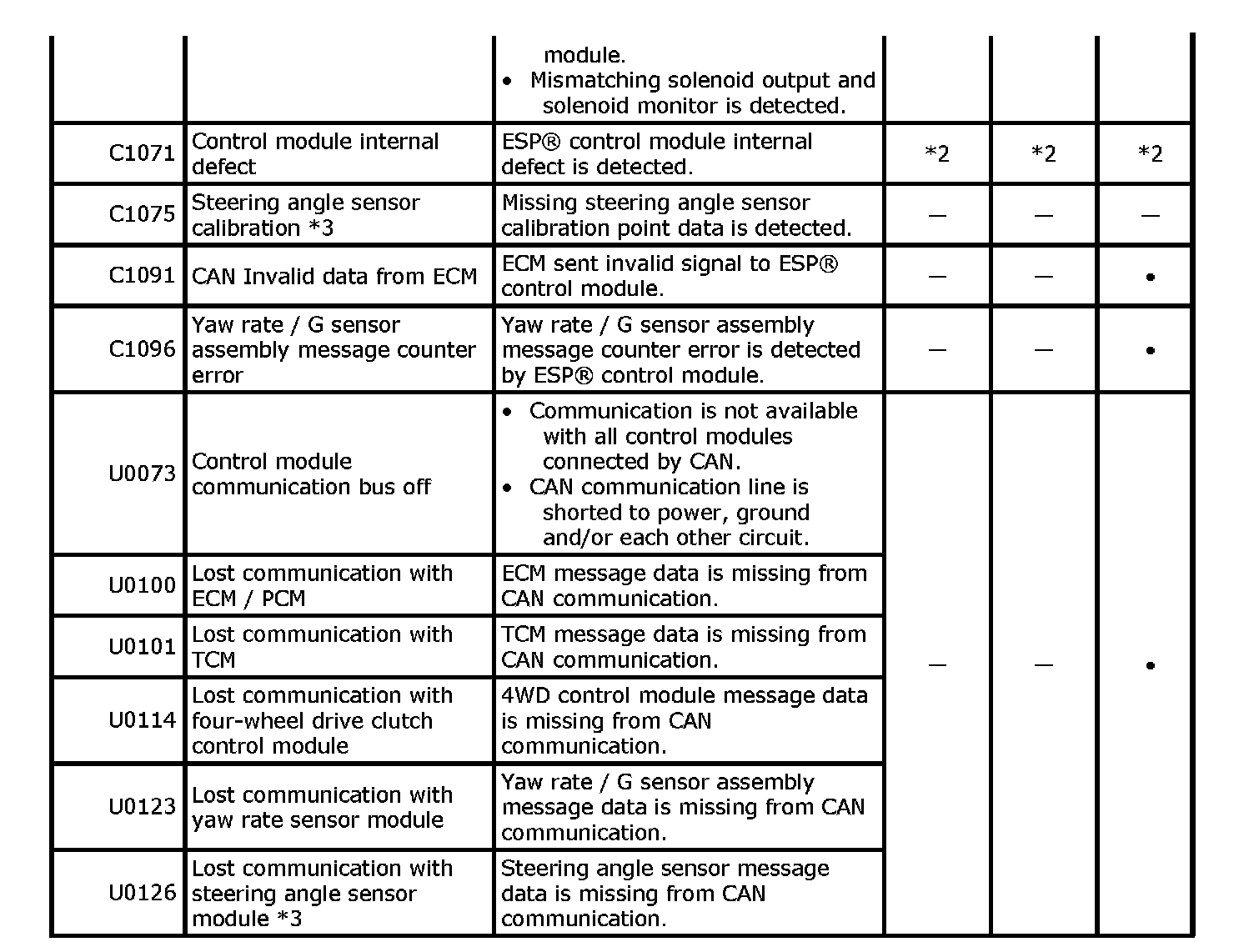

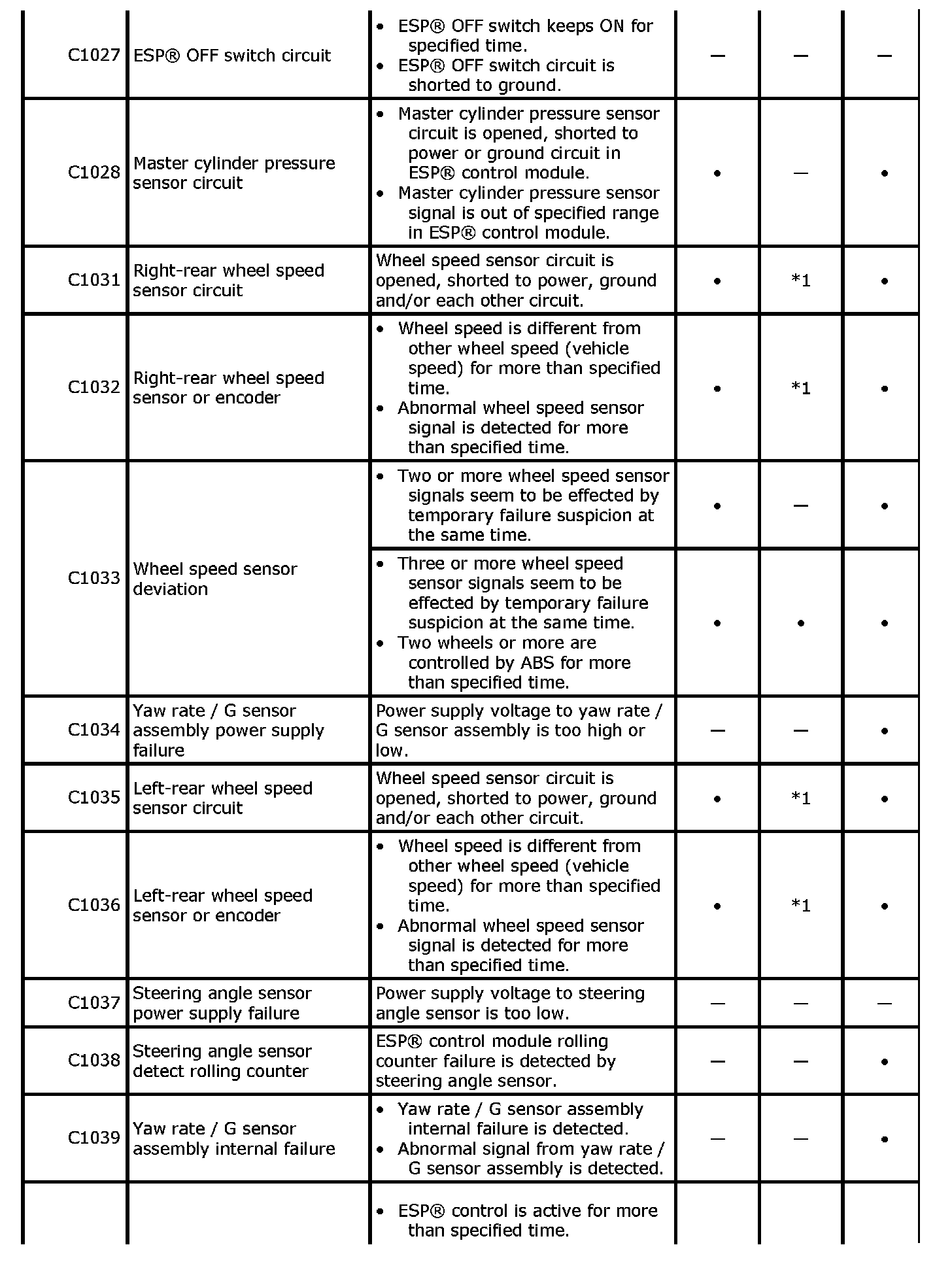

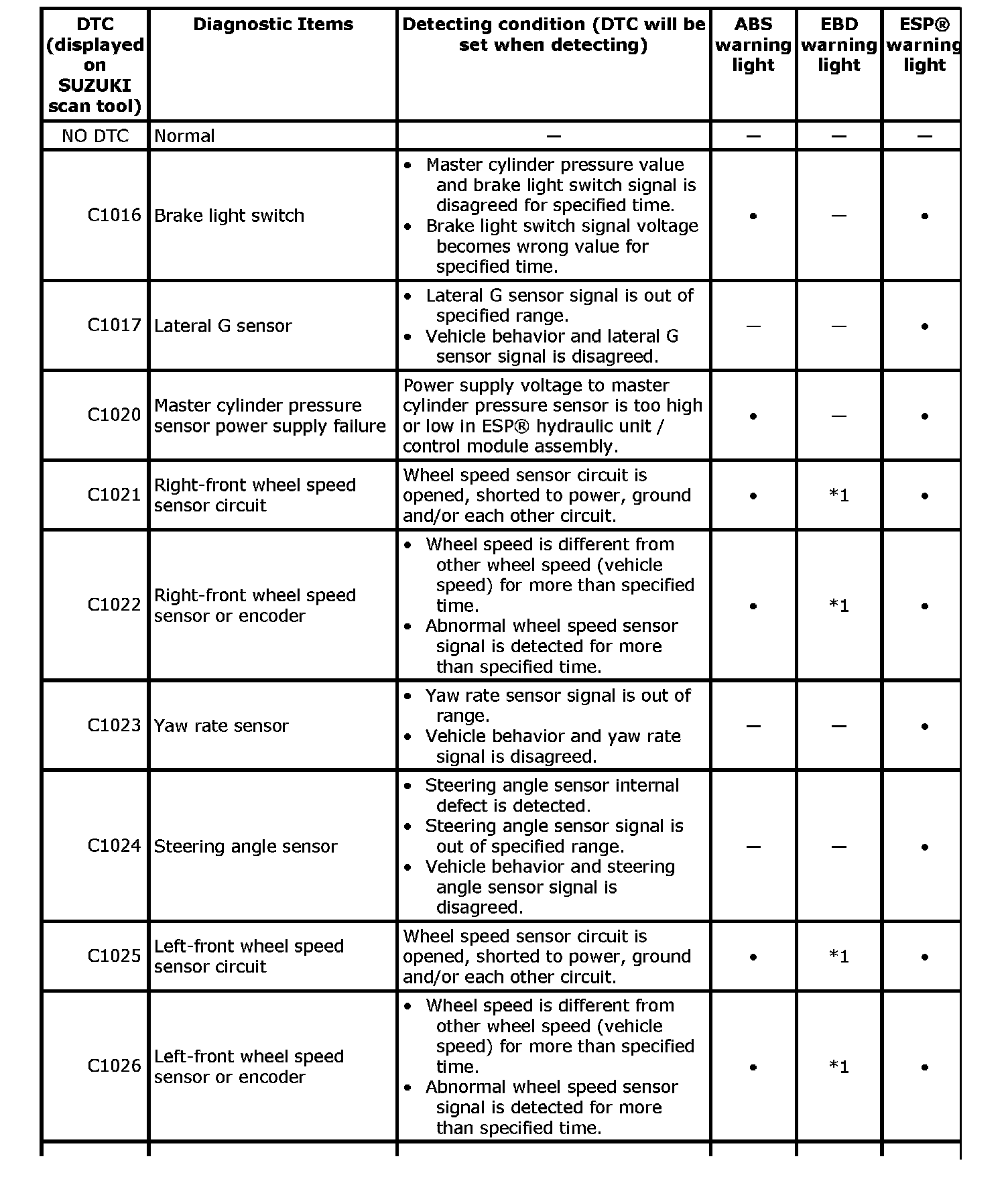

DTC Table

DTC Table

CAUTION: Be sure to perform Electronic Stability Program Check before starting diagnosis.














NOTE:
^ "-" in ABS warning light, EBD warning light and ESP(R) warning light column of the above table means warning light is lit when DTC is detected.
^ *1: If three or more wheel speed sensor are defective, EBD warning light are lit.
^ *2: It is irregular whether warning lights can be lit by ESP(R) control module.
^ *3: SLIP indicator light flashes continuously at intervals of I Hz.
