Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LIGHT BULB REPLACEMENT (IF EQUIPPED)

WARNING:
^ To avoid danger of being burned, don't touch when the bulb is hot.
^ Don't touch glass surface of bulb to avoid deteriorate as the case may be unclear when bulb light on at dirty condition.

1. Remove front for light referring to Front Fog Light Removal and Installation (If Equipped).

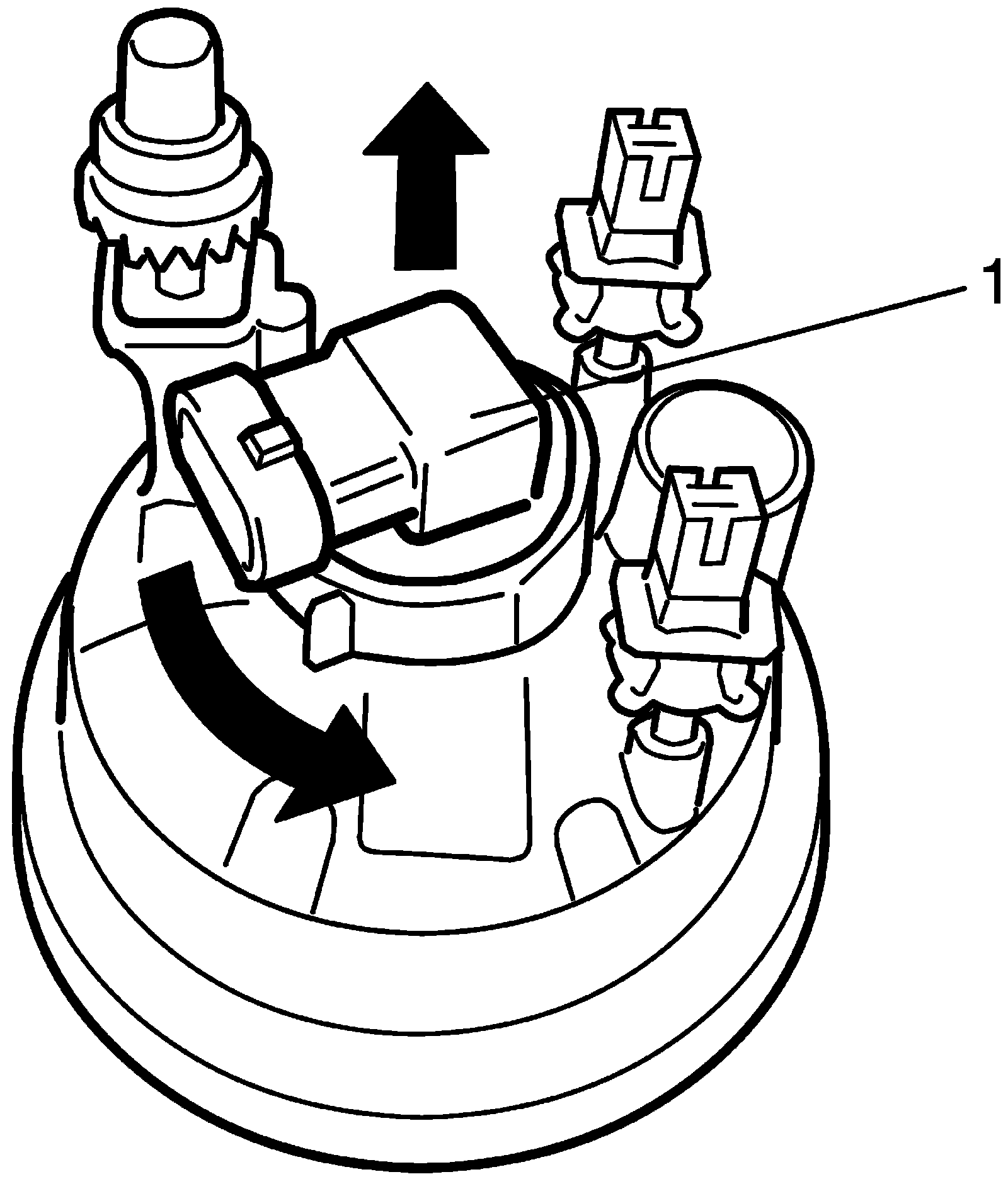

2. Remove fog light bulb (1) as shown.

3. Replace fog light bulb and assemble all removed parts.
