Procedures

Front Stabilizer Bar, Bushing and/or Joint Check

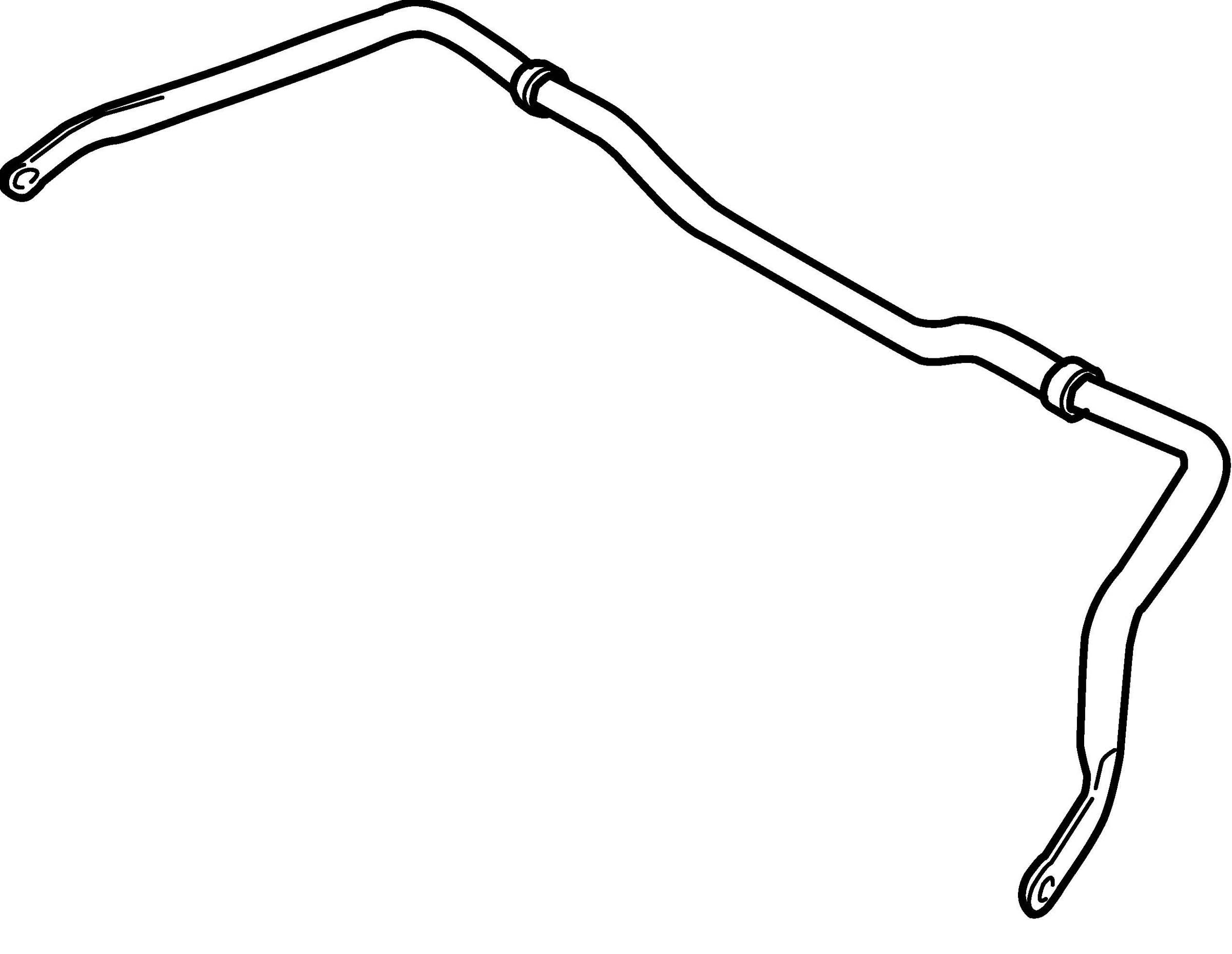

Stabilizer Bar
Inspect for damage or deformation.
If defective, replace.

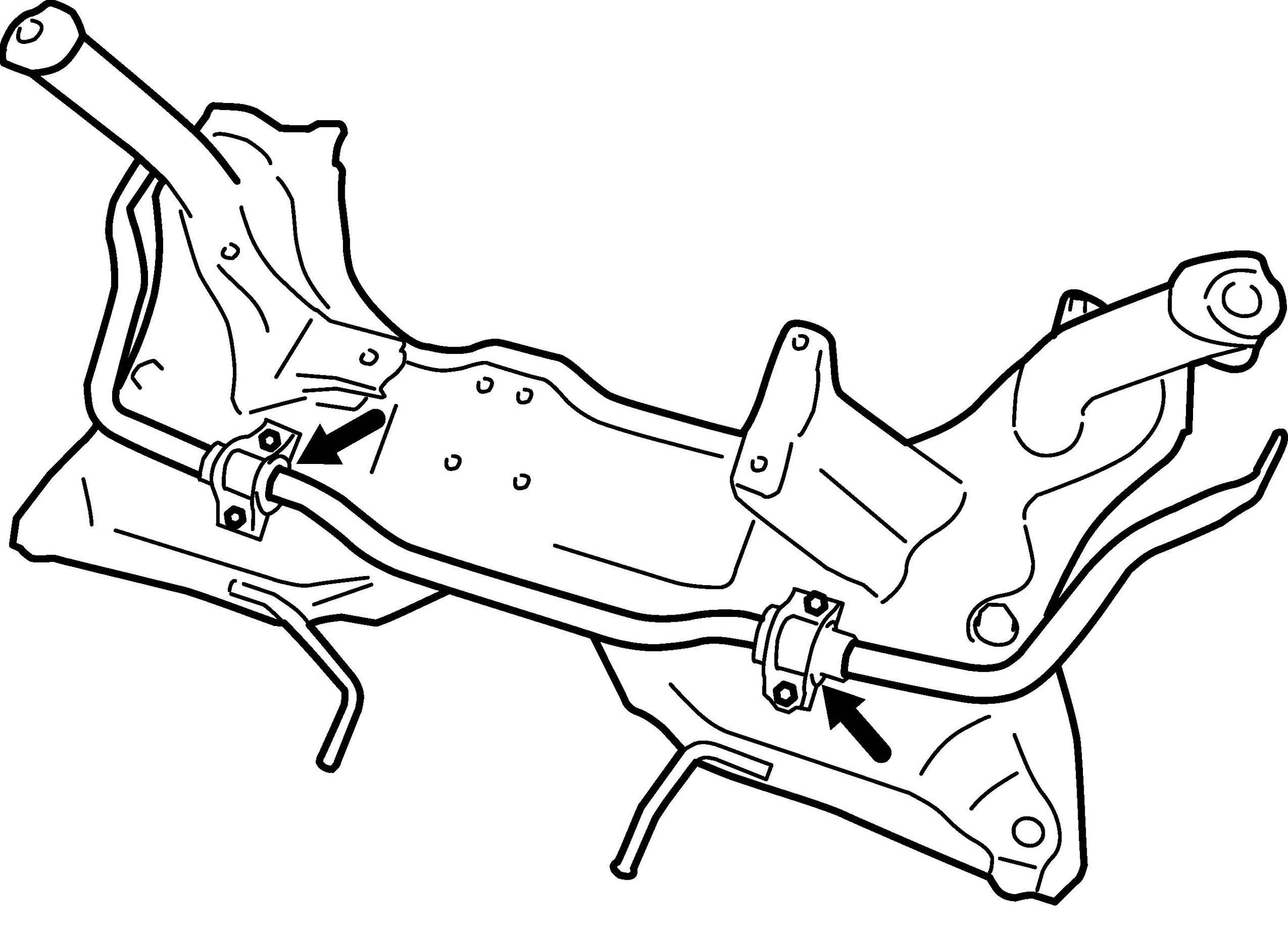

Stabilizer Bushing
Inspect for damage, wear or deterioration.
If defective, replace.

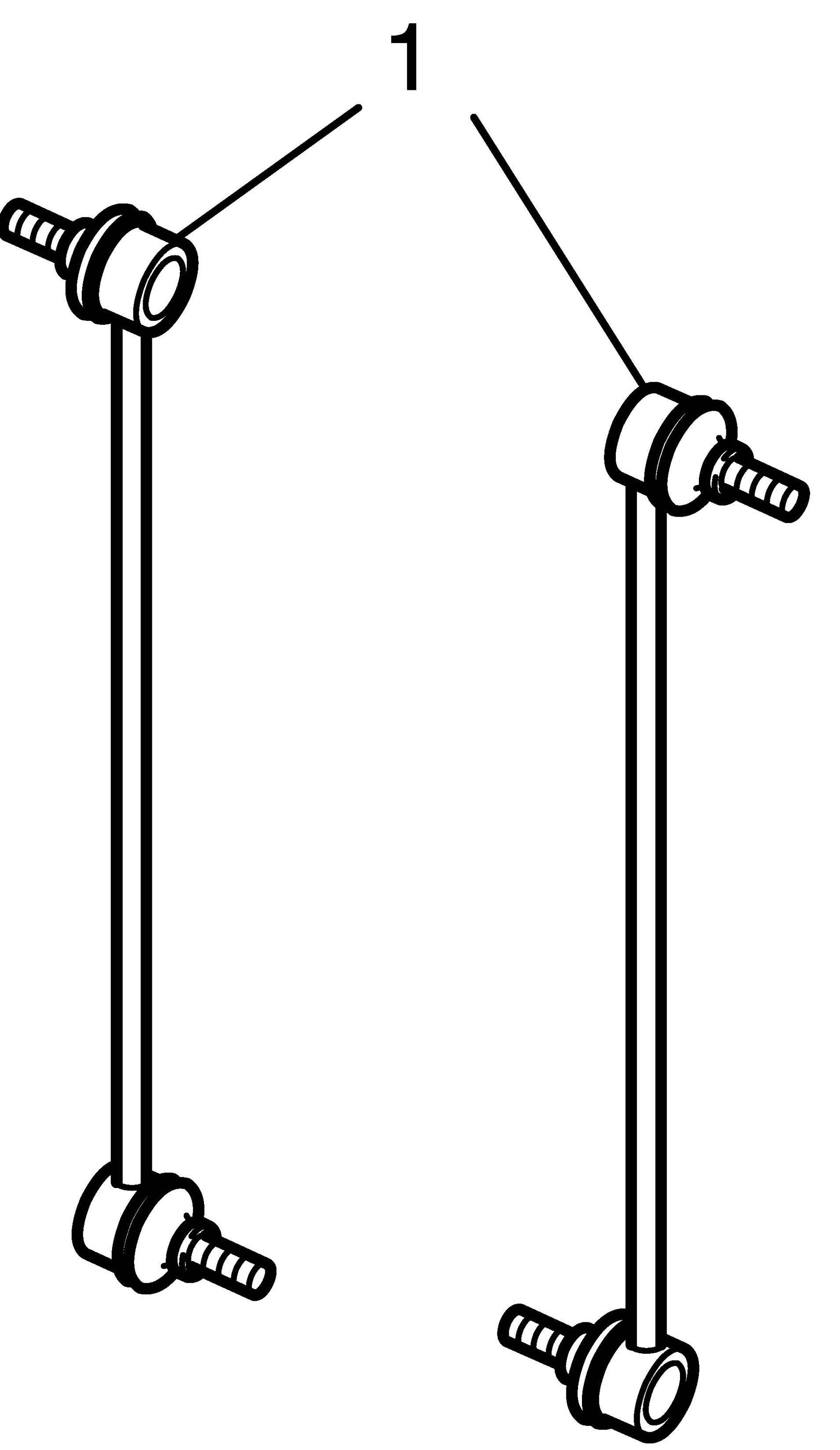

Stabilizer Joint
1. Check for smooth rotation.
2. Check damages of ball stud.
3. Check damages of dust cover.

NOTE: Stabilizer joint (1) cannot be disassembled.

If there is any damage to either parts, stabilizer joint must be replaced as a complete unit.
