Brakes and Traction Control: Service Precautions

Precaution for Brake System
^ Recommended fluid is genuine super heavy duty brake fluid or equivalent. Refer to [Recommended Fluids and Lubricants].
^ Do not reuse drained brake fluid.
^ Be careful not to splash brake fluid on painted areas.
^ To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use clean brake fluid.
^ Do not use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.

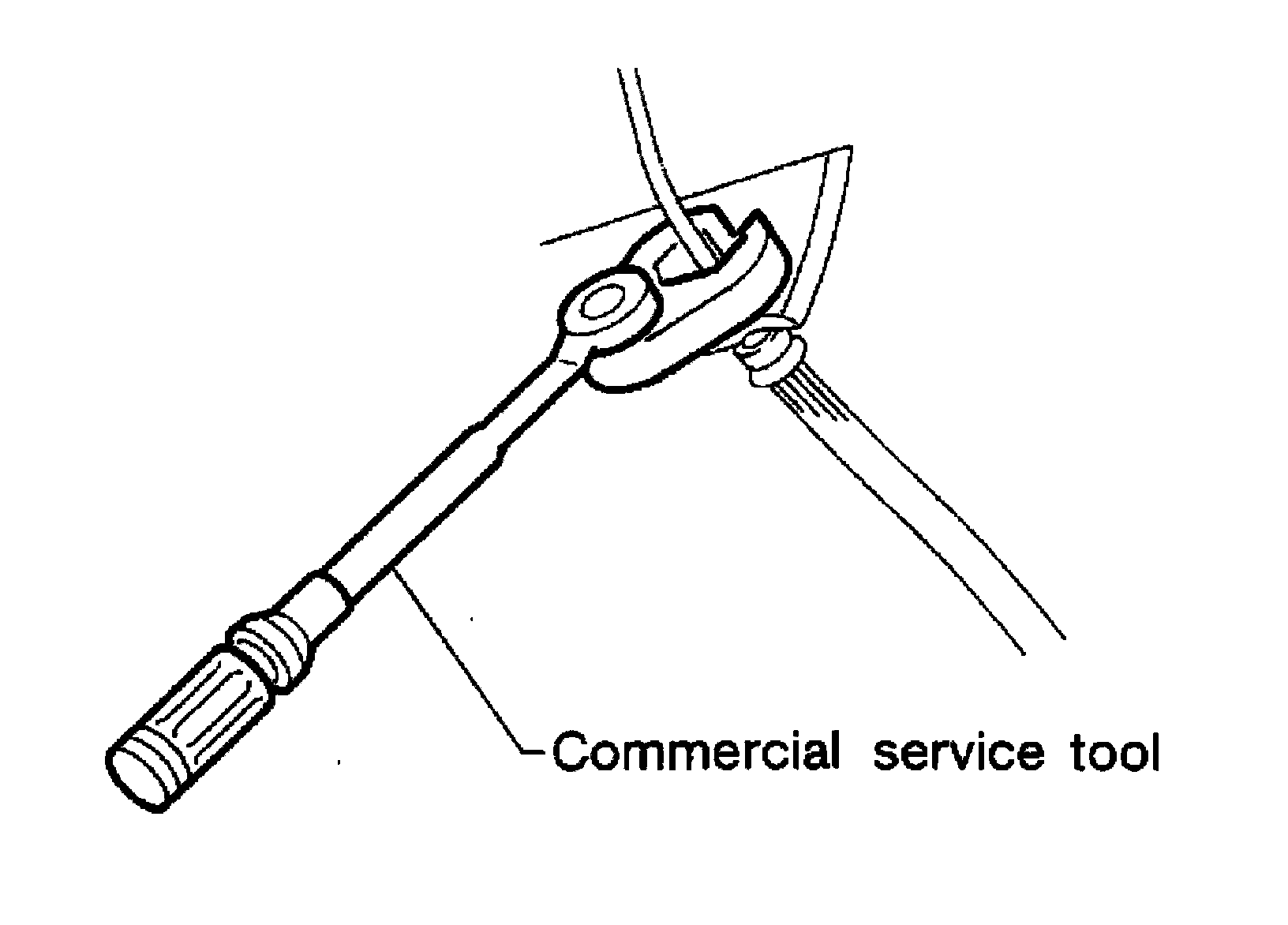

^ Use flare nut wrench when removing and installing brake tube.





^ Always check tightening torque when installing brake lines.
^ Before working, turn ignition switch to OFF and disconnect connectors for ABS actuator and electric unit (control unit) or battery negative terminal.
^ Burnish the brake contact surfaces after refinishing or replacing drums or rotors, after replacing pads or linings, or if a soft pedal occurs at very low mileage.


WARNING:
^ Clean brake pads and shoes with a waste cloth, then wipe with a dust collector.
