Brakes and Traction Control: Specifications

Service Data and Specifications

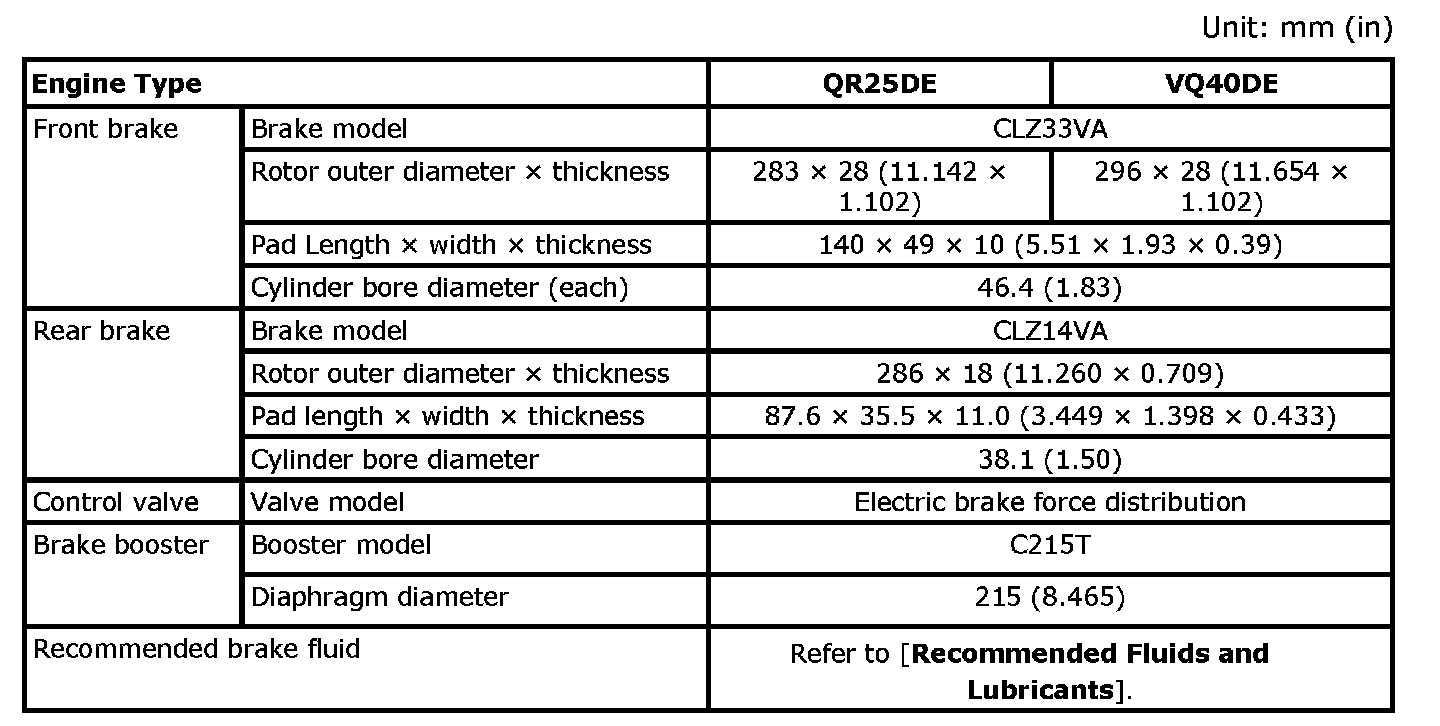

General Specification





Brake Pedal





Brake Booster








Check Valve

Front
Brake Model CLZ33VA
Disc Rotor
Standard thickness (new) 28.0 mm (1.102 in)
Repair limit thickness 26.0 mm (1.024 in)
Maximum uneven wear (measured at 8 positions) 0.015 in (0.0006 in)
Runout limit (with it attached to the vehicle) 0.05 mm (0.0020 in)

Rear
Brake Model CLZ14VA
Disc Rotor
Standard thickness (new) 18.0 mm (0.709 in)
Repair limit thickness 16.0 mm (0.630 in)
Maximum uneven wear (measured at 8 positions) 0.015 mm (0.0006 in)
Runout limit (with it attached to the vehicle) 0.05 mm (0.0020 in)
