ABLS

ABLS: Wiring Diagram

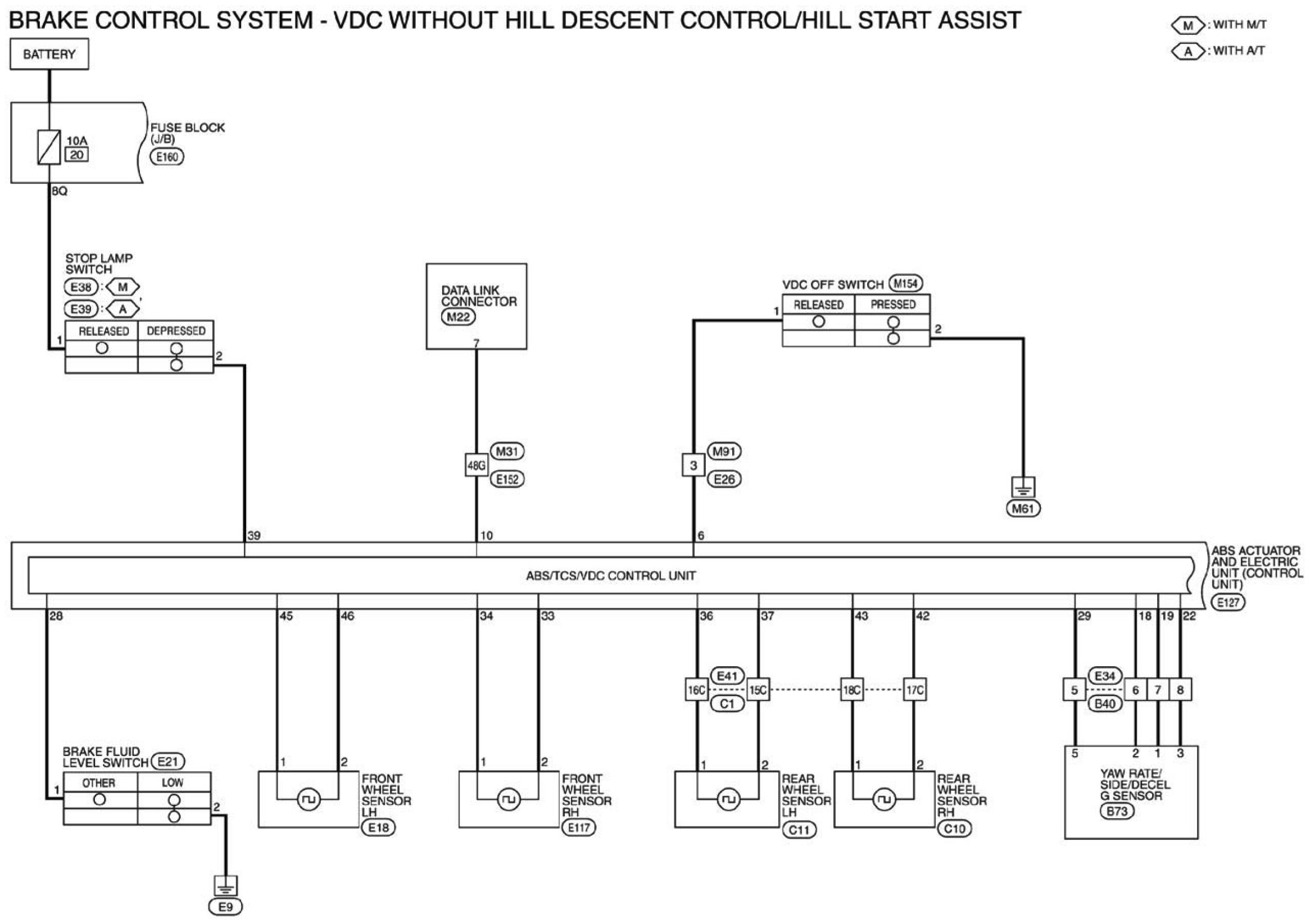

Brake Control System - VDC Without Hill Descent Control/Hill Start Assist (Part 1):

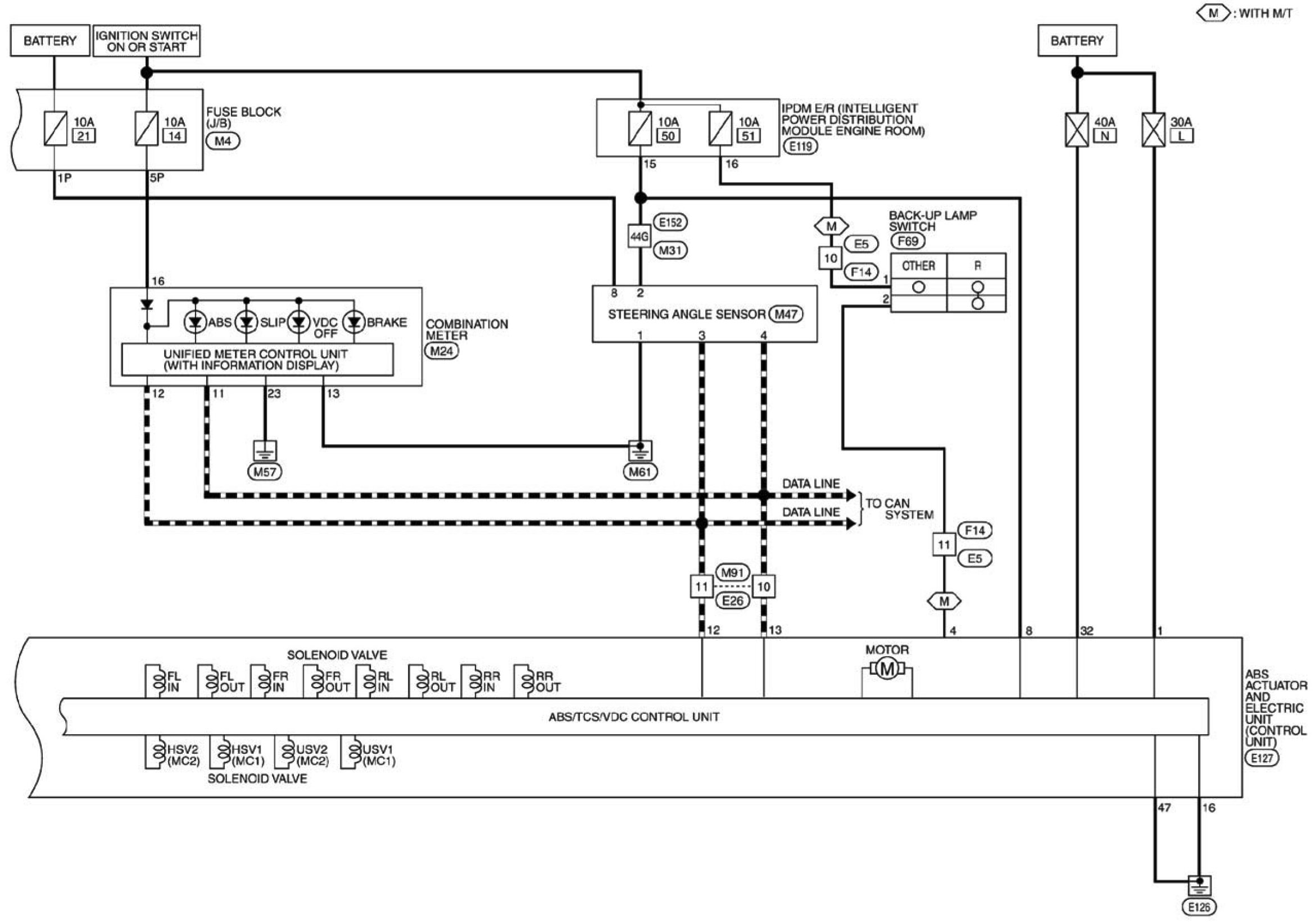

Brake Control System - VDC Without Hill Descent Control/Hill Start Assist (Part 2):

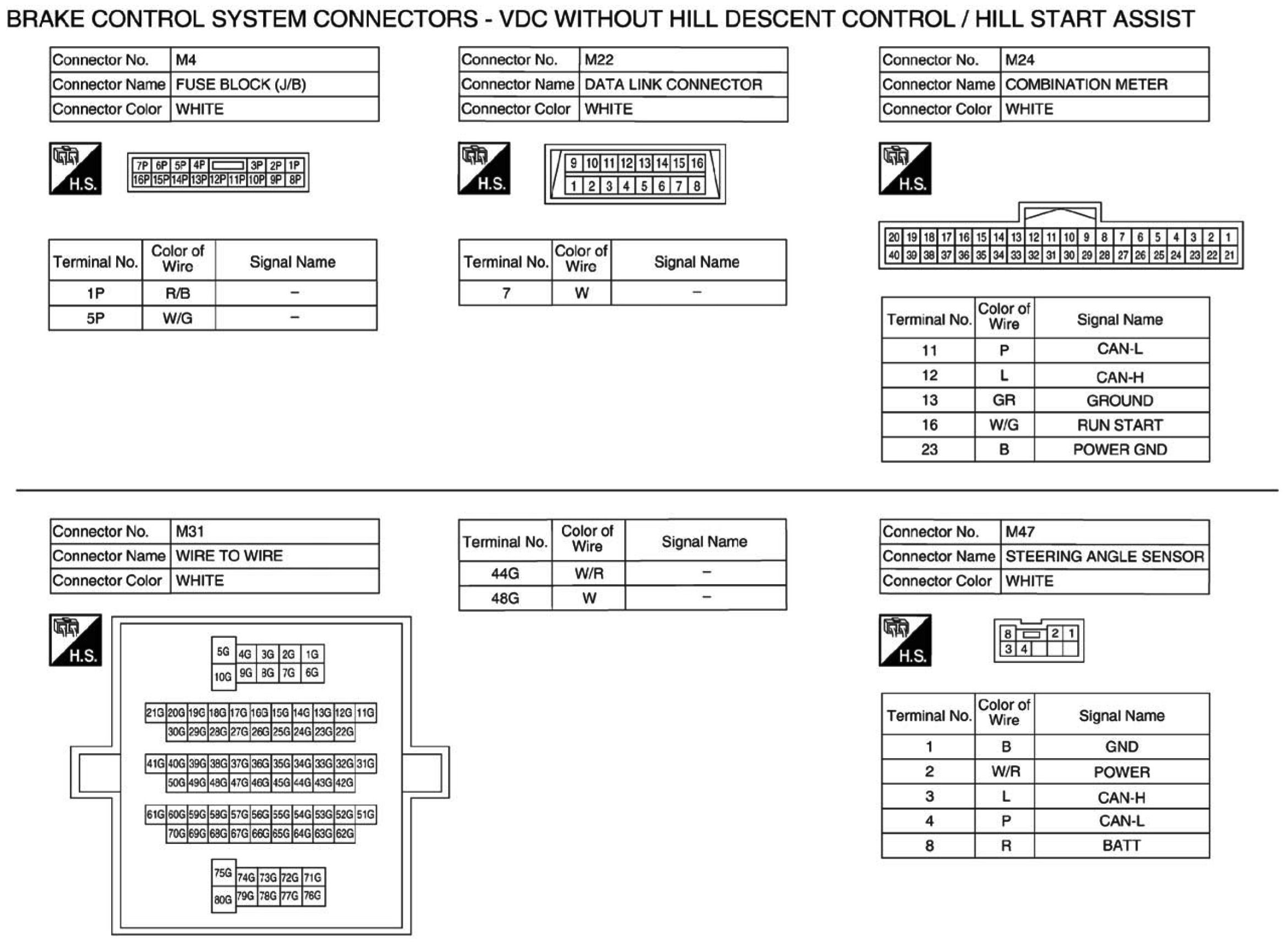

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist

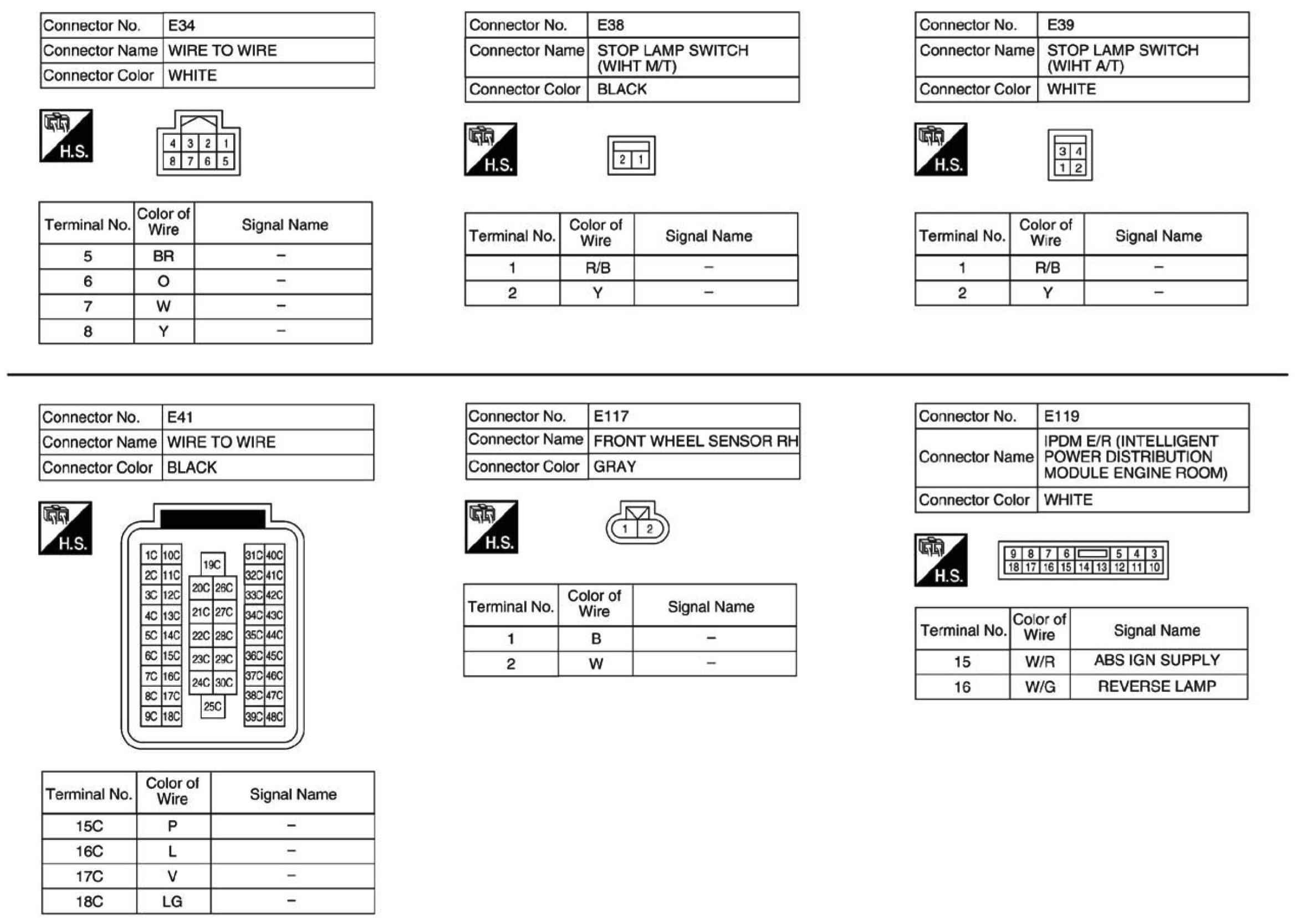

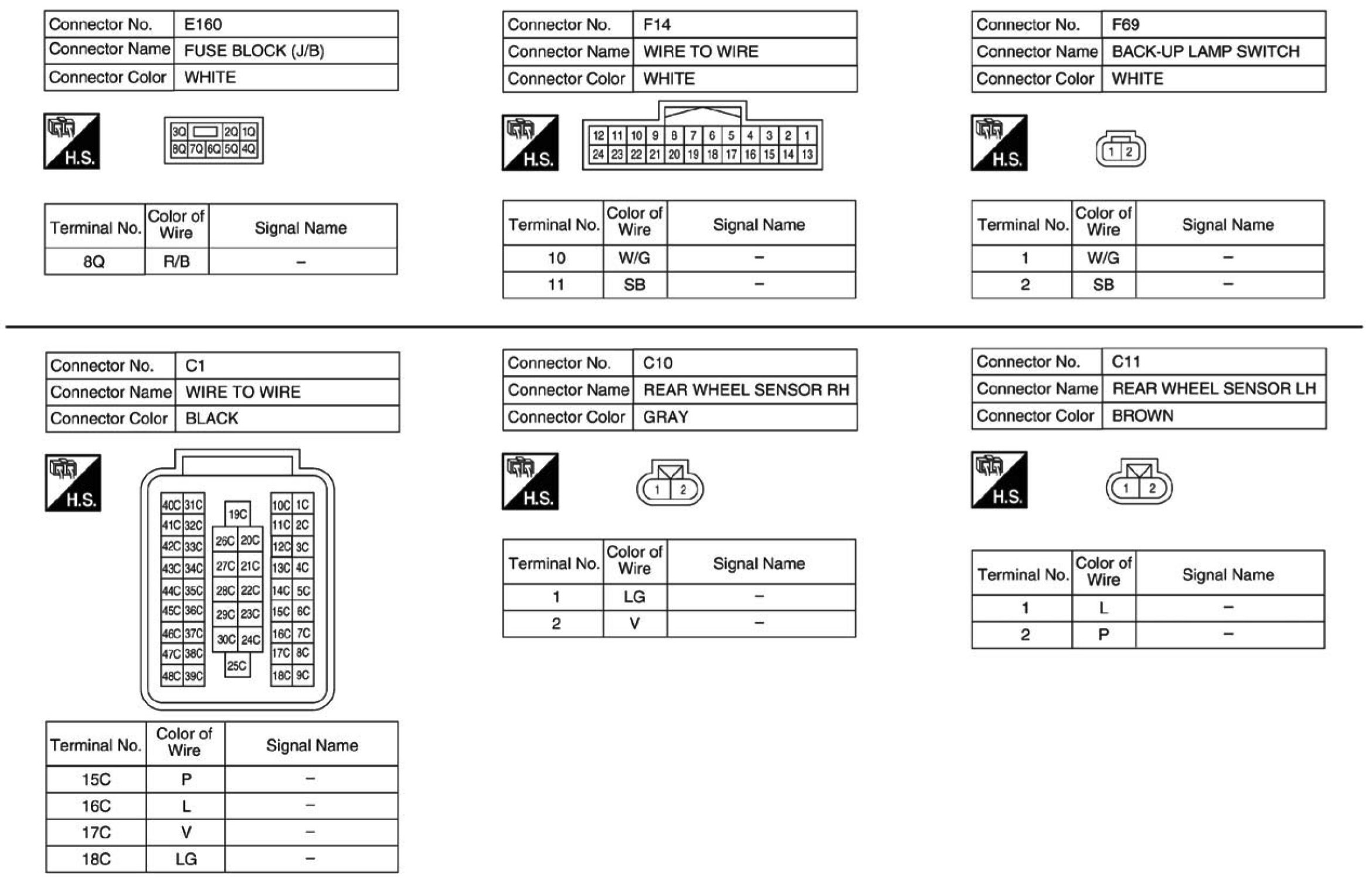

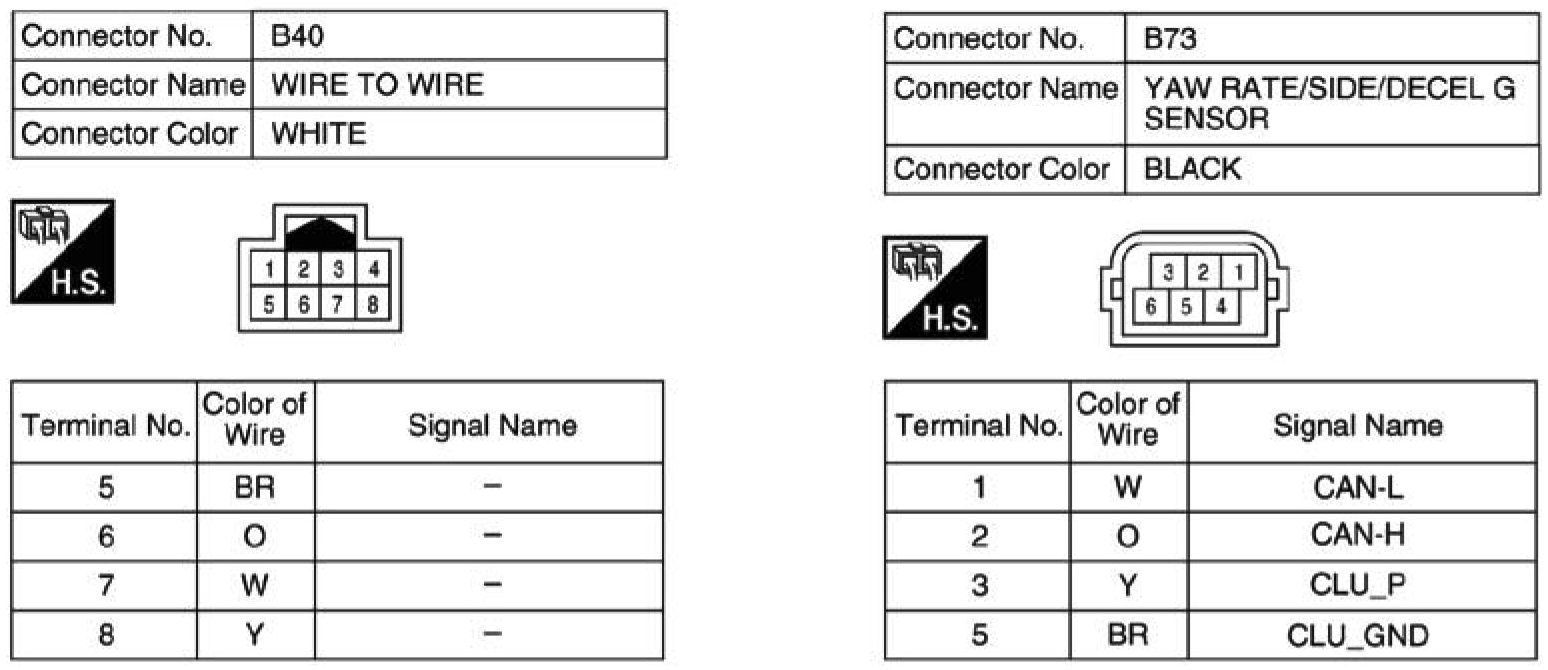

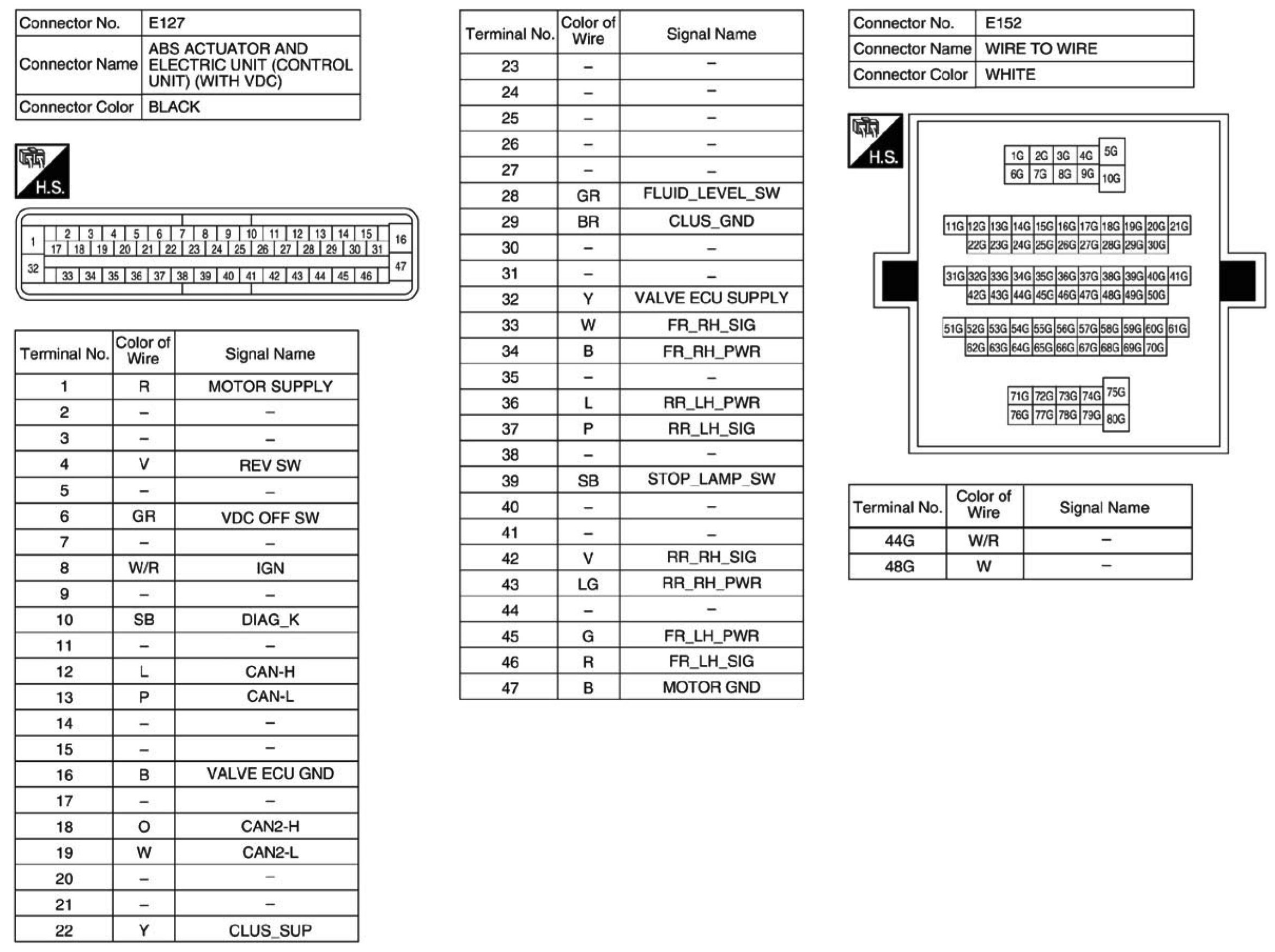

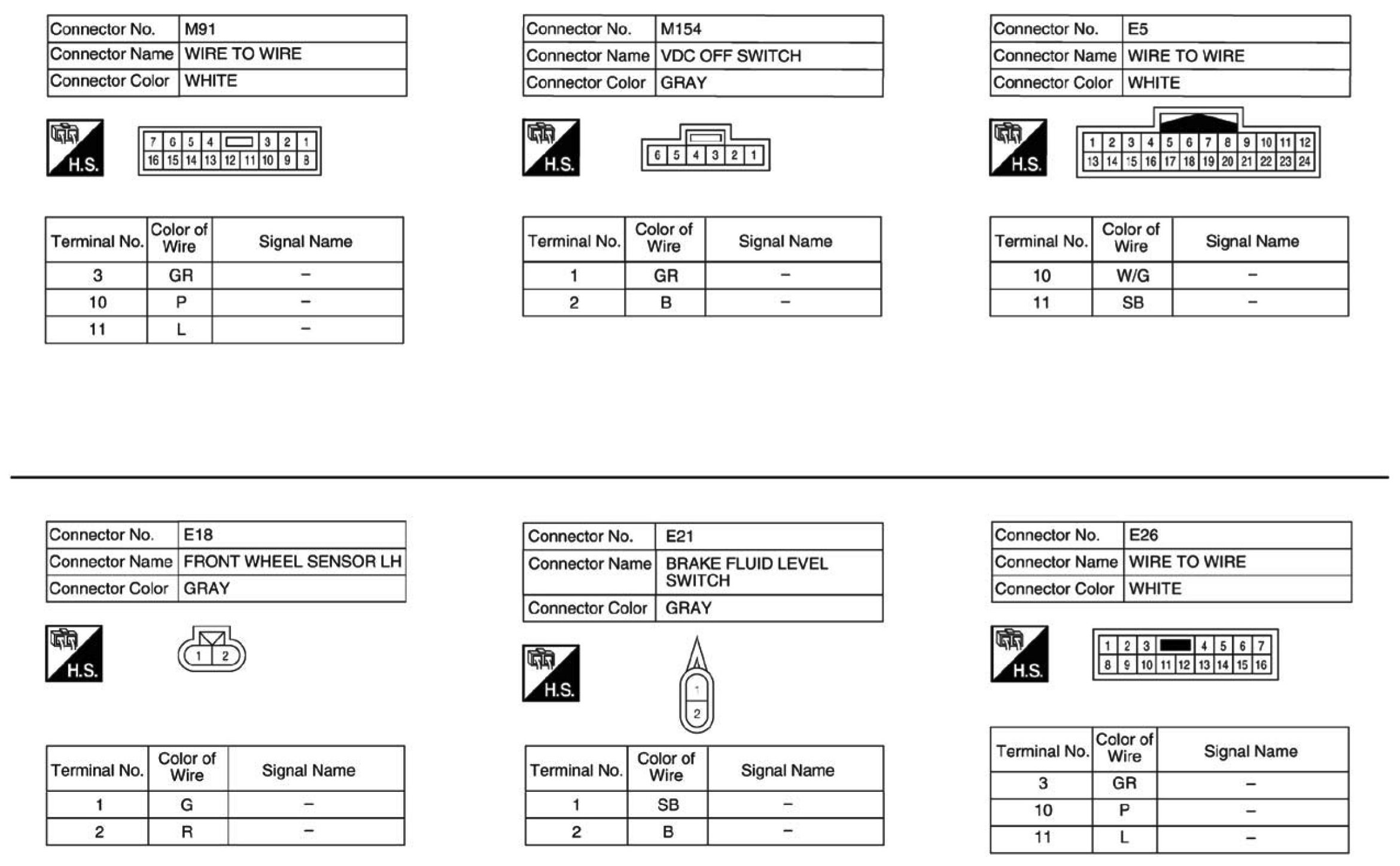

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 1):

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 2):

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 3):

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 4):

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 5):

Brake Control System Connectors - VDC Without Hill Descent Control/Hill Start Assist (Part 6):
