Remote Keyless Entry System [King Cab]

Remote Keyless Entry System: Wiring Diagram [King Cab]

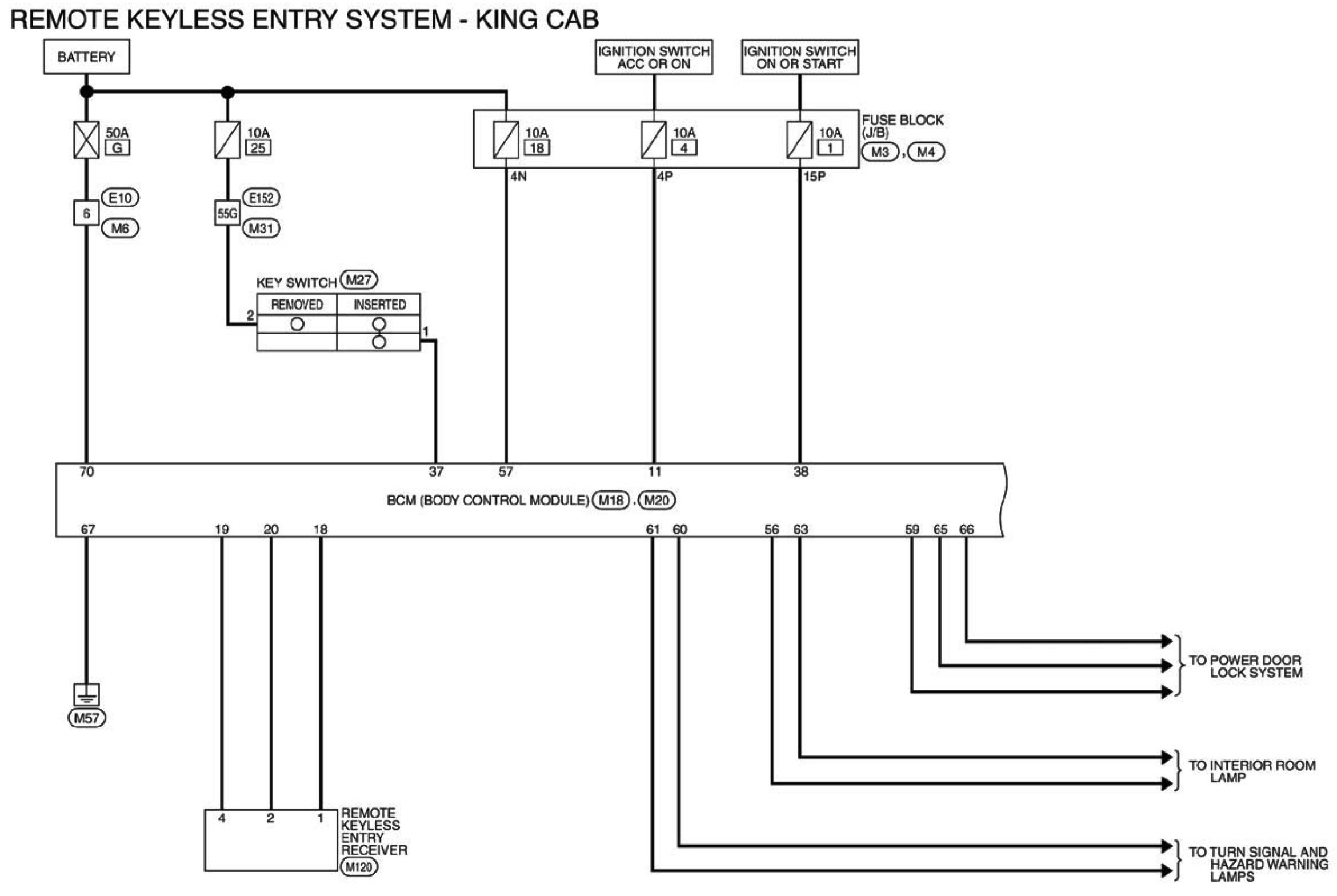

Remote Keyless Entry System - King Cab (Part 1):

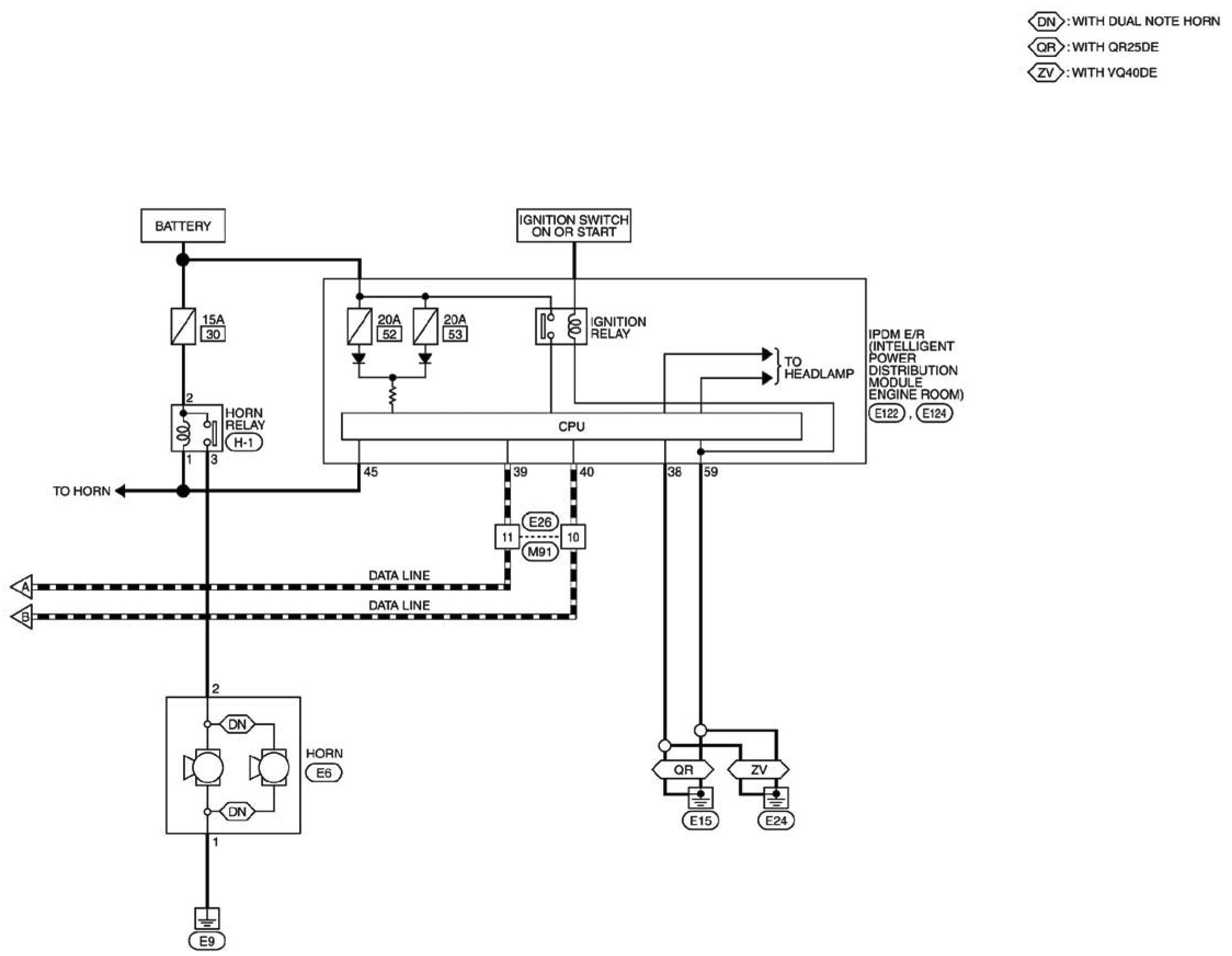

Remote Keyless Entry System - King Cab (Part 2):

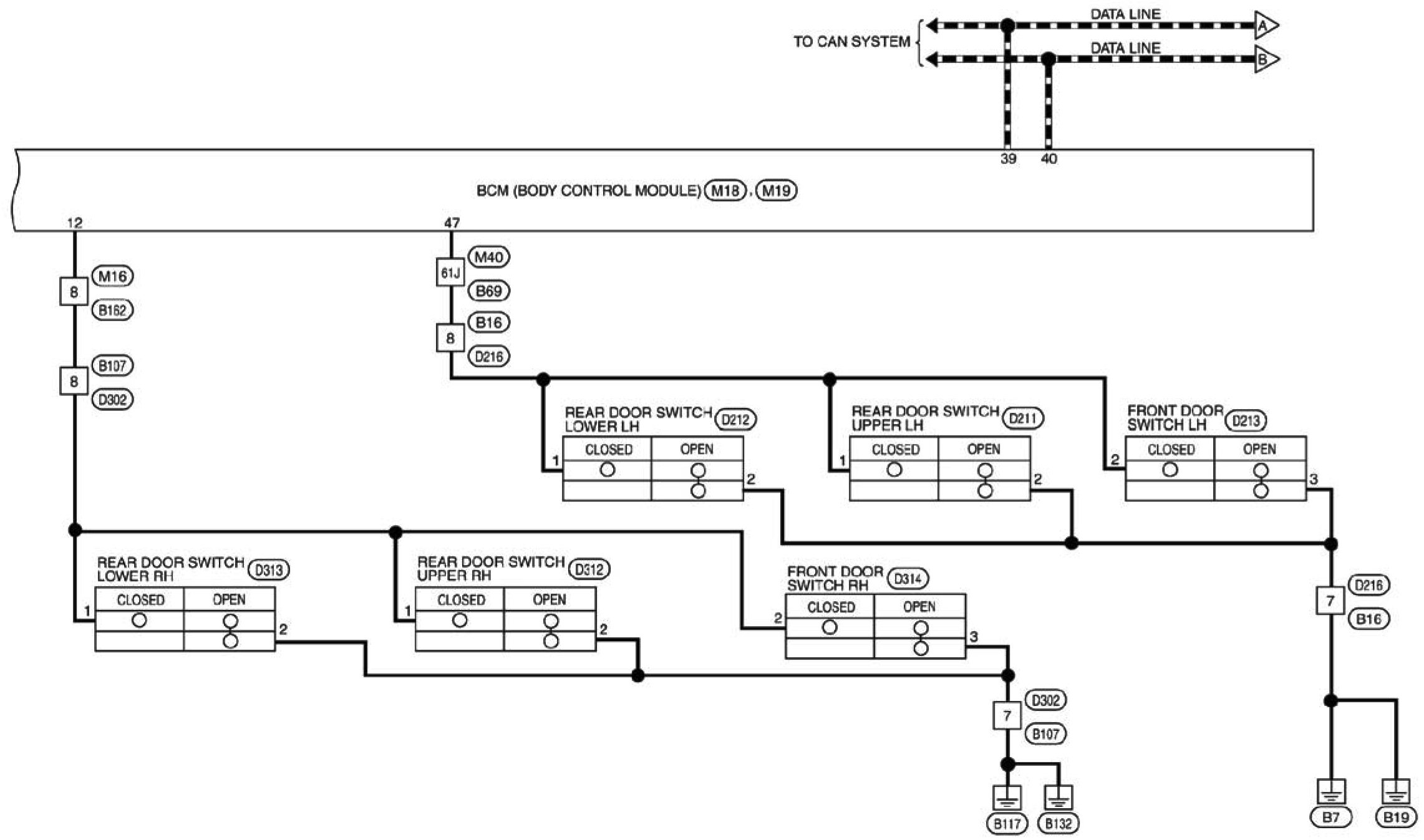

Remote Keyless Entry System - King Cab (Part 3):

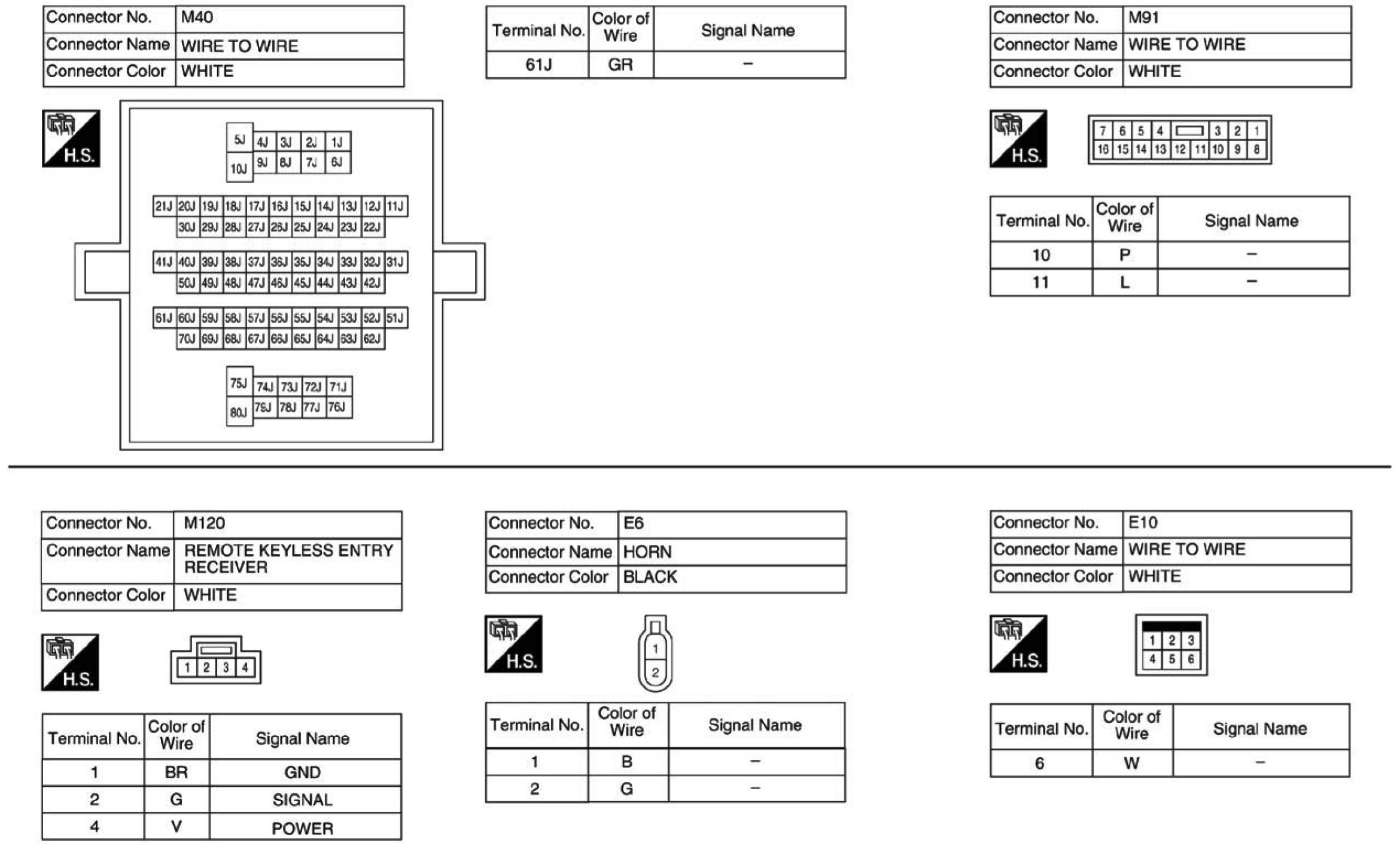

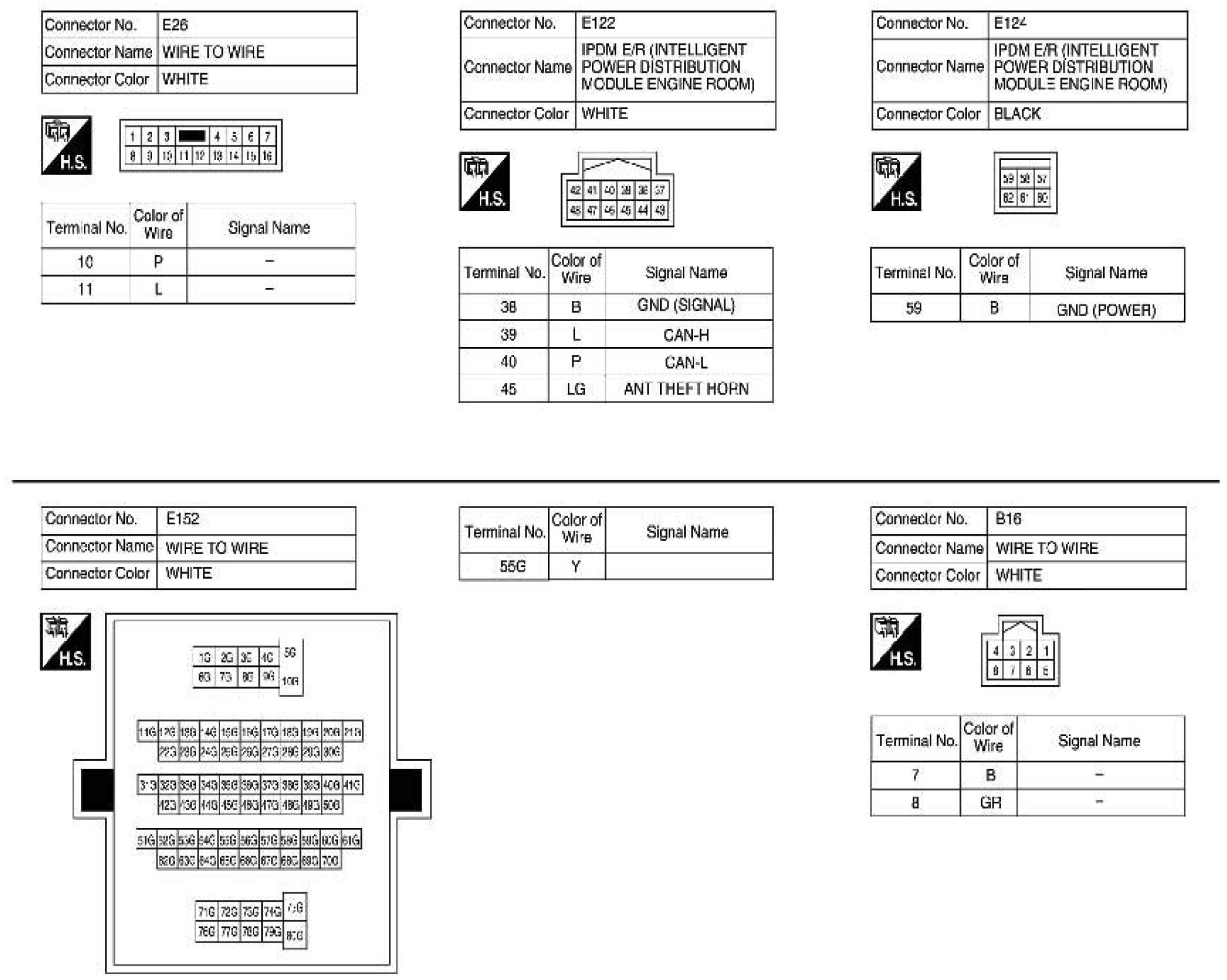

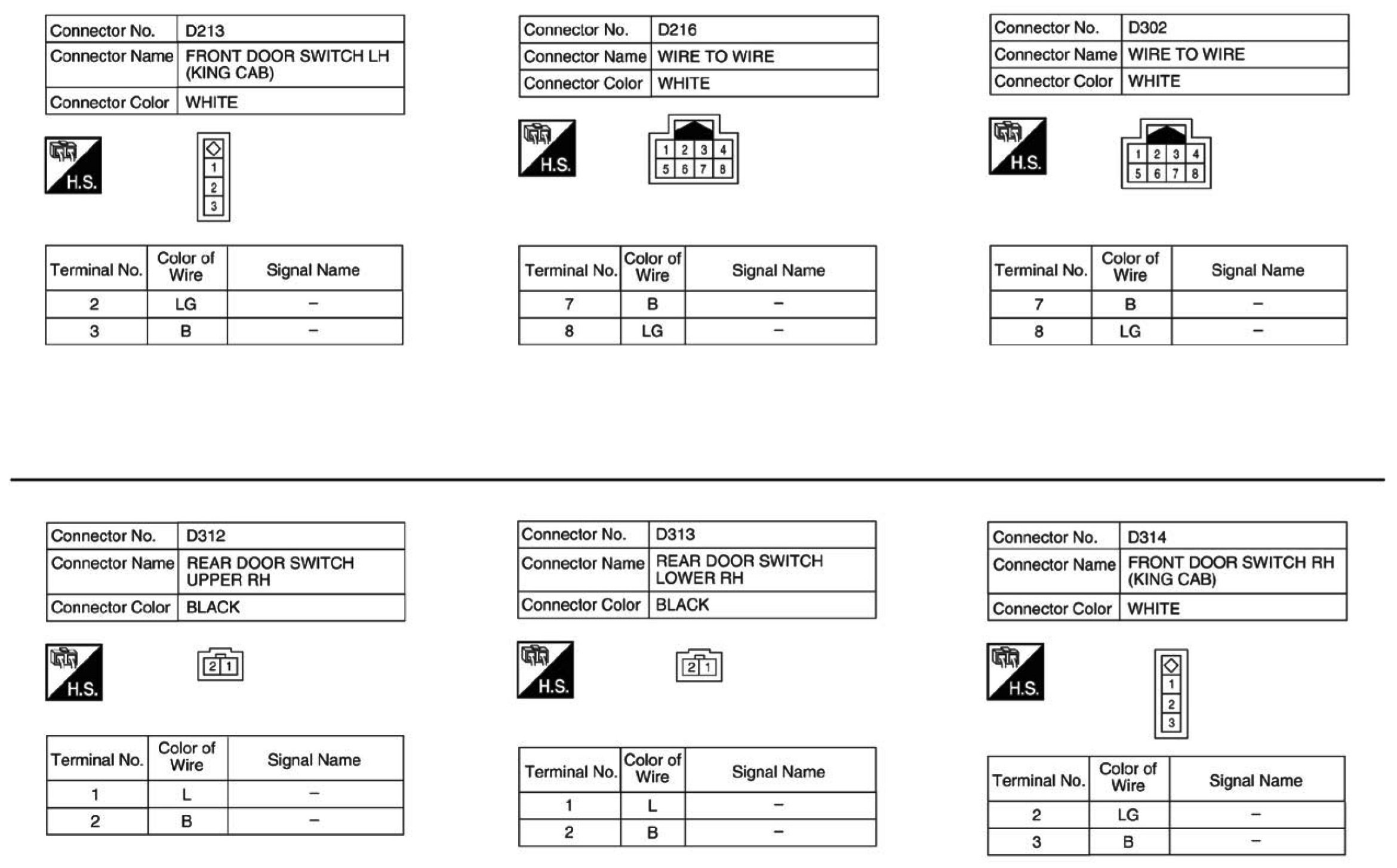

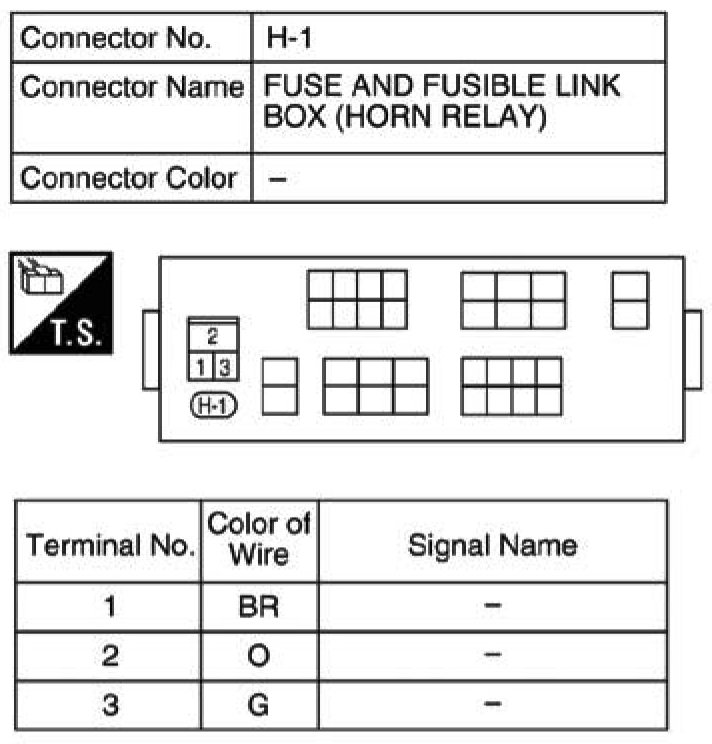

Remote Keyless Entry System Connectors - King Cab

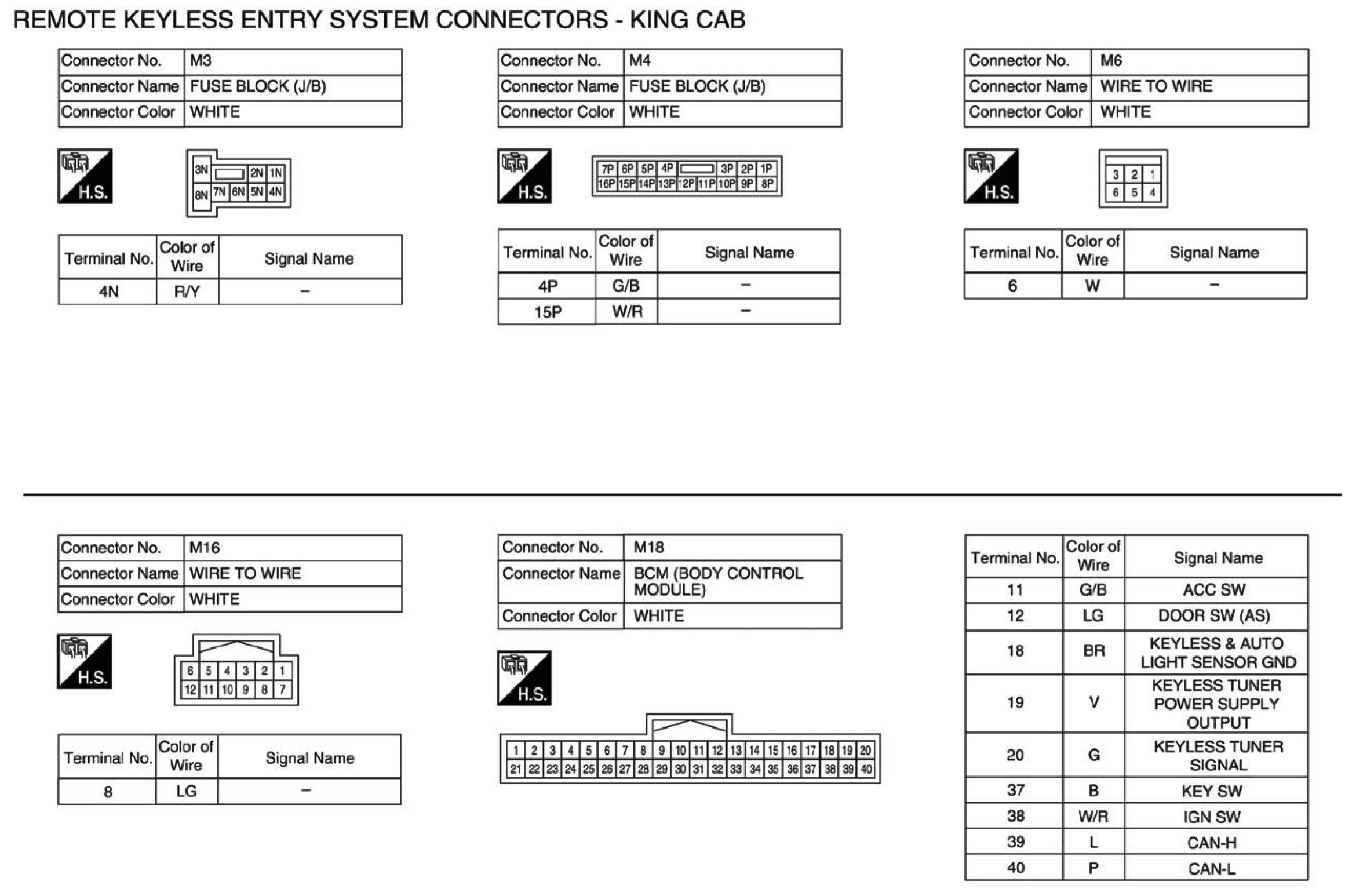

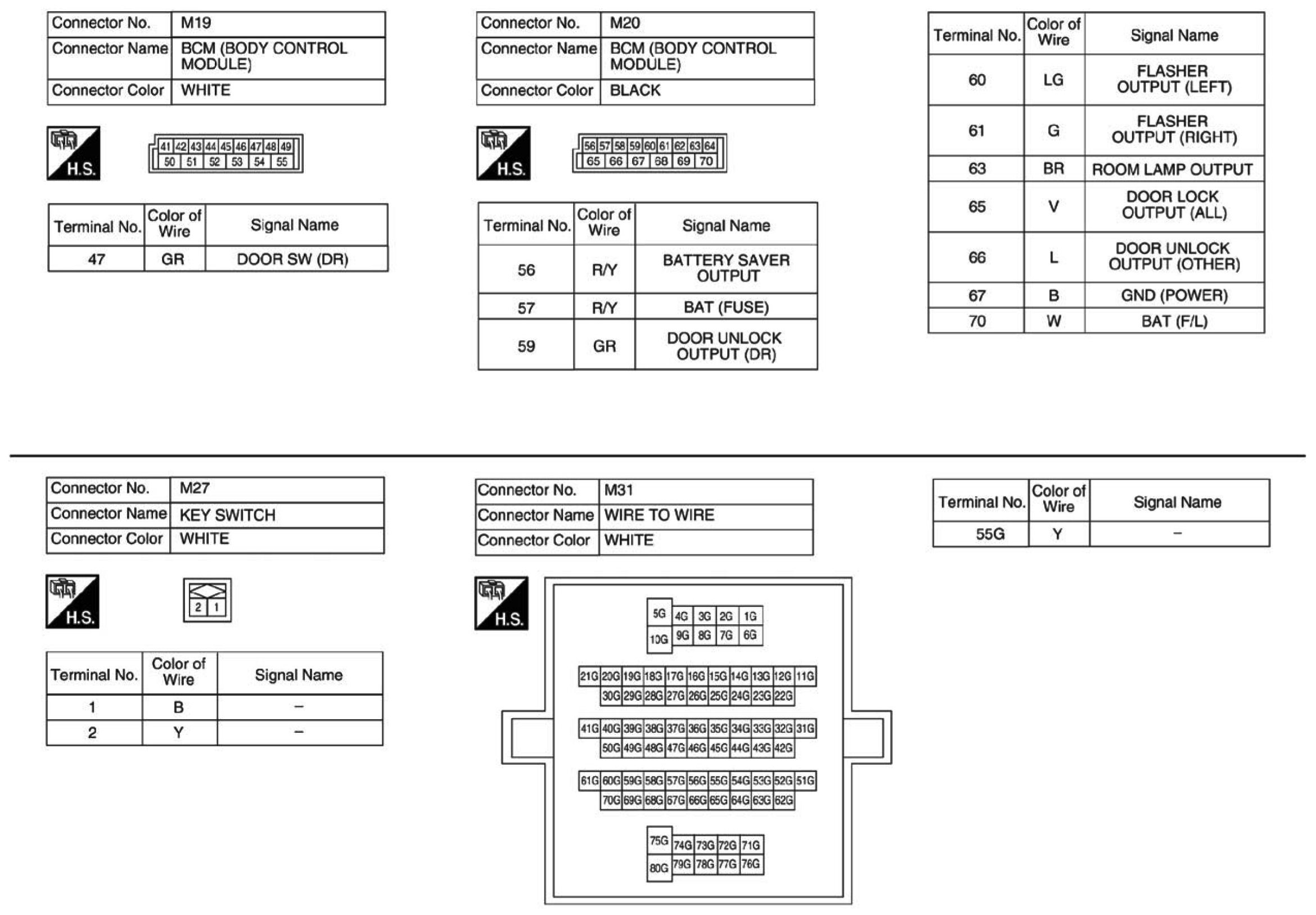

Remote Keyless Entry System Connectors - King Cab (Part 1):

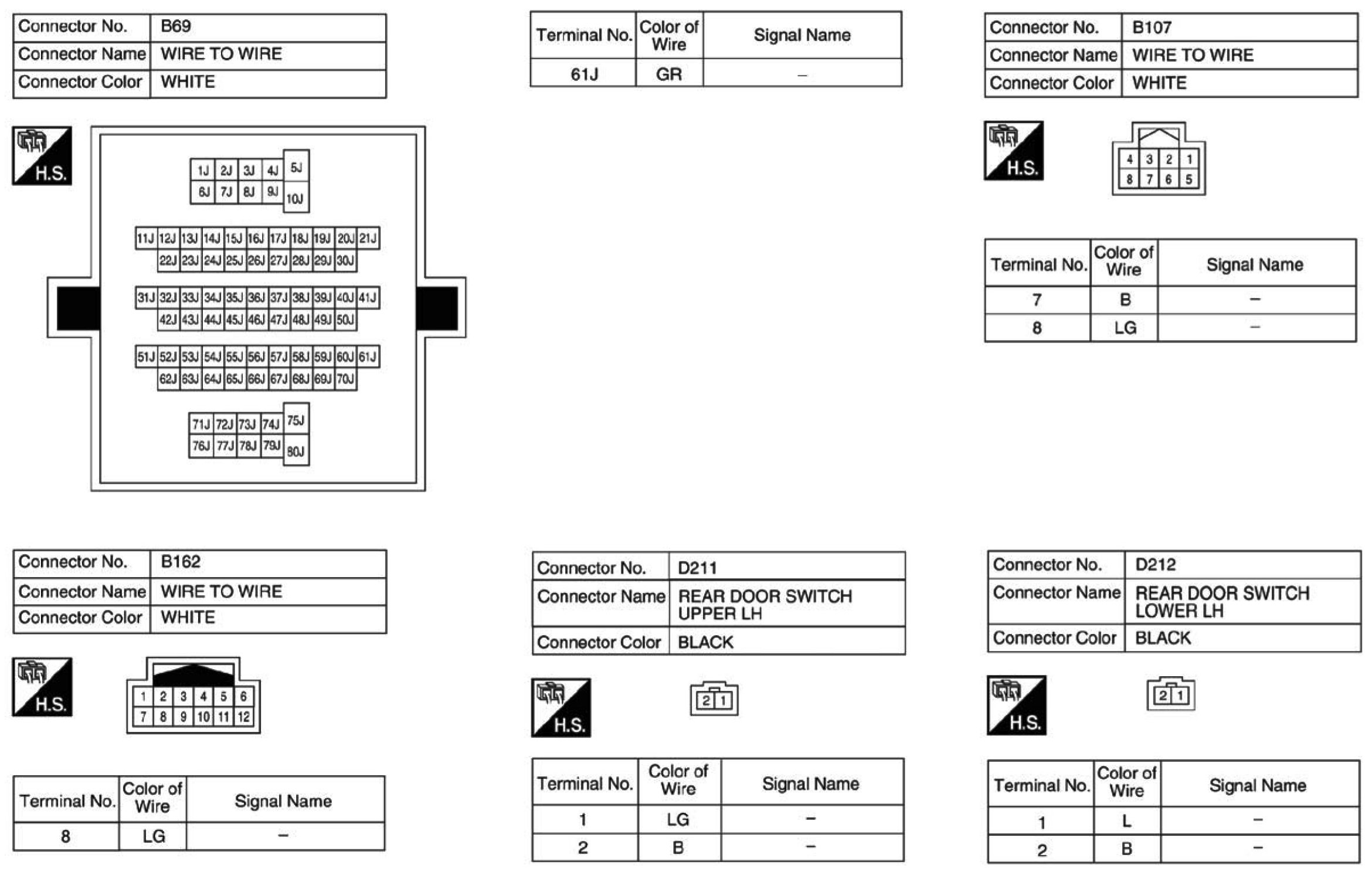

Remote Keyless Entry System Connectors - King Cab (Part 2):

Remote Keyless Entry System Connectors - King Cab (Part 3):

Remote Keyless Entry System Connectors - King Cab (Part 4):

Remote Keyless Entry System Connectors - King Cab (Part 5):

Remote Keyless Entry System Connectors - King Cab (Part 6):

Remote Keyless Entry System Connectors - King Cab (Part 7):
