Instrument Panel, Gauges and Warning Indicators: Service and Repair
IPDM E/R: Removal and Installation
Removal 1.
Disconnect negative battery terminal.
1.

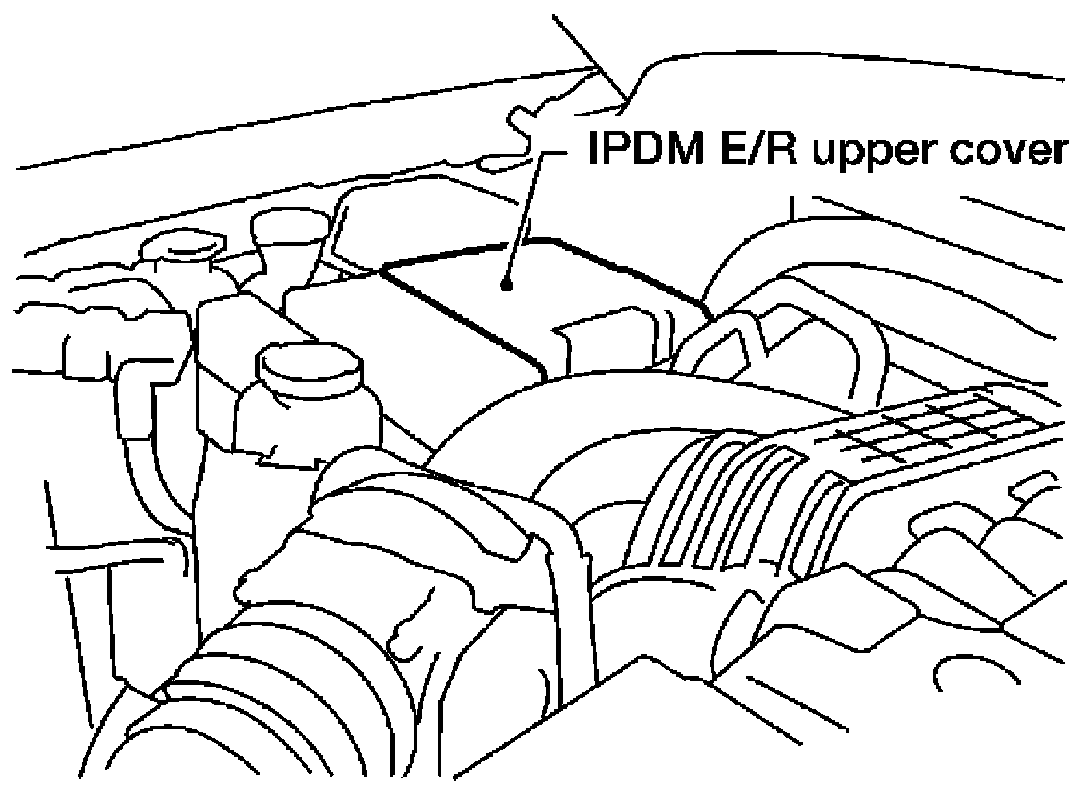

Remove IPDM E/R upper cover.
2.

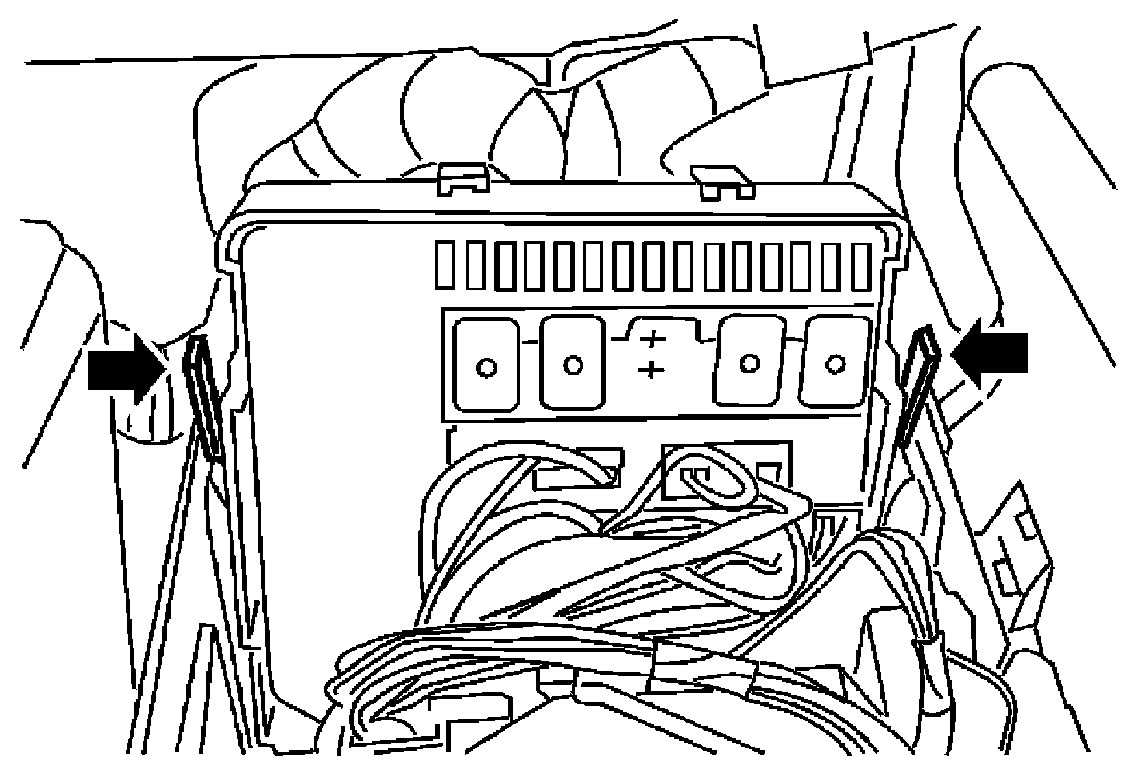

Release 2 clips and pull IPDM E/R up from case.
3.
Disconnect IPDM E/R connectors and remove the IPDM E/R.
InstallationInstallation is in the reverse order of removal.
