Fog/Driving Lamp: Service and Repair

Front Fog Lamp: Removal and Installation

Fog Lamp

Removal

NOTE: The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.

1. Position front fender protector aside.
2. Disconnect fog lamp connector.

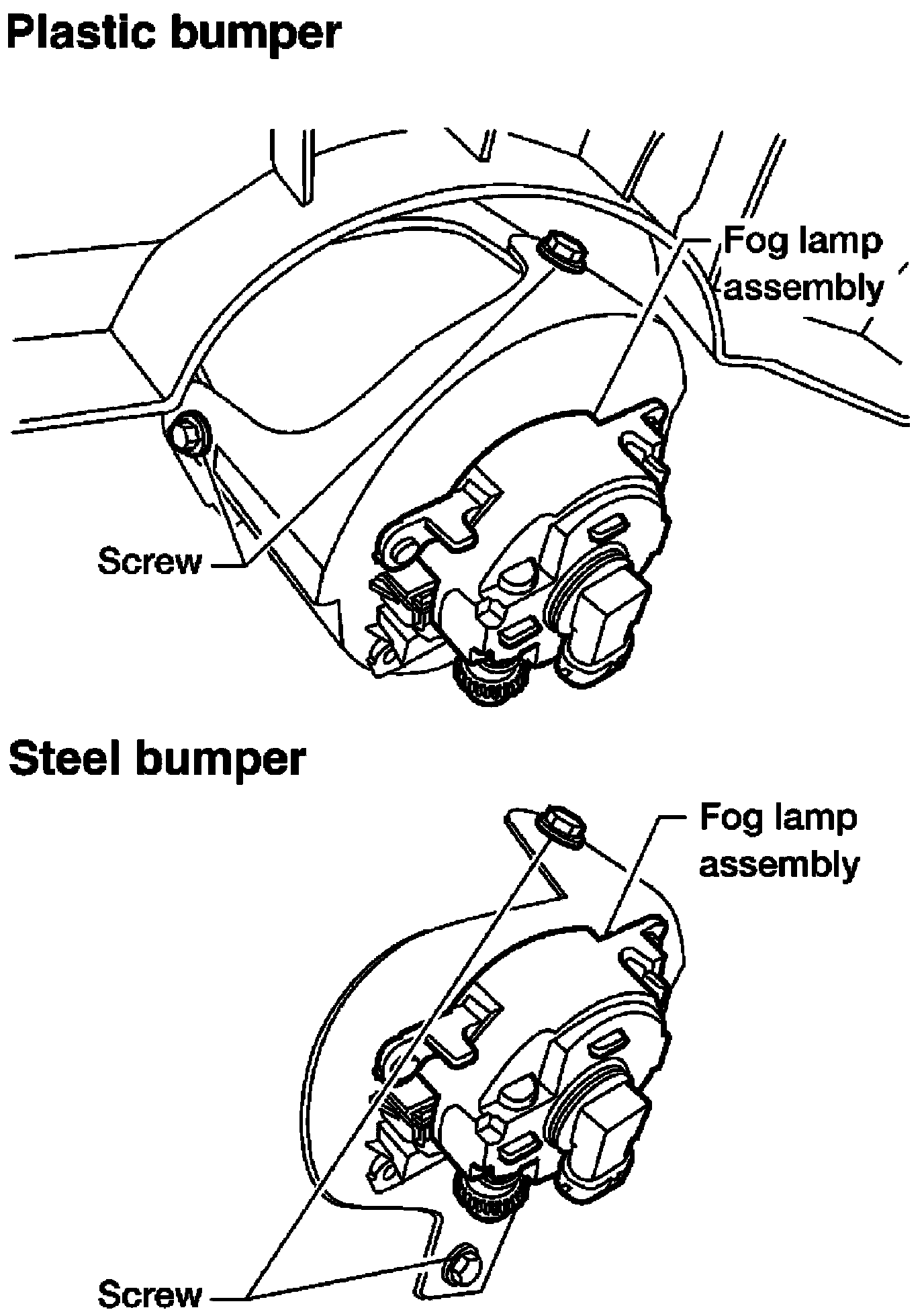

3. Remove fog lamp screws and pull fog lamp rearward out of front bumper.






CAUTION:
- Do not leave fog lamp assembly without bulb for a long period of time. Dust, moisture, smoke, etc. entering the fog lamp body may affect the performance. Remove the bulb from the headlamp assembly just before replacement bulb is installed.
- Grasp only the plastic base when handling the bulb. Never touch the glass envelope. Touching the glass could significantly affect the bulb life and/or fog lamp performance.

Installation
Installation is in the reverse order of removal.
