Horn: Service and Repair

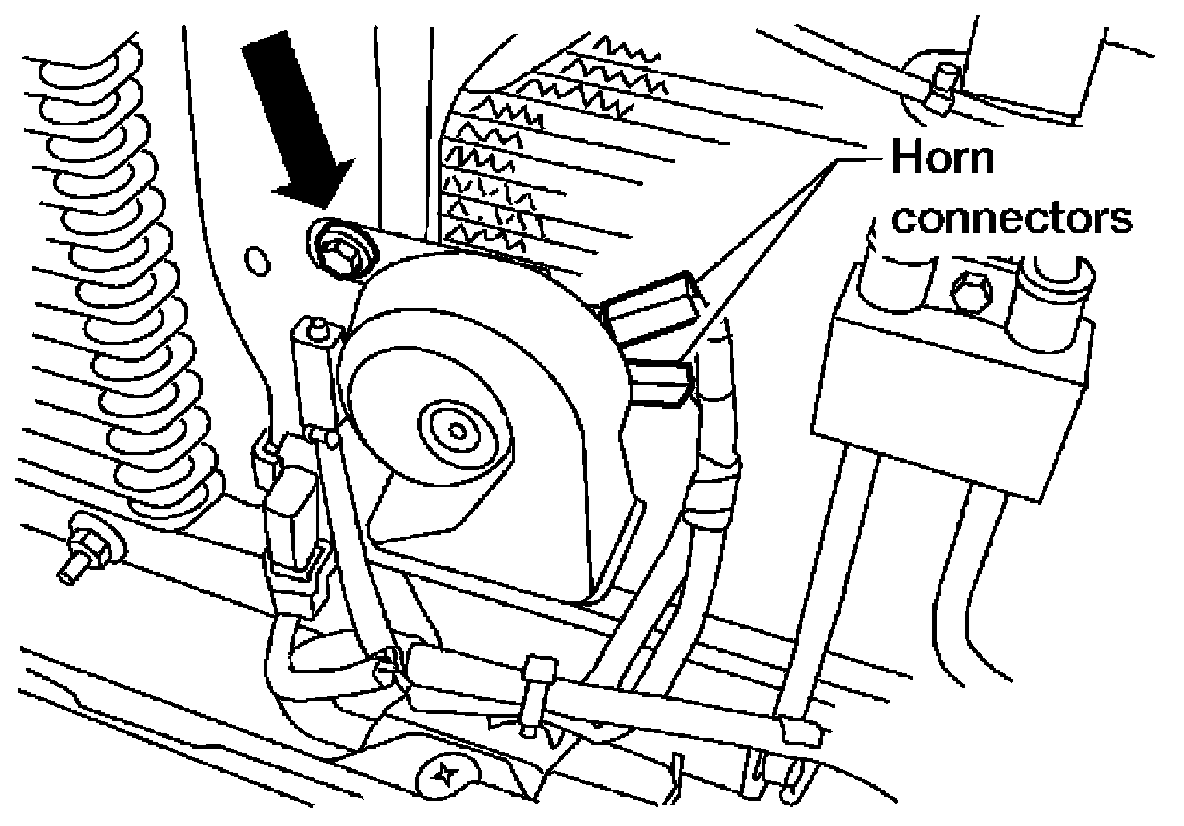

Horn: Removal and InstallationHorn (Single)Removal 1.
Disconnect
horn connectors.
2.
Remove
horn bolt and remove horn from vehicle.
InstallationInstallation is in the reverse order of removal.

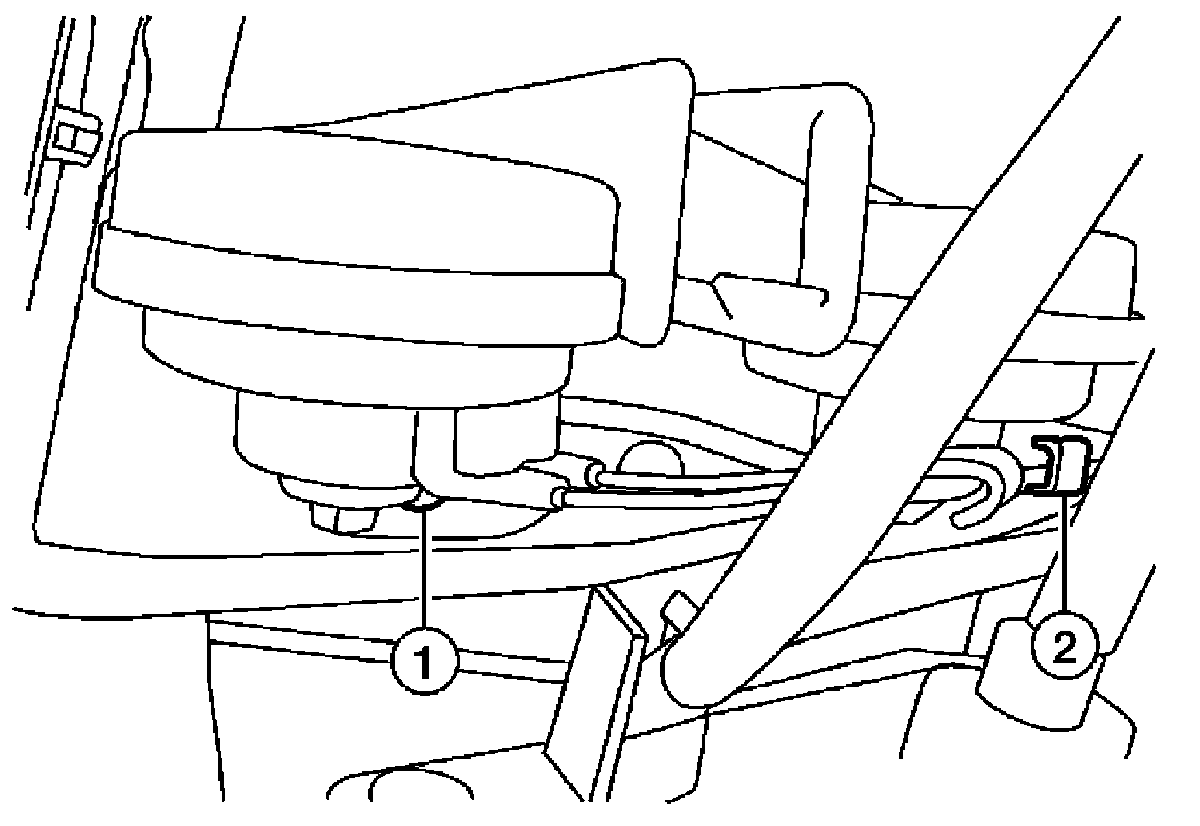

Horn (Dual)Removal 1.
Remove
horn bolt (1).
2.
Disconnect
horn connector (2).
3.
Remove
horn.
InstallationInstallation is in the reverse order of removal.
