Periodic Maintenance

Periodic Maintenance

For North America: Introduction of Periodic Maintenance

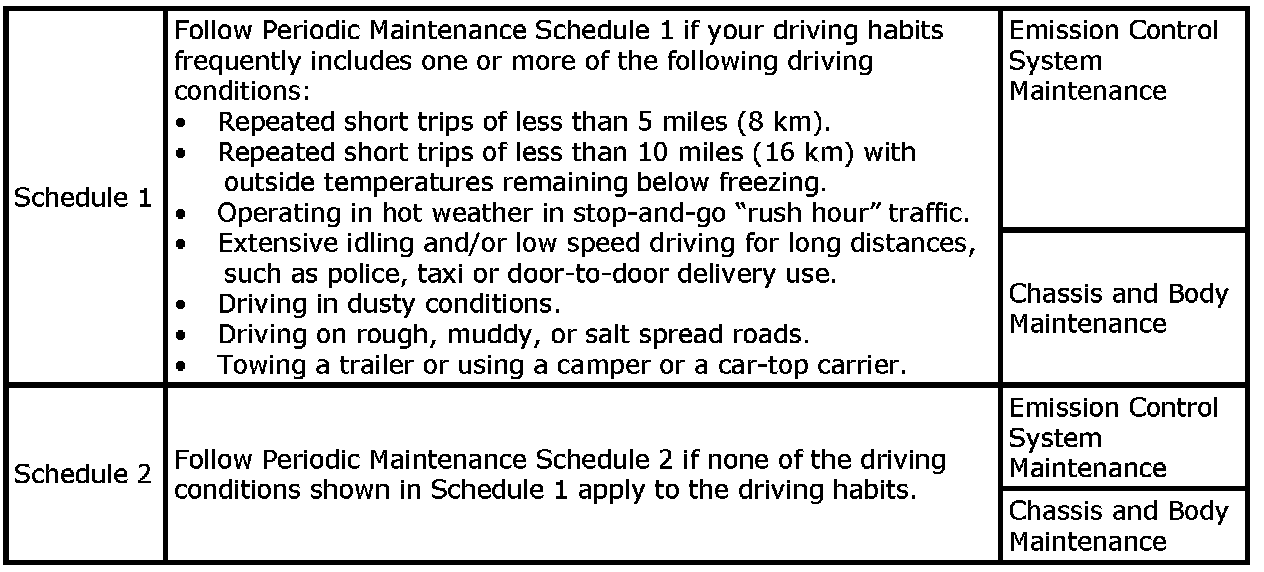

Two different maintenance schedules are provided, and should be used, depending upon the conditions in which the vehicle is mainly operated. After 60,000 miles (96,000 km) or 48 months, continue the periodic maintenance at the same mileage or time intervals, whichever comes first.






Maintenance for off-road driving (4WD only)
After driving the vehicle off-road through sand, mud, or water; more frequent maintenance may be required for the following items:
- Brake pads and rotors
- Brake lines and hoses
- Rear final drive oil, transmission fluid, and transfer fluid
- Steering linkage
- Drive shafts
- Engine air cleaner filter
- In-cabin microfilters

For North America: Schedule 1

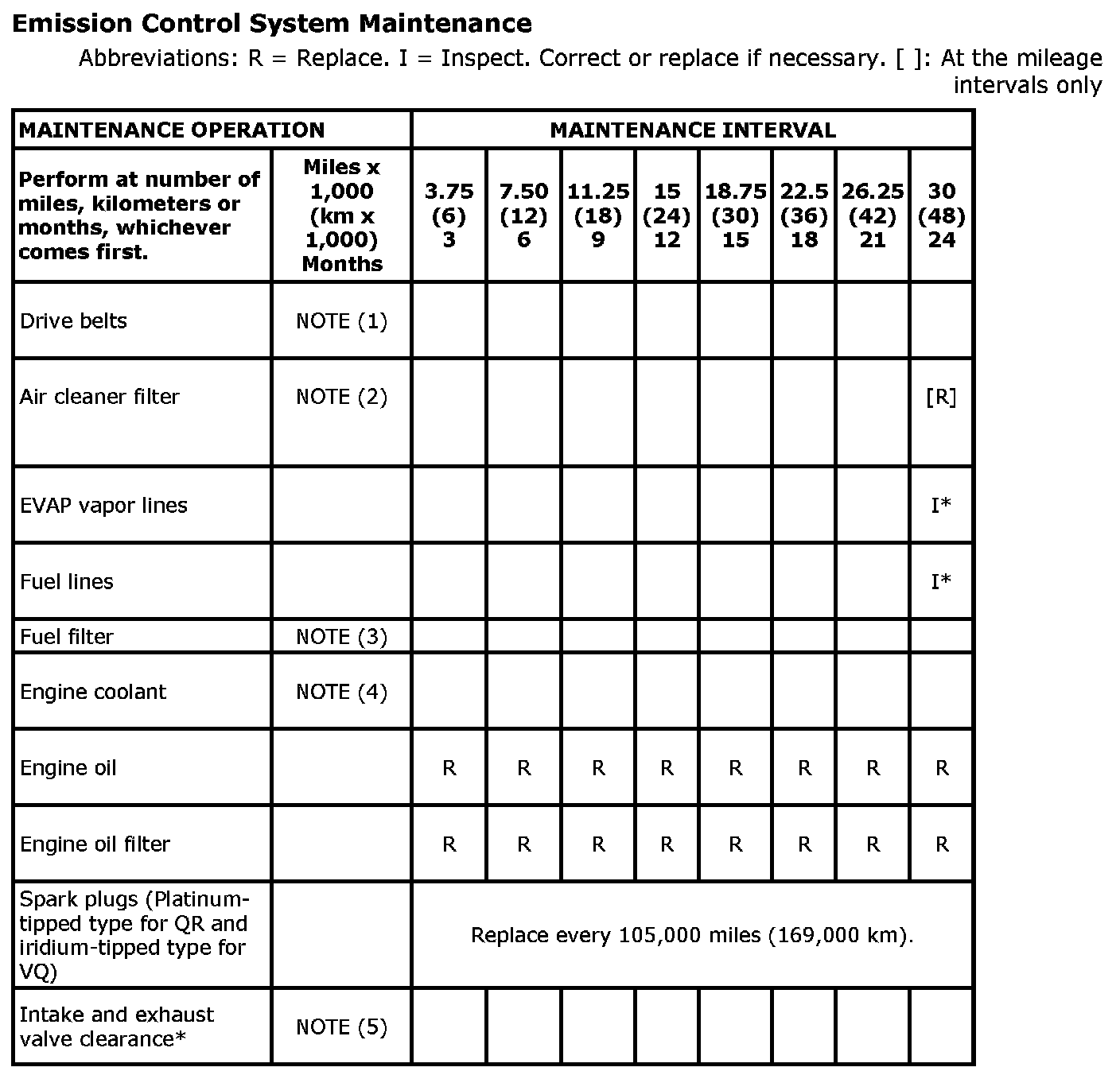

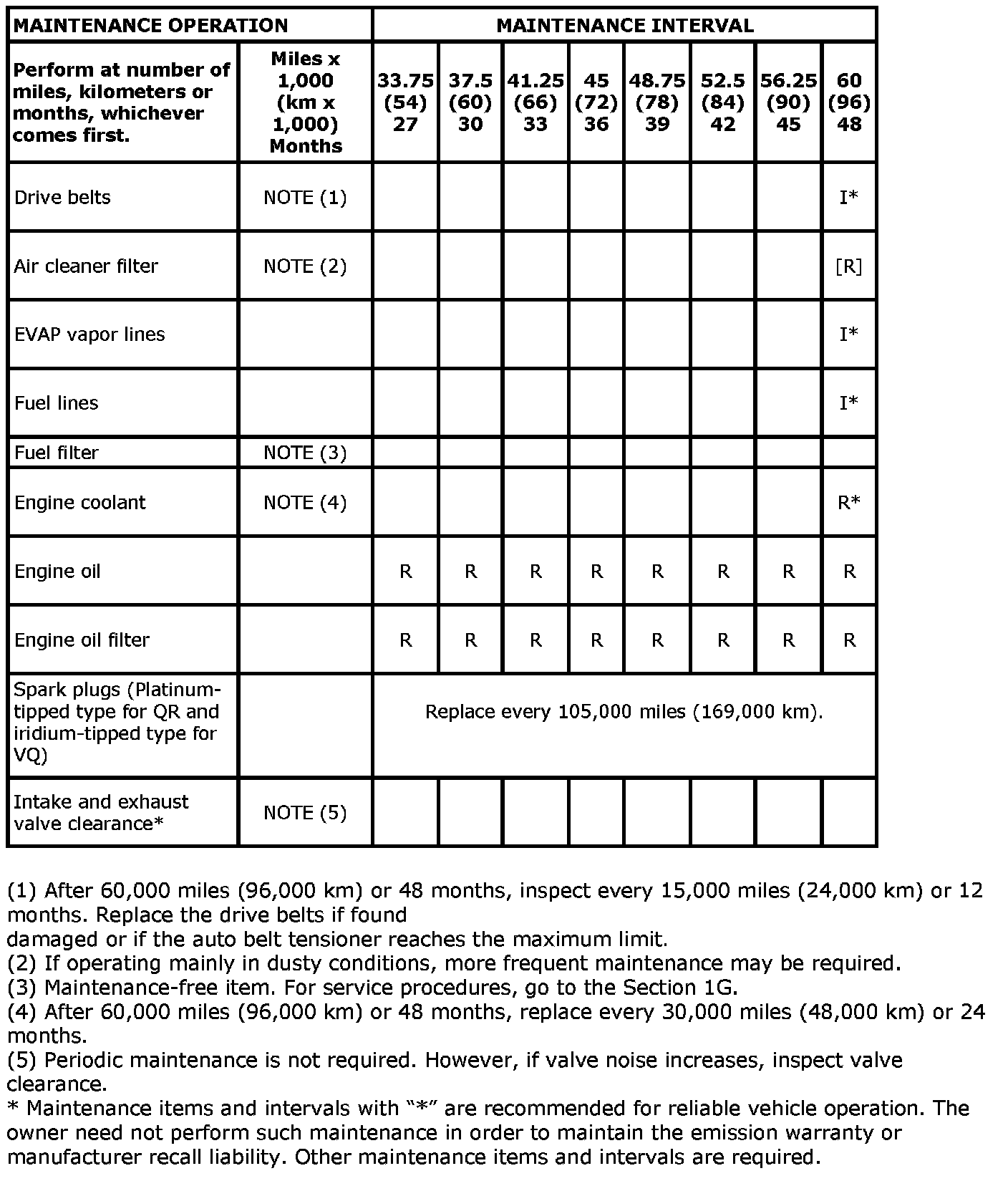

Emission Control System Maintenance

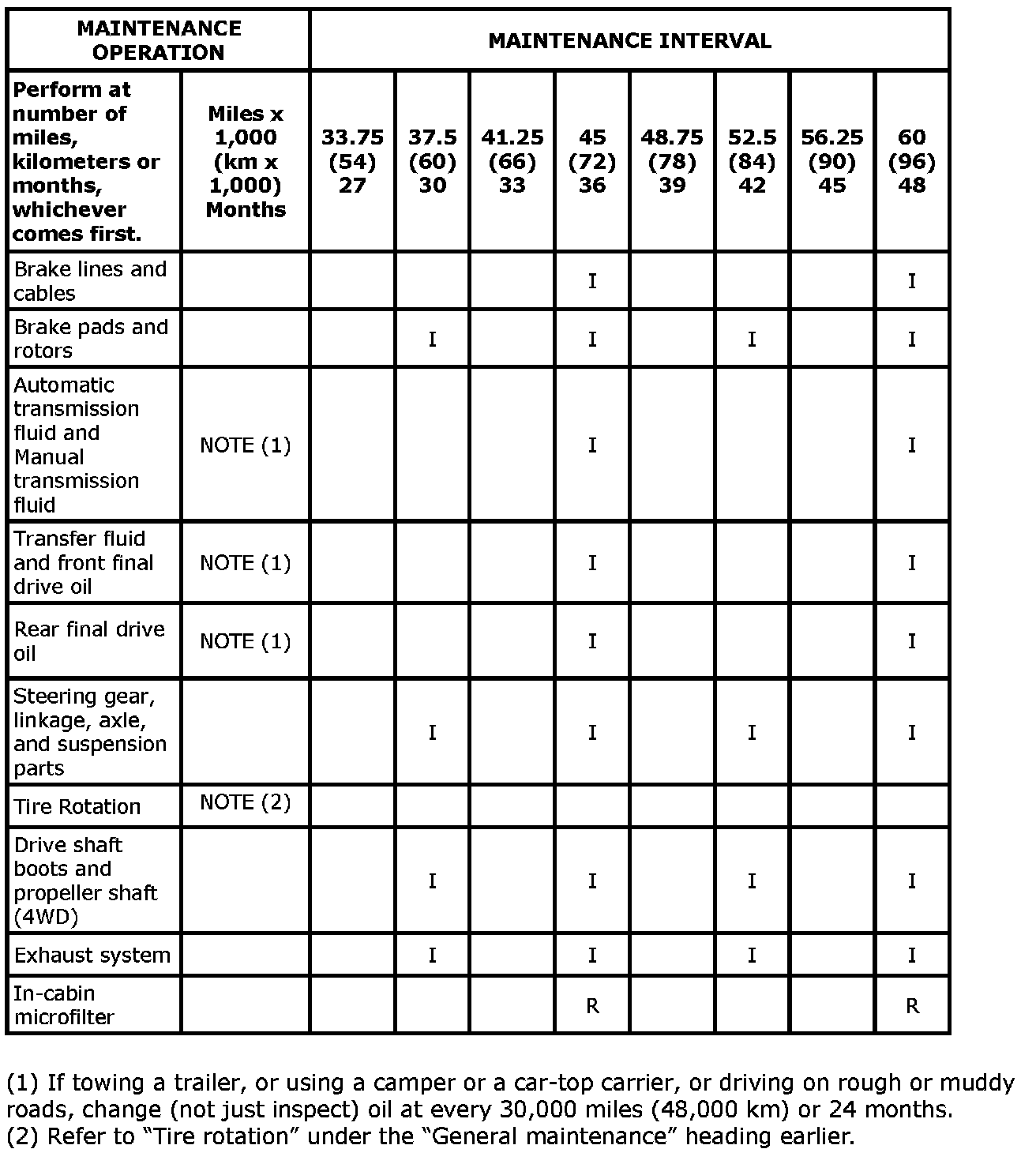

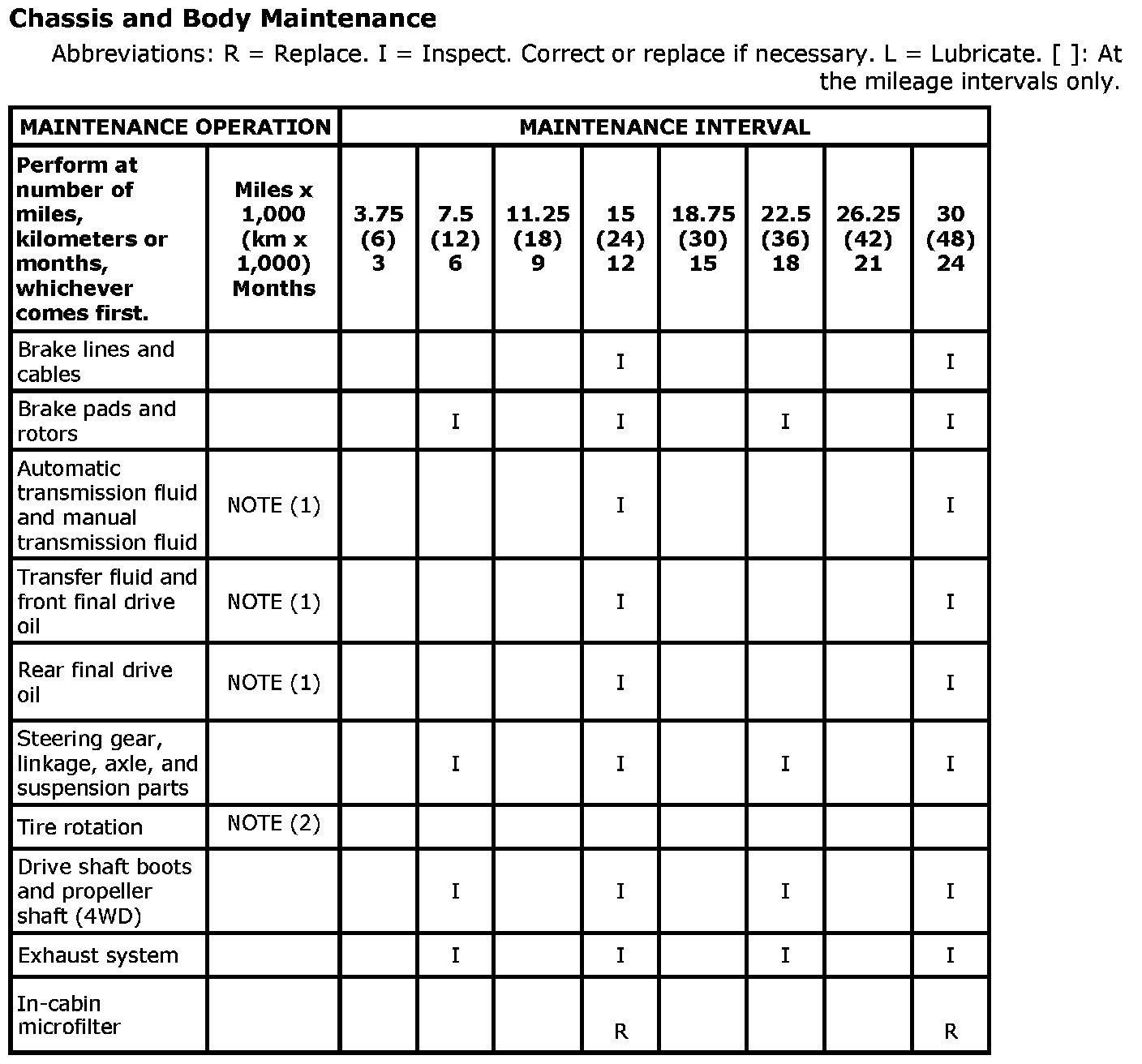

Chassis and Body Maintenance









For North America: Schedule 2

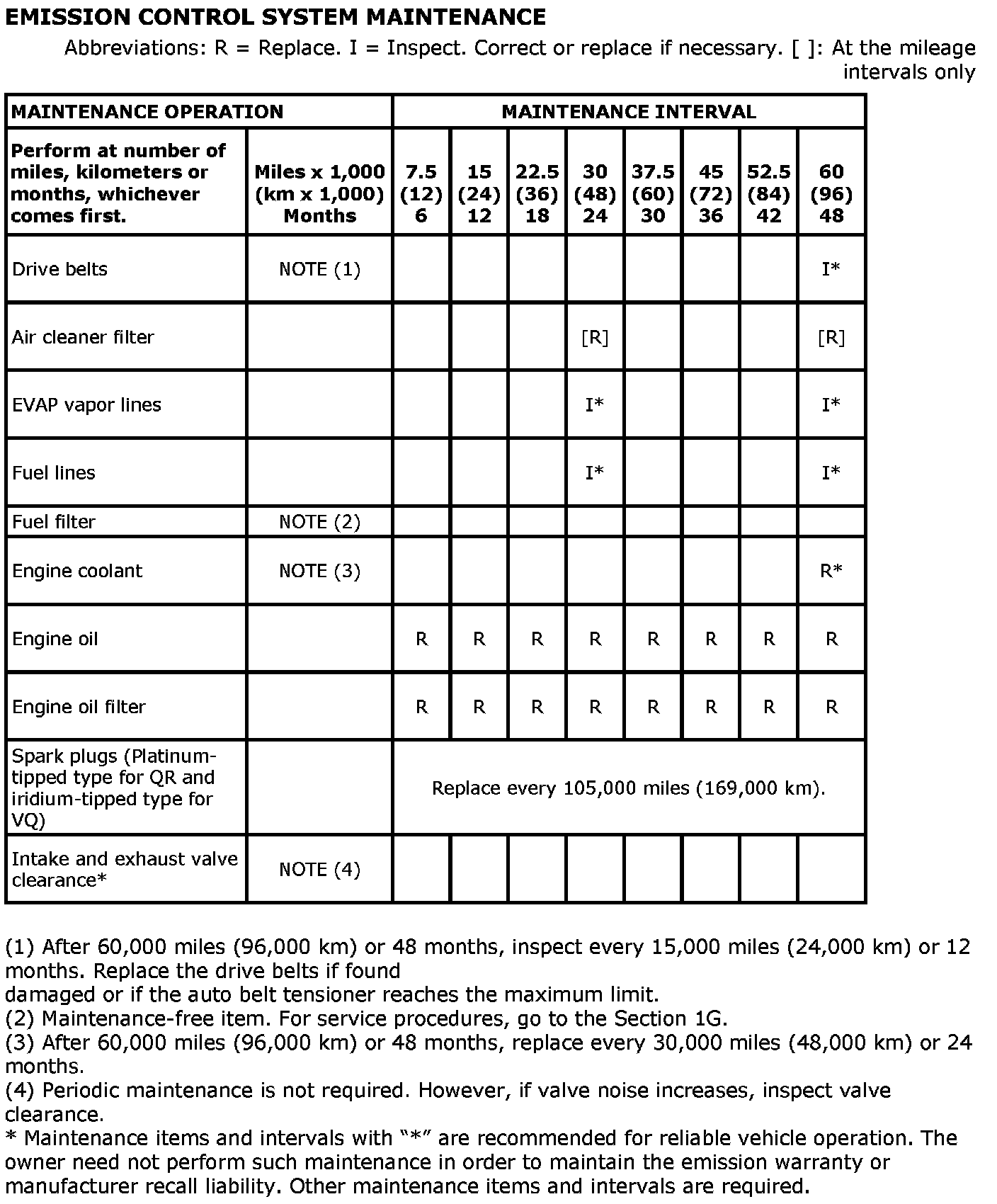

EMISSION CONTROL SYSTEM MAINTENANCE

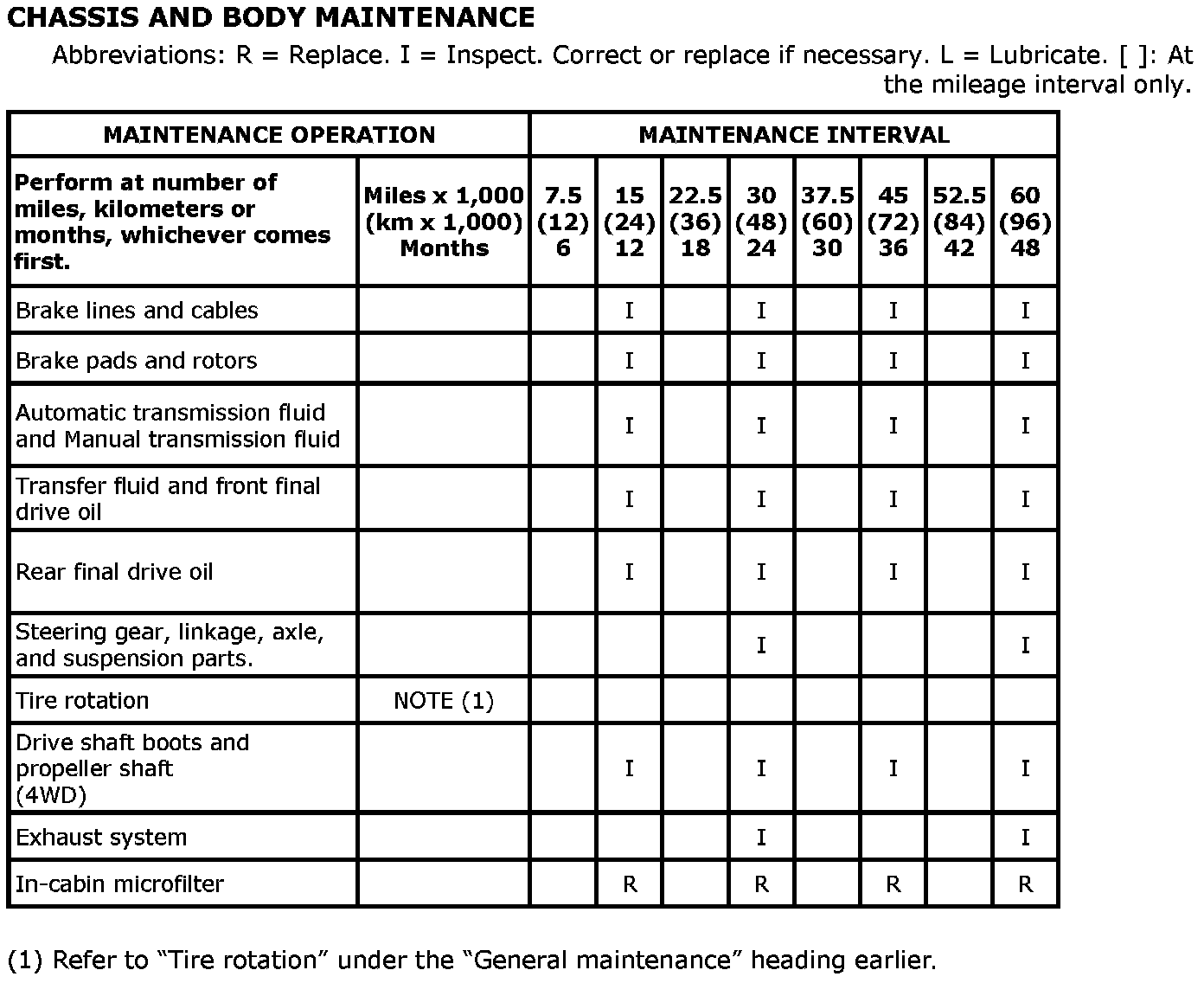

CHASSIS AND BODY MAINTENANCE
