Ignition Coil: Service and Repair

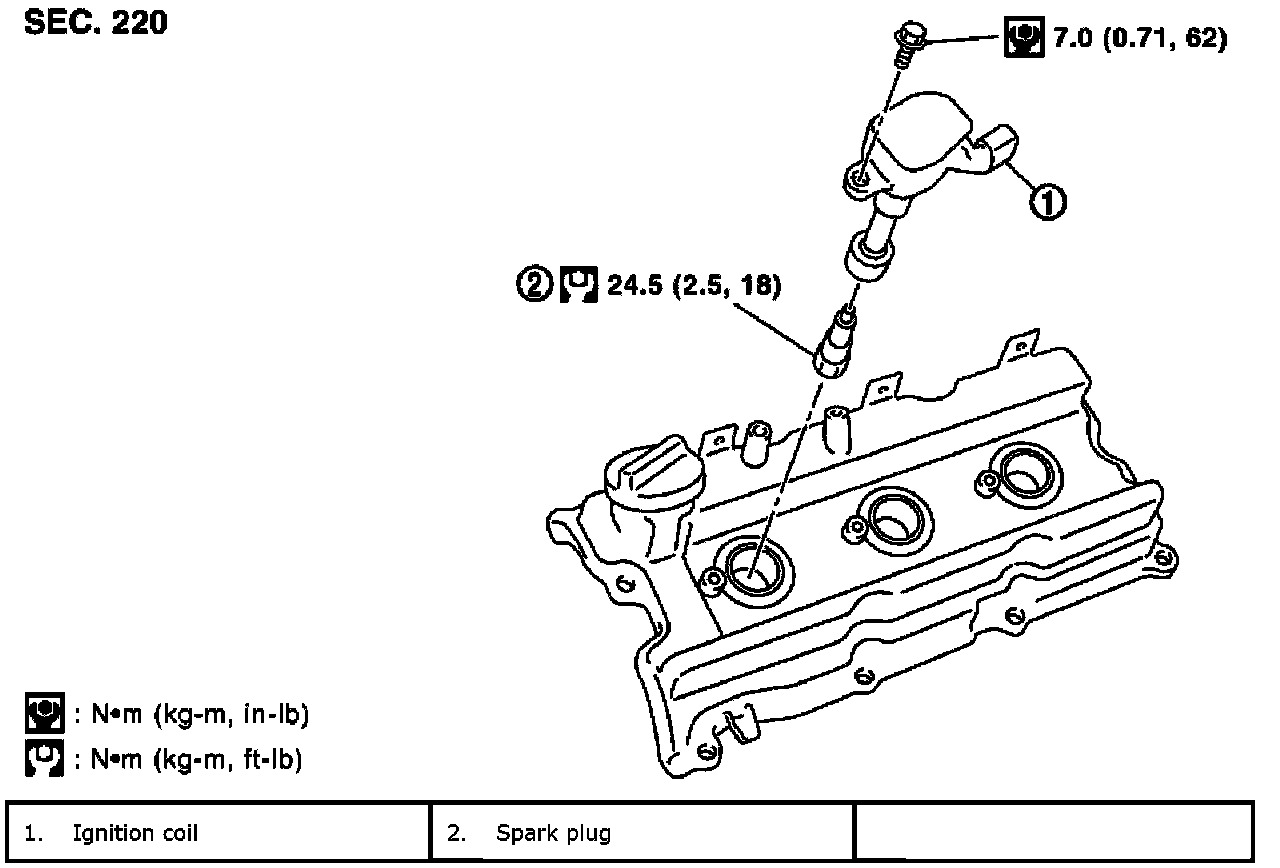

Ignition Coil: Exploded View






Ignition Coil: Removal and Installation

Removal (LH)
1. Remove engine room cover. Refer to [Engine Room Cover: Removal and Installation].
2. Move aside harness, harness bracket, and hoses located above ignition coil.
3. Disconnect the harness connector from ignition coil.
4. Remove the ignition coil.

CAUTION: Do not shock ignition coil.

Installation (LH)
Installation is in the reverse order of removal.

Removal (RH)
1. Remove intake manifold collector. Refer to [Intake Manifold Collector: Removal and Installation].
2. Move aside harness, harness bracket, and hoses located above ignition coil.
3. Disconnect the harness connector from ignition coil.
4. Remove the ignition coil.

CAUTION: Do not shock ignition coil.

Installation (RH)
Installation is in the reverse order of removal.
