Camshaft Bearing

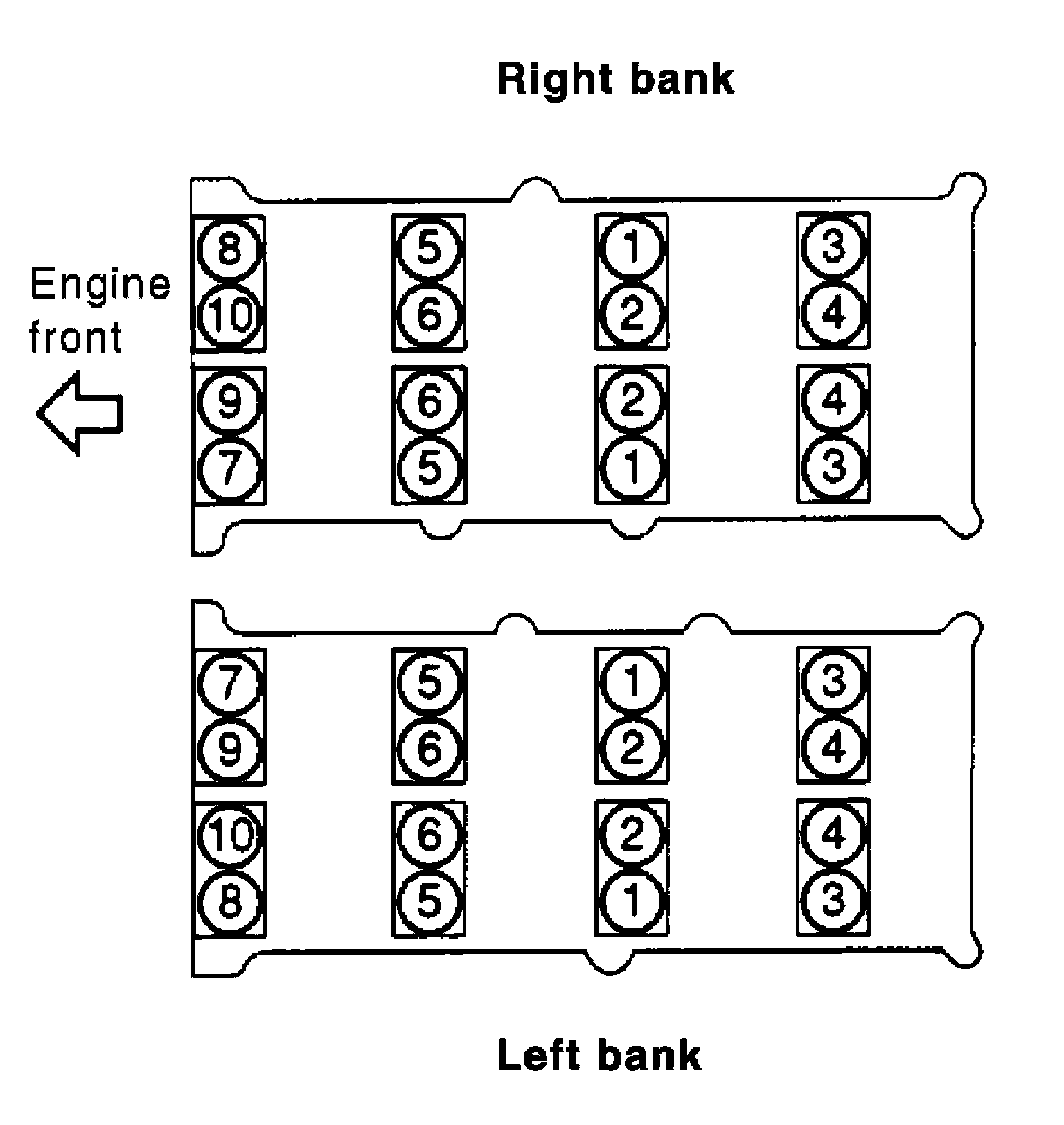

Camshaft bracket bolts
Step 1 (bolts 7 - 10) 1.96 Nm (0.2 kg-m, 17 in-lb)
Step 2 (bolts 1 - 6) 1.96 Nm (0.2 kg-m, 17 in-lb)
Step 3 5.88 Nm (0.6 kg-m, 52 in-lb)
Step 4 10.4 Nm (1.1 kg-m, 92 in-lb)
Step 1 (bolts 7 - 10) 1.96 Nm (0.2 kg-m, 17 in-lb)
Step 2 (bolts 1 - 6) 1.96 Nm (0.2 kg-m, 17 in-lb)
Step 3 5.88 Nm (0.6 kg-m, 52 in-lb)
Step 4 10.4 Nm (1.1 kg-m, 92 in-lb)
