System Specifications

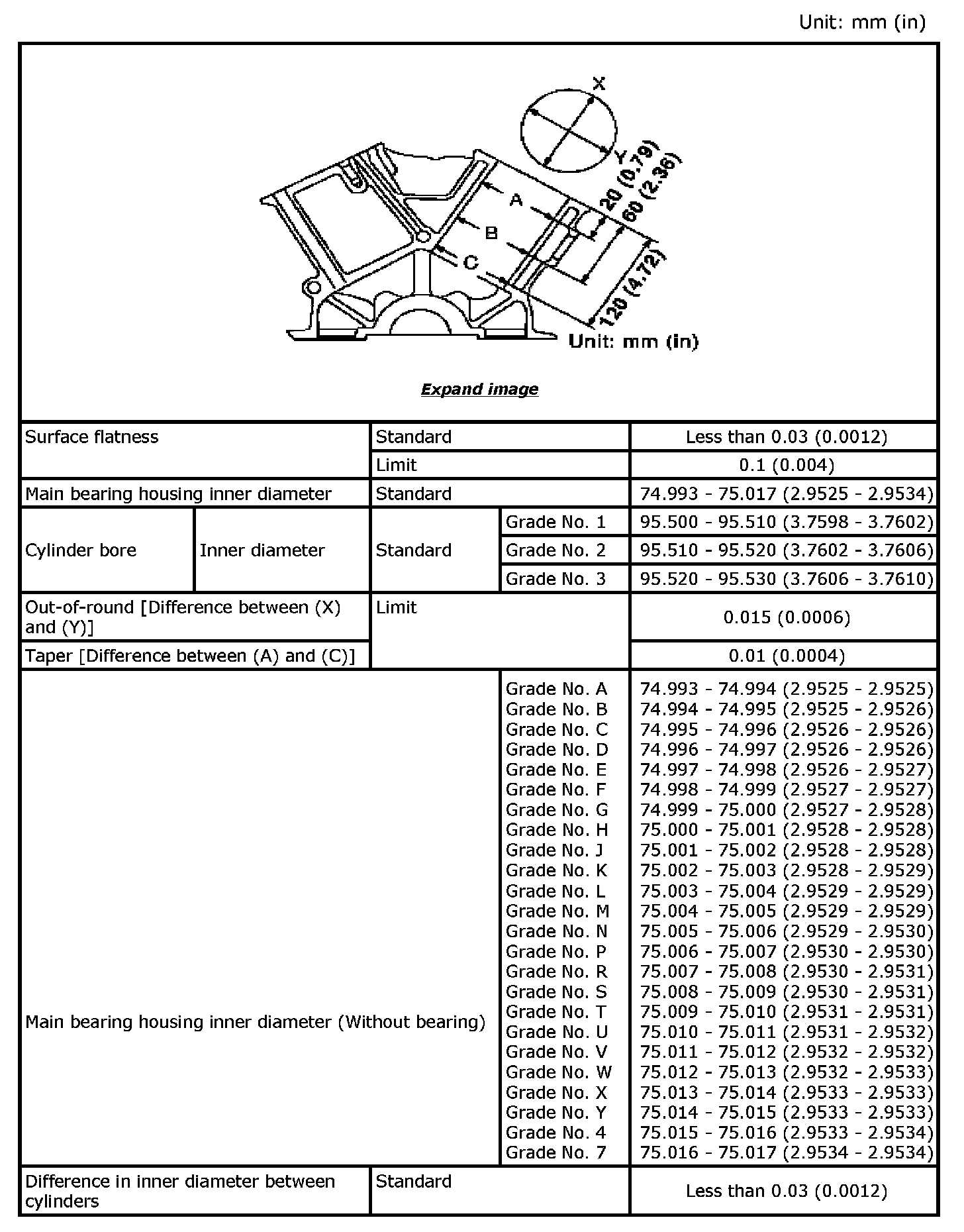

Cylinder Block





Piston, Piston Ring and Piston Pin

Available Piston





Piston Ring





Piston Pin





Connecting Rod

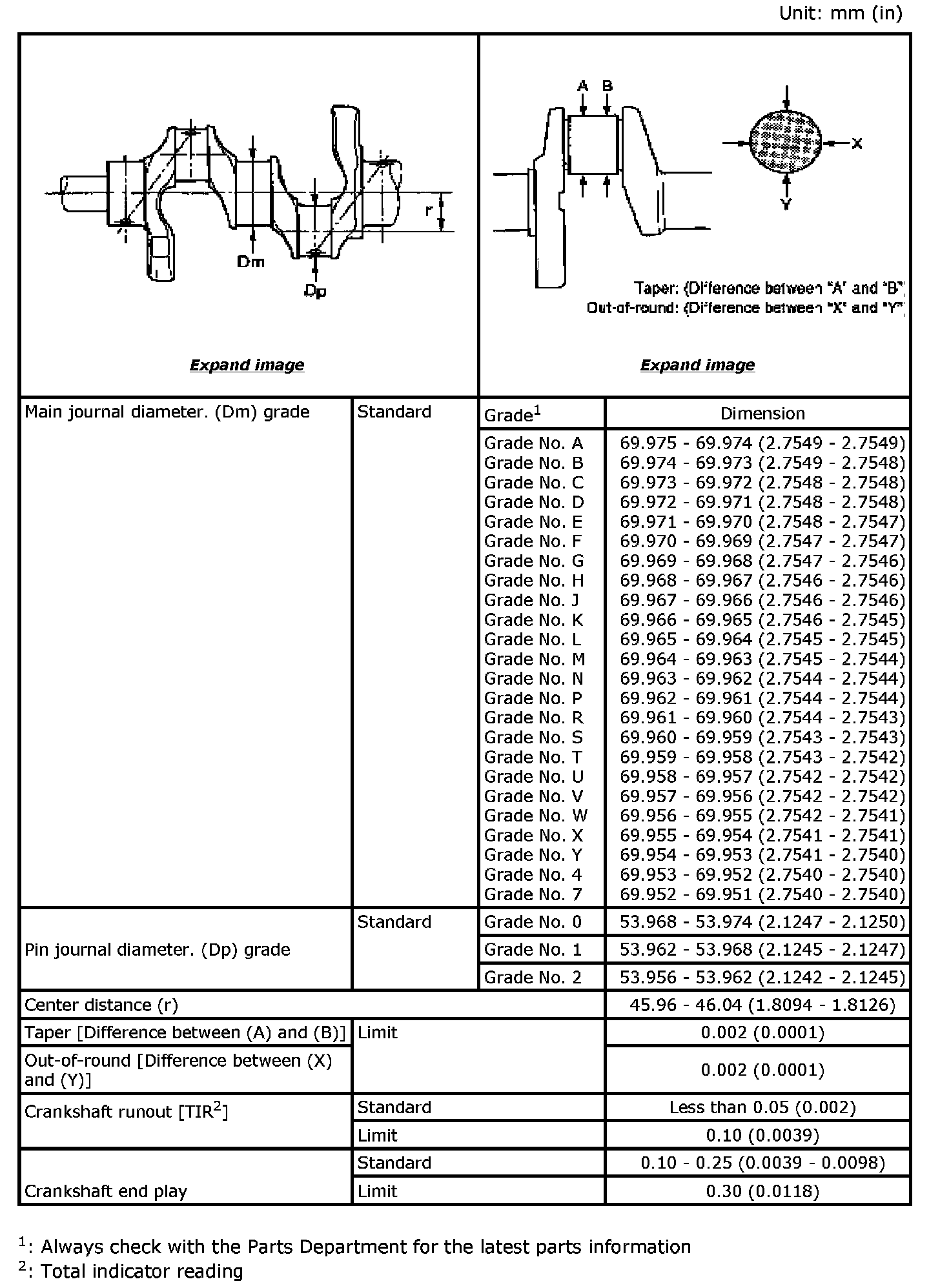

Crankshaft

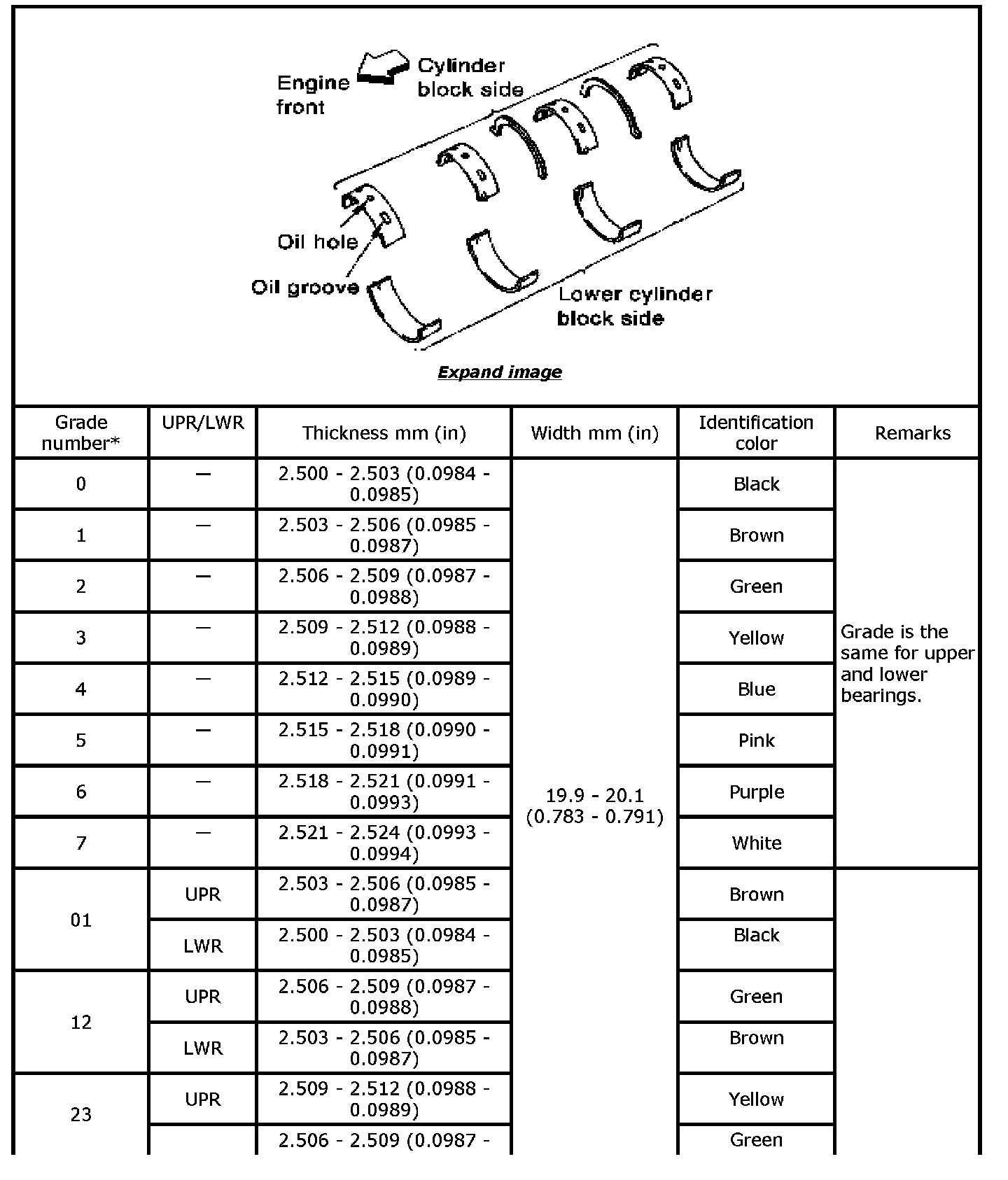

Main Bearing








Undersize





Main Bearing Oil Clearance

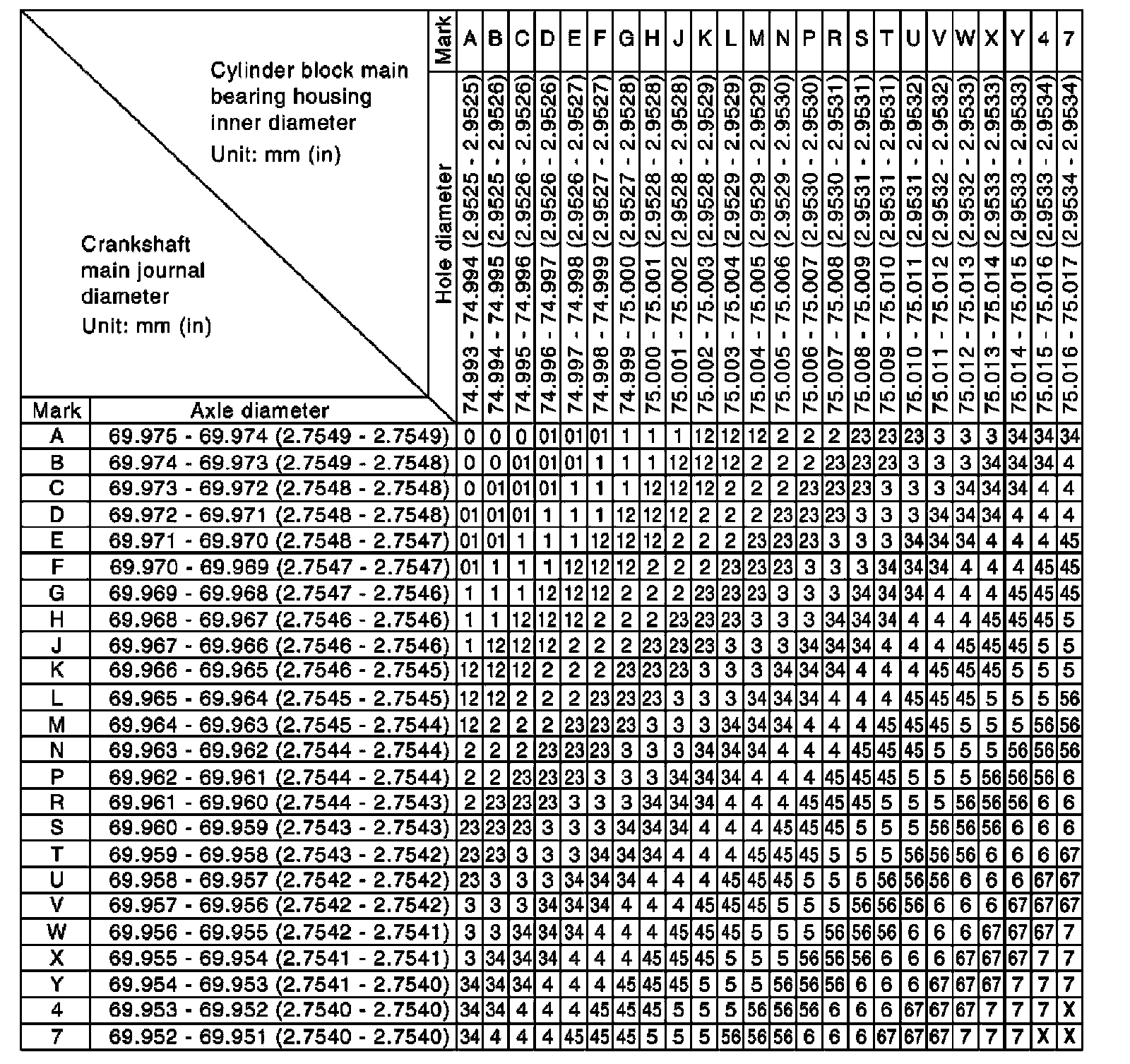

Main Bearing Selection Table

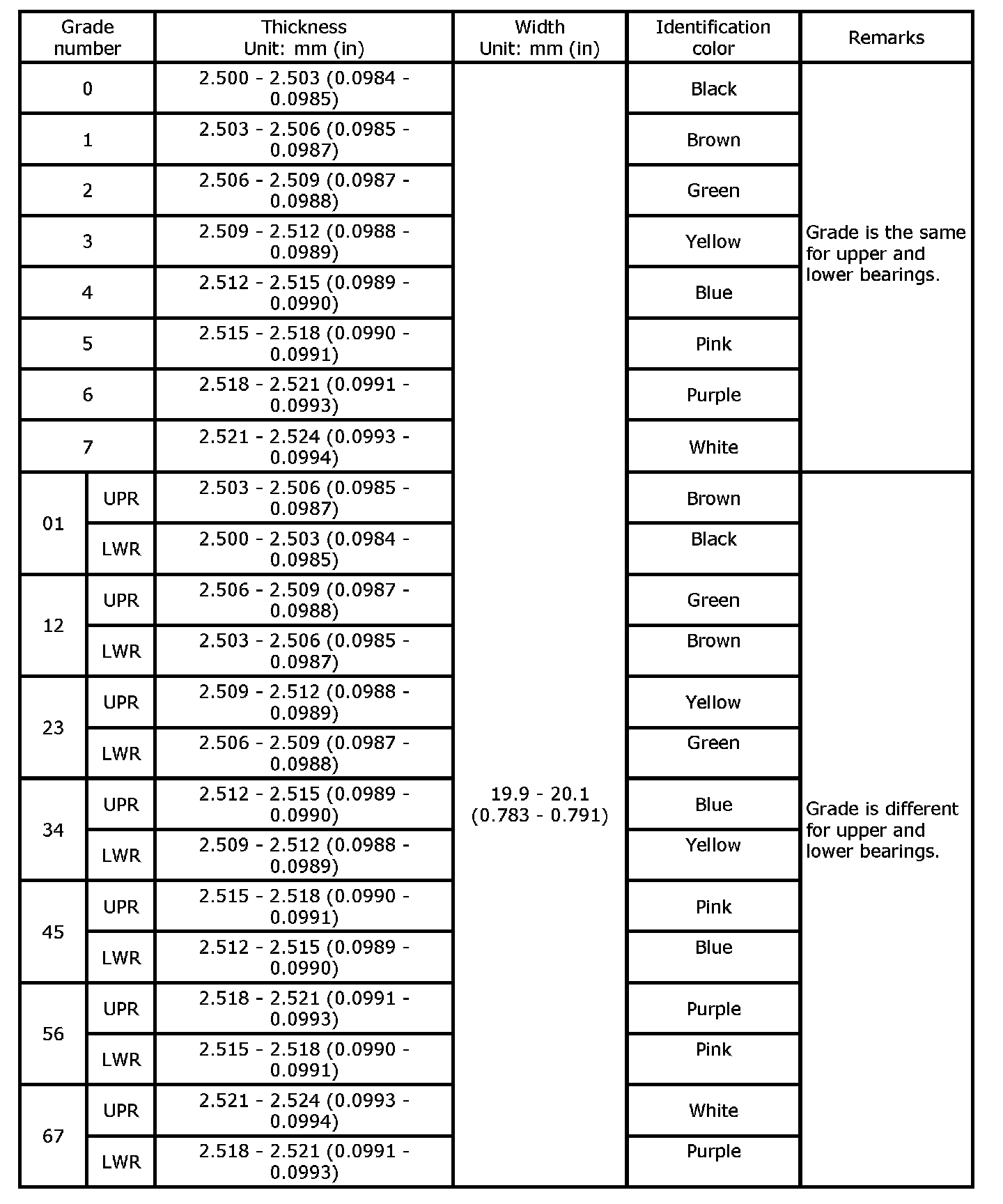

Main Bearing Grade Table (All Journals)





Connecting Rod Bearing





Undersize





Connecting Rod Bearing Oil Clearance

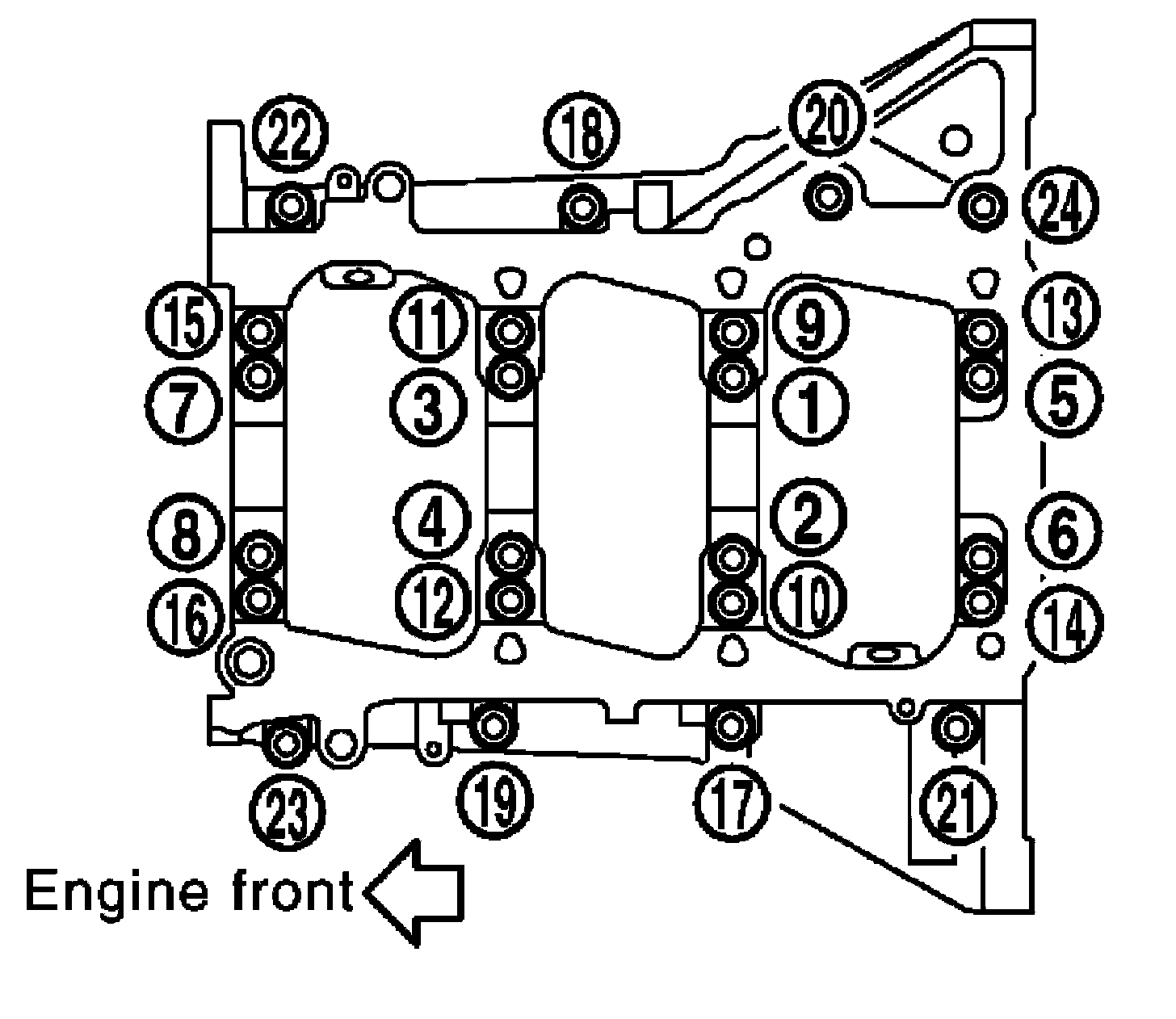

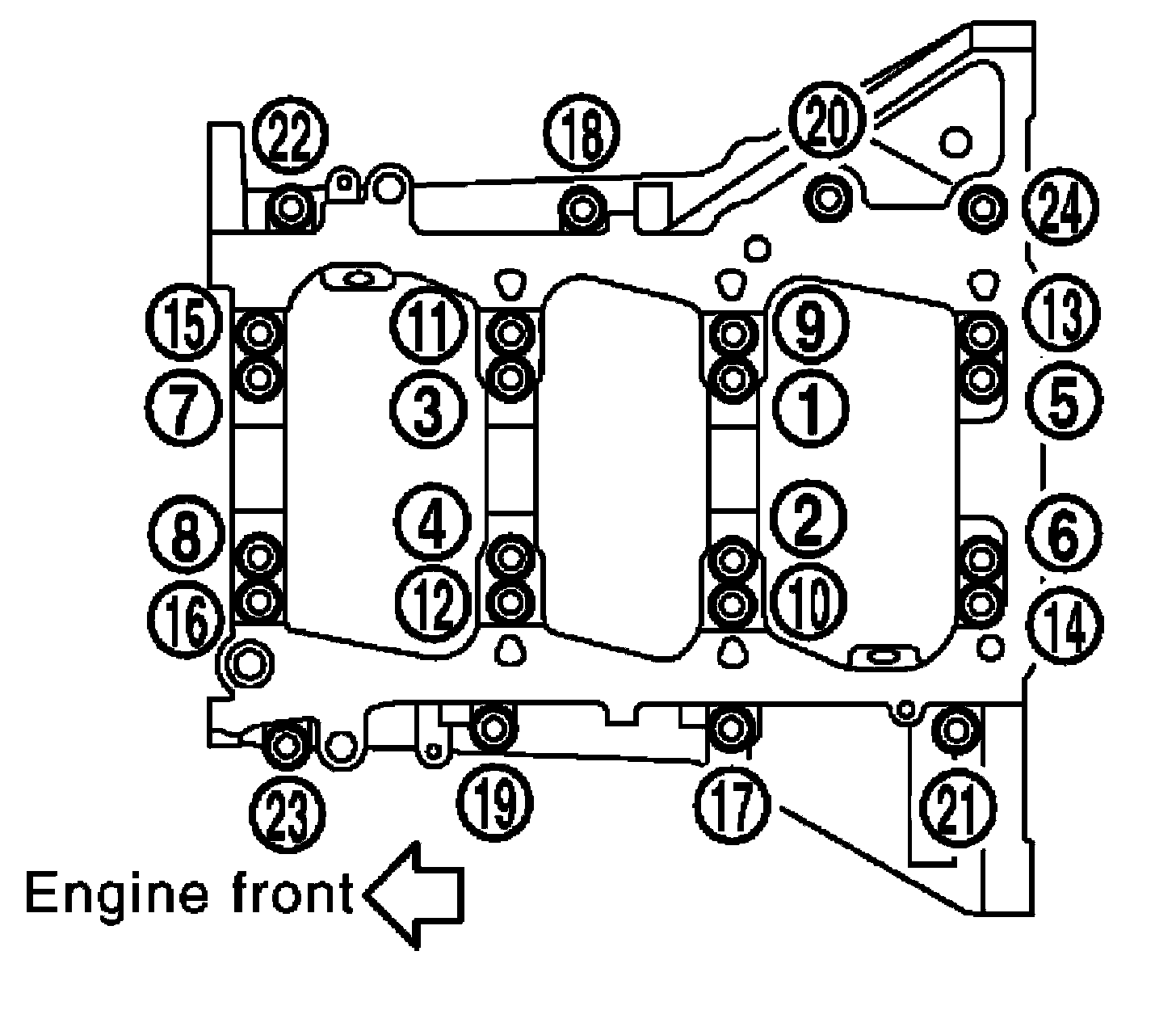

Lower cylinder block





Bolts 17 - 24 22.1 Nm (2.3 kg-m, 16 ft-lb)





Bolts 1 - 16 35.3 Nm (3.6 kg-m, 26 ft-lb)

M10 bolts No. 1 to 16 90 degrees

Crankshaft pulley

Step 1 44.1 Nm (4.5 kg-m, 33 ft-lb)
Step 2 84 degrees - 90 degrees clockwise
