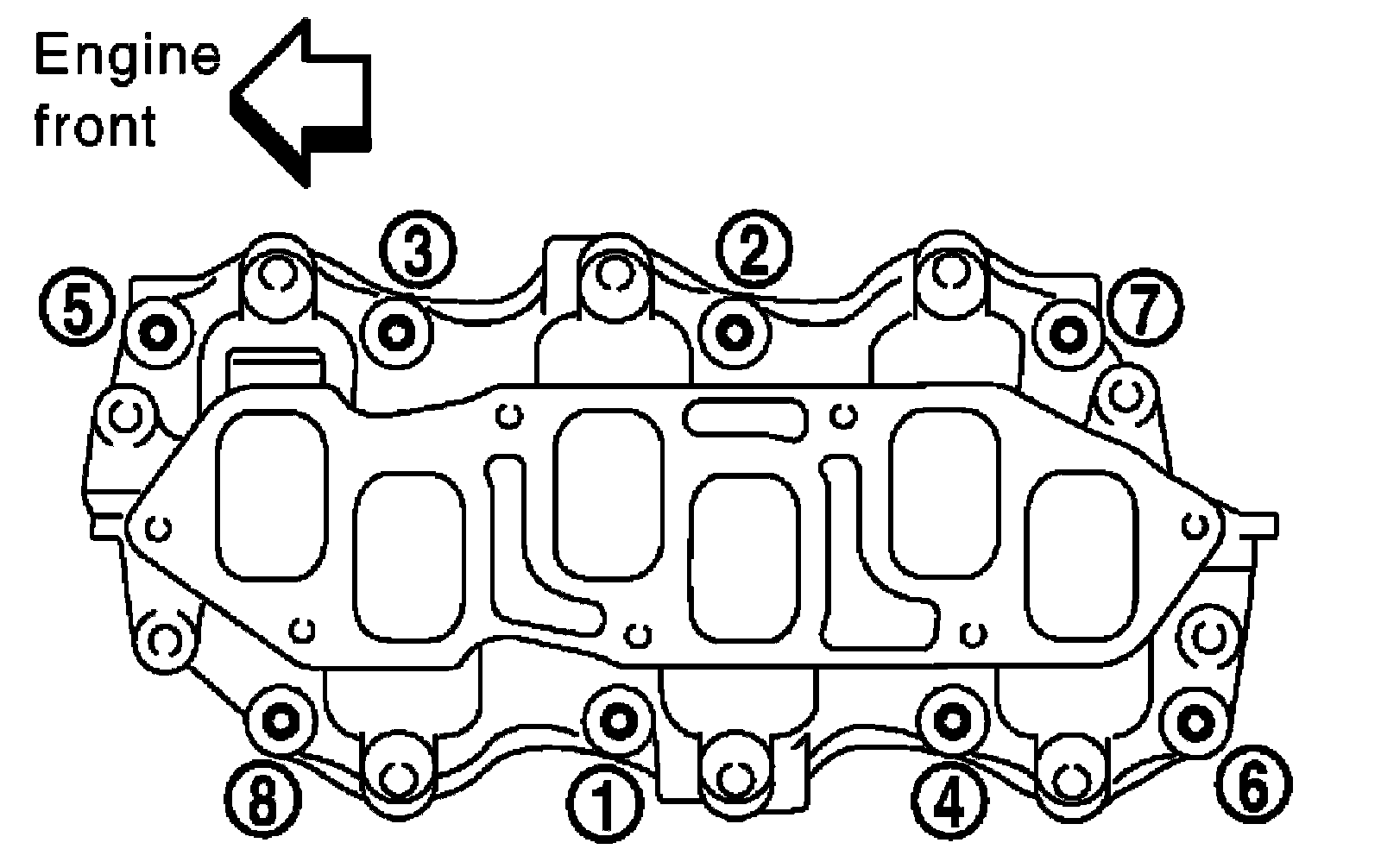

Intake Manifold
Intake ManifoldStud bolts
11.0 Nm (1.1 kg-m, 8 ft-lb)
1st step
7.4 Nm (0.75 kg-m, 65 in-lb)
2nd step and after
29.0 Nm (3.0 kg-m, 21 ft-lb)

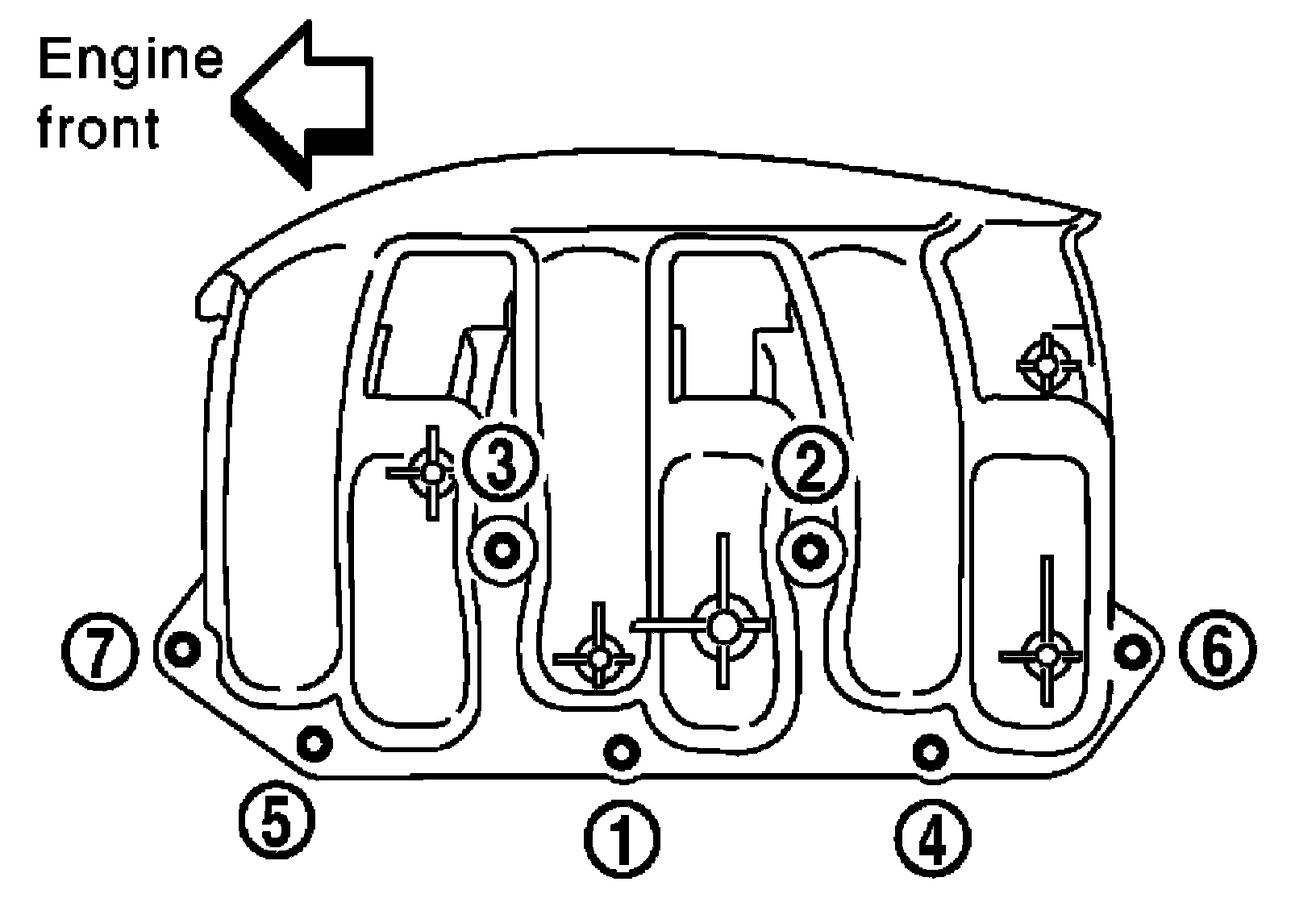

Intake Manifold Collector
Collector bolts and nuts
11.0 Nm (1.1 kg-m, 8 ft-lb)
Stud bolts
6.9 Nm (7.0 kg-m, 61 in-lb)

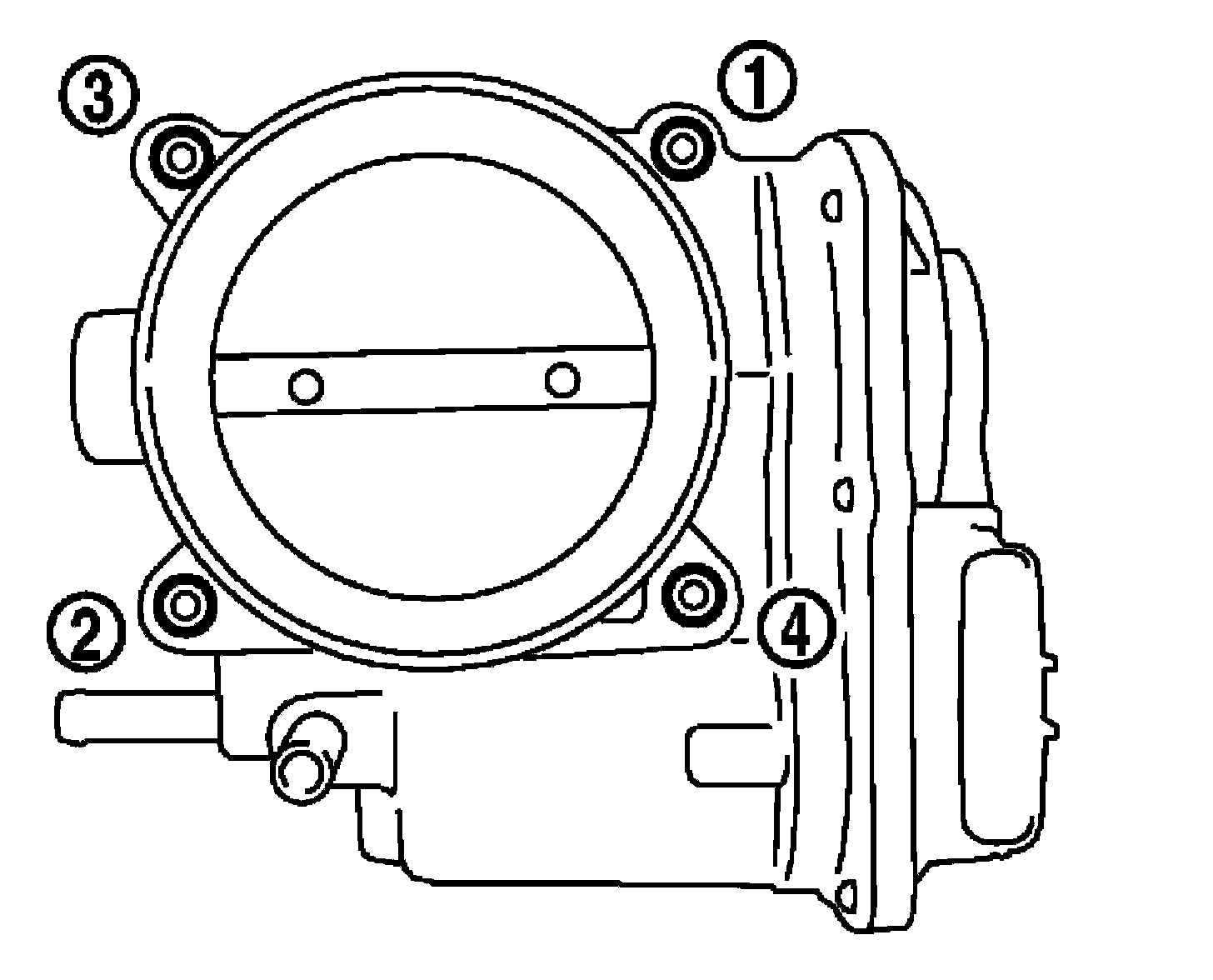

Throttle body
8.4 Nm (0.86 kgf-m, 74 in lb)
