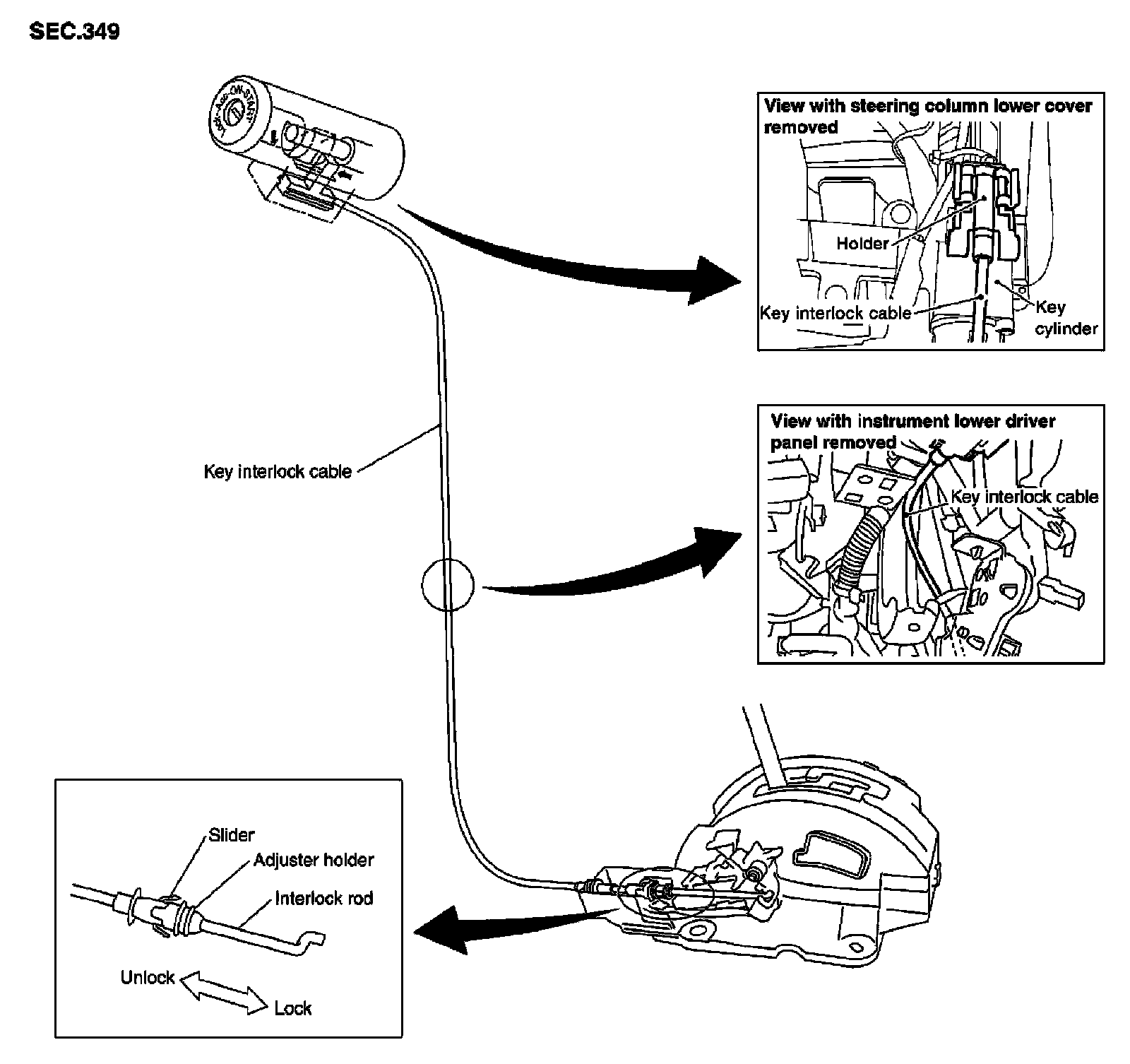

Key Interlock Cable: Component

Key Interlock Cable: Component

CAUTION:
^ Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interference with adjacent parts.
^ After installing key interlock cable to A/T shift selector, make sure that casing cap and bracket are firmly secured in their positions. If casing cap can be removed with an external load of less than 39 N (4.0 kg, 8.8 lb), replace key interlock cable with new one.
