Front Wiper Does Not Operate
Front Wiper Does Not OperateDescriptionThe front wiper does not operate under any operation conditions.
Diagnosis ProcedureRegarding Wiring Diagram information, refer to [Front Wiper and Washer System: Wiring Diagram].

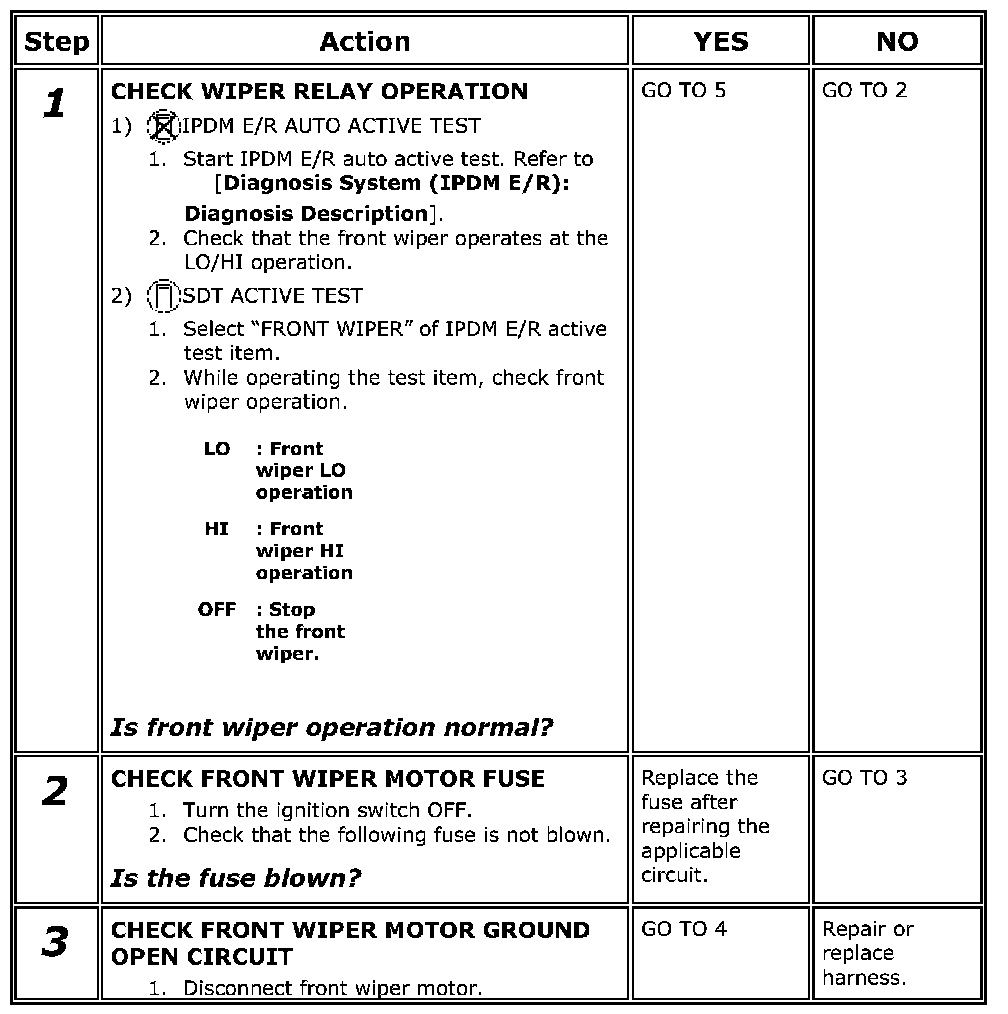

Electrical DiagramsStep 1-3:

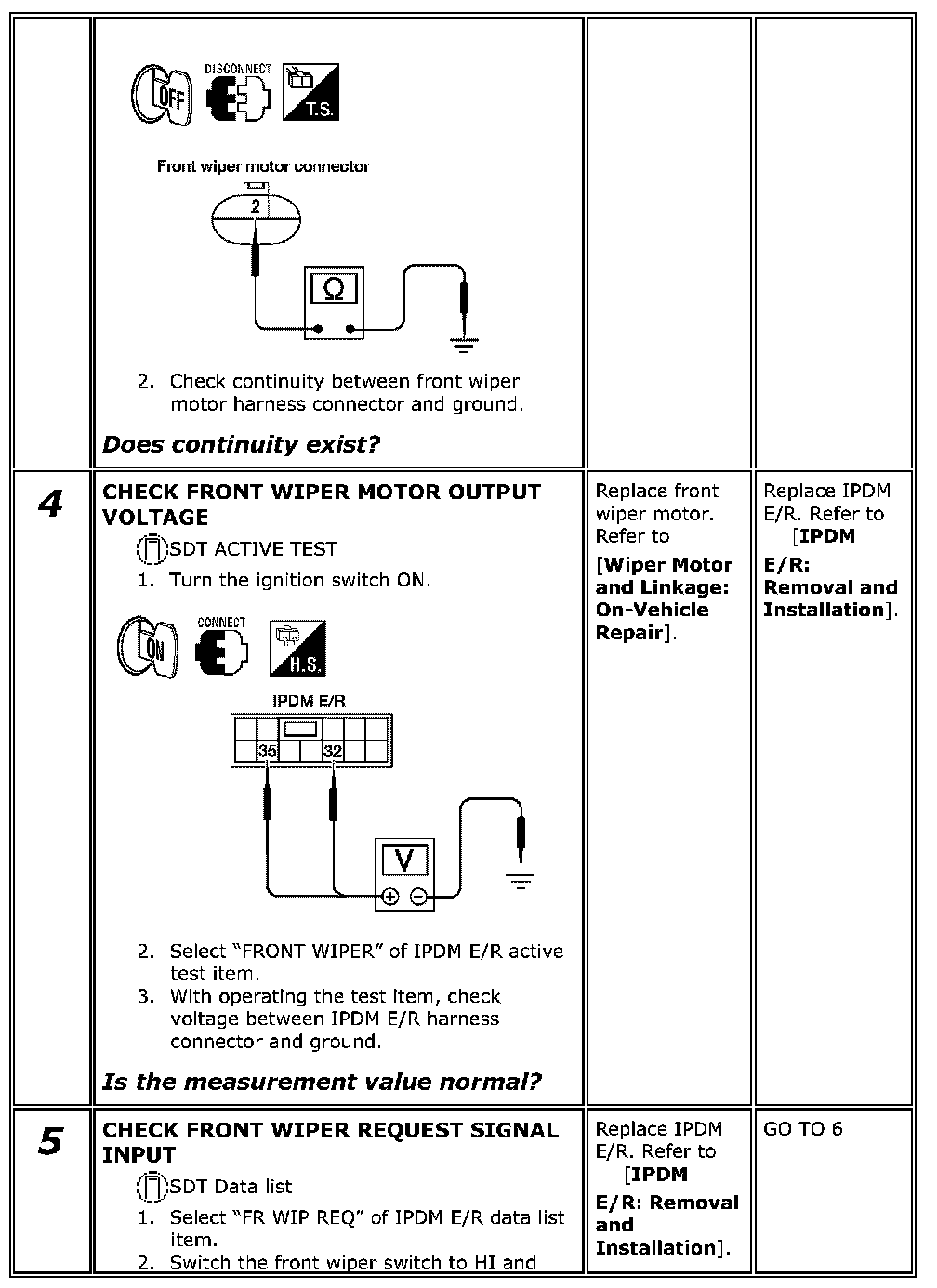

Step 3 (Continued)-5:
Step 5 (Continued)-6:
