Antilock Brakes / Traction Control Systems: Service and Repair
ESP(R) OFF Switch Removal and InstallationRemoval 1)
Disconnect negative (-) cable at battery.
2)

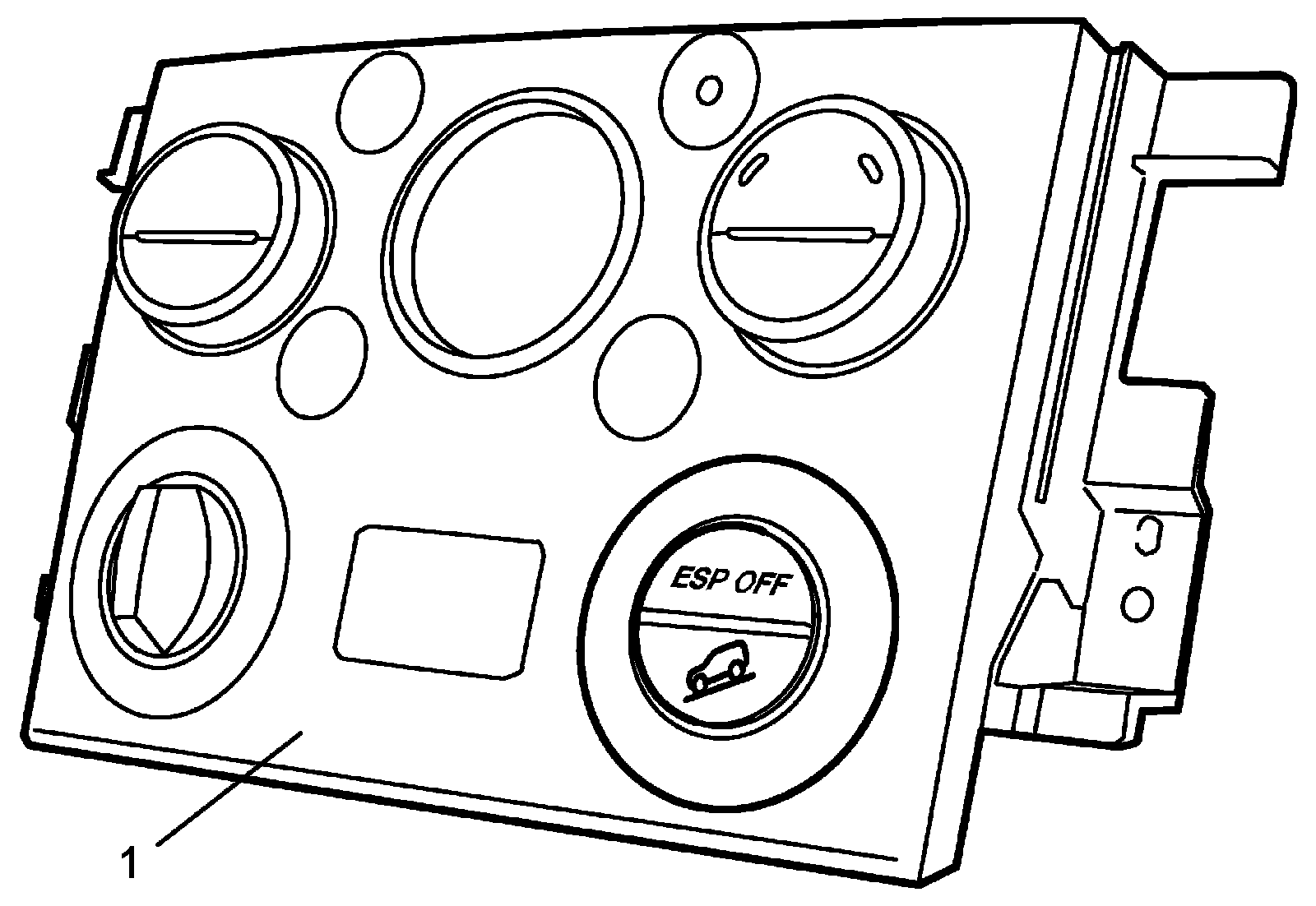

Remove center garnish (1) with audio unit (if equipped), HVAC control module and ESP(R) OFF switch.
InstallationReference: ESP(R) OFF Switch Inspection Reverse removal procedure.
