L Connectors

L: Floor Harness, Canister Wire, Seat Sensor (R) Wire, Seat Sensor (L) Wire, Rear Height Sensor Wire / R: Fuel Pump Wire / Q: Side- Air Bag Harness

L: Floor Harness

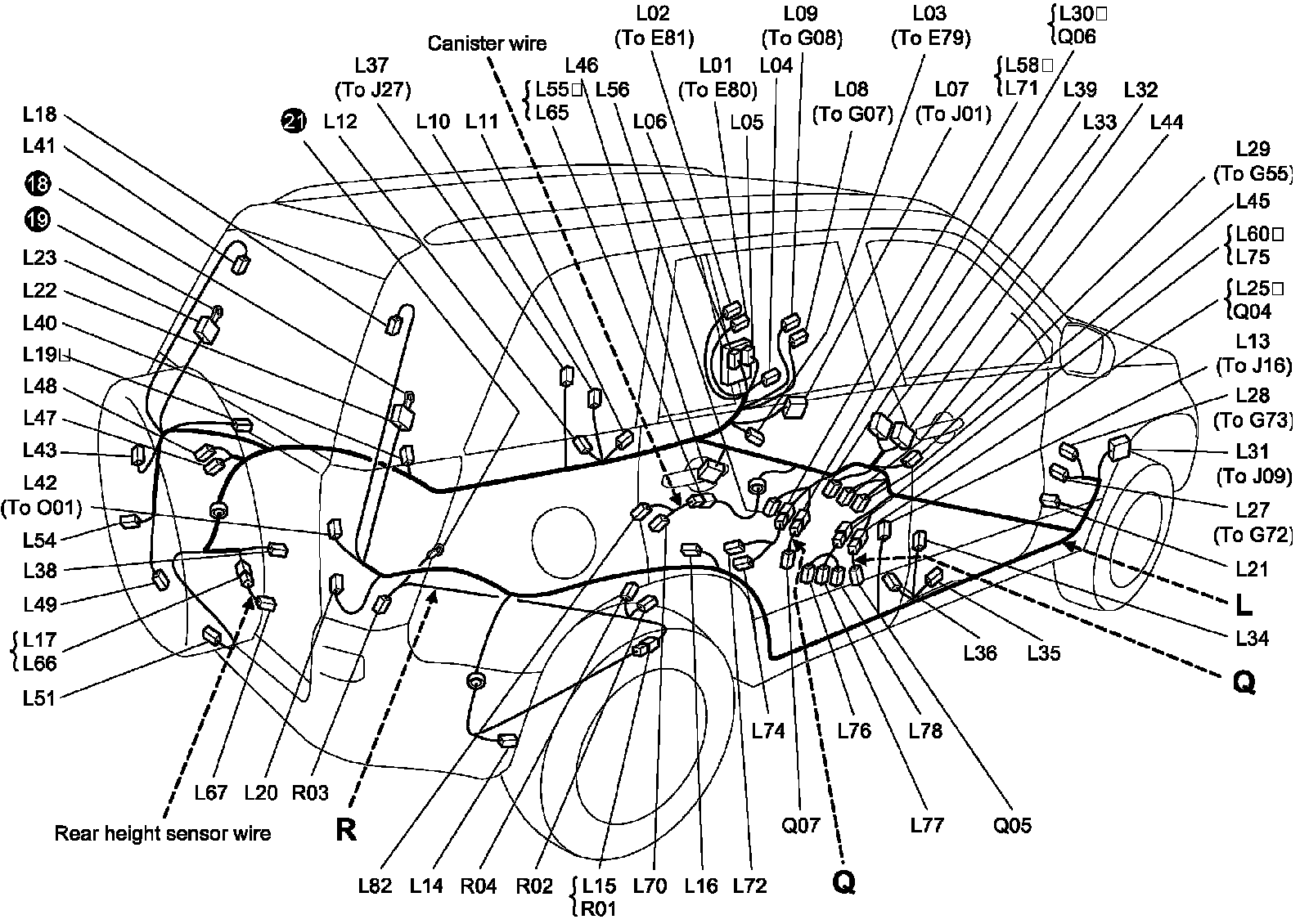

L: Floor Harness, Canister Wire, Seat Sensor (R) Wire, Seat Sensor(L) Wire, Rear Height Sensor Wire / R: Fuel Pump Wire / Q: Side-Air Bag Harness View:

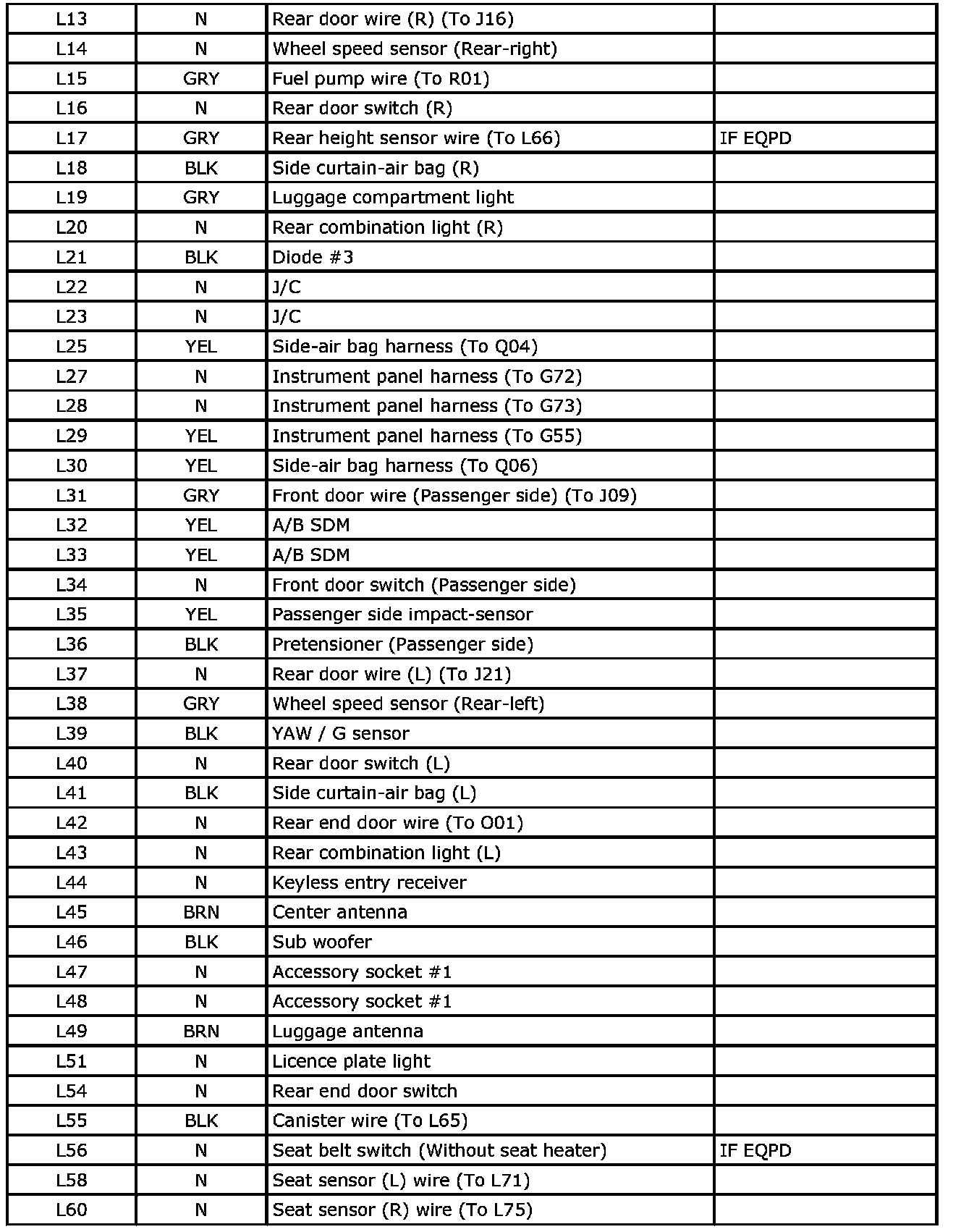

L: Floor Harness Index (Part 1):




L: Floor Harness Index (Part 2):




L: Canister Wire Index:




L: Seat Sensor (L) Wire Index:




L: Seat Sensor (R) Wire Index:




L: Rear Height Sensor Wire Index:
