Flywheel

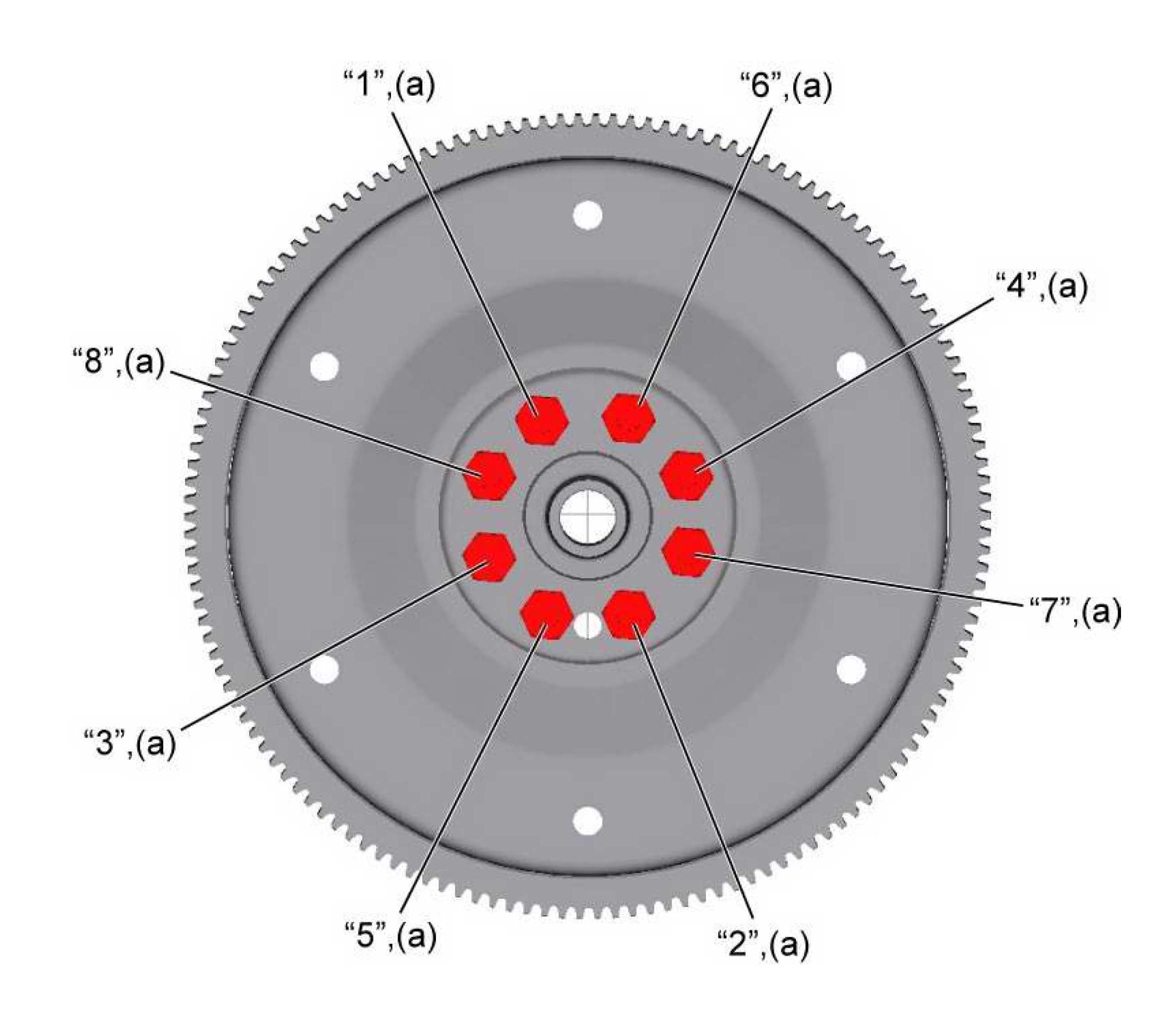

Tighten drive plate bolt to 30 Nm (3.1 kgf-m, 22.5 lbf-ft) in numerical order ("1" - "8") evenly and gradually.
In the same manner as Step a), retighten them to 45 degrees.
