Constant Velocity Transmission

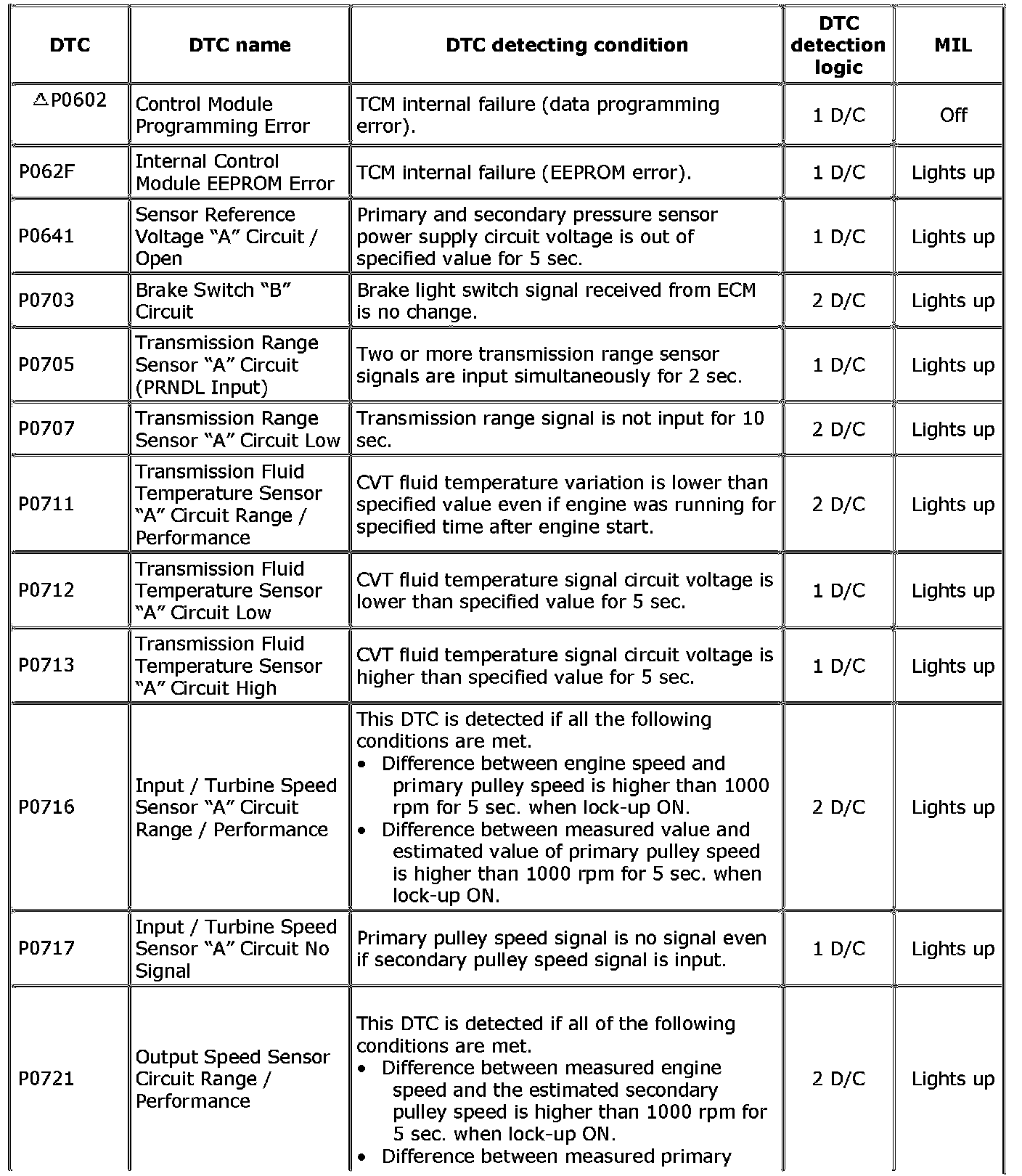

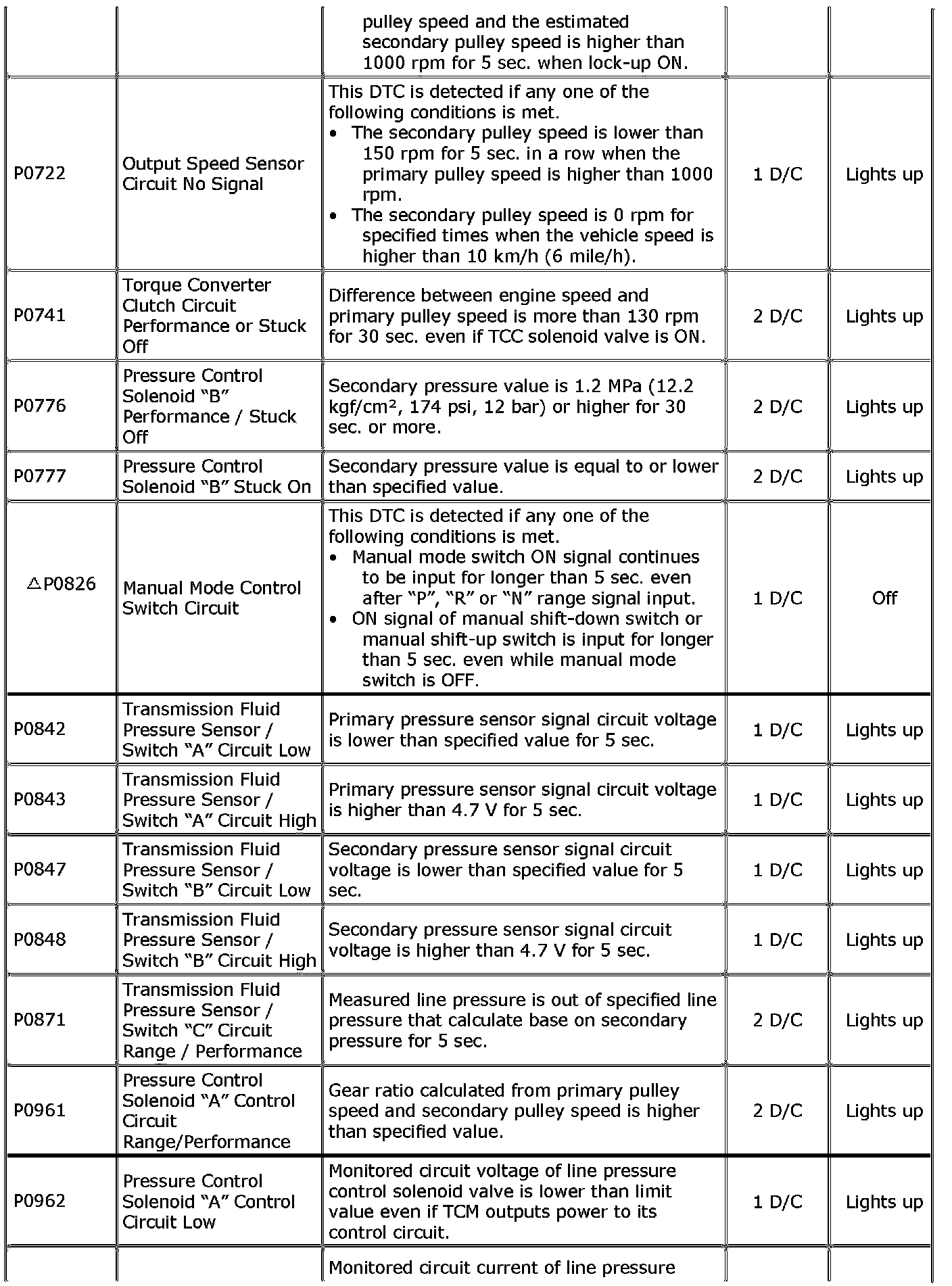

DTC Table NOTE: ^
With the CAN communication OBD generic scan tool, DTC No. with delta ( ) mark in the following table can not be read.
^
For details of D/C (driving cycle), refer to OBD System Description.
P0602-P0721:
P0721-P0963:
P0963-P2764/U0073-U0140:
