Fail-Safe Table - ESP

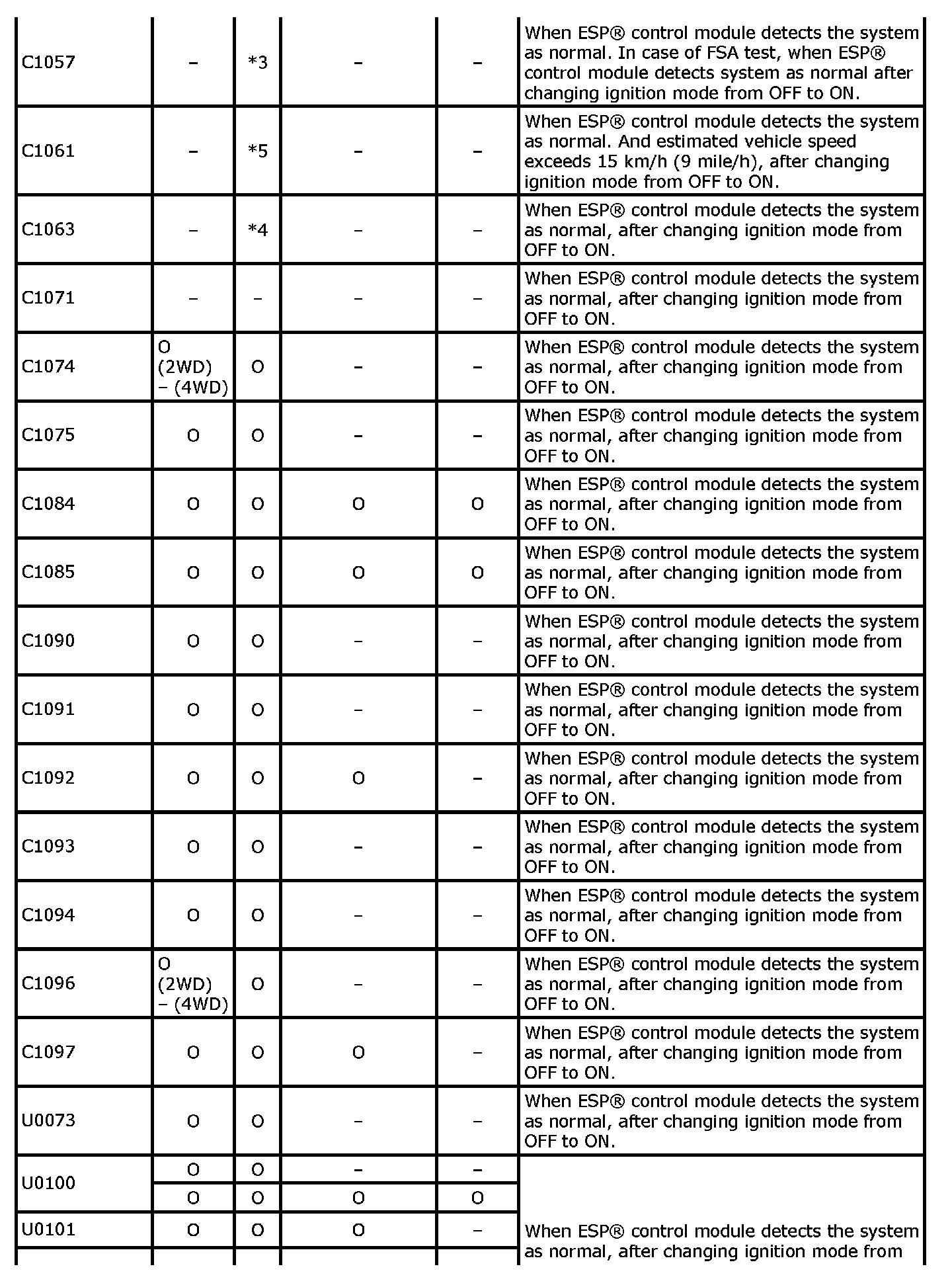

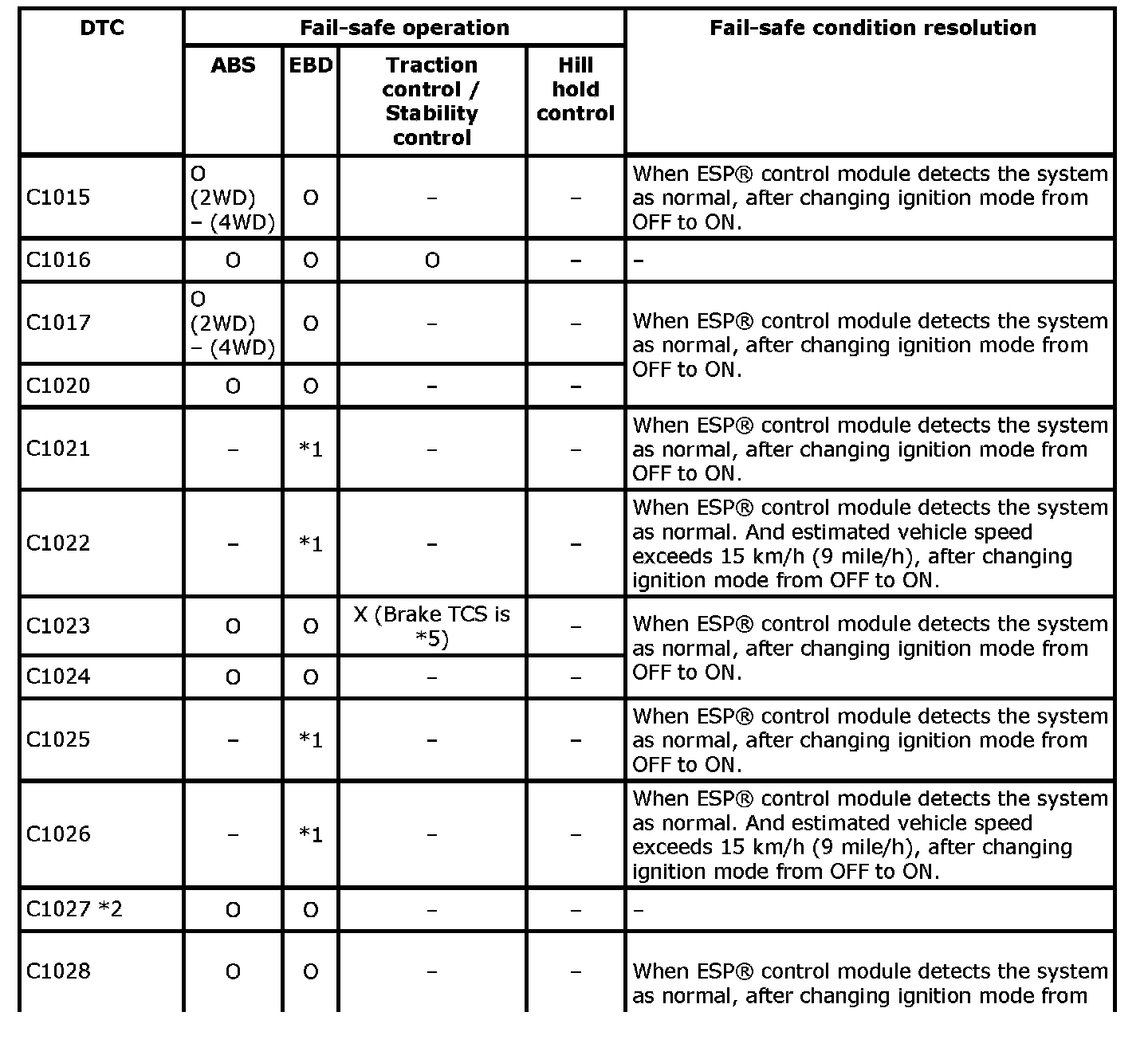

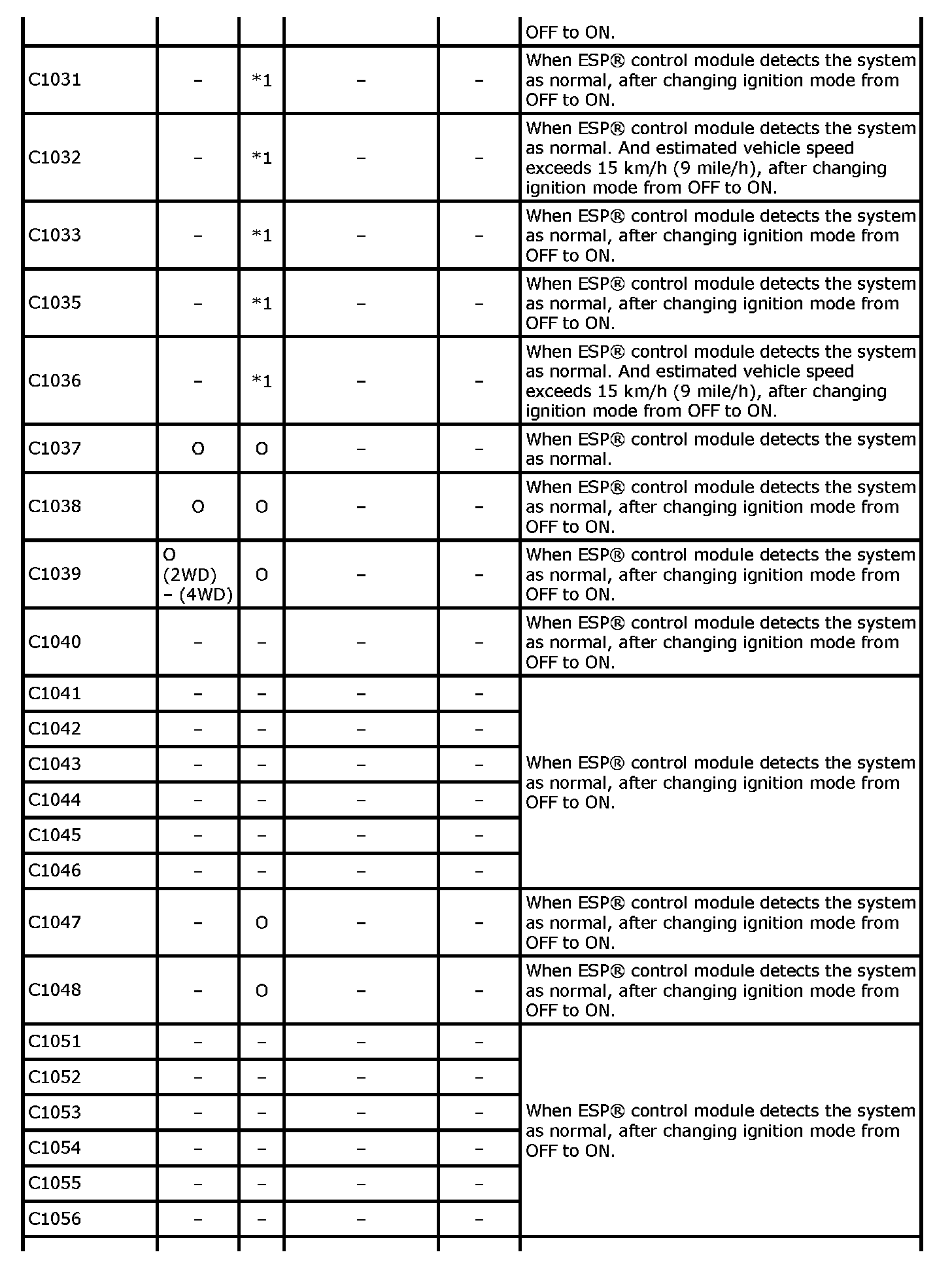

Fail-Safe TableWhen any of the following DTC(s) is detected, ESP(R) system is in fail-safe mode per its DTC and ABS, EBD, traction control, stability control are deactivated until the resolution is applied.
NOTE:
^ O: Activated
^ -: Deactivated
^ *1: If one or two wheel speed sensors are defective, EBD control function is activated. If three or more wheel speed sensors are defective, EBD control function is deactivated.
^ *2: ESP(R) OFF mode is canceled and all control functions are activated.
^ *3: EBD control function is activated only power supply circuit becomes 7.6 - 9.6 V malfunction.
^ *4: EBD control function is activated if solenoid valve keeps ON position. EBD control function is deactivated if solenoid valve keeps OFF position.
^ *5: Back up control
