Front Bumper: Service and Repair

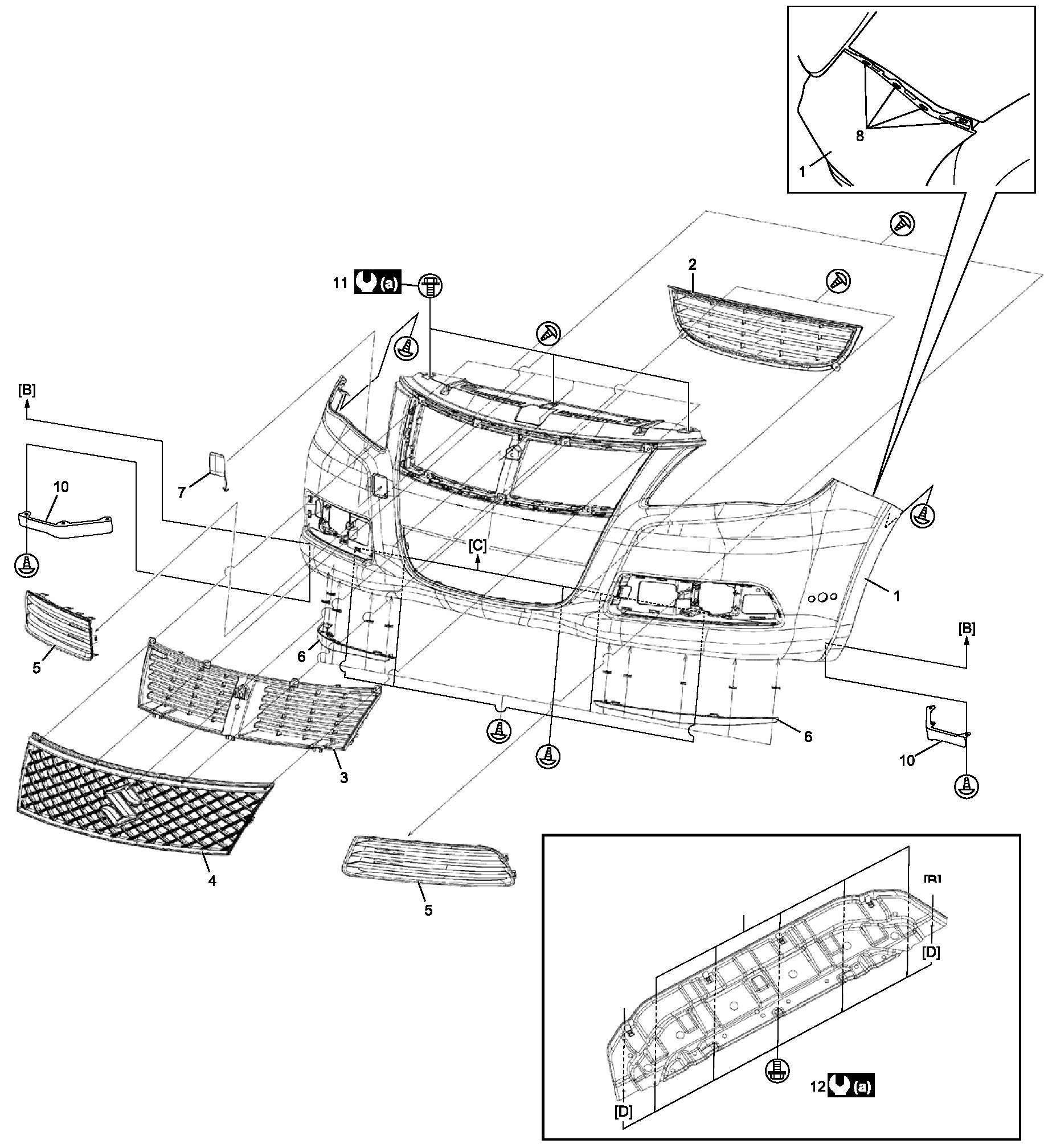

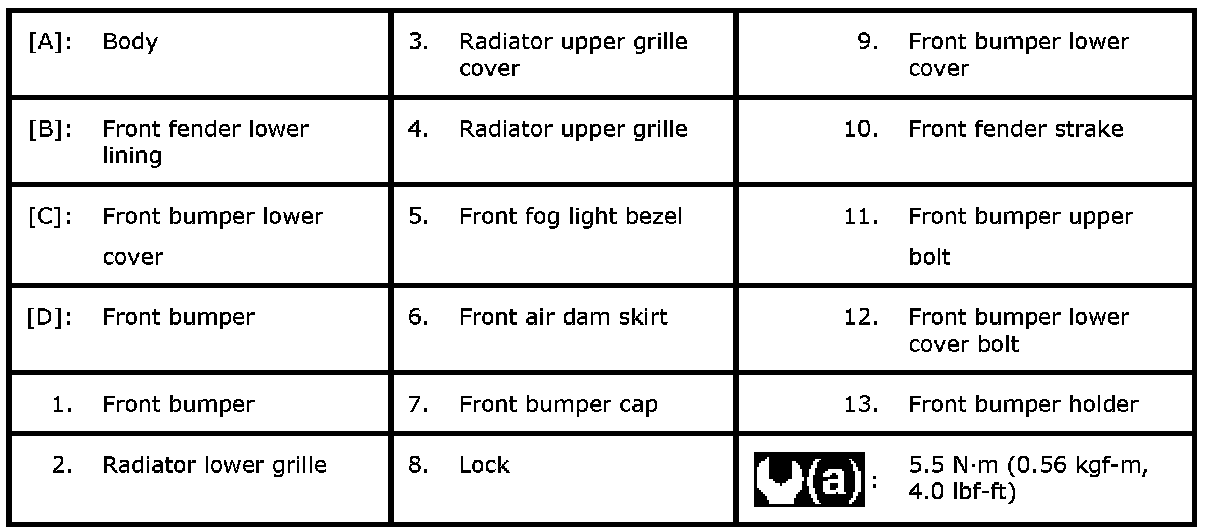

Front Bumper Removal And InstallationRemovalRemove parts referring to figure.
InstallationReverse removal procedure noting the following point.
-
Tighten front
bumper upper bolts and front bumper lower cover bolts to specified torque.
Tightening torque
Front
bumper upper bolt: 5.5 N.m (0.56 kg-m, 4.0 lbf-ft)
Front
bumper lower cover bolt: 5.5 N.m (0.56 kg-m, 4.0 lbf-ft)
