Door Lock Description
Door Lock Description -
Door lock system consists of
BCM, door lock actuators, power window master switch and power window sub switches.
-
Door lock system is controlled by
BCM.
-

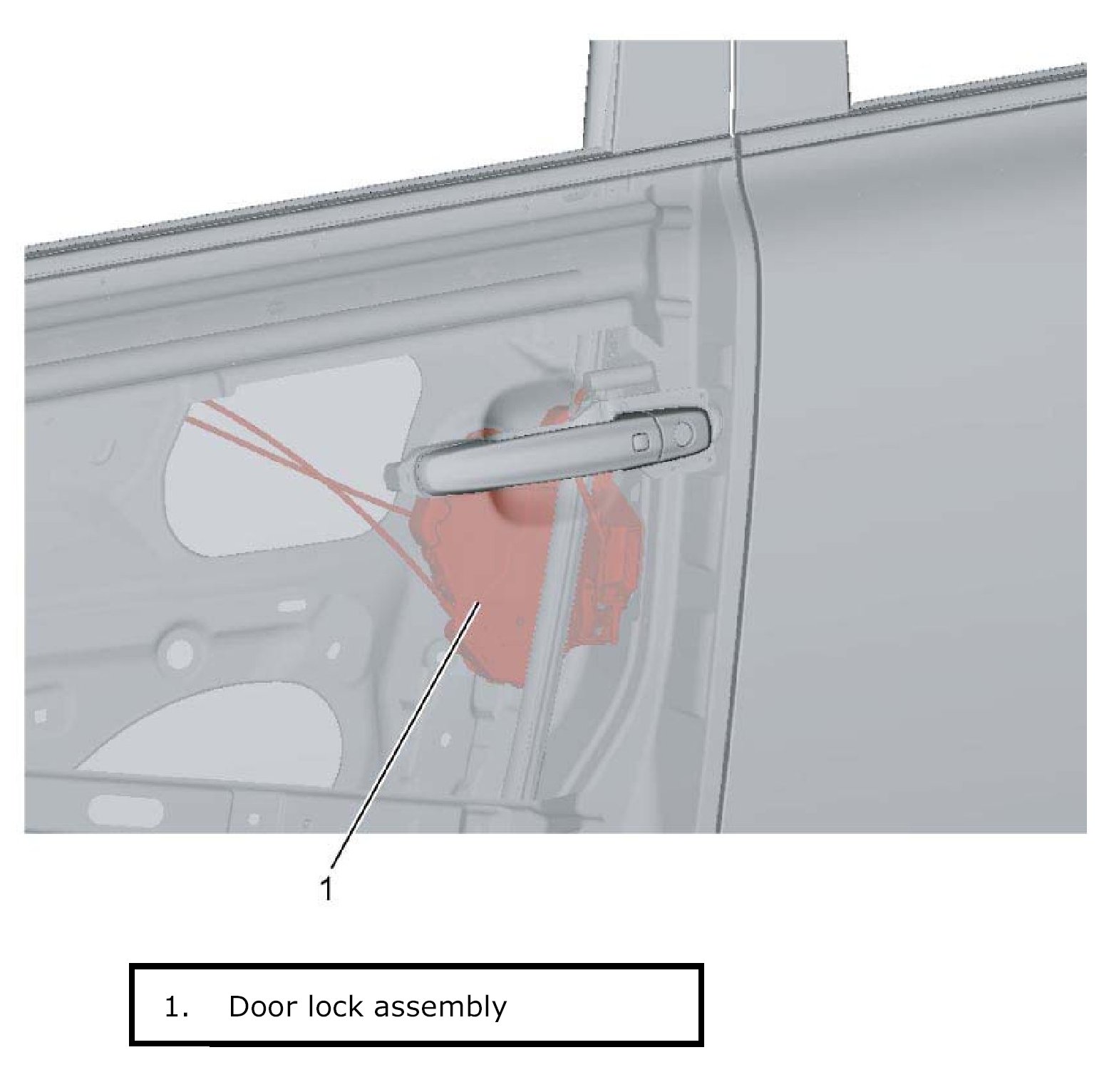

Door lock motor is integrated into latch mechanism. Driver's unit also integrates the door lock switch.
-
Door lock motor is all covered for antitheft purpose.
