ESP(R) Control Module Power Supply and Ground Circuit Check

ESP(R) Control Module Power Supply and Ground Circuit Check

Circuit Diagram








Circuit Description
When the ignition mode of keyless push start system is change to "ON", power is supplied to ESP(R) control module. Then power is supplied to pump motor and solenoid valve in other line by the switching function in ESP(R) control module.

Troubleshooting

Step 1-2:

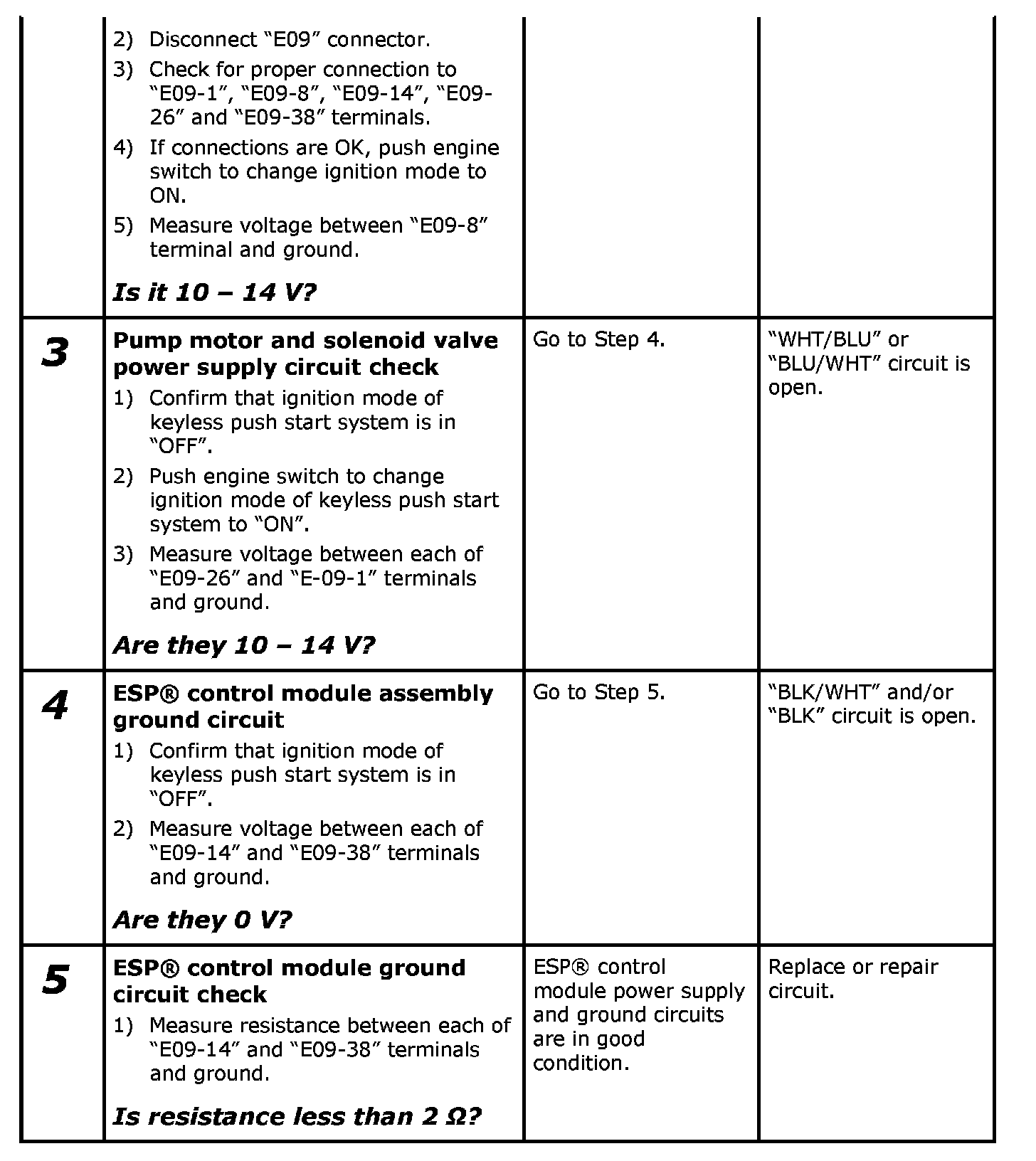

Step 2-5:
