Rear Wheel Speed Sensor Removal and Installation

Rear Wheel Speed Sensor Removal and Installation
Reference: Front and Rear Wheel Speed Sensor On-Vehicle Inspection

CAUTION:
Do not pull or twist wire harness strongly when removing or installing wheel speed sensor.

Removal
1) Disconnect negative (-) cable at battery.
2) Hoist vehicle a little and remove wheel.

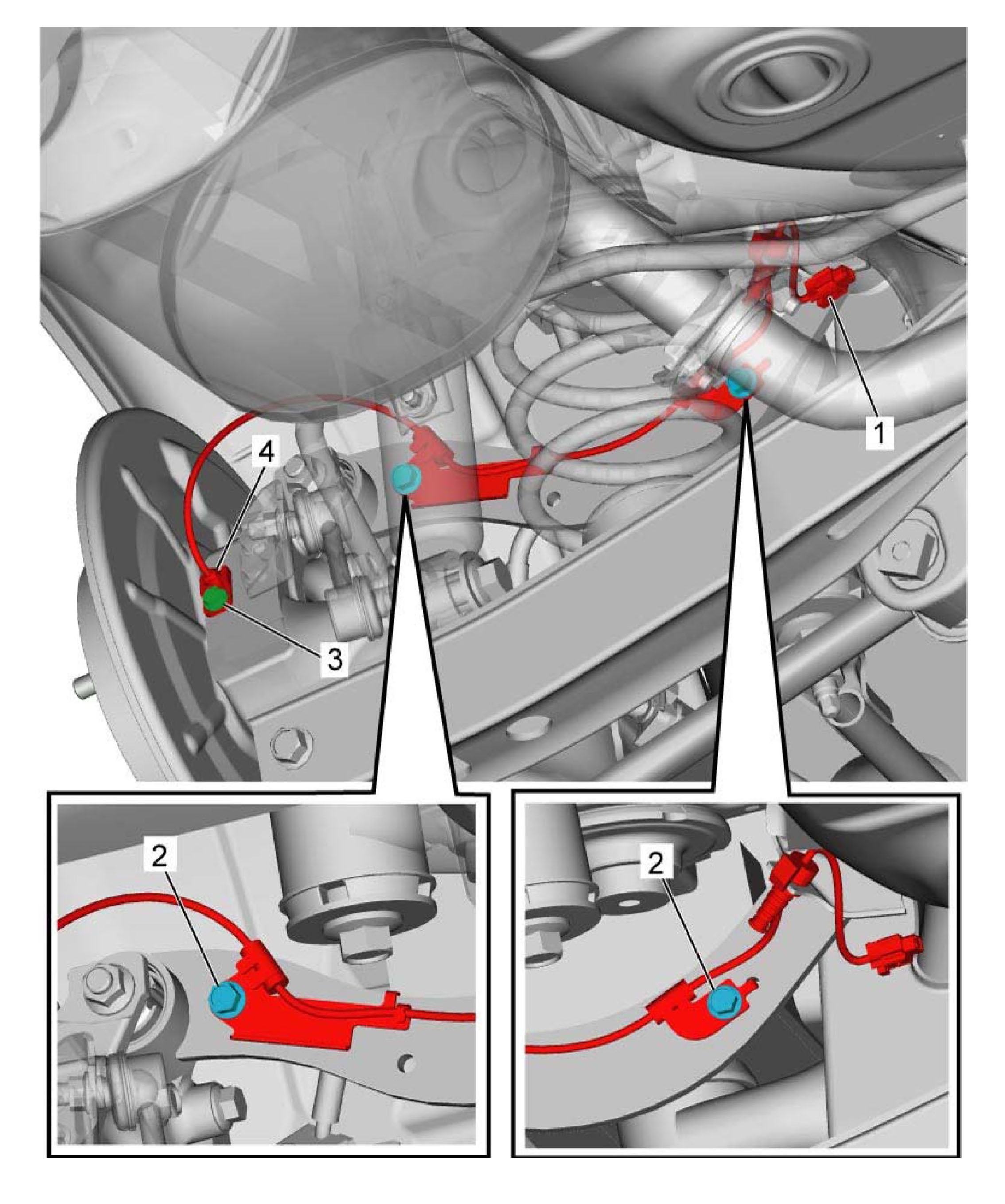

3) Disconnect rear wheel speed sensor connector (1).
4) Remove rear wheel speed sensor bracket bolt (2) and wheel speed sensor bolt (3).
5) Remove rear wheel speed sensor (4) from suspension knuckle.





Installation
Reference: Front and Rear Wheel Speed Sensor Inspection
Reverse removal procedure, noting the following points.
^ Check detective area is not covered with iron powder.
^ Tighten rear wheel speed sensor bolt (1) and rear wheel speed sensor bracket bolt (2) to specified torque.
Tightening torque
Rear wheel speed sensor bolt (a): 11 Nm (110 kg-m, 8.5 lbf-ft)
Rear wheel speed sensor bracket bolt (b): 25 Nm (250 kg-m, 18.5 lbf-ft)
^ Confirm that there is no space between rear wheel speed sensor (3) and suspension knuckle (4).











^ Install wheel.
