Intake Manifold Removal and Installation
Intake Manifold Removal and InstallationReference: Throttle Body and Intake Manifold Components
Removal
1) Disconnect negative (-) cable at battery.
2) Remove engine cover.
3) Remove throttle body assembly.
4) Remove engine cover bolt (1).

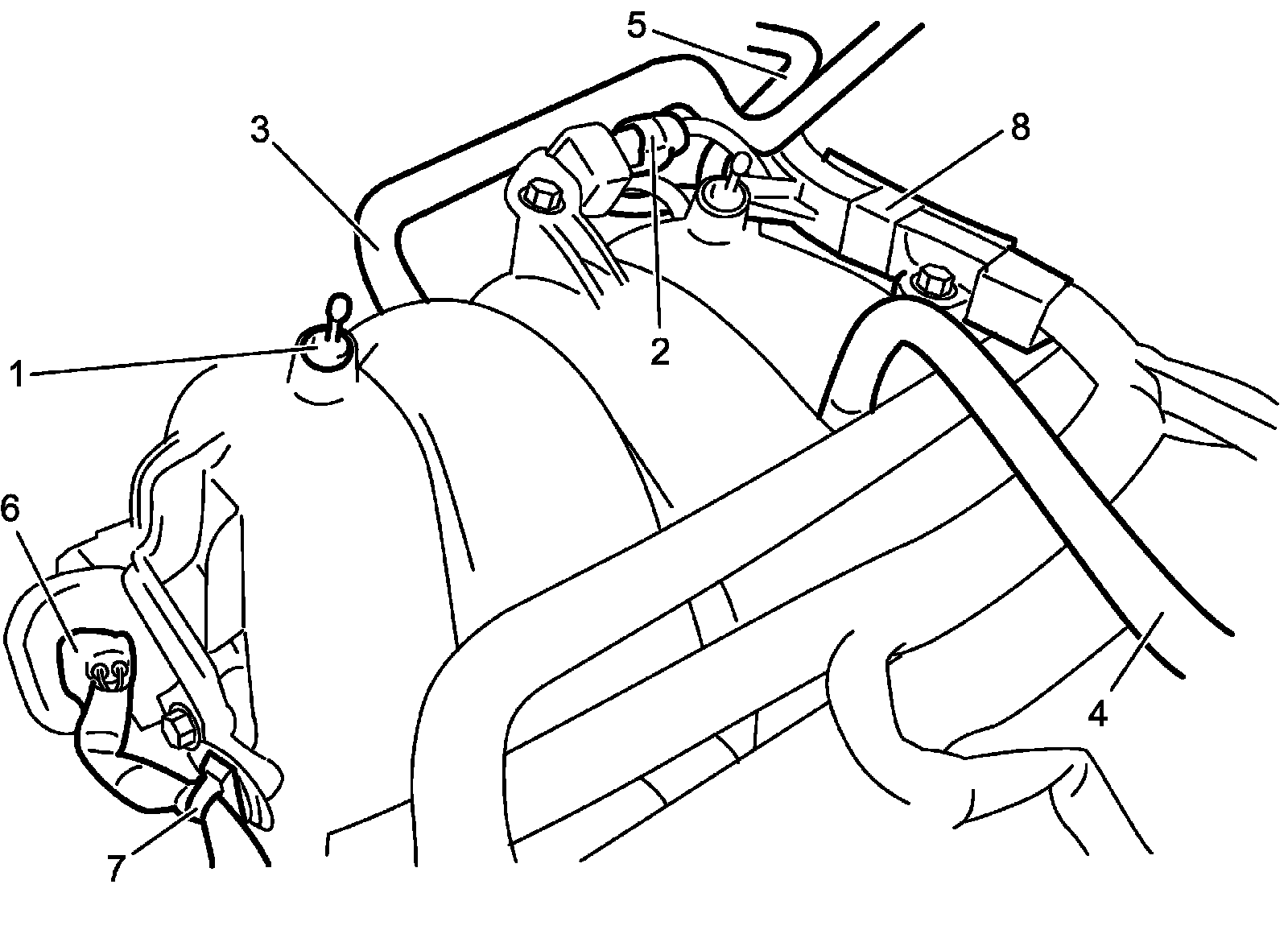

5) Disconnect the following connectors and hoses.
^ EVAP canister purge valve connector (2)
^ Brake booster hose (3)
^ PCV valve hose (4)
^ Purge hose (5)
^ IMT valve actuator connector (6)
^ IMT valve actuator clamp (7)
^ Engine harness bracket (8)

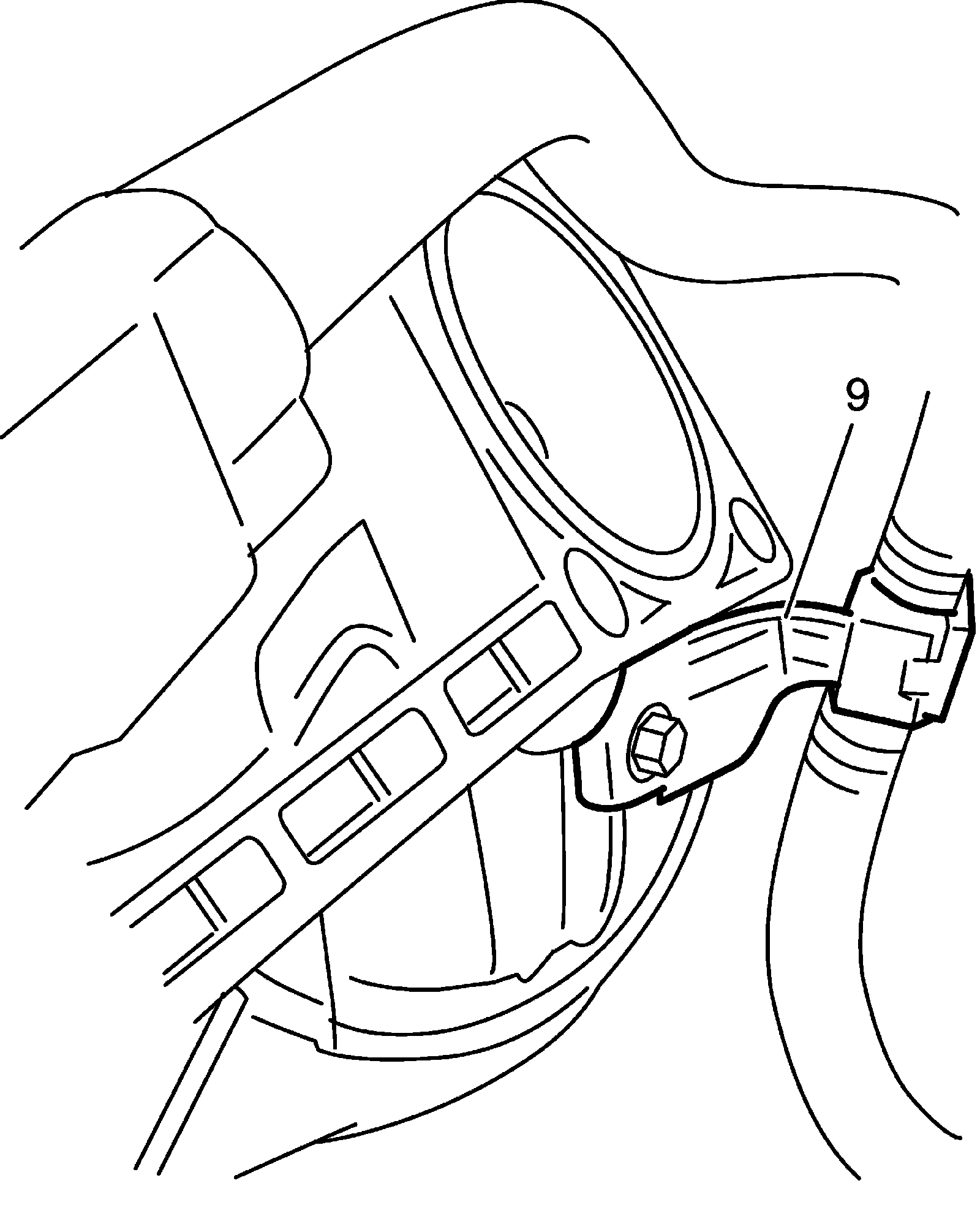

^ Engine harness clamp (Intake manifold lower side) (9)

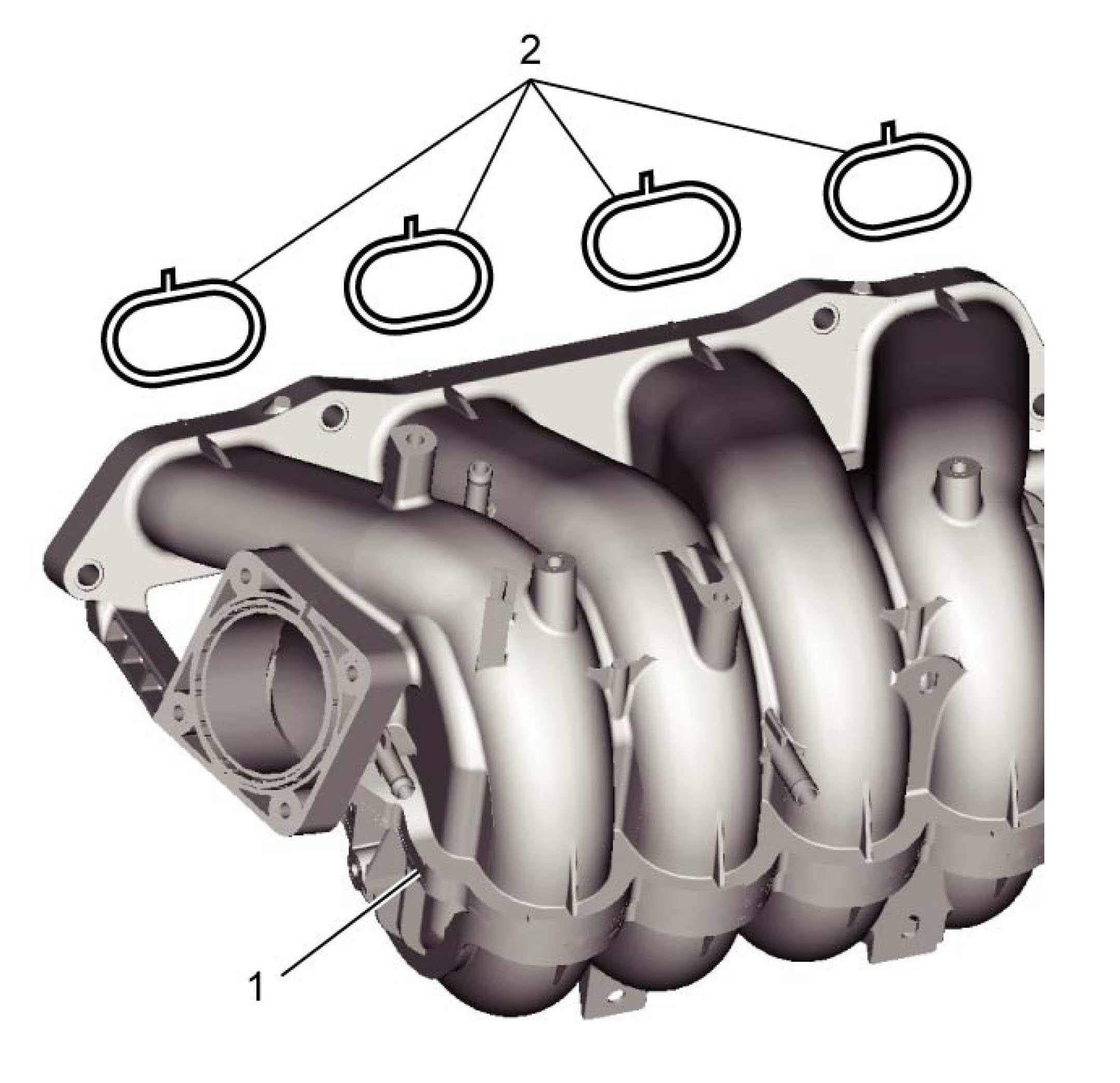

6) Remove intake manifold (1) and gasket (2) from cylinder head.
Installation
Reverse removal procedure for installation noting the following points:
^ Use New gaskets
^ The Intake manifold bolt No.1 (1) is not reusable so use a new one.
^ Refill cooling system.
^ Check for coolant leaks.
