Brake Light Switch Removal and Installation
Brake Light Switch Removal and Installation Removal 1)
Remove steering column hole cover.
2)
Disconnect
brake light switch connector.
3)
Remove

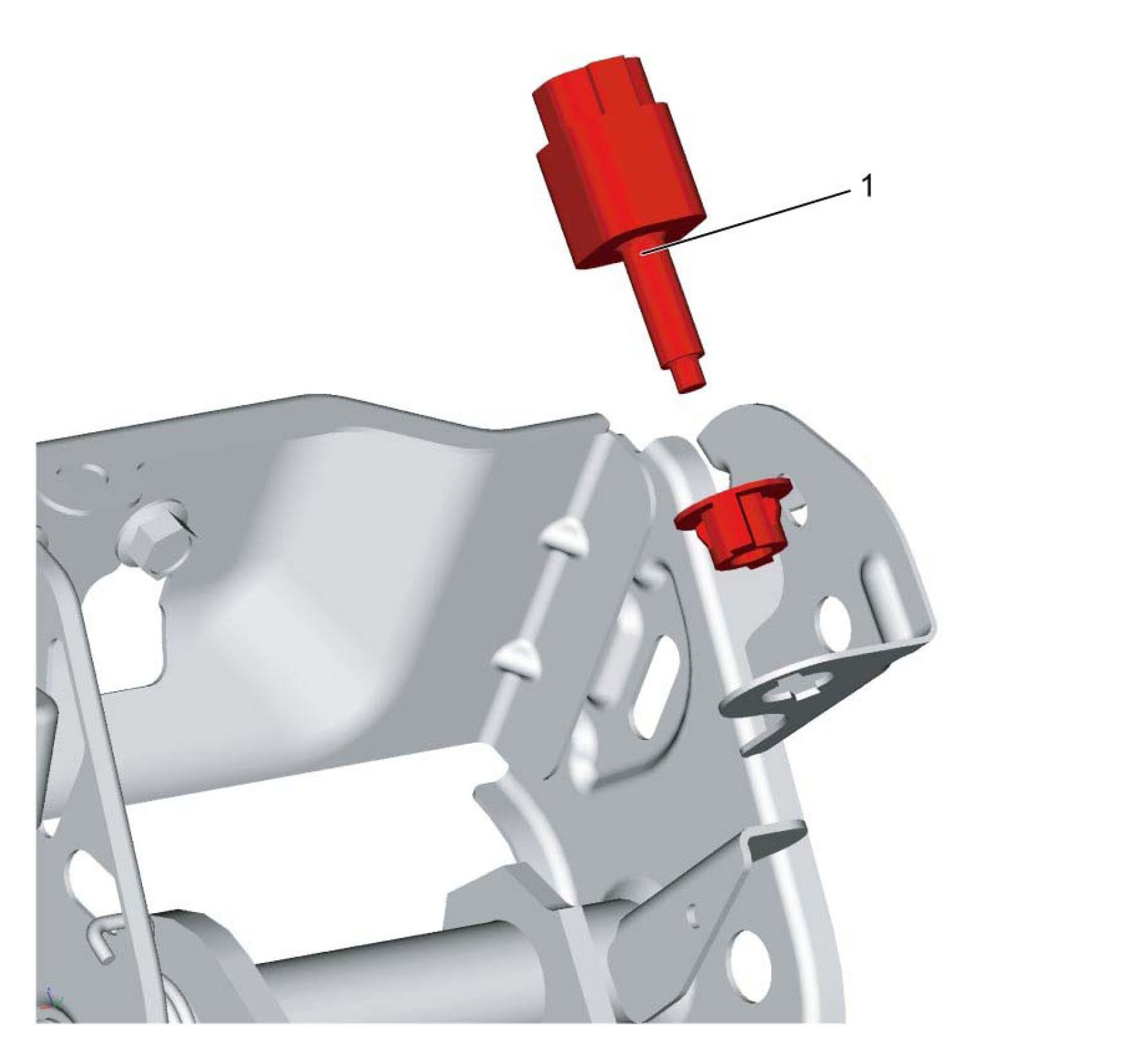

brake light switch (1) from brake pedal assembly.
Installation Reference:
Brake Light Switch Inspection
Reverse removal procedure, noting the following point.
^
Adjust
brake light switch.
