Horn: Service and Repair

Horn Removal and Installation

Removal

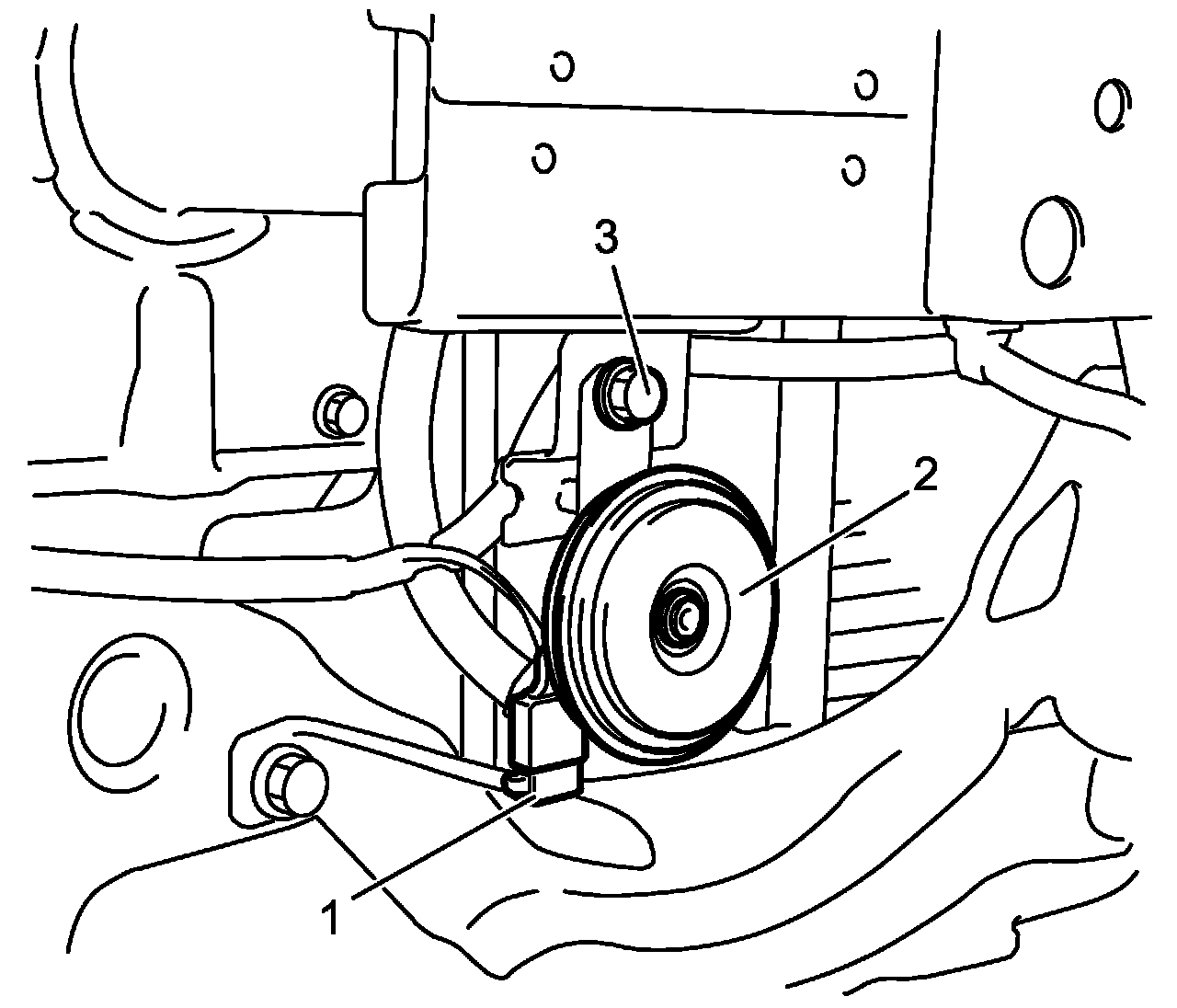

1. Remove front bumper.
2. Disconnect horn connector (1).
3. Remove horn bolt (3) and remove horn (2).

Installation
Reverse removal procedure, noting the following point.
- Tighten horn bolt to specified torque.

Tightening torque
Horn bolt: 10 N.m (1.0 kg-m, 7.5 lbf-ft)
