Horn: Testing and Inspection
Horn InspectionNOTE: Horn system can be checked by executing BCM active test "Horn operation" using SUZUKI scan tool.
1.

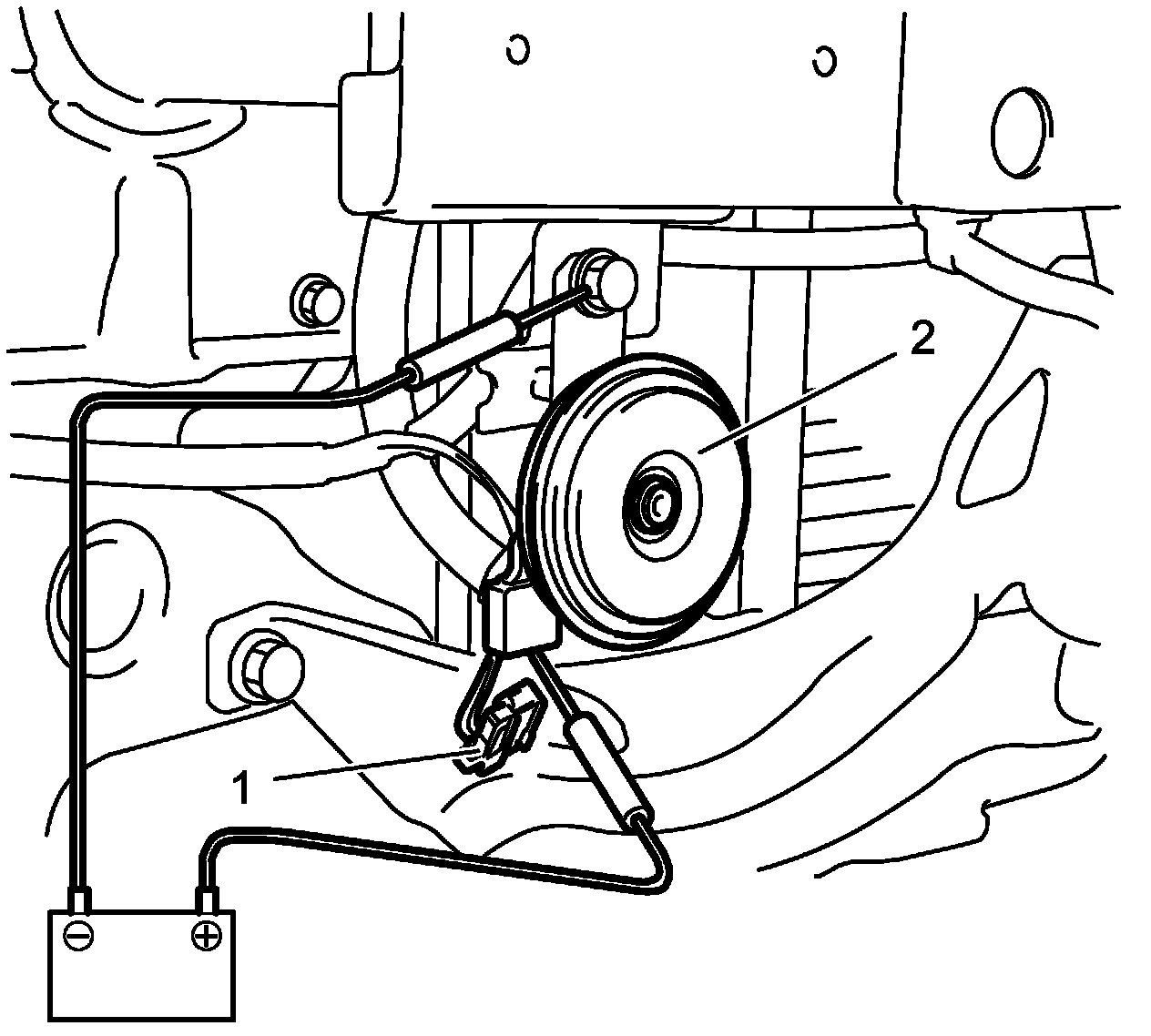

Disconnect
horn connector (1) from horn (2).
2.
Check that
horn sounds when horn connector is connected to battery positive (+) terminal and battery negative (-) terminal is connected to ground. Replace horn when it does not sound.
