License Plate Lamp: Service and Repair

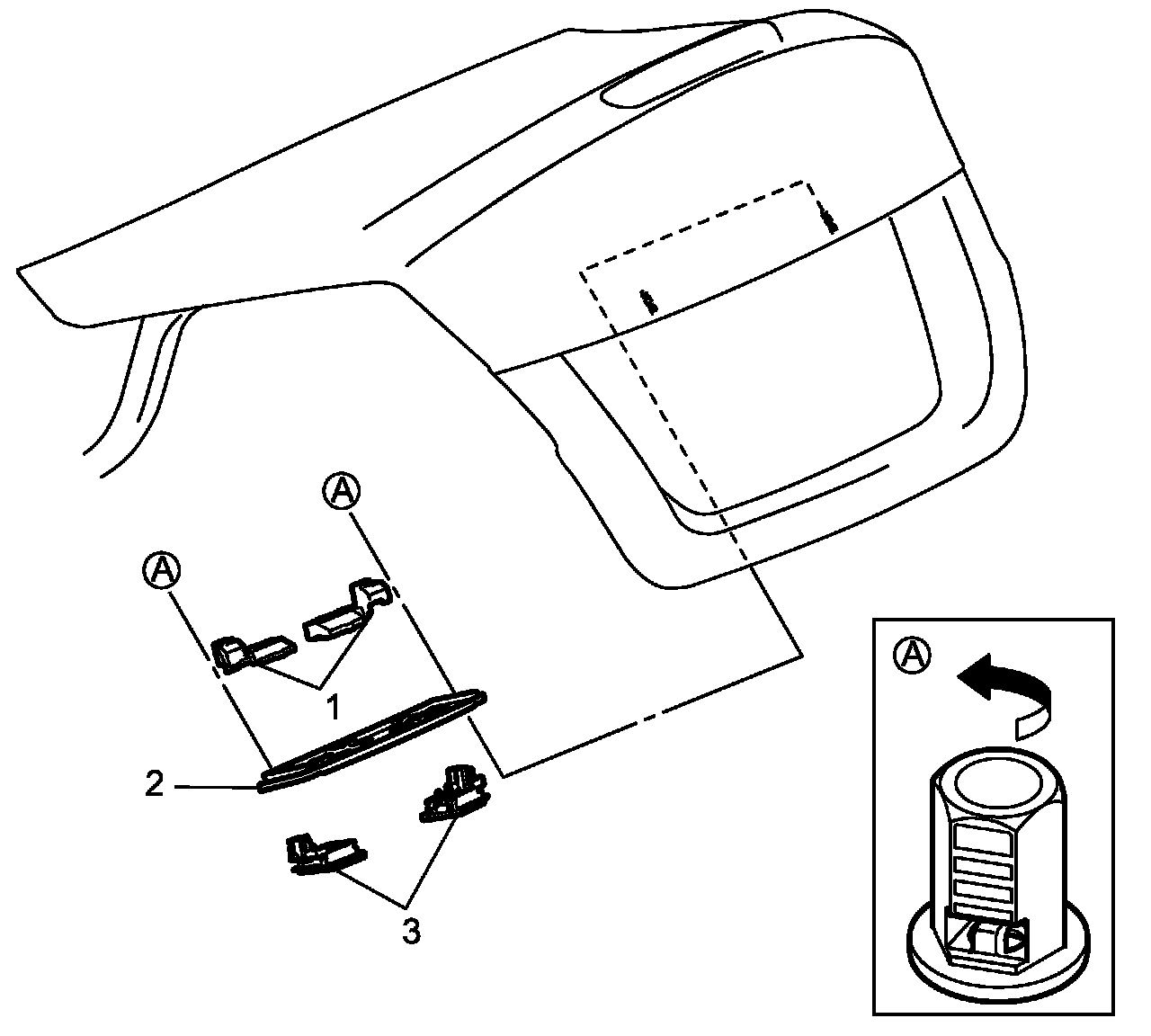

License Light Removal and InstallationRemoval 1.
Remove trunk lid trim.
2.
Remove trunk lid switch handle.
3.
Disconnect license light connector.
4.
Remove license light bracket clips, and remove license light bracket (2).
5.
Remove license light cover (1).
6.
Remove license light (3).
7.
Remove bulb.
InstallationReverse removal procedure.
