Ignition Coil: Service and Repair
Ignition Coil Assembly Removal and InstallationRemoval 1.
Disconnect negative (-) cable from battery.
2.
Remove engine cover.
3.

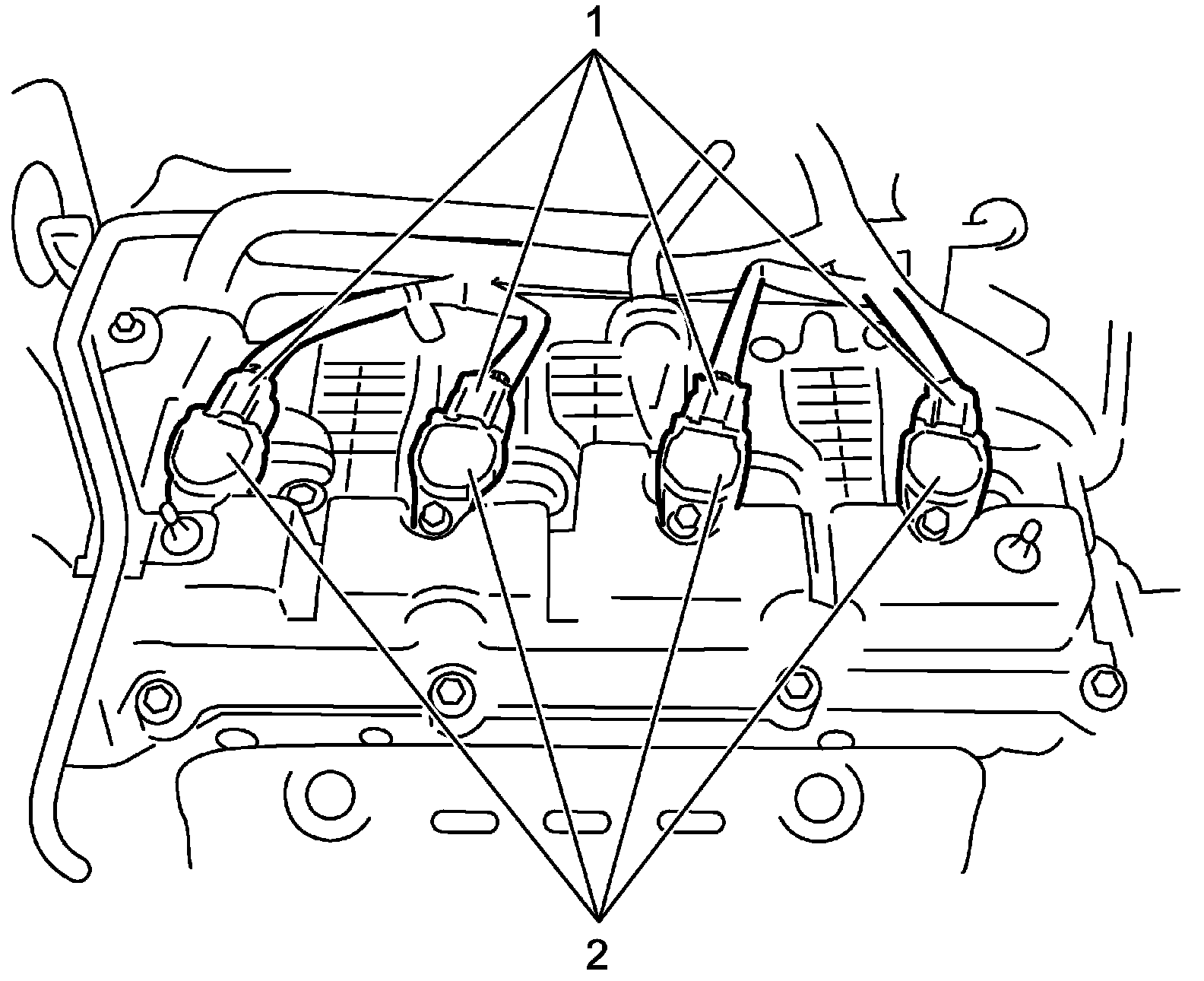

Disconnect
ignition coil connector (1).
4.
Remove
ignition coil assembly (2).
InstallationReverse removal procedure noting the following.
-
Tighten
ignition coil bolt to specified torque.
Tightening torque
Ignition coil bolt: 11 N.m (1.1 kg-m, 8.5 lbf-ft)
